4x6 45W Flush Mount Convex Lens High Low Beam LED Head Light Version 2
The SLL-5045 is a 4x6 inch flush mount LED headlight designed to replace original equipment headlights on off-road vehicles, trucks, and heavy machinery. It delivers 3150 effective lumens with a high-low beam option, ensuring visibility in both close and distant conditions. The die-cast aluminium housing with UV-resistant polyester powder coating and IP68 sealing ensures durability in rain, dust, and vibration. Built for 9–32V operation, it runs on both 12V and 24V systems without requiring a different part number.
- 3150 effective lumens with high-low beam option for both near and distant visibility
- Flush mount design fits original headlight housing without body modification
- IP68 sealing prevents water and dust ingress during pressure washing or off-road use
- 9–32V operating range supports both 12V and 24V vehicle systems with one part number
- 50,000 hour lifespan reduces replacement frequency on machines with long operating cycles
Where This Lamp Is Used
- Replacing original halogen headlights on off-road vehicles and utility trucks operating in wet or dusty conditions
- Fitting as a primary headlight on excavators and cranes used in night construction or mining operations
- Upgrading lighting on full-size SUVs and 4x4s used in remote or unlit terrain
- Installing on fleet vehicles that require consistent lighting across 12V and 24V platforms
- Mounting on engineering vehicles where vibration and exposure to weather degrade standard headlight assemblies
Who It Is For
- Machinery OEMs integrating a direct replacement headlight into new vehicle builds
- Fleet operators upgrading older vehicles with longer-lasting LED lighting
- Distributors sourcing a single model that works on both 12V and 24V systems
- 4x4 accessory brands developing a private label headlight with high beam versatility
- Equipment dealers fitting replacement headlights on machines with damaged or outdated lighting
Problems It Solves
- Original halogen headlights fail early under vibration and draw excessive current from the vehicle’s electrical system
- Non-sealed headlights fog up or fail after exposure to rain, mud, or pressure washing
- Inconsistent performance across 12V and 24V systems forces dealers to stock multiple part numbers
- Narrow beam patterns leave the immediate work zone in shadow while distant visibility is poor
- Painted metal housings degrade under UV exposure and salt spray, leading to corrosion
Technical Features

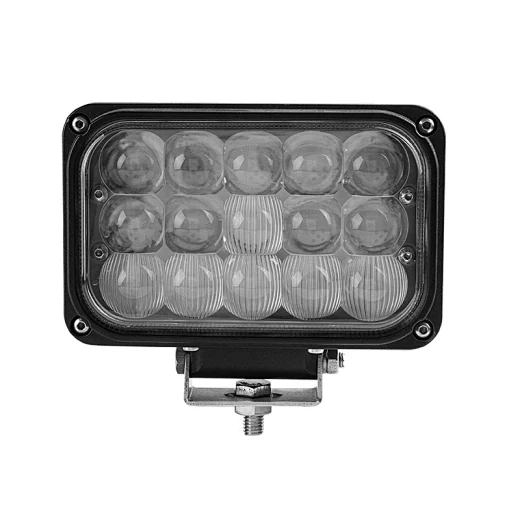

- 15 x 3W Bridgelux LEDs with a real power draw of 45W and 3150 effective lumens
- High-low beam option for flexible lighting in varied operating conditions
- Flush mount design fits original headlight housing without body modifications

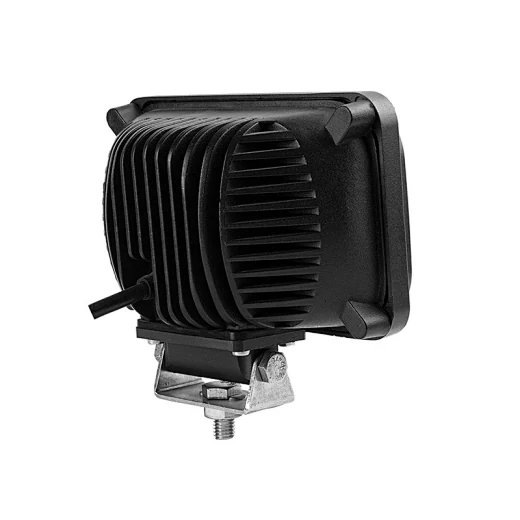

- Die-cast aluminium housing with durable UV-resistant polyester powder coating
- Polycarbonate lens with anti-reflective and scratch-resistant properties
- Overvoltage protection and overheat protection for electrical safety
- Operating temperature range of -40 to +60 degrees Celsius
- IP68 sealing for complete protection against water and dust ingress
- 9–32V DC input compatible with 12V and 24V vehicle systems
- Bare wire lead of 40cm standard, with connector options available on request
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-5045 |
|---|---|
| Size | 4x6 inch |
| Max Power | 45W |
| Real Power | 45W |
| LED | 15 pcs x 3W Bridgelux |
| Beam Pattern | High-Low Beam |
| Colour Temperature | 6000K |
| Operating Voltage | 9–32V DC |
| Housing Material | Die-cast aluminium, UV-resistant polyester powder coating |
| Lens Material | Durable polycarbonate |
| Mounting | Flush mount, direct replacement for original headlight |
| Waterproof Rating | IP68 |
| Operating Temperature | -40 to +60 degrees Celsius |
| Electrical Connection | Bare wire 40cm, connector options available |
| Certification | CE, RoHS |
| Protection | Overvoltage, overheat protection |
Materials Used
- Die-cast aluminium housing with UV-resistant polyester powder coating
- Durable polycarbonate lens with anti-reflective and scratch-resistant finish
- Bridgelux 3W LEDs with high lumen output and stable colour temperature
- Silicone rubber gasket and sealed cable entry for IP68 performance
- Internal circuit protection components for overvoltage and overheat safety
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating with UV-resistant polyester finish
LED board assembly with Bridgelux emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP68 rating before shipment
- Vibration testing on a vibration test machine to simulate machine-mounted service
- Salt spray corrosion testing on housing coating and internal components
- High and low temperature alternating humidity testing across the -40 to +60 degrees Celsius range
Customisation Options
- Deutsch DT connector instead of the standard 40cm bare wire lead
- Single beam option (high beam only or low beam only) instead of dual beam
- Private label logo on the housing and printed carton
- Alternative cable length to match a specific vehicle harness
- Mixed cartons combining this headlight with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Round 4 inch headlight | The 4x6 inch flat profile fits flush into standard headlight housings without protrusion |
|---|---|
| Single beam LED headlight | High-low beam option provides both close and distant visibility without needing two separate units |
| Larger 6x8 inch headlight | Lower output but fits in compact headlight housings where larger units will not clear |
How to Fit and Use It
- Verify the 4x6 inch flush mount dimensions match the original headlight housing before installation
- Leave a drip loop in the 40cm lead to prevent water from running into the gland
- Use the high beam for distant visibility and low beam for close work or oncoming traffic
- Clean the polycarbonate lens with water and a soft cloth only—avoid solvents that degrade the coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 9 to 32V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant, and carries IP68 sealing and overvoltage protection for reliable operation on public roads.
