4 Inch 24W Oval LED Work Light ECE R10

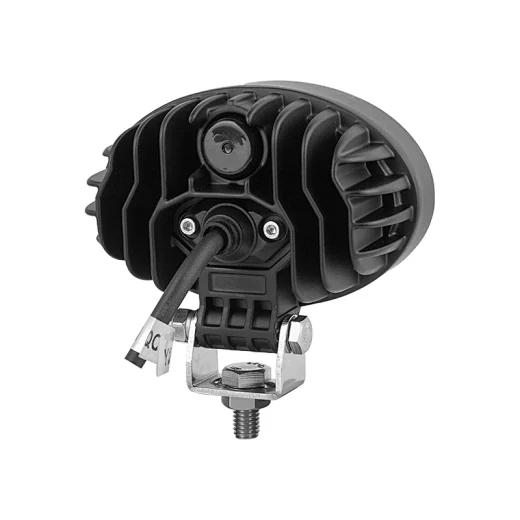

The SLL-0906-24 is a 4 inch oval LED work light designed for machines that operate in extreme conditions, including high vibration, dust, and water exposure. It delivers 1920 effective lumens using 24 x 1W Osram LEDs, providing even illumination across the work area without hot spots. The die-cast aluminium housing with UV-resistant polyester coating and IP68 sealing ensures long-term durability on forklifts, excavators, and off-road vehicles. ECE R10 and EMC CISPR 25 Class 3 compliance mean the light will not interfere with vehicle electronics during operation or fail an electrical inspection.
- 24 x 1W Osram LEDs deliver 1920 effective lumens for consistent visibility across the work zone
- IP68 sealing and a die-cast aluminium housing resist water, dust, and vibration in harsh environments
- ECE R10 and EMC CISPR 25 Class 3 compliance ensure no electromagnetic interference on road-going machines
- Overvoltage and overheat protection prevent damage from unstable vehicle electrical systems
- 9 to 32V DC operation allows use on both 12V and 24V vehicles without changing part numbers
Where This Lamp Is Used
- Front and side work lighting on forklifts operating in warehouses with high humidity and frequent washdowns
- Cab and boom lighting on excavators and engineering vehicles working in dusty or rainy conditions
- Auxiliary lighting on off-road vehicles and mining machinery where electrical stability is poor
- Night operation lighting on cranes and service trucks used in remote or unlit areas
- Mounting on the front of trucks and buses where vibration and exposure to weather are constant
Who It Is For
- Fleet operators replacing halogen lights that fail under vibration and draw excessive current
- Machinery OEMs integrating a single light model across 12V and 24V vehicle platforms
- Distributors needing a certified, durable work light with low maintenance for resale
- 4x4 accessory brands building a private label range with ECE R10 approval
- Equipment dealers fitting lights on machines that must pass road inspection in Europe
Problems It Solves
- Halogen work lights burn out quickly under vibration and draw more current than LED alternatives
- Cheap sealed lights allow water ingress through the cable gland and fog up after a few wash cycles
- Uncertified lights can fail EMC checks during vehicle homologation or road inspection
- Narrow beam lights create hot spots and leave the working edge of the machine in shadow
- Painted mild steel brackets corrode within weeks on machines exposed to salt or cleaning agents
Technical Features
- 24 x 1W Osram LEDs with a real power draw of 24W and a maximum rating of 24W
- Durable UV polyester powder coating over the full housing and bracket
- Bare wire lead of 40cm as standard with Deutsch connector available on request
- Overvoltage and overheat protection circuits built into the driver
- EMC protected wiring and an operating window of -40 to +85 degrees Celsius
- ECE R10 and CISPR 25 Class 3 compliance for electromagnetic compatibility
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-0906-24 |
|---|---|
| Max Power | 24W |
| Real Power | 24W |
| LED | 24 pcs x 1W Osram |
| Beam Pattern | Flood |
| Colour Temperature | 6000K |
| Operating Voltage | 9-32V DC |
| Lens Material | Anti-scratch PC |
| Waterproof Rating | IP68 |
| Operating Temperature | -40 to +85 degrees Celsius |
| Electrical Connection | Bare wire 40cm, Deutsch connector available |
| Certification | CE, RoHS, EMC, ECE R10, CISPR 25 Class 3, IP68 |
Materials Used
- Anti-scratch UV resistant polycarbonate lens
- Silicone rubber gasket and sealed cable entry gland
- UV polyester powder coating on the housing and bracket
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating with UV polyester finish
LED board assembly with Osram emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP68 rating before shipment
- Vibration testing on a vibration test machine to reproduce machine mounted service
- Salt spray corrosion testing on housing coating and stainless bracket
- High and low temperature alternating humidity testing across the -40 to +85 degrees Celsius window
Customisation Options
- Deutsch DT connector instead of the standard 40cm bare wire lead
- Alternative cable length for a specific machine harness
- Private label logo on the housing and printed carton
- Mixed cartons combining this lamp with other SUNLITEC models for trial orders
- Spot beam optics in place of the flood pattern on request
How It Compares With the Alternatives
| Round 4 inch work lamp | The oval body fits better on curved machine surfaces and uses the same mounting footprint as a round lamp |
|---|---|
| Spot beam version of the same lamp | Flood covers the near working area evenly while spot reaches further ahead but leaves the machine edges dark |
| Larger 6 inch work lamp | Lower output but fits tight spaces where a 6 inch body will not clear |
How to Fit and Use It
- Leave a drip loop in the 40cm lead so water runs away from the gland rather than into it
- Aim the flood beam at the working area close to the machine and use a spot lamp separately for distance
- Clean the PC lens with water and a soft cloth only, since solvents will haze the anti-scratch coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 9 to 32V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant and carries ECE R10 and CISPR 25 Class 3 approval for electromagnetic compatibility.
