12 Volt LED Scene Lights

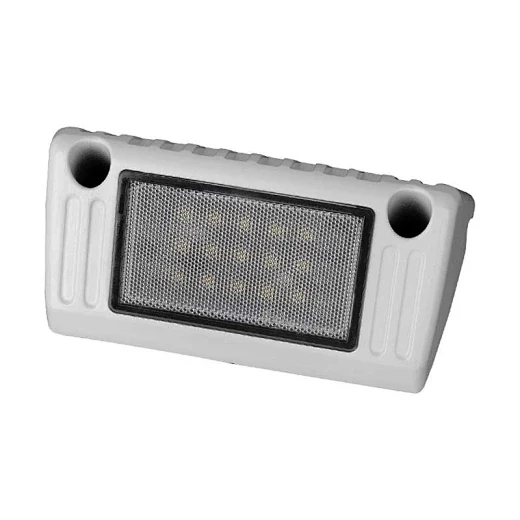

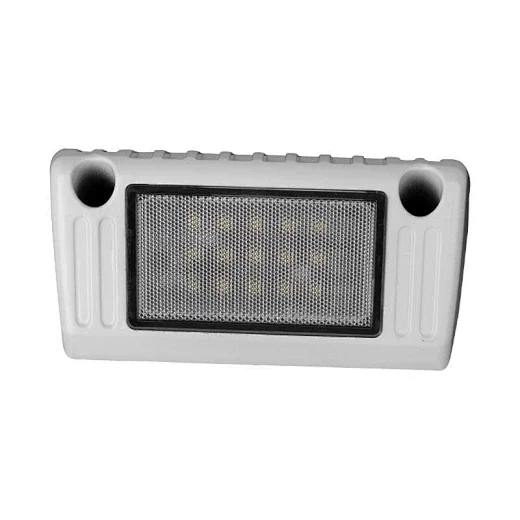

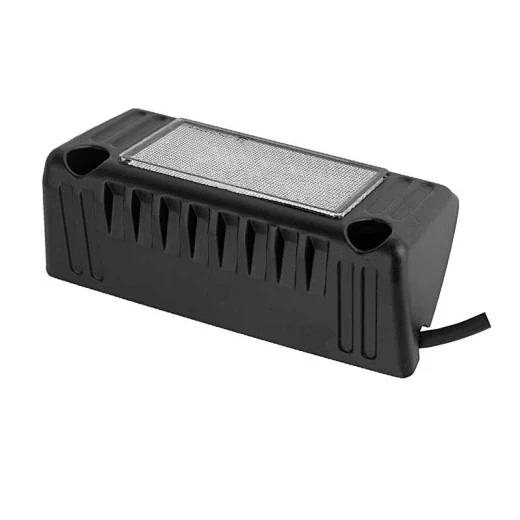

The SLL-13X-15 is a 5 inch 15W LED scene light designed for RVs, toy haulers, tractor-trailers and fire trucks that need reliable ambient lighting in all weather. Sixteen 1W Osram LEDs deliver 1200 effective lumens in a wide flood beam pattern, illuminating the entire undercarriage or interior space without glare. The die-cast aluminium housing and polycarbonate lens are rated IP67 and operate reliably from -40 to +85 degrees Celsius, so the light stays functional during winter snow and summer desert heat. Overvoltage and overheat protection prevent damage from electrical faults common in mobile systems.
- IP67 sealing and a durable UV polyester powder coating resist dust, water and salt spray
- Operates from -40 to +85 degrees Celsius, suitable for extreme cold and hot environments
- Overvoltage and overheat protection prevent damage from electrical spikes and poor wiring
- 9 to 32V DC input runs on 12V and 24V systems without a voltage regulator
- Die-cast aluminium housing with a semi-gloss black finish resists dents and corrosion
Where This Lamp Is Used
- Undercarriage lighting on RVs and toy haulers for night access and safety
- Interior ambient lighting on fire trucks and emergency vehicles during night operations
- Side panel lighting on tractor-trailers for loading and inspection at night
- Roof and deck lighting on mobile command units and service vehicles
- Exterior scene lighting on off-road vehicles used in remote or harsh climates
Who It Is For
- Distributors of RV lighting needing one part number for 12V and 24V systems
- OEMs fitting scene lights on new RVs and mobile units with consistent mounting patterns
- Fleet operators replacing halogen scene lights that fail under vibration or heat
- 4x4 accessory brands building a private label lighting range for recreational vehicles
Problems It Solves
- Halogen scene lights burn out quickly under vibration and draw more current than LED
- Cheap plastic lights crack or yellow under UV exposure and fail in extreme temperatures
- Lights with no overvoltage protection can be destroyed by alternator spikes in mobile systems
- Narrow beam lights create hot spots and leave the rest of the area dark
- Lights with poor sealing let water in during wash cycles and short circuit
Technical Features
- Sixteen 1W Osram LEDs with a real power draw of 15W and 15W maximum rating
- Semi-gloss black UV polyester powder coating over the full housing
- Bare wire lead of 40cm as standard with a Deutsch connector available on request
- Overvoltage and overheat protection built into the driver circuit
- Operating window of -40 to +85 degrees Celsius for extreme climate use
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-13X-15 |
|---|---|
| Max Power | 15W |
| Real Power | 15W |
| Effective Lumen | 1200 lm |
| Beam Pattern | Flood |
| Colour Temperature | 6000K |
| Operating Voltage | 9-32V DC |
| Lens Material | Anti-scratch PC |
| Bracket Material | Die-cast aluminium |
| Waterproof Rating | IP67 |
| Operating Temperature | -40 to +85 degrees Celsius |
| Electrical Connection | Bare wire 40cm, Deutsch connector available |
| Certification | CE, RoHS |
Materials Used
- Anti-scratch UV resistant polycarbonate lens
- UV polyester powder coating on the housing
- Silicone rubber gasket and sealed cable entry gland
- Semi-gloss black powder coated bracket
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating in semi-gloss black with UV protection
LED board assembly with Osram emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP67 rating before shipment
- Vibration testing on a vibration test machine to reproduce mobile service
- Salt spray corrosion testing on housing coating and bracket
- High and low temperature alternating humidity testing across the -40 to +85 degrees Celsius window
Customisation Options
- Deutsch DT connector instead of the standard 40cm bare wire lead
- Spot beam optics in place of the flood pattern
- Private label logo on the housing and printed carton
- Alternative cable length for a specific vehicle harness
- Mixed cartons combining this lamp with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Round 5 inch scene light | The square body puts more LED area behind the same mounting footprint but needs a flat surface for the bottom bracket |
|---|---|
| Spot beam version of the same lamp | Flood covers the near working area evenly while spot reaches further ahead but leaves the machine edges dark |
| Larger 6 inch scene light | Lower output but fits guard rails and cab pillars where a 6 inch body will not clear |
How to Fit and Use It
- Leave a drip loop in the 40cm lead so water runs away from the gland rather than into it
- Aim the flood beam at the area to be illuminated and use a spot lamp separately for distance
- Clean the PC lens with water and a soft cloth only, since solvents will haze the anti-scratch coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 9 to 32V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant and carries IP67 sealing for dust and water resistance.
