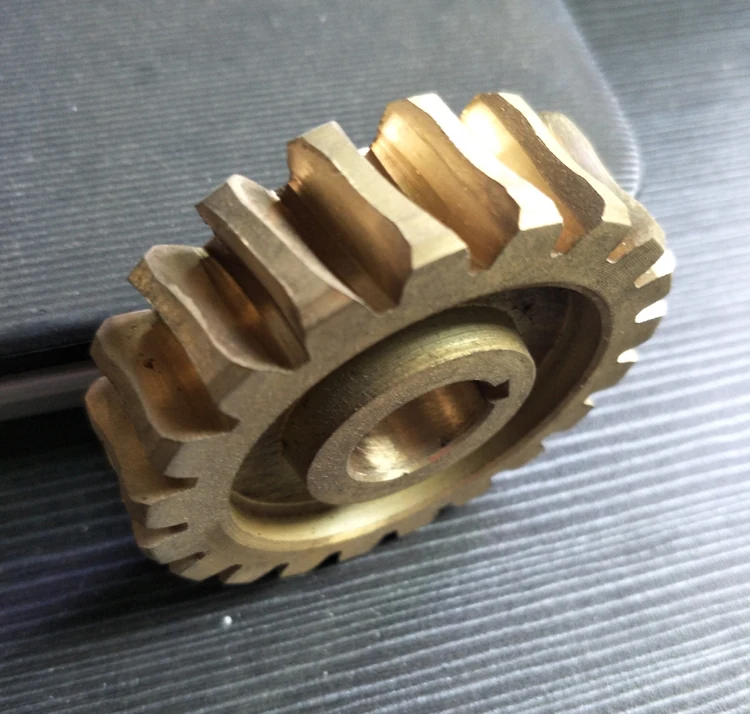

Snow Blower Copper Worm Gear 19mm ID 70mm OD 20 Teeth
This is the copper worm gear from the auger gear case of a two stage snow blower, sized 19mm ID by 70mm OD by 18mm thick with 20 teeth, and it is bought by service workshops, dealers and importers who repair gear cases rather than replace whole machines. The copper gear is the sacrificial part in the drive: it is deliberately softer than the steel worm so that a jam in the auger strips the gear instead of breaking the shaft or the housing. A stripped gear means the auger stops turning while the engine still runs, which is the most common reason a snow blower comes into a workshop mid season. The matching worm measures 22*149mm, so the pair can be ordered together and the gear case rebuilt in one go.
- All four dimensions published, 19mm ID, 70mm OD, 18mm thickness and 20 teeth, so fitment is checked before you order
- Matching 22*149mm worm available so a stripped gear set is replaced as a pair rather than mismatched
- Rebuilding the gear case is far cheaper than condemning the machine at the end of its first season
- Held as a shelf spare, it turns a stripped gear into a same day workshop repair
- Ordered alongside the rest of the snow blower accessory range in one consolidated shipment
- Single piece sample orders accepted so a workshop can trial fit before buying volume
Product Gallery
Specifications
| Part Type | Copper gear |
|---|---|
| ID | 19mm |
| OD | 70mm |
| Thickness | 18mm |
| Number of Teeth | 20 |
| Worm Size | 22*149mm |
Figures as supplied by the factory. Confirm critical dimensions in writing before ordering.
Application Scenarios
- Dealer workshops rebuilding auger gear cases after a jam has stripped the gear
- Rental fleets servicing machines that meet buried obstacles on unfamiliar sites
- Municipal depots holding a gear and worm set per machine type through the winter
- Importers adding a spares carton to a container of complete machines
- Independent repair shops servicing mixed brand snow equipment
Who It Is For
- Snow equipment dealers and service workshops
- Importers and distributors of snow blower spare parts
- Equipment rental and hire fleets
- Municipal and facility maintenance departments
- Independent small engine repair businesses
Problems It Solves
- A stripped worm gear leaves the auger dead while the engine still runs, and the machine is unusable
- Sourcing an odd gear size mid season often means a long wait through an OEM parts channel
- Fitting a gear without checking tooth count and bore leads to rapid re failure
- Replacing a gear without the matching worm leaves a worn pairing that strips again
- Scrapping machines over a single gear destroys the margin on a rental or dealer fleet
Technical Features
- Copper worm gear with 20 teeth for the snow blower auger gear case
- 19mm inner diameter bore to suit the auger shaft
- 70mm outer diameter and 18mm thickness
- Matching worm supplied at 22*149mm
- Part of a complete snow blower accessory range
Materials
- Copper gear body
Quality Control
- Incoming inspection on gear blanks before machining
- In process checks on bore, outer diameter, thickness and tooth form
- 100% inspection of finished gears before packing
- Full order inspection before shipment with real time production status shared with the buyer
Customization Options
- OEM and ODM production to buyer drawings and specification
- Buyer branding on the part packaging
- Gear and worm supplied as a matched set or as separate lines
- Retail box or bulk carton packing to suit the sales channel
How It Compares
Against Replacing the complete gear case assembly
Changing only the copper gear is a smaller part to ship, store and fit, and it suits a workshop that is already opening the case.
Against A steel gear of the same size
The copper gear is intended to be the softer part in the pair so that a jam sacrifices the gear rather than the worm or the auger shaft.
Against Buying spares through the machine's original dealer chain
Buying direct lets you hold your own stock at manufacturer pricing, which is what keeps a repair inside the same working day.
Use Guide
- Confirm the bore, outer diameter, thickness and tooth count against 19mm, 70mm, 18mm and 20 teeth before ordering
- Stop the engine and disconnect the spark plug lead before opening the gear case
- Inspect the 22*149mm worm for wear at the same time and replace both if the tooth faces are marked
- Refill the gear case with the correct grease or oil before closing it
- Turn the auger by hand through a full revolution to check engagement before restarting
Snow blower parts-copper gear Buyer Questions
What is the minimum order quantity?
One 20ft container is the standard MOQ, but a single piece sample order is accepted so you can check fitment first.
How long is the lead time?
25 to 35 days for a full 40HQ container. A sample order ships in 1 to 7 days.
What are the exact dimensions of the gear?
19mm inner diameter, 70mm outer diameter, 18mm thickness and 20 teeth. The matching worm is 22*149mm.
Can I order the worm and the gear together?
Yes. Both are part of the same accessory range and can be shipped in the same order.
Do you supply the rest of the snow blower parts range?
Yes. SONJUN offers the full accessory range for snow blowers, so gears, belts, pins and wheels can be consolidated into one order.
Can parts be supplied under our own brand?
Yes. OEM and ODM production is available, including buyer branding and packaging artwork.
What payment methods do you accept?
Western Union, PayPal or T/T, depending on the order quantity.
