Up and Down Pendant Light With Gesture Dimming SD2126-RS RM RL
Up and down pendant in three sizes with gesture dimming, 25 W to 55 W
Chandeliers and Pendant Lights
Product Overview

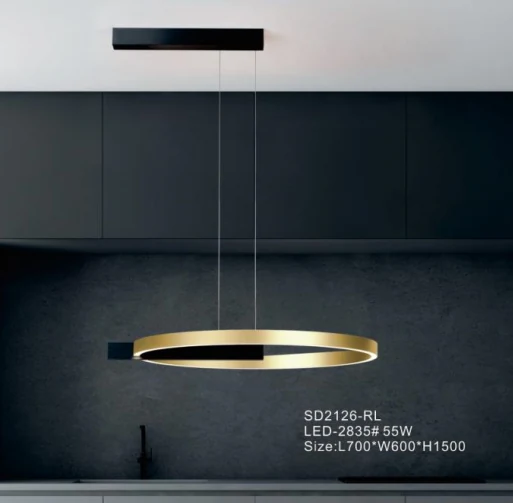

SD2126 emits both upward and downward from a slim aluminium body with a high quality silicone diffuser, and it is dimmed by gesture rather than by a wall dimmer. Three sizes are available, from 360 x 280 mm at 25 W to 700 x 600 mm at 55 W, all on a 1500 mm drop. Because the dimming is built into the fixture, it can be retrofitted onto an existing switched circuit with no dimming wiring.
| Material | Aluminium + high quality silicone diffuser |
|---|---|
| Product Size | SD2126-RS L360*W280*H1500mm / SD2126-RM L480*W400*H1500mm / SD2126-RL L700*W600*H1500mm |
| Available Colours | Matt black/ Matt white / Rose Gold |
| LED Colour Temperature | 3000K/4000K/6000K |
| LED and Driver | Epistar SMD2835 + Eaglerise driver 25W/38W/55W |
| Product Weight | 1 KG/1.5KG/ 2KG |
| Packaging | Single packaging per piece |
| Production Time | 20 days or less |
| Delivery Time | Based on the mode of shipping chosen |
Key Benefits
What You Get From This Model
- Gesture dimming works on a plain switched circuit, so no dimmer module or extra wiring is needed
- Up and down output lifts the ceiling and lights the table from one fixture
- Three sizes on one design, from 1 kg to 2 kg, cover rooms of different scale
- Matt black, matt white and rose gold across all three sizes
- Silicone diffuser keeps the upward and downward faces even with no visible diodes
Problems It Solves
What It Fixes On Site
- Adding dimming to an existing installation means new control wiring
- Downward-only pendants leave the ceiling dark and the room feeling low
- Wall dimmers are one more thing for a hotel guest to find and get wrong
Application Scenarios
Where This Model Is Installed
- Dining tables where guests change the light level during a meal
- Home offices switching between screen work and reading
- Hotel suites where guests should not have to find a dimmer plate
- Meeting rooms with presentations and paperwork in the same session
Who It Is For
Buyers Who Specify It
- Hospitality buyers who want dimming without specifying a control system
- Retrofit contractors working on existing switched circuits
- Distributors who need a differentiated pendant in a crowded ring market
Technical Features
How It Is Built
- Three sizes: RS 360 x 280 mm, RM 480 x 400 mm, RL 700 x 600 mm, drop 1500 mm
- Up and down light output from one body
- Gesture dimming control built into the fixture
- Epistar SMD2835 with Eaglerise driver, 25 W, 38 W and 55 W by size
- Weights 1 kg, 1.5 kg and 2 kg by size
Quality Control
What We Check Before It Ships
- Raw material selection checked before processing
- In process checks during assembly and wiring
- Every fixture powered and inspected before packing
- Packing verified by drop test before a run ships
Customisation Options
What Can Be Changed To Order
- Colour temperature selected per line item: 3000K, 4000K or 6000K
- Body colour sprayed to order outside the standard finishes
- Suspension drop cut at the factory when the measured ceiling height is supplied
- Private label cartons and labelling agreed at order stage
Certification documents beyond our export certificate are supplied on request against the destination market. We do not publish claims we cannot evidence.
Use Guide
Installing And Living With It
- Wire to a normal switched live, no dimmer module is required
- Leave at least 300 mm between the top of the fixture and the ceiling so the upward light can spread
- Give the size code RS, RM or RL on the order, the wattage follows the size
Comparison
How It Differs From The Alternatives
| Compared with | Difference |
|---|---|
| SX2126-RS RM RL | Suspended with up and down output and gesture dimming, where SX2126 is a surface fixture without dimming |
| SD2341-1RM | Rectangular up and down body with built in dimming rather than a fixed-output ring |
Also Consider
Related Products
Chandeliers and Pendant LightsHigh Purity Alu Pendant Light SD2343-M1270 mm linear wave pendant, 50 mm wide, 18 W, sand black and greyView specification
Chandeliers and Pendant LightsHigh Purity Alu Pendant Light SD2342-2RM600 mm double ring pendant, 45 W, sand black, 1500 mm dropView specification
Chandeliers and Pendant LightsHigh Purity Alu Ceiling Light SX2342-2RS400 mm surface ring ceiling light, 220 mm deep, 30 W, sand blackView specificationCase Studies
Projects Using This Range
Case StudyChandelier Project in FranceThe fixture had to be read from the ground floor, from the stair itself and from the landing above, which rules out anything flat.Read more
Case StudyChandelier Project in DubaiA lobby ceiling of that size cannot be held by one fixture, so the installation had to be built from repeated elements that still read as one piece.Read more
Case StudyChandelier Project in IndiaThe room had a high ceiling and a wide seating group, so a single ring would have looked undersized.Read moreKnowledge Centre
Related Guides
Design GuideHow to Size a Pendant for a Stair VoidStair voids are where most pendant orders go wrong. The fixture is either lost in the space or hanging where someone will walk into it.Read more
Process GuidePacking and Drop Testing Lighting for ExportA fixture that is perfect when it leaves the line and bent when it arrives is a failed order. This is how our packing is built and checked.Read moreQuestions Buyers Ask
Up and Down Pendant Light With Gesture Dimming SD2126-RS RM RL Questions
How does the gesture dimming work?
The control is built into the fixture and is operated by hand gesture, so the fixture dims on an ordinary switched circuit with no dimmer or control wiring.
What are the three sizes and wattages?
RS 360 x 280 mm at 25 W, RM 480 x 400 mm at 38 W and RL 700 x 600 mm at 55 W.
Does it light upward as well as downward?
Yes, the body emits from both faces.
What finishes are available?
Matt black, matt white and rose gold.
Can it be installed on an existing circuit?
Yes. That is the main reason projects choose it over a dimmable driver and a wall dimmer.
What is the suspension drop?
1500 mm, adjustable shorter on site.
Quote Up and Down Pendant Light With Gesture Dimming SD2126-RS RM RL
Tell us the quantity, the finish and the colour temperature and we come back with a price and a production slot.
