Chandeliers and Pendant Lights
High Purity Alu Ceiling Light SX2342-2RS
400 mm surface ring ceiling light, 220 mm deep, 30 W, sand black
Chandeliers and Pendant Lights
Product Overview

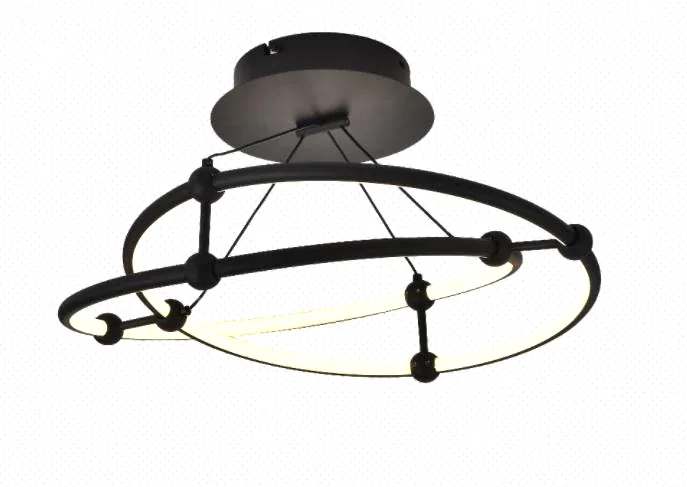

SX2342-2RS is the surface mounted member of the 2342 family: a 400 mm ring assembly 220 mm deep that fixes straight to the ceiling with no suspension. It runs at 30 W with a YSD driver behind a silicone diffuser, in sand black. It is the fixture to use when the room needs the same ring language as the SD2342 pendant but the ceiling is too low to hang anything.
| Material | Aluminum +Iron+ silicone |
|---|---|
| Product Size | Φ400*H220mm |
| Available Colours | sand black |
| LED Colour Temperature | 3000K/4000K/6000K |
| LED and Driver | Epistar SMD2835 YSD driver 30W |
| Packaging | Single packaging per piece |
| Production Time | 20 days or less |
| Delivery Time | Based on the mode of shipping chosen |
Key Benefits
What You Get From This Model
- Direct surface fixing suits ceilings under 2.6 m where a pendant would be in the way
- 220 mm depth keeps some of the sculptural form that a flat ceiling plate loses
- 30 W in a 400 mm body covers a bedroom or a small office from one point
- Matches SD2342-2RM in finish and form, so the two can be used in adjoining rooms
- Single ceiling point and one driver, so the electrical rough-in stays simple
Problems It Solves
What It Fixes On Site
- Pendants hang into head height in rooms with 2.4 to 2.6 m ceilings
- Flat ceiling plates lose the form that makes a ring fixture worth specifying
- Mixed fixture families in adjoining rooms look unresolved
Application Scenarios
Where This Model Is Installed
- Bedrooms and guest rooms with low ceilings
- Small offices and consulting rooms
- Entrance halls and landings
- Corridor junctions that need more light than a corridor fitting gives
Who It Is For
Buyers Who Specify It
- Apartment fit-out contractors working to a low slab height
- Hotel buyers matching pendant and ceiling versions in one guest room
- Distributors who need a surface ring light in a compact size
Technical Features
How It Is Built
- 400 mm diameter, 220 mm deep, surface mounted
- Aluminium body with iron plate and silicone diffuser
- Epistar SMD2835 with YSD driver, 30 W
- Sand black finish
Quality Control
What We Check Before It Ships
- Raw material selection checked before processing
- In process checks during assembly and wiring
- Every fixture powered and inspected before packing
- Packing verified by drop test before a run ships
Customisation Options
What Can Be Changed To Order
- Colour temperature selected per line item: 3000K, 4000K or 6000K
- Body colour sprayed to order outside the standard finishes
- Suspension drop cut at the factory when the measured ceiling height is supplied
- Private label cartons and labelling agreed at order stage
Certification documents beyond our export certificate are supplied on request against the destination market. We do not publish claims we cannot evidence.
Use Guide
Installing And Living With It
- Check clear height before ordering, the fixture projects 220 mm below the ceiling face
- Use the same finish as the SD2342 pendant if both appear on one floor
- Fix the iron plate to the slab or to a batten, then clip the body on
Comparison
How It Differs From The Alternatives
| Compared with | Difference |
|---|---|
| SD2342-2RM | Surface mounted and 400 mm across, where the pendant version is 600 mm on a 1500 mm drop |
| SX2126-RS | Round 400 mm form with 220 mm depth, where SX2126-RS is a flat 40 mm rectangle |
Also Consider
Related Products
Chandeliers and Pendant LightsHigh Purity Alu Pendant Light SD2343-M1270 mm linear wave pendant, 50 mm wide, 18 W, sand black and greyView specification
Chandeliers and Pendant LightsHigh Purity Alu Pendant Light SD2342-2RM600 mm double ring pendant, 45 W, sand black, 1500 mm dropView specification
Chandeliers and Pendant LightsHigh Purity Alu Pendant Light SD2341-2RM800 mm and 600 mm stepped double ring pendant, 75 W, grey and goldView specificationCase Studies
Projects Using This Range
Case StudyChandelier Project in FranceThe fixture had to be read from the ground floor, from the stair itself and from the landing above, which rules out anything flat.Read more
Case StudyChandelier Project in DubaiA lobby ceiling of that size cannot be held by one fixture, so the installation had to be built from repeated elements that still read as one piece.Read more
Case StudyChandelier Project in IndiaThe room had a high ceiling and a wide seating group, so a single ring would have looked undersized.Read moreKnowledge Centre
Related Guides
Design GuideHow to Size a Pendant for a Stair VoidStair voids are where most pendant orders go wrong. The fixture is either lost in the space or hanging where someone will walk into it.Read more
Process GuidePacking and Drop Testing Lighting for ExportA fixture that is perfect when it leaves the line and bent when it arrives is a failed order. This is how our packing is built and checked.Read moreQuestions Buyers Ask
High Purity Alu Ceiling Light SX2342-2RS Questions
How far does SX2342-2RS project below the ceiling?
220 mm, measured from the ceiling face.
What diameter is it?
400 mm.
Does it need a suspension?
No, it is surface mounted directly to the ceiling.
What is the power draw?
30 W with a YSD driver.
Can it be supplied in 6000K?
Yes, 3000K, 4000K and 6000K are all built to order.
What is the minimum order quantity?
Tell us the project quantity over WhatsApp and we quote against it. Quantities are agreed per order, not fixed by a published minimum.
Quote High Purity Alu Ceiling Light SX2342-2RS
Tell us the quantity, the finish and the colour temperature and we come back with a price and a production slot.
