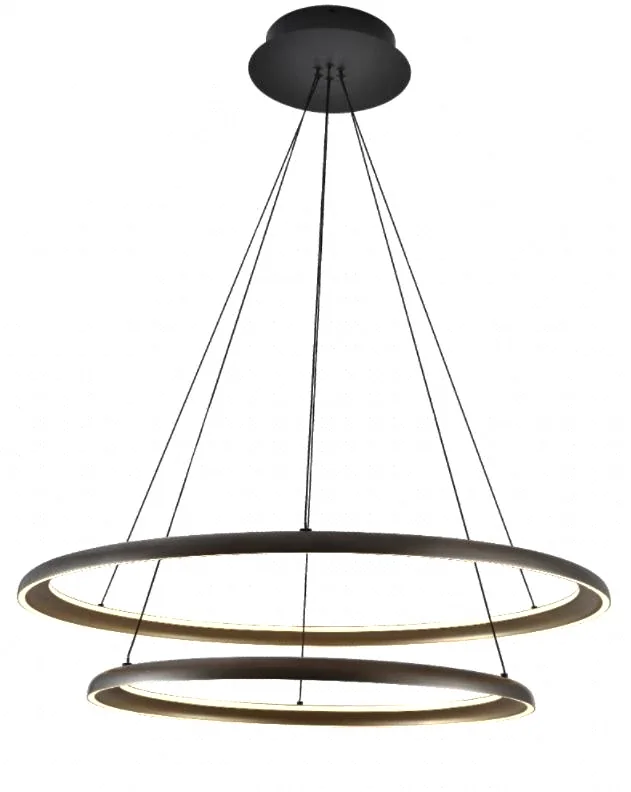

High Purity Alu Pendant Light SD2341-2RM
800 mm and 600 mm stepped double ring pendant, 75 W, grey and gold
Chandeliers and Pendant Lights
Product Overview
SD2341-2RM hangs two rings, 800 mm and 600 mm, at different heights on one suspension, so the fixture builds a stepped silhouette in a tall space. At 75 W it is the highest output pendant in this range and is intended as the main light for a stair void or a double-height living room. The finish is grey with gold painting, and the diffuser is silicone over an aluminium body.
| Material | Aluminum +Iron+ silicone |
|---|---|
| Product Size | Φ800+Φ600*H1500mm |
| Available Colours | grey + gold painting |
| LED Colour Temperature | 3000K/4000K/6000K |
| LED and Driver | Epistar SMD2835 YSD driver 75W |
| Packaging | Single packaging per piece |
| Production Time | 20 days or less |
| Delivery Time | Based on the mode of shipping chosen |
Key Benefits
What You Get From This Model
- Stepped 800 and 600 mm rings fill a double-height void that a single ring leaves empty
- 75 W is enough to light a stairwell as the only fixture on that circuit
- Grey and gold reads as warm without going fully brass, which suits mixed metal interiors
- Both rings hang from one canopy, so the ceiling needs a single fixing and a single feed
- 1500 mm drop can be shortened on site, so the same model works at several ceiling heights
Problems It Solves
What It Fixes On Site
- A single ring looks undersized in a room with a 5 m or higher ceiling
- Multiple separate pendants need coordinated drops and several ceiling points
- Pure brass finishes clash with the grey and black metalwork common in modern interiors
Application Scenarios
Where This Model Is Installed
- Stair voids in villas and duplex apartments
- Double-height living rooms
- Hotel lobby centre pieces
- Large round dining tables from 1.5 m across
Who It Is For
Buyers Who Specify It
- Villa and duplex developers specifying a statement fixture
- Hospitality FF&E buyers for lobby and atrium lighting
- Distributors who need a large multi-ring chandelier in stock
Technical Features
How It Is Built
- Rings of 800 mm and 600 mm diameter on one 1500 mm suspension
- Aluminium body, iron structure, silicone diffuser
- Epistar SMD2835 with YSD driver, 75 W
- Grey body with gold painting
Quality Control
What We Check Before It Ships
- Raw material selection checked before processing
- In process checks during assembly and wiring
- Every fixture powered and inspected before packing
- Packing verified by drop test before a run ships
Customisation Options
What Can Be Changed To Order
- Colour temperature selected per line item: 3000K, 4000K or 6000K
- Body colour sprayed to order outside the standard finishes
- Suspension drop cut at the factory when the measured ceiling height is supplied
- Private label cartons and labelling agreed at order stage
Certification documents beyond our export certificate are supplied on request against the destination market. We do not publish claims we cannot evidence.
Use Guide
Installing And Living With It
- Measure the void height first, the fixture is designed to be seen from below and from a landing
- Keep 2100 mm clear below the lowest ring over any walking route
- Fix to the structural slab and check the drop before the ceiling is closed
Comparison
How It Differs From The Alternatives
| Compared with | Difference |
|---|---|
| SD2341-1RM | Two stepped rings and 75 W, where the 1RM is a single 600 mm ring at 30 W |
| SD2342-2RM | Stepped rings at different heights rather than two rings intersecting on one plane |
Also Consider
Related Products
Chandeliers and Pendant LightsHigh Purity Alu Pendant Light SD2343-M1270 mm linear wave pendant, 50 mm wide, 18 W, sand black and greyView specification
Chandeliers and Pendant LightsHigh Purity Alu Pendant Light SD2342-2RM600 mm double ring pendant, 45 W, sand black, 1500 mm dropView specification
Chandeliers and Pendant LightsHigh Purity Alu Ceiling Light SX2342-2RS400 mm surface ring ceiling light, 220 mm deep, 30 W, sand blackView specificationCase Studies
Projects Using This Range
Case StudyChandelier Project in FranceThe fixture had to be read from the ground floor, from the stair itself and from the landing above, which rules out anything flat.Read more
Case StudyChandelier Project in DubaiA lobby ceiling of that size cannot be held by one fixture, so the installation had to be built from repeated elements that still read as one piece.Read more
Case StudyChandelier Project in IndiaThe room had a high ceiling and a wide seating group, so a single ring would have looked undersized.Read moreKnowledge Centre
Related Guides
Design GuideHow to Size a Pendant for a Stair VoidStair voids are where most pendant orders go wrong. The fixture is either lost in the space or hanging where someone will walk into it.Read more
Process GuidePacking and Drop Testing Lighting for ExportA fixture that is perfect when it leaves the line and bent when it arrives is a failed order. This is how our packing is built and checked.Read moreQuestions Buyers Ask
High Purity Alu Pendant Light SD2341-2RM Questions
What are the ring sizes on SD2341-2RM?
800 mm and 600 mm, hung at different heights on one suspension.
How much power does it draw?
75 W, driven by a YSD driver.
What is the finish?
Grey body with gold painting.
Can I get it with a longer drop for a 6 m void?
The standard suspension is 1500 mm. Longer drops are made to order, send the void height with your enquiry.
Is it packed in one carton?
Each piece is packed singly, with the rings protected for sea freight. Our packing is checked by drop test.
What is the production time?
20 days or less.
Quote High Purity Alu Pendant Light SD2341-2RM
Tell us the quantity, the finish and the colour temperature and we come back with a price and a production slot.
