Honeycomb Paper Cutting Machine

The HQ 600 honeycomb paper cutting machine converts finished honeycomb kraft paper rolls into uniform sheets in a single pass. It feeds one roll of pre-formed honeycomb paper and cuts it to precise lengths up to 999 mm, enabling pack stations to use consistent, ready-to-use cushioning material without manual cutting. The machine runs at 30 to 60 m/min and is designed for use with rolls made by the SD-PH600 or similar forming machines.

Eliminates manual cutting of honeycomb paper, reducing labor and inconsistency
Produces uniform sheets up to 999 mm in length for consistent packaging
Integrates directly with existing honeycomb paper forming lines without line redesign
Operates at 30 to 60 m/min, matching the output speed of most forming machines
Built for continuous operation with minimal operator attention once set

Why It Is Specified

Key Benefits

Eliminates manual cutting of honeycomb paper, reducing labor and inconsistency
Produces uniform sheets up to 999 mm in length for consistent packaging
Integrates directly with existing honeycomb paper forming lines without line redesign
Operates at 30 to 60 m/min, matching the output speed of most forming machines
Built for continuous operation with minimal operator attention once set
Reduces waste from uneven or misaligned cuts during manual handling

Where It Runs

Application Scenarios

Packaging lines that produce honeycomb paper in house and need to convert rolls into sheets for packing stations
E-commerce fulfilment centers using honeycomb wrap for fragile electronics and glassware
Flower and fruit packers who need soft, scratch-free cushioning that does not damage delicate surfaces
Ceramics and glassware exporters replacing plastic foam inserts with recyclable paper
In-house packaging departments reducing reliance on third-party cut sheets

Who It Is For

Protective packaging converters producing honeycomb wrap for regional distribution
E-commerce fulfilment operators packing high volumes of fragile goods daily
Fruit and flower exporters needing biodegradable cushioning for export shipments
Glassware and ceramic manufacturers requiring non-scratch packaging for finished goods
Paper mills that convert kraft rolls into finished honeycomb products for resale

Problems It Solves

Manual cutting of honeycomb paper leads to inconsistent sheet sizes and wasted material
In-house packers waste time cutting rolls by hand, slowing down packing speed
Third-party sheet suppliers charge a premium and have long lead times
Plastic foam inserts are banned or taxed in some markets and cannot be used
Fragile items get scratched or damaged when wrapped with rough or uneven paper

Technical Features

Single roll feeding system for pre-formed honeycomb paper
Max cutting width of 550 mm to match standard honeycomb roll widths
Max cutting length of 999 mm with adjustable stop for precise sheet size
Production speed range of 30 to 60 m/min, suitable for inline integration
2.5 kW motor for stable and consistent cutting performance
Horizontal slitting and cutting mechanism with precision blade alignment
Adjustable pressure roller ensures clean cut without crushing the honeycomb structure
Simple mechanical control system with manual length setting and stop
Robust frame construction for continuous industrial use

As Published by the Factory

Specifications

Specifications for Honeycomb Paper Cutting Machine
Model	HQ 600-one roll
Max.Cutting width	550 mm
Max.Cutting length	999 mm
Production capacity	30-60 m/min
Power	2.5 kW
Machine Dimension	3200X1200X1200 mm
Weight of machine	800 kg

Materials It Runs

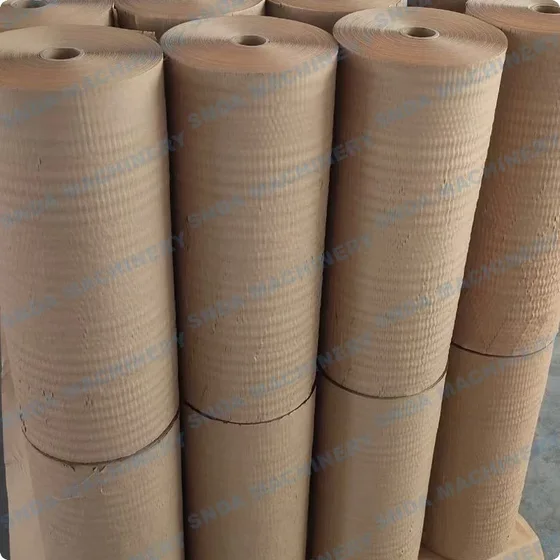

Pre-formed honeycomb kraft paper rolls from SD-PH600 or similar forming machines
Shock-absorbing paper and fish net paper in the same weight range

Manufacturing and Process

Feed a finished honeycomb paper roll into the machine via the unwind shaft
Adjust the cutting length using the mechanical stop or manual setting
Engage the pressure roller to hold the web flat during cutting
Start the machine at 30 to 60 m/min and verify the cut quality
Collect sheets at the output station for immediate use in packing

Quality Control

Cut length verified against the set stop on multiple test sheets
Honeycomb structure checked for crushing or deformation after cutting
Blade alignment tested to ensure clean, straight cuts without fraying

Certifications

ISO 9001:2000 certificate obtained in 2005
CE certificate obtained in 2006

Customization Options

Cutting length adjusted to match the buyer's packing station requirements
Cutting width configured to match the existing honeycomb roll width
Power supply built to local voltage and phase on request
OEM badging and manual language available upon request
Frame finish or color matched to factory equipment standards

Compared With the Alternatives

Manual cutting with scissors or guillotine

The machine ensures consistent sheet size and reduces operator fatigue and injury risk

Buying pre-cut sheets from a third party

In-house cutting removes supplier dependency and allows on-demand production

Using plastic foam inserts

Paper sheets are recyclable and meet environmental regulations, though they do not resist moisture

Roll to sheet cutting on a different machine

This machine is designed specifically for honeycomb paper and avoids damage to the expanded structure

Use Guide

Mount a finished honeycomb paper roll onto the unwind shaft, ensuring it is centered
Set the desired sheet length using the mechanical stop or manual adjustment
Adjust the pressure roller to hold the web flat without crushing the honeycomb cells
Start the machine at low speed (30 m/min) to verify alignment and cut quality
Increase speed to 60 m/min once the cut is confirmed to be clean and accurate
