Fanfold Kraft Paper Folding Machine

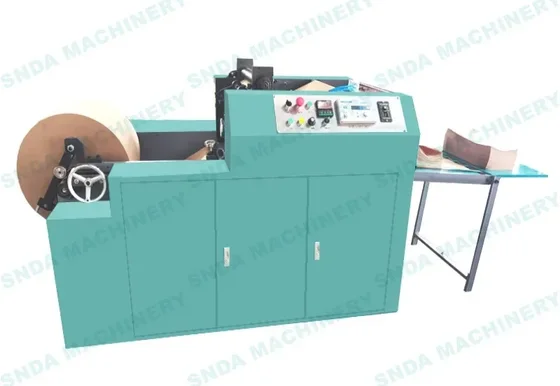

The SD-PF500A turns a kraft paper roll into a stackable fanfolded sheet pile in a single pass. It runs stock 470 mm wide kraft paper at 90 m/min and is designed for converters producing paper-based void fill or wrapping material without plastic.
- Produces fanfolded kraft paper sheets in one continuous process without manual handling between steps
- Automatically perforates and folds the web into a stackable pile, reducing labor and setup time
- Runs up to 470 mm wide kraft paper at a fixed speed of 90 m/min, matching common roll stock sizes
- Stacks output via conveyor for direct feeding into packing stations or storage
- Built for direct integration into in-house packaging lines replacing plastic wrap or manual folding
Key Benefits
- Produces fanfolded kraft paper sheets in one continuous process without manual handling between steps
- Automatically perforates and folds the web into a stackable pile, reducing labor and setup time
- Runs up to 470 mm wide kraft paper at a fixed speed of 90 m/min, matching common roll stock sizes
- Stacks output via conveyor for direct feeding into packing stations or storage
- Built for direct integration into in-house packaging lines replacing plastic wrap or manual folding
Application Scenarios

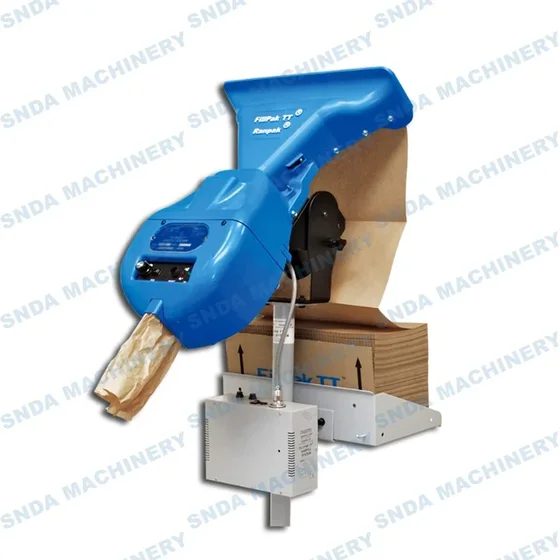

- Packaging converters producing fanfolded paper sheets for e-commerce void fill and wrapping
- In-house packaging departments replacing plastic wrap with a paper alternative at high volume

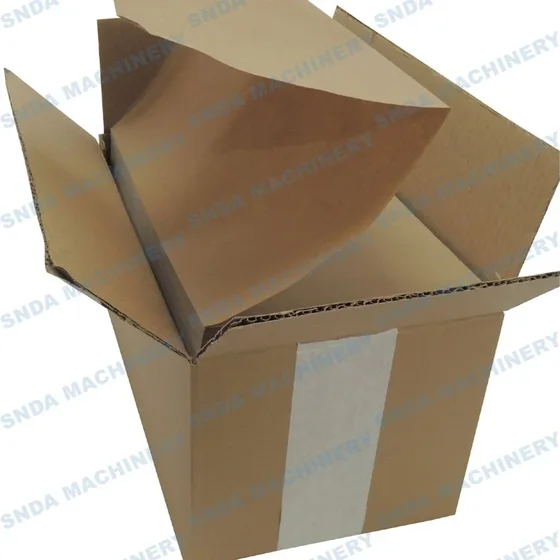

- Fruit, flower and ceramic packers needing a scratch-free, recyclable wrapping material
- Paper mills converting parent rolls into finished fanfolded sheets for direct sale
- Printing houses adding a paper folding line to support custom packaging orders
Who It Is For
- Protective packaging converters adding a paper-based folding line to complement existing plastic or foam products
- E-commerce fulfillment centers packing thousands of orders daily with consistent paper wrap
- Paper mills seeking to add value by converting raw rolls into finished fanfolded sheets
- Distributors supplying fanfolded paper into markets with plastic packaging restrictions
- Manufacturers of paper-based packaging systems requiring a reliable folding machine for production
Problems It Solves
- Manual folding of kraft paper is slow and inconsistent, leading to uneven stack heights and worker fatigue
- Plastic wrap is being restricted or taxed, and buyers need a paper-based alternative that matches throughput
- Third-party fanfolded sheets lack supply control and carry a margin that increases cost per unit
- Inconsistent fold alignment from hand folding causes jamming in automated packing equipment
- Lack of automated perforation leads to torn sheets and poor separation during use
Technical Features
- Performs automatic perforation, folding and stacking in one continuous process
- Conveyor system delivers stacked sheets to a collection point without manual transfer
- Unwinding stand supports rolls up to 1200 mm diameter and 1 ton weight
- 3 inch inflatable air shaft for smooth unwinding and roll handling
- Fixed working speed of 90 m/min with no speed adjustment available
- Machine powered by 380 V 3 phase supply as standard
- Built for 470 mm maximum material width, suitable for standard kraft roll stock
Specifications
| Machine model | SD-PF500A |
|---|---|
| Max material width | 470 mm |
| Machine working speed | 90 m/min |
| Unwinding diameter | 0-1200 mm |
| Stacking system | By conveyor |
| Unwinding stand weight | 1 Ton |
| Unwinding shaft | 3 inch inflatable air shaft |
| Machine size | 2800 x 1200 x 1300 mm(LxWxH) |
| Machine weight | 800 kg |
| Power supply | 380V 3 Phase |
Materials It Runs
- Kraft paper rolls up to 470 mm wide

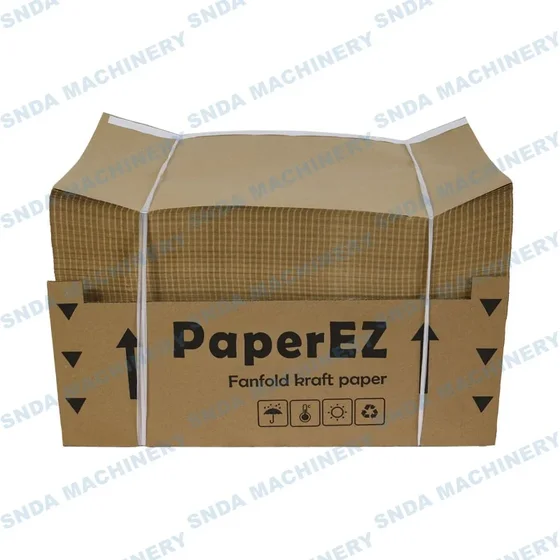

- Perforated and folded sheets suitable for void fill, wrapping and protective layering
Manufacturing and Process

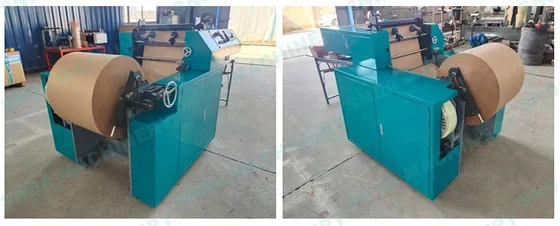

- Load a kraft paper roll up to 1200 mm diameter and 1 ton onto the 3 inch inflatable air shaft
- Start the machine at 90 m/min to begin automatic perforation and folding
- Monitor the folding alignment and stack consistency during operation
- Collect the fanfolded sheets via the conveyor system for use or storage
Quality Control
- Fold alignment checked visually and mechanically during test runs on customer's paper grade
- Perforation depth verified to ensure clean sheet separation without tearing
- Stack height consistency measured across multiple runs to confirm uniform output
Certifications
- ISO 9001:2000 certificate obtained in 2005
- CE certificate obtained in 2006
Customization Options
- Material width configured to match the buyer's standard kraft roll size, up to 470 mm
- Power supply built to destination voltage and phase on request
- OEM badging and manual language available upon request
- Conveyor height and exit angle adjusted for integration with existing packing lines
Compared With the Alternatives
Manual folding of kraft paper
The machine delivers consistent fold alignment and stack height, eliminating hand fatigue and variability
Buying pre-fanfolded sheets
In-house production removes the supplier margin and allows on-demand output without inventory
Plastic sheet folding lines
Paper is recyclable and avoids plastic regulations, though it does not provide moisture barrier
Use Guide
- Mount a kraft paper roll up to 1200 mm diameter and 1 ton on the 3 inch inflatable air shaft
- Set the perforation depth to match the desired sheet separation strength
- Start the machine at 90 m/min and observe the first few folds for alignment
- Verify that the stack height is consistent and the sheets separate cleanly when pulled
Questions About This Machine
What paper width can the machine handle?
Maximum material width is 470 mm. It is designed for standard kraft rolls up to this size.
What is the working speed of the machine?
The machine operates at a fixed speed of 90 m/min. Speed is not adjustable.
How are the folded sheets collected?
The machine uses a conveyor system to deliver the stacked fanfolded sheets to a collection point.
What power supply does it need?
Standard power supply is 380 V 3 phase. Custom voltage and phase are available upon request.
Is OEM support available?
Yes. OEM badging, manual language and power supply configuration are supported at order stage.
What are the shipping dimensions and weight?
The machine measures 2800 x 1200 x 1300 mm and weighs 800 kg, which fits a standard container load.
