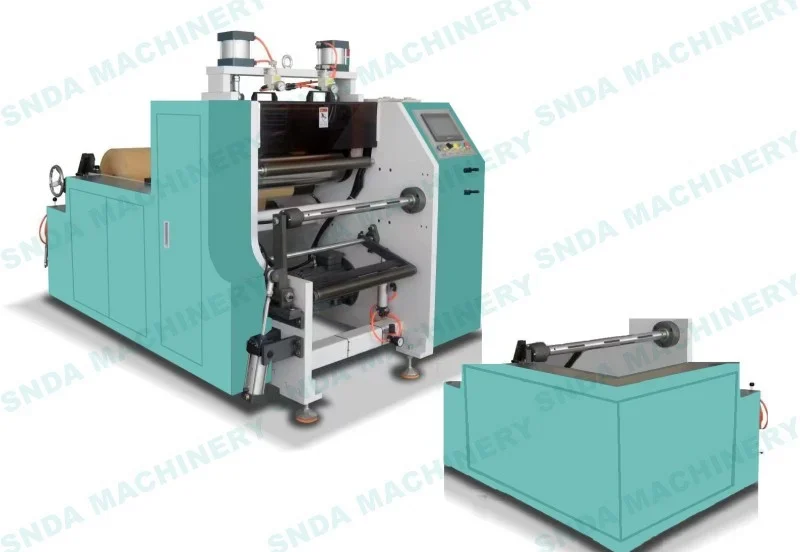

Fire Retardant Filter Paper Making Machine

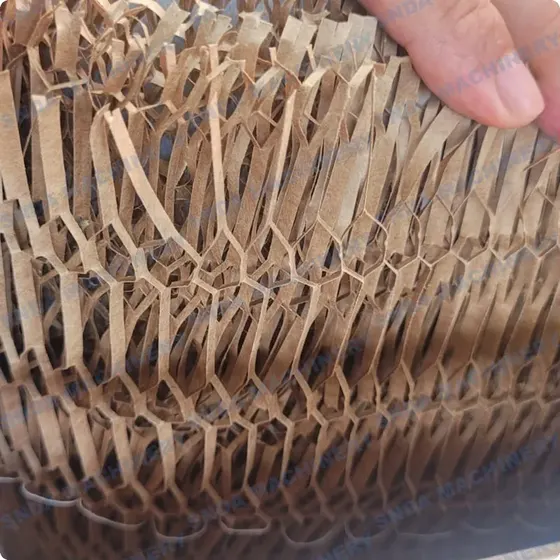

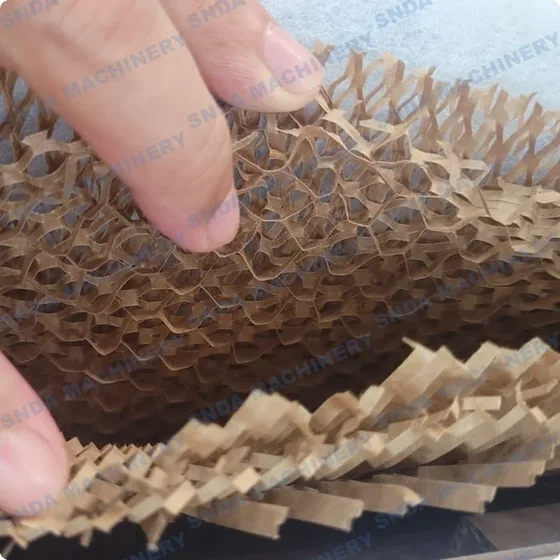

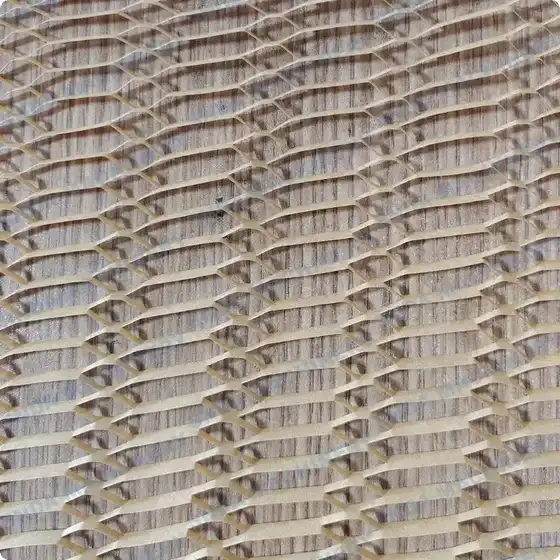

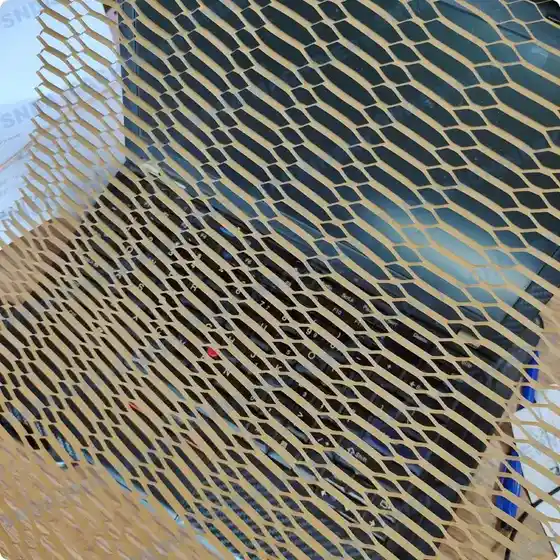

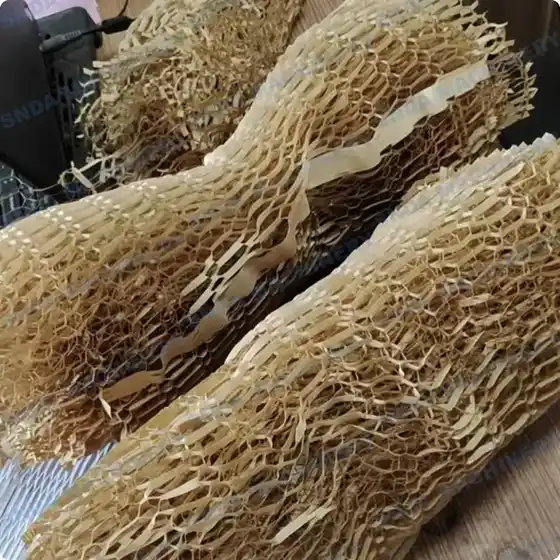

The SD-PH800 converts flame retardant paper or fire retardant paper rolls into honeycomb filter paper in a single unwind, cut and rewind pass. A die-cut blade set scores the web to form a three-dimensional honeycomb structure that can be used directly as filter material. Converters use it to produce their own fire-resistant packaging and filtration media without relying on third-party suppliers, and it runs stock 70 to 100 gsm paper at up to 100 m/min.
- Produces fire-retardant honeycomb paper that meets safety standards for industrial and medical filtration applications
- Unwinding, cutting and rewinding happen in one pass so no intermediate handling is needed
- Runs standard 70 to 100 gsm flame retardant paper, shock-absorbing paper, kraft paper and fish net paper
- Automatic meter counting stops the machine at the set roll length so operators are not tied to it
- Inverter controlled main motor allows stepless speed regulation from 0 to 100 m/min
Key Benefits
- Produces fire-retardant honeycomb paper that meets safety standards for industrial and medical filtration applications
- Unwinding, cutting and rewinding happen in one pass so no intermediate handling is needed
- Runs standard 70 to 100 gsm flame retardant paper, shock-absorbing paper, kraft paper and fish net paper
- Automatic meter counting stops the machine at the set roll length so operators are not tied to it
- Inverter controlled main motor allows stepless speed regulation from 0 to 100 m/min
- Automatic ultrasonic web guide keeps the unwinding web on centre for consistent cutting
Application Scenarios
- Industrial filter manufacturers producing honeycomb paper for HVAC and cleanroom filtration systems
- Packaging converters adding fire-retardant cushioning for electronics and medical device shipments
- Facilities in high-risk environments needing compliant packaging that resists ignition
- Manufacturers of protective packaging for batteries, chemicals and flammable materials
- Paper mills converting raw rolls into finished fire-resistant filter media for export
Who It Is For
- Filter media producers needing in-house production of honeycomb paper for fire-safe applications
- Packaging converters expanding into regulated markets where flame resistance is required
- Electronics and medical device packers handling sensitive components in fire-prone environments
- Industrial suppliers producing packaging for chemicals, batteries and energy storage systems
- Exporters shipping to regions with strict fire safety regulations on packaging materials
Problems It Solves
- Buyers need fire-retardant packaging material but cannot source it reliably from third parties
- Plastic-based cushioning fails to meet fire safety standards in industrial or medical settings
- Manual or semi-automated methods of forming honeycomb paper lead to inconsistent cell structure
- Lack of in-house capability forces reliance on external suppliers with long lead times
- Existing paper lines cannot process flame retardant paper without modification
Technical Features
- Suitable for die cutting honeycomb paper, wrapping paper, shock-absorbing paper, kraft paper and fish net paper from 70 to 100 gsm
- Unwinding, cutting and rewinding completed in one process
- Main motor equipped with an inverter for stepless speed regulation
- Automatic ultrasonic web guide controller keeps the unwinding web on centre
- Tension held by magnetic powder brake and clutch
- Automatic meter counting device stops the machine at the preset length
- Pneumatic cylinder raises and lowers the cutting mould
- Roll to sheet cutting available as an option and can be matched to the paper wrapper
Specifications
| Machine model | SD-PH800 |
|---|---|
| Max material width | 700 mm |
| Machine working speed | 0-100 m/min adjustable |
| Unwinding diameter | 0-1200 mm |
| Rewinding diameter | 0-300 mm(600 mm for flame retardant paper) |
| Unwinding roll weight | Max. 1 Ton |
| Unwinding shaft | 3 inchinflatable air shaft |
| Rewinding shaft | 1 inch/1.5 inch/2 inch/3 inch air shaft (choose either one,usually is 1.5 inch) |
| Machine size | 3200 x 1350 x 1300 mm(LxWxH) |
| Machine weight | 1800 kg |
| Power supply | 380V 3 Phase or as customer requirement |
Materials It Runs
- Flame retardant paper from 70 to 100 gsm
- Fire retardant paper from 70 to 100 gsm
- Kraft paper from 70 to 100 gsm
- Shock-absorbing paper from 70 to 100 gsm
- Fish net paper from 70 to 100 gsm
Manufacturing and Process
- Unwinding with ultrasonic web guiding
- Die cutting the honeycomb pattern
- Tension control by magnetic powder brake and clutch
- Rewinding to the counted length
- Optional roll to sheet cutting
Quality Control
- Cut pattern checked against the die-cut consistency before the roll is released
- Web guide and tension verified on the customer's own paper grade during runoff
- Meter counter calibrated so finished roll length matches the set value
- Machine test run at full 100 m/min line speed before packing
Certifications
- ISO 9001:2000 certificate obtained in 2005
- CE certificate obtained in 2006
Customization Options
- Material width configured around the buyer's stock roll, up to 700 mm
- Rewinding air shaft supplied in 1, 1.5, 2 or 3 inch to match existing cores
- Power supply built to the destination voltage and phase
- Roll to sheet cutting added when sheets rather than rolls are needed
- OEM badging and manual language on request
Compared With the Alternatives
Buying finished honeycomb filter paper rolls
Converting in house removes the supplier margin but requires holding raw material stock and an operator
Standard honeycomb paper machines
This machine is designed for flame retardant paper and can handle higher tension during rewinding for thicker grades
Manual honeycomb forming
The machine ensures consistent cell structure and web alignment that hand work cannot achieve
Plastic-based filter media
Honeycomb paper is combustible but can be made fire-retardant; it is fully recyclable and avoids plastic waste
Use Guide
- Load a flame retardant paper roll up to 1200 mm diameter and 1 ton onto the 3 inch inflatable air shaft
- Set the target roll length on the meter counter so the machine stops on its own
- Set line speed on the inverter, starting slow for a new paper grade then raising toward 100 m/min
- Check the ultrasonic web guide is tracking before running the full roll
- Inspect the die-cut pattern and honeycomb structure on a sample to confirm consistent formation
Questions About This Machine
What paper weight can the machine run?
70 to 100 gsm flame retardant paper, fire retardant paper, kraft paper, shock-absorbing paper, and fish net paper
How wide a roll can it take?
Maximum material width is 700 mm. The rewinding diameter is 0-300 mm, or 600 mm for flame retardant paper
What is the machine's maximum speed?
100 m/min adjustable. The speed range is 0 to 100 m/min
Can it produce sheets instead of rolls?
Roll to sheet cutting is an option and can be matched with our paper wrapper
What power supply does it need?
380 V 3 phase as standard. The machine can be built to your local voltage and phase on request
What are the shipping dimensions and weight?
The machine measures 3200 x 1350 x 1300 mm and weighs 1800 kg, which fits a standard container load
Do you support OEM orders?
Yes. OEM badging, manual language and destination voltage are configured at order. Send your requirement over WhatsApp for a quote
