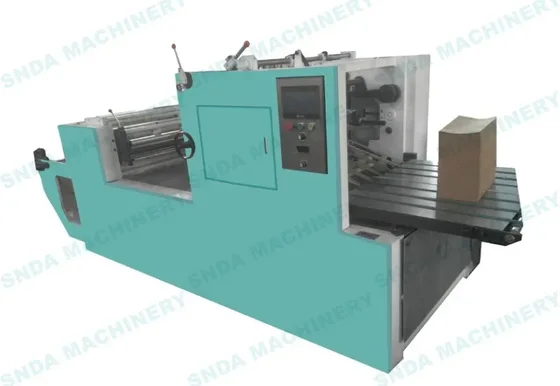

Fanfold Kraft Paper Folding Machine with C Type Folding Inline

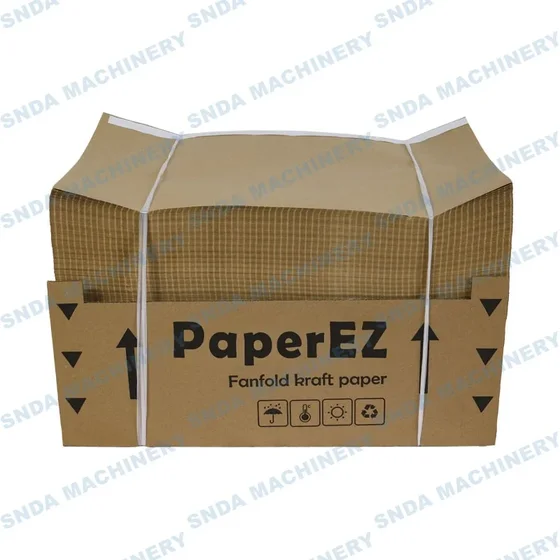

The SD-PF800A converts two kraft paper rolls into a double-layer fanfold cushioning sheet in a single inline process. It feeds the paper from two unwinding stands, performs C-type folding to create a two-layer structure, then applies perforation and final folding to produce a stackable fanfold sheet. This machine enables converters to produce their own paper-based void fill without relying on plastic inserts or third-party suppliers, running up to 800 mm wide kraft paper at 150 m/min.
- Produces a double-layer fanfold paper cushioning material that replaces plastic foam or bubble wrap without line modifications
- C-type folding creates a stronger surface layer that resists tearing during packing and shipping
- Two-roll feeding allows continuous operation with no downtime between rolls
- Inline perforation and folding complete the process in one pass, reducing handling and labor

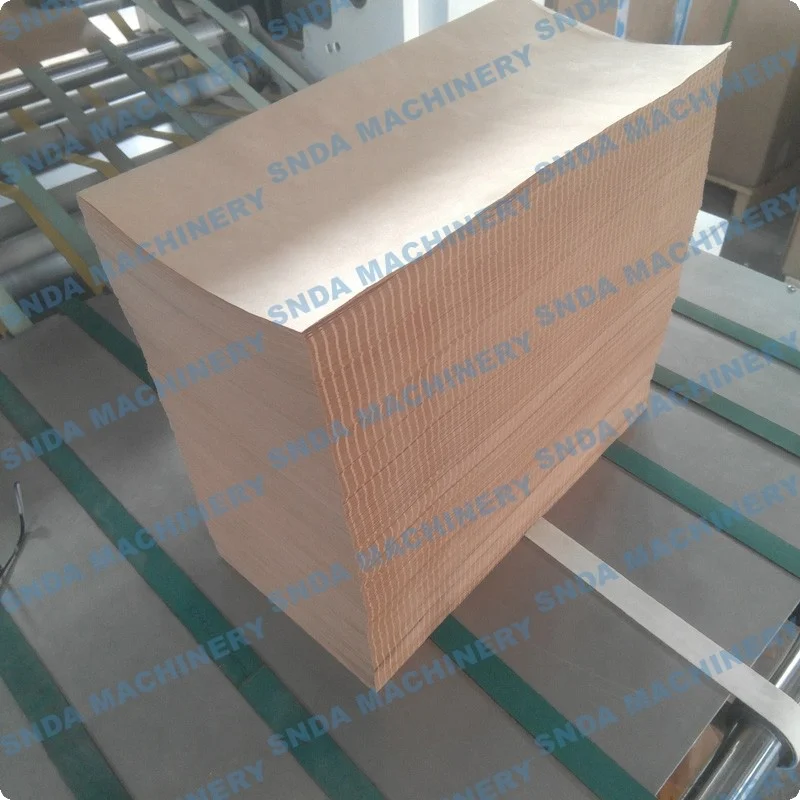

- Stacking via conveyor delivers finished sheets directly to the packing station
Key Benefits
- Produces a double-layer fanfold paper cushioning material that replaces plastic foam or bubble wrap without line modifications
- C-type folding creates a stronger surface layer that resists tearing during packing and shipping
- Two-roll feeding allows continuous operation with no downtime between rolls
- Inline perforation and folding complete the process in one pass, reducing handling and labor
- Stacking via conveyor delivers finished sheets directly to the packing station
- Runs standard kraft paper up to 800 mm wide at 150 m/min, matching high-volume production needs
Application Scenarios
- Packaging converters producing fanfold paper for e-commerce fulfillment centers that require recyclable cushioning
- In-house packaging teams replacing plastic foam inserts with a paper alternative on fragile product lines
- Fruit, flower and ceramic packers needing a scratch-free, stackable cushioning sheet for high-volume orders
- Paper mills expanding into finished converted products by adding a folding line to their output
- Printing houses producing custom paper wrapping sheets with built-in folding for gift and retail packaging
Who It Is For
- Protective packaging producers adding a paper-based fanfold line to their product portfolio
- E-commerce fulfillment centers that need consistent, stackable paper cushioning for daily high-volume packing
- Paper converters looking to add value to kraft paper rolls by turning them into ready-to-use fanfold sheets
- Manufacturers in markets with plastic packaging restrictions seeking compliant, recyclable alternatives
Problems It Solves
- Plastic foam inserts are being banned or taxed in key markets, requiring a paper-based replacement
- Buying pre-made fanfold sheets from third parties removes control over cost, lead time and material quality
- Manual folding and stacking of kraft paper is slow, inconsistent and labor-intensive
- Single-layer paper sheets tear easily under pressure during packing and shipping
- Lack of a reliable inline folding system forces converters to use multiple machines or stop production
Technical Features
- Two-roll feeding system with independent unwinding stands for continuous operation
- C-type folding mechanism creates a double-layer structure for enhanced surface strength
- Inline perforation and folding complete the sheet formation in one continuous process
- Conveyor-based stacking system delivers finished sheets directly to the packing area
- Unwinding diameter capacity up to 1200 mm with 3 inch inflatable air shaft
- Automatic stop at end of run or when stack height is reached
- Machine built with durable steel frame and precision folding rollers
Specifications
| Machine model | SD-PF800A |
|---|---|
| Max material width | 800 mm |
| Machine working speed | 150 m/min |
| Unwinding diameter | 0-1200 mm |
| Stacking system | By conveyor |
| Unwinding stand weight | 1 Ton |
| Unwinding shaft | 3 inch inflatable air shaft |
| Machine size | 6500 x 1600 x 1500 mm(LxWxH) |
| Machine weight | 3000 kg |
| Power supply | 380V 3 Phase |
Materials It Runs
- Two rolls of kraft paper fed simultaneously for double-layer construction
- Optional soft white liner paper for improved surface finish
Manufacturing and Process
- Load two kraft paper rolls onto the unwinding stands with 3 inch inflatable air shafts
- Feed both rolls into the machine for simultaneous C-type folding
- Form a double-layer structure using the C-type folding mechanism
- Apply inline perforation and final folding to create fanfold sheets
- Conveyor system stacks the finished sheets for immediate use or packaging
Quality Control
- Folding alignment verified during test runs with the customer's paper grade
- Perforation depth and spacing checked to ensure clean separation of sheets
- Stack height and conveyor timing calibrated to prevent jams or misalignment
- Machine tested at full 150 m/min speed before shipment to confirm stable operation
Certifications
- ISO 9001:2000 certificate obtained in 2005
- CE certificate obtained in 2006
Customization Options
- Max material width configured to match the buyer's existing kraft roll stock
- Power supply built to local voltage and phase on request
- Stacking conveyor length adjusted for site layout or packing station height
- OEM badging and manual language provided upon request
- Optional roll-to-sheet cutting added if downstream processing requires sheets
Compared With the Alternatives
Buying pre-made fanfold sheets
In-house production removes third-party margins and allows on-demand output, but requires holding kraft roll inventory
Plastic foam inserts
Paper fanfold is fully recyclable and meets environmental regulations, though it does not provide moisture barrier protection
Manual folding stations
This machine delivers consistent sheet quality and speed, eliminating worker fatigue and human error
Single-roll folding machines
Two-roll feeding allows continuous operation without roll change downtime
Use Guide
- Load two kraft paper rolls onto the unwinding stands, ensuring the 3 inch inflatable air shafts are properly inflated
- Set the target stack height on the conveyor system to match your packing station
- Verify the C-type folding alignment and perforation depth on the first few sheets
- Check that the conveyor stack height is consistent and that sheets separate cleanly
Questions About This Machine
What paper width can the machine handle?
The SD-PF800A supports a maximum material width of 800 mm. It is designed for standard kraft rolls up to this width.
How fast does the machine run?
The machine operates at a working speed of 150 m/min, which is suitable for high-volume production environments.
Can it run two rolls at once?
Yes. The machine has two independent unwinding stands to feed two kraft paper rolls simultaneously for continuous operation.
What is the stacking system?
The finished fanfold sheets are stacked via a conveyor system that delivers them directly to the packing area.
What power supply does it require?
Standard power supply is 380 V 3 phase. The machine can be customized to match your local voltage and phase.
Is OEM support available?
Yes. OEM badging, manual language, and destination power supply are configured at order. Contact us via WhatsApp for a quote.
What are the shipping dimensions and weight?
The machine measures 6500 x 1600 x 1500 mm and weighs 3000 kg, which fits a standard container load.
