Rental LED Screen V Series

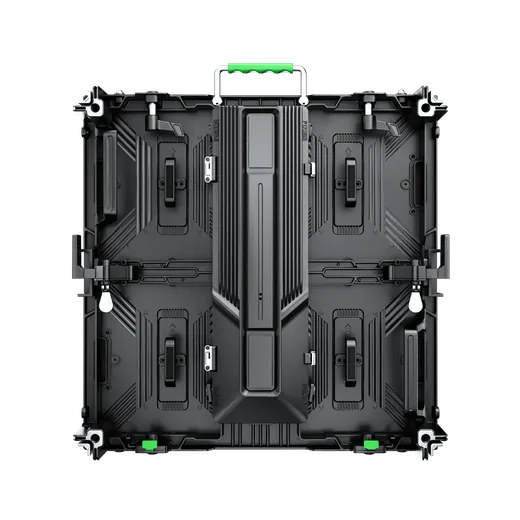

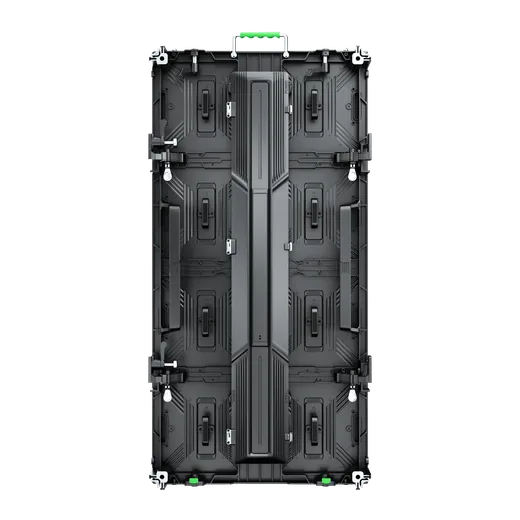

A slim and lightweight rental LED screen with a die-cast aluminium cabinet, designed for touring events, stage productions, and temporary installations. The cabinet weighs only 26kg per square metre and features fast-lock mechanisms for tool-free setup.
Rental LED Screen V Series
A slim and lightweight rental LED screen with a die-cast aluminium cabinet, designed for touring events, stage productions, and temporary installations. The cabinet weighs only 26kg per square metre and features fast-lock mechanisms for tool-free setup. Available in 500x500mm and 500x1000mm module sizes, it supports curvilinear, concave, and convex configurations. Front and rear access allows for full maintenance, and the system can be hung from trusses or supported on the ground.
- Slim and lightweight cabinet at 26kg per square metre, reducing rigging and transport costs
- Tool-free installation with fast-lock mechanisms and precision alignment for rapid setup
- Front and rear service access enables full module and power supply replacement without disassembly
- Angle adjustment option allows for creative shapes including curved and convex floor screens
- Truss hanging and ground support options provide flexibility for stage, event and touring applications
- High-definition outdoor display performance with consistent image quality across curved surfaces
Where This Screen Is Used
- Touring concert stages requiring quick setup and teardown at multiple venues
- Event production with curved or shaped LED walls for immersive stage design
- Trade shows and exhibitions needing a lightweight, portable display with fast installation
- Temporary outdoor installations for festivals and public events with variable site conditions
- Floor-standing LED screens for stage entrances or product launches with concave or convex layouts
Who It Is For
- Rental and staging companies managing multiple event setups per week
- AV integrators installing temporary LED walls for live events and product launches
- Event production teams needing fast deployment and reconfiguration of LED screens
- Touring production managers prioritizing low weight and quick rigging for transport
- Exhibition contractors requiring flexible screen shapes and tool-free assembly
Problems It Solves
- Heavy cabinets slow down installation and increase rigging risk during event tours
- Cabinets requiring tools for alignment cause delays and misalignment on site
- Lack of front and rear access forces full disassembly for maintenance during events
- Fixed cabinet shapes limit creative screen configurations like curves or floor wraps
- Poor weight distribution increases transport and handling costs for large screens
Technical Features

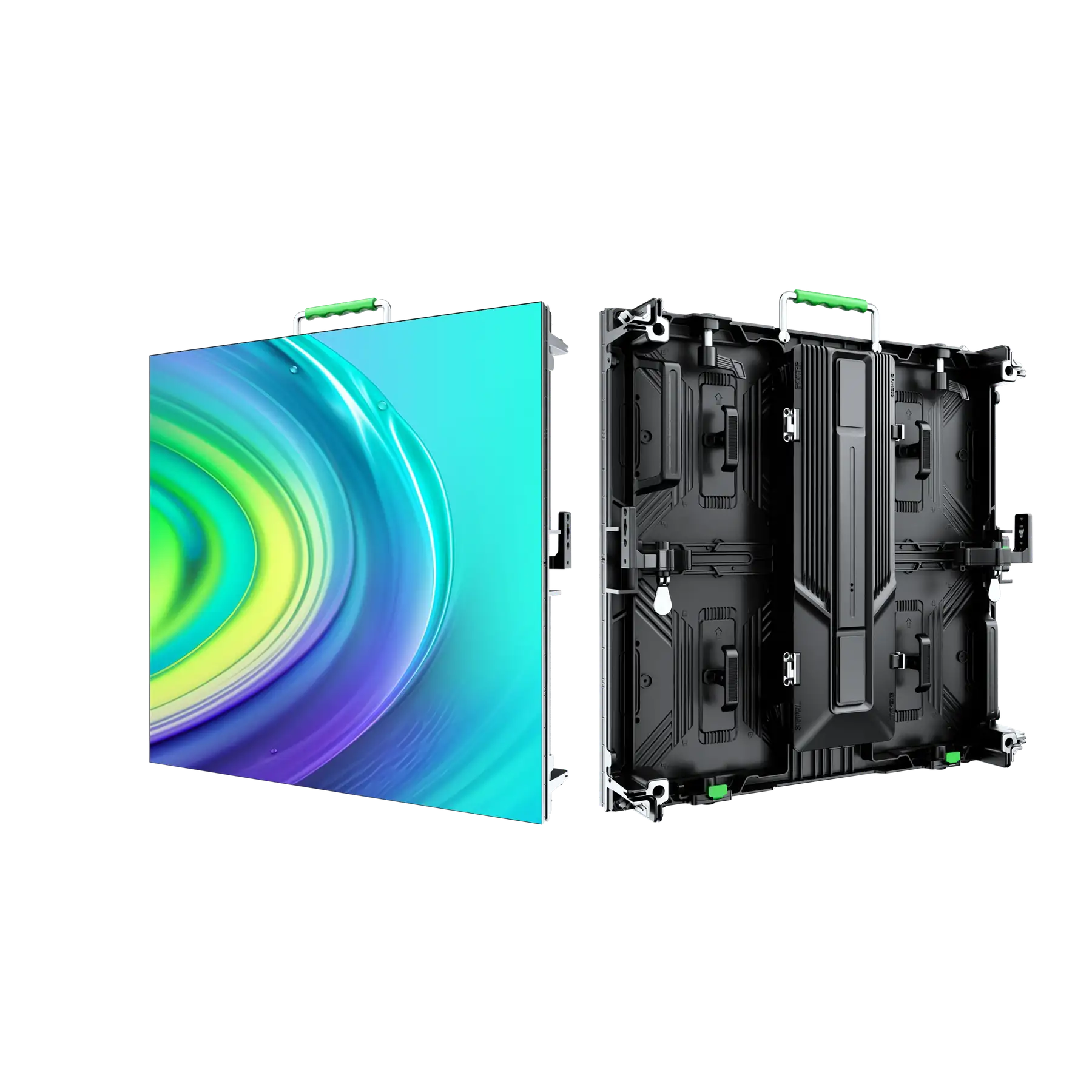

- Slim ultra-thin aluminium die-cast cabinet with 26kg per square metre weight
- Fast-lock mechanism with high-precision positioning for tool-free alignment

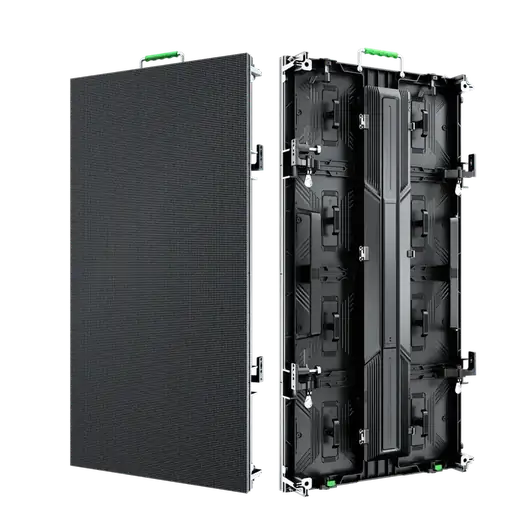

- Front and rear service access for full module and power supply replacement
- Angle adjustment feature for curvilinear, concave, and convex screen layouts
- Truss hanging and ground support options for flexible installation methods

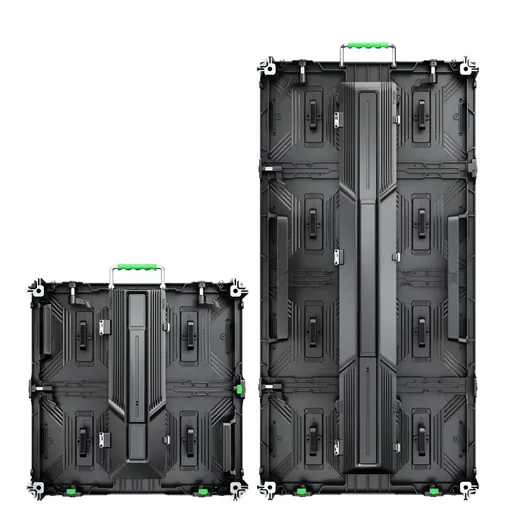

- 500x500mm and 500x1000mm module sizes standard for consistent panel layout
Rental LED Screen V Series Technical Data
| Installation | Rental / Touring |
|---|---|
| Service Access | Front and rear |
| Cabinet Sizes | 500x500mm, 500x1000mm |
| Weight per Square Metre | 26kg |
| Module Size | 500x500mm, 500x1000mm |
| Cabinet Material | Aluminium die-cast |
| Mounting Options | Truss hanging, ground support |
| Locking System | Fast lock with precision alignment |
| Adjustment | Angle adjustment for curved layouts |
| Application | Touring, stage, event, exhibition |
Pixel pitch, resolution and refresh rate are confirmed against your viewing distance and wall size when we quote. Send those two figures and we will return the exact configuration.
Materials
- Aluminium die-cast cabinet shell
- High-precision fast-lock mechanism with metal components
- Black LED lamp module with SMD three-in-one lamps
- Professional-grade truss connectors and ground support brackets
- High-strength aluminium profile for structural rigidity
How This Screen Is Built
- SMT placement of LED lamps and driver ICs on the module PCB
- Reflow soldering followed by automated soldering inspection
- Auto drying and module ageing test before assembly
- Cabinet assembly with fast-lock mechanism integration
- Full screen installation test with truss and ground support simulation
- Screen ageing test on assembled wall before packing
Quality Control
- Soldering inspection on every module after reflow
- Module ageing test to detect early lamp and driver failures
- Screen installation test with full cabinet assembly and lock engagement
- Screen ageing test on the assembled wall under simulated event conditions
Customisation Options
- Cabinet size selected from 500x500mm or 500x1000mm to match the event layout
- Angle adjustment option configured for concave, convex or curved screen shapes
- Mounting method chosen between truss hanging and ground support based on site
- Pixel pitch specified based on viewing distance and content resolution needs
- Colour calibration and brightness uniformity adjusted before shipment
How It Compares With the Alternatives
| Traditional rental cabinet with tool-based locking | This cabinet uses fast-lock mechanisms, reducing installation time by up to 50 percent and eliminating alignment errors |
|---|---|
| Heavy fixed installation cabinet | The rental cabinet is 26kg per square metre, significantly lighter for transport and rigging, but not designed for permanent outdoor exposure |
| Rental cabinet with only front access | This model allows rear access, enabling full maintenance without disassembling the screen during event downtime |
Use Guide
- Choose cabinet size based on the event layout and transport constraints
- Confirm the truss or ground support structure can carry the screen load before installation
- Use the angle adjustment feature to create curved or shaped screens without visible gaps
- Perform a full screen installation test with the fast-lock system before the event
- Keep spare modules and power supplies on site for quick replacement during events
Related Products
Rental LED Screen A Series
A rental LED screen series built for touring and event applications with a slim, lightweight aluminium die-cast …
View Product →
Rental LED Screen K Series
A rental LED screen designed for touring events, stage productions, and temporary installations with front and r…
View Product →
Rental LED Screen H Series
A rental LED screen designed for touring and event applications with a slim, lightweight aluminium die-cast cabi…
View Product →
Rental LED Screen U Series
A rental LED screen with a slim, lightweight aluminium die-cast cabinet designed for touring and event applicati…
View Product →Projects Using This Product
Guides Related to This Product
How to Choose the Pixel Pitch for an LED Screen
Pixel pitch is the distance in millimetres between the centres of two adjacent pixels. It determines the closest viewing…
Read The Guide →
Front Service Versus Rear Service LED Screens
Service access is the side of the screen a technician works from when replacing a module, receiving card or power supply…
Read The Guide →Questions About the Rental LED Screen V Series
How much does the cabinet weigh per square metre?
The cabinet weighs 26kg per square metre, making it ideal for touring and frequent rigging.
Is installation tool-free?
Yes. The fast-lock mechanism allows for tool-free alignment and secure connection between cabinets.
Can the screen be curved or shaped?
Yes. The angle adjustment feature supports concave, convex, and curvilinear layouts for creative stage designs.
What mounting options are available?
The screen can be hung from trusses or supported on the ground, depending on the event setup.
Does it support front and rear service?
Yes. Both front and rear access are available for module and power supply replacement without full disassembly.
What module sizes are standard?
Standard modules are 500x500mm and 500x1000mm, designed for consistent panel layout and fast assembly.
Can I get a screen ageing test before shipment?
Yes. We perform a full screen ageing test on the assembled wall before packing and can provide a review in the showroom upon request.
Quote the Rental LED Screen V Series for Your Project
Send the wall dimensions and the closest viewing distance. We will confirm the pitch, the cabinet count, the resolution and the shipping weight.
