Rental LED Screen U Series
A rental LED screen with a slim, lightweight aluminium die-cast cabinet designed for touring and event applications. Standard cabinet sizes are 500x500mm and 500x1000mm, with a weight of 26kg per square metre.
Rental LED Screen U Series

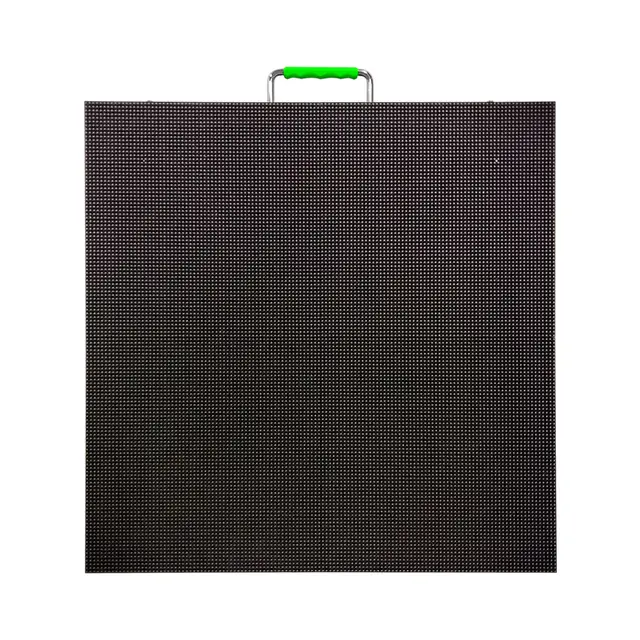

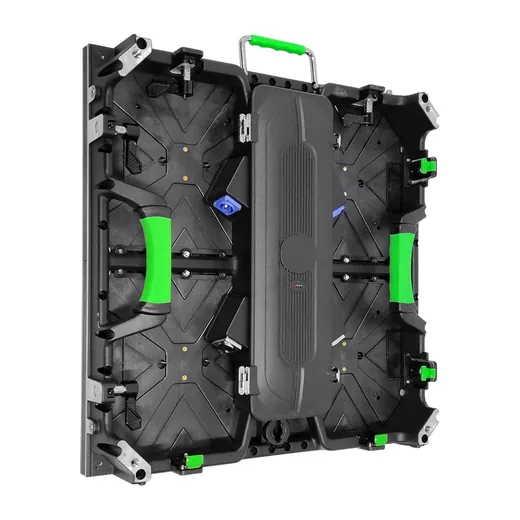

A rental LED screen with a slim, lightweight aluminium die-cast cabinet designed for touring and event applications. Standard cabinet sizes are 500x500mm and 500x1000mm, with a weight of 26kg per square metre. The cabinet features a fast-lock system and integrated handles for easy handling, with truss hanging and ground support options available. The design allows for angle adjustment to create custom shapes and curved installations.
- Slim and lightweight cabinet at 26kg per square metre reduces rigging and transport costs

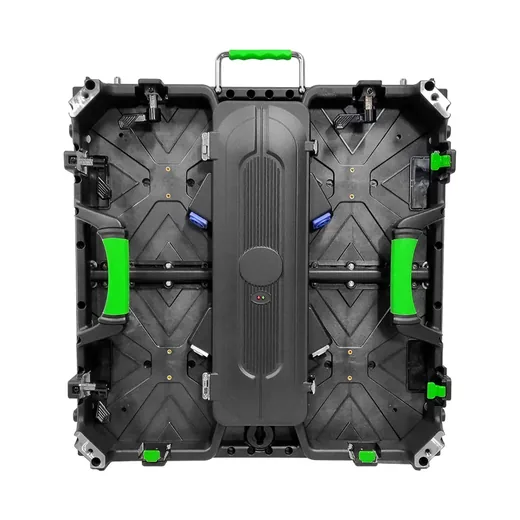

- Fast-lock system with high-precision alignment enables quick on-site assembly without tools
- Integrated handles and balanced weight distribution improve safety during lifting and positioning

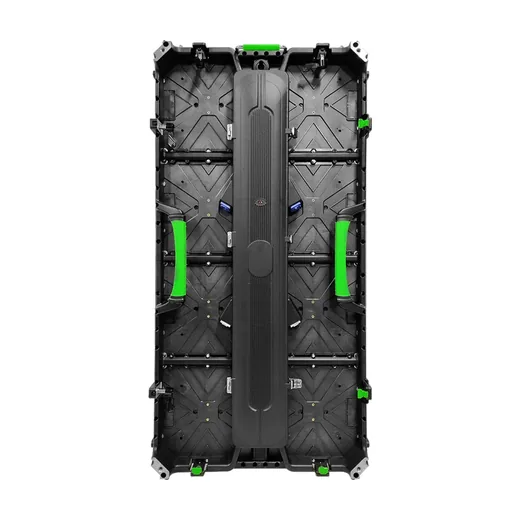

- Angle adjustment option allows for curved and creative screen shapes in live events and tours
- Truss hanging and ground support configurations provide flexible mounting for different venues
- Ultra-thin die-cast aluminium cabinet maintains structural integrity while reducing bulk
Where This Screen Is Used
- Touring concert and music festival stages requiring rapid setup and teardown
- Corporate events and product launches with temporary installations and curved screen designs
- Trade shows and exhibitions where space is limited and quick deployment is essential
- Live broadcast and studio backdrops that need to be reconfigured between shows
- Outdoor events with variable terrain where ground support and truss mounting are both needed
Who It Is For
- Rental and staging companies managing multiple event setups per week
- AV integrators installing temporary LED walls for concerts, expos, and corporate shows
- Event producers needing fast, reliable screen deployment with minimal crew effort
- Broadcast studios requiring flexible screen shapes for live production backdrops
- Exhibition contractors working under tight timelines and tight space constraints
Problems It Solves
- Heavy cabinets slow down installation and increase rigging risk during tours
- Cabinets requiring tools for alignment waste time and increase setup errors
- Lack of angle adjustment limits creative screen shapes in live events
- Poor weight distribution makes lifting and handling unsafe for crew
- Inconsistent spacing between cabinets creates visible gaps and misalignment
Technical Features
- Aluminium die-cast cabinet with ultra-thin profile and high structural rigidity
- Fast-lock system with high-precision positioning for tool-free alignment
- Integrated handles on all sides for safe and easy lifting and movement
- Angle adjustment feature for creating curved and non-rectangular screen layouts
- Truss hanging and ground support options available for flexible installation
- Standard cabinet sizes of 500x500mm and 500x1000mm for modular scalability
Rental LED Screen U Series Technical Data
| Installation | Rental / Touring |
|---|---|
| Cabinet Sizes | 500x500mm, 500x1000mm |
| Weight per Square Metre | 26kg |
| Cabinet Material | Aluminium die-cast |
| Service Access | Front |
| Locking System | Fast lock with high-precision alignment |
| Mounting Options | Truss hanging and ground support |
| Adjustment | Angle adjustment for curved layouts |
| Handle Design | Integrated handles on all sides |
| Profile | Ultra-thin |
Pixel pitch, resolution and refresh rate are confirmed against your viewing distance and wall size when we quote. Send those two figures and we will return the exact configuration.
Materials
- Aluminium die-cast cabinet shell
- High-precision fast-lock mechanism
- Integrated ergonomic handles
- Structural support frame with angle adjustment joints
- Durable surface finish for repeated handling
How This Screen Is Built
- SMT placement of LED lamps and driver ICs on the module PCB
- Reflow soldering followed by automated soldering inspection
- Auto drying and module ageing test before assembly
- Cabinet assembly with fast-lock mechanism integration
- Full screen installation test with alignment and angle adjustment verification
- Screen ageing test on the assembled wall before packing
Quality Control
- Soldering inspection on every module after reflow
- Module ageing test to catch early-life lamp and driver failures
- Screen installation test with cabinets built up as a full wall
- Screen ageing test on the assembled wall before dismantling for shipping
- Final inspection of fast-lock mechanism and handle function
Customisation Options
- Cabinet size selected from 500x500mm or 500x1000mm to fit the event layout
- Angle adjustment configured for curved or non-rectangular screen shapes
- Mounting method chosen between truss hanging and ground support
- Pixel pitch specified based on the event viewing distance
- Handle position adjusted if needed for specific rigging workflows
How It Compares With the Alternatives
| Traditional rental cabinet with tool-based locks | The fast-lock system reduces installation time by up to 50 percent and eliminates alignment errors |
|---|---|
| Rental cabinet with no angle adjustment | This model allows curved and creative screen shapes without additional custom parts |
| Heavier cabinet over 30kg per square metre | The 26kg/sqm weight cuts rigging effort and transport cost while maintaining structural strength |
Use Guide
- Choose cabinet size based on the event stage dimensions and transport constraints
- Confirm viewing distance to select the appropriate pixel pitch for clarity
- Test the fast-lock system and angle adjustment on the ground before rigging
- Use truss hanging for large stages and ground support for small or uneven venues
- Keep spare modules and fast-lock parts on site for quick replacement during events
Related Products
Rental LED Screen A Series
A rental LED screen series built for touring and event applications with a slim, lightweight aluminium die-cast …
View Product →
Rental LED Screen K Series
A rental LED screen designed for touring events, stage productions, and temporary installations with front and r…
View Product →
Rental LED Screen H Series
A rental LED screen designed for touring and event applications with a slim, lightweight aluminium die-cast cabi…
View Product →
Rental LED Screen X Series
A rental LED screen designed for touring and event applications with a slim, lightweight aluminium die-cast cabi…
View Product →Projects Using This Product
Guides Related to This Product
Installation Methods for LED Screens
The method used to install an LED screen directly impacts how long a crew spends on site. Tool-free systems reduce setup…
Read The Guide →
Cabinet Weight and Shipping Planning for LED Screen Orders
Cabinet weight per square metre directly affects shipping costs, crane or lift requirements, and on-site handling labour…
Read The Guide →Questions About the Rental LED Screen U Series
What are the standard cabinet sizes?
Standard sizes are 500x500mm and 500x1000mm, designed for modular and scalable event setups.
How much does the cabinet weigh per square metre?
The cabinet weighs 26kg per square metre, making it lightweight for touring and handling.
Can the cabinets be locked together without tools?
Yes. The fast-lock system allows tool-free alignment and secure connection between cabinets.
Is angle adjustment available for curved screens?
Yes. Each cabinet includes an angle adjustment feature to create curved or non-rectangular screen layouts.
What mounting options are available?
Both truss hanging and ground support are available, depending on the event setup and venue requirements.
Are handles included on all sides?
Yes. Integrated handles are positioned on all sides for safe and easy lifting and movement.
Can I use this for outdoor events?
Yes. The cabinet is designed for rental use and can be used outdoors with proper support and weather protection
Quote the Rental LED Screen U Series for Your Project
Send the wall dimensions and the closest viewing distance. We will confirm the pitch, the cabinet count, the resolution and the shipping weight.
