Rental LED Screen H Series
A rental LED screen designed for touring and event applications with a slim, lightweight aluminium die-cast cabinet and front and rear service access. The 500x500mm and 500x1000mm module sizes support curvilinear, concave, and convex floor layouts.
Rental LED Screen H Series
A rental LED screen designed for touring and event applications with a slim, lightweight aluminium die-cast cabinet and front and rear service access. The 500x500mm and 500x1000mm module sizes support curvilinear, concave, and convex floor layouts. Fast lock and handle system enables tool-free installation. Weight is 28kg per square metre, ideal for truss hanging and ground support. Brightness and resolution are suitable for high-definition outdoor displays in live events and stage productions.
- Slim and lightweight cabinet at 28kg per square metre reduces rigging and transport costs
- Front and rear service access allows module replacement without removing the entire cabinet
- Tool-free fast lock system with precision alignment speeds up on-site assembly
- Die-cast aluminium cabinet provides rigidity and durability for repeated setup and teardown
- Angle adjustment option enables creative shapes like curves, concave, and convex floor screens
- Truss hanging and ground support options provide flexibility for stage and event layouts
Where This Screen Is Used
- Touring concerts and live music events requiring quick setup and teardown
- Trade shows and exhibitions with limited space and need for curved or shaped displays
- Stage productions and theatre events with dynamic screen layouts and moving platforms
- Outdoor events with high-definition content and variable viewing angles
- Corporate events and product launches needing a visually striking, flexible LED screen
Who It Is For
- Rental and staging companies managing multiple event setups per week
- AV integrators installing temporary LED walls for live events and tours
- Event production teams needing fast, reliable screen assembly with minimal crew
- Broadcast and media companies setting up temporary on-site studios or backdrops
- Exhibition contractors requiring curved or shaped screens for booth designs
Problems It Solves
- Heavy cabinets requiring multiple crew members and lifting equipment for rigging
- Cabinets that take too long to assemble due to tool dependency and misalignment
- Lack of front service access forcing full disassembly to replace a single module
- Fixed cabinet shapes that cannot adapt to curved or angled stage layouts
- Screen frames that are bulky and difficult to transport in standard containers
Technical Features

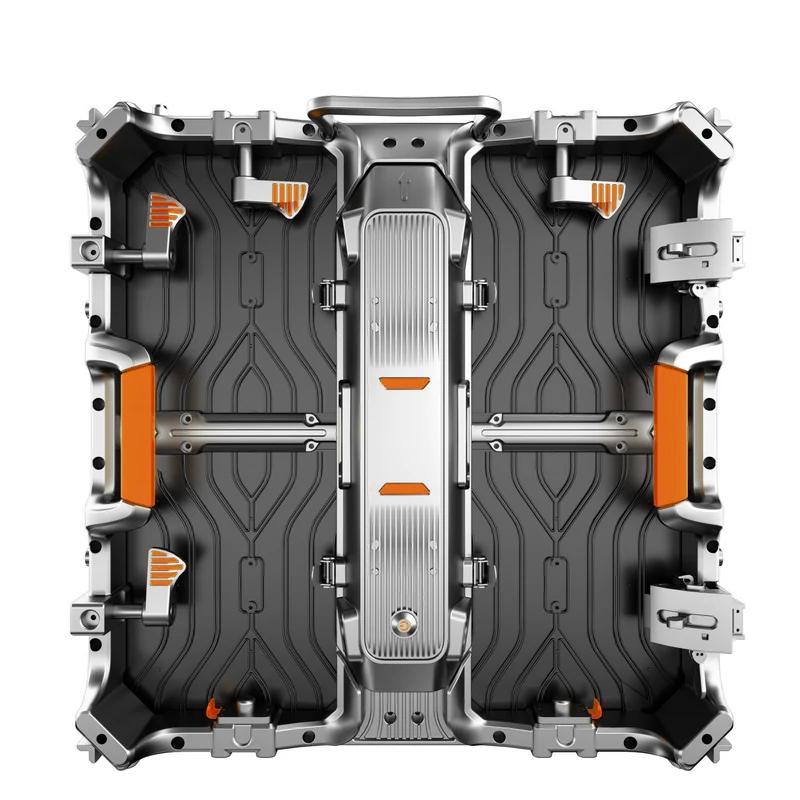

- Slim and ultra-thin aluminium die-cast cabinet with high rigidity and low weight
- 500x500mm and 500x1000mm module sizes for flexible layout planning

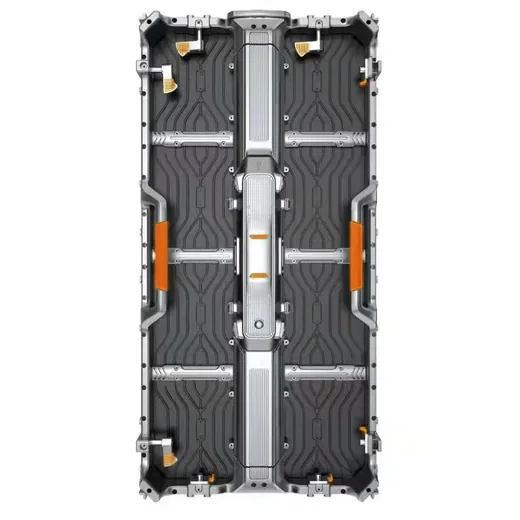

- Fast lock system with high-precision positioning for tool-free alignment

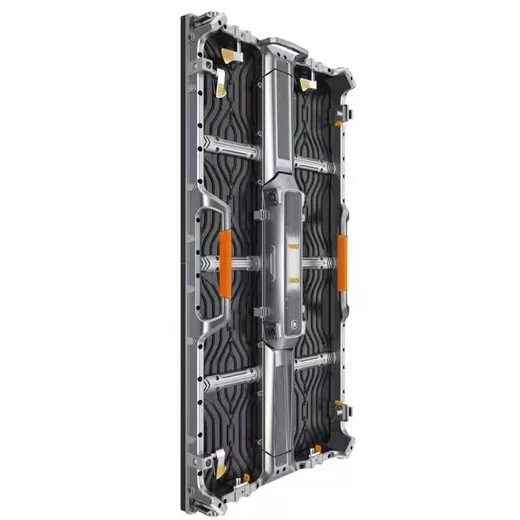

- Integrated handles on both sides for easy lifting and handling during transport

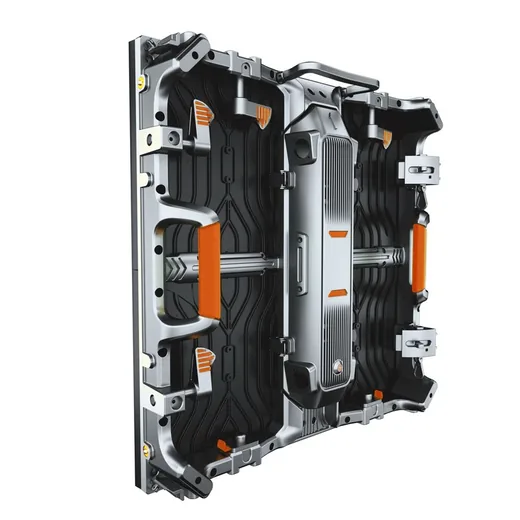

- Angle adjustment mechanism for creating curved, concave, or convex screen shapes
- Support for both truss hanging and ground support configurations

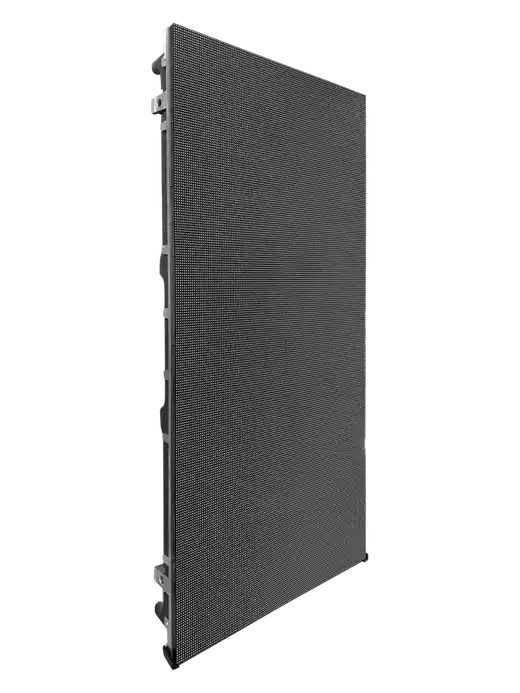

- Front and rear access to modules and power supplies for maintenance
- High-definition outdoor display capability with consistent brightness and resolution
Rental LED Screen H Series Technical Data
| Cabinet Size | 500x500mm, 500x1000mm |
|---|---|
| Weight Per Square Metre | 28kg |
| Service Access | Front and rear |
| Installation Type | Rental |
| Module Type | SMD three-in-one |
| Cabinet Material | Aluminium die-cast |
| Locking System | Fast lock with precision alignment |
| Support Options | Truss hanging and ground support |
| Shape Flexibility | Curvilinear, concave, convex |
| Handling | Integrated handles on both sides |
Pixel pitch, resolution and refresh rate are confirmed against your viewing distance and wall size when we quote. Send those two figures and we will return the exact configuration.
Materials
- Aluminium die-cast cabinet shell
- SMD three-in-one LED lamps
- High-precision fast lock mechanism
- Integrated handles with reinforced mounting points
- Professional-grade signal and power connectors
How This Screen Is Built
- SMT placement of LED lamps and driver ICs on the module PCB
- Reflow soldering followed by automated soldering inspection
- Auto drying and module ageing test before assembly
- Cabinet assembly with module alignment and fast lock integration
- Full screen installation test with truss and ground support simulation
- Screen ageing test on assembled wall before packing
Quality Control
- Soldering inspection on every module after reflow
- Module ageing test to detect early lamp and driver failures
- Screen installation test with full cabinet assembly and lock engagement
- Screen ageing test on the assembled wall under simulated event conditions
Customisation Options
- Cabinet size selected from 500x500mm or 500x1000mm to fit the event layout
- Angle adjustment option configured for concave, convex, or curved screen shapes
- Mounting method chosen between truss hanging and ground support
- Pixel pitch specified based on viewing distance and content type
- Handle and lock position adjusted for crew ergonomics during setup
How It Compares With the Alternatives
| Standard rental cabinet with tool-based locking | The fast lock system reduces installation time by up to 50 percent and eliminates misalignment during setup |
|---|---|
| Rental cabinet with rear-only service access | Front service allows module replacement without disassembling the entire screen, reducing downtime during events |
| Thick, heavy-duty rental cabinet | The 28kg per square metre weight reduces transport and rigging costs, but may require stronger truss support for large installations |
Use Guide
- Choose pixel pitch based on the closest viewing distance, not on cabinet count
- Confirm truss or ground support structure can carry the cabinet load before installation
- Keep front service access clear of stage props and lighting during event operation
- Use the integrated handles and fast lock system for consistent, tool-free assembly
- Request a full screen installation test and ageing test before shipment to verify performance
Related Products
Rental LED Screen A Series
A rental LED screen series built for touring and event applications with a slim, lightweight aluminium die-cast …
View Product →
Rental LED Screen K Series
A rental LED screen designed for touring events, stage productions, and temporary installations with front and r…
View Product →
Rental LED Screen U Series
A rental LED screen with a slim, lightweight aluminium die-cast cabinet designed for touring and event applicati…
View Product →
Rental LED Screen X Series
A rental LED screen designed for touring and event applications with a slim, lightweight aluminium die-cast cabi…
View Product →Projects Using This Product
7x4m, 28sqm Rental LED Screen
Guam, United States · Model MSR-XI-4
Read The Project →
28sqm Rental LED Screen
South Korea · Model MSR-XI-4
Read The Project →
80sqm Rental LED Screen
Dubai, United Arab Emirates · Model MSR-XI-4
Read The Project →Guides Related to This Product
How to Choose the Pixel Pitch for an LED Screen
Pixel pitch is the distance in millimetres between the centres of two adjacent pixels. It determines the closest viewing…
Read The Guide →
Front Service Versus Rear Service LED Screens
Service access is the side of the screen a technician works from when replacing a module, receiving card or power supply…
Read The Guide →Questions About the Rental LED Screen H Series
What are the available cabinet sizes?
Standard sizes are 500x500mm and 500x1000mm, suitable for flexible layout planning in events and tours.
How much does the cabinet weigh per square metre?
The cabinet weighs 28kg per square metre, making it lightweight for transport and rigging.
Can the screen be set up without tools?
Yes. The fast lock system with precision alignment allows tool-free installation and quick assembly.
Is front service access available?
Yes. Modules and power supplies can be accessed from the front, allowing maintenance without removing the entire cabinet.
Can the screen be shaped into curves or angles?
Yes. The angle adjustment option supports concave, convex, and curvilinear layouts for creative stage designs.
What support options are available?
The cabinet supports both truss hanging and ground support, giving flexibility for different event setups.
What is the maximum viewing distance for this screen?
Pixel pitch is selected based on viewing distance; send your site details and we will recommend the correct pitch and layout.
Quote the Rental LED Screen H Series for Your Project
Send the wall dimensions and the closest viewing distance. We will confirm the pitch, the cabinet count, the resolution and the shipping weight.
