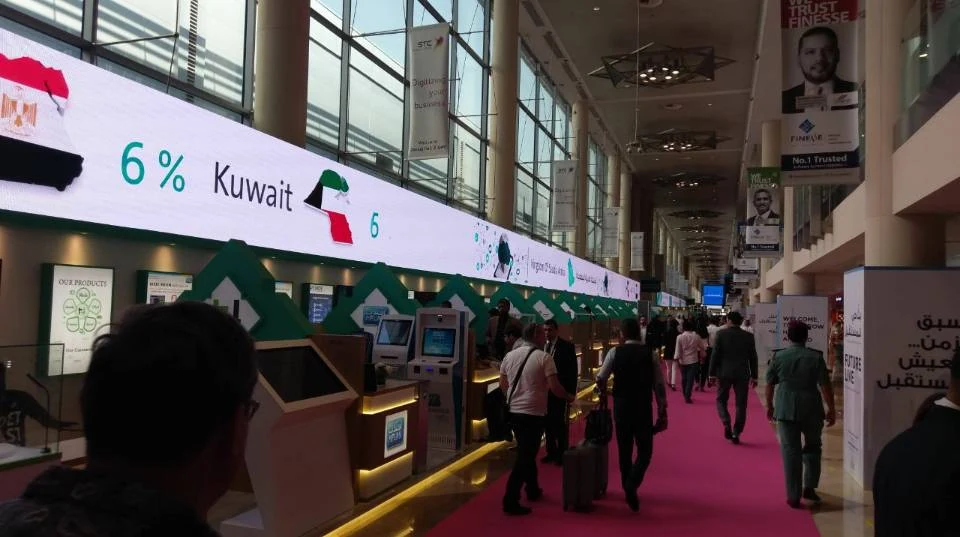

80sqm Indoor Rental LED Screen in Dubai

80sqm · Model MSR-XI-4 · Dubai, United Arab Emirates · Delivered 2016

Product Model	MSR-XI-4
Screen Size	80sqm
Location	Dubai, United Arab Emirates
Delivered	2016
Product Supplied	Rental LED Screen H Series
Sector	Rental and Staging Companies

Who It Was For

Client Background

The buyer is not named in our project records. What is documented is the screen itself: an 80sqm indoor rental LED wall supplied on MSR-XI-4 cabinets for an event in Dubai, United Arab Emirates, in 2016. A wall of this size on rental cabinets is bought by a rental and staging operation rather than by a venue.

Challenge

The Project Challenge

Install an 80sqm indoor rental screen in a tight timeline with no access to rear service space, and ensure the cabinets can be reconfigured for different shapes without losing alignment or requiring tools.

Pain Points

Customer Pain Points

80sqm is a large wall to assemble and install in a short time window during an event setup
Cabinets that require tools or shimming will delay installation and risk misalignment
Rental cabinets must maintain structural integrity across multiple events and reconfigurations
Front maintenance is required when the screen is mounted against a wall with no rear access
The screen must support curved or shaped builds without visible gaps or misalignment

Solution

Our Solution

The wall was supplied on MSR-XI-4 rental cabinets with a slim and lightweight die-cast aluminium frame at 28kg per square metre, in 500x500mm and 500x1000mm formats. The cabinets feature fast lock with high precision positioning, angle adjustment for curved or shaped builds, truss hanging and ground support options, and front and rear access for module replacement. The design allows tool-free installation and reconfiguration.

How It Was Built

Manufacturing Process

SMT placement and reflow soldering of the LED modules
Soldering inspection and module ageing test before assembly
Cabinet assembly with flatness alignment on the assembling line
Screen installation test with cabinets built up as a wall
Screen ageing test before the wall was dismantled and packed

Supply Chain

Supply Chain Coordination

Cabinets were packed with spare modules, receiving cards, and power supplies to provide field spares from the first event, eliminating the need for a second shipment during the event cycle.

Testing

Quality Control

Modules passed soldering inspection and an ageing test. Cabinets were assembled and built into a wall in the factory for a screen installation test and a screen ageing test, ensuring brightness and colour consistency across all cabinets before shipment.

Result

Final Result

Documented delivery: 80sqm of MSR-XI-4 indoor rental LED screen, supplied for Dubai, United Arab Emirates, in 2016.

Benefit

Customer Benefit

Tool-free fast lock and high precision positioning reduce installation time and ensure seamless alignment across cabinets. Front and rear access allow for maintenance in tight spaces, and angle adjustment enables creative shapes without visible gaps.
