KV600 Series High Performance Vector Inverter
The heavy-load drive in the KEVAN range - closed-loop vector control, expansion cards and torque at near-zero speed for wire drawing, hoists and extruders.
What the KV600 Is For
The KV600 is KEVAN's high-performance vector inverter for machinery that has to produce torque before it produces speed. It delivers 200% peak torque under closed-loop control, holds a 1:1000 speed range with PG feedback, keeps running with derating when grid voltage sags, and is about 30% smaller than the previous generation.
Key Benefits
- 200% peak torque under closed-loop control turns marginal starts into routine ones.
- Speed range of 1:1000 with PG feedback lets one drive cover creep speed and full production speed.
- Overload capacity of 150% for 1 minute, 180% for 10 seconds and 200% for 0.5 seconds absorbs shock loads.
- Inverter efficiency of 96% or better and a power factor of 0.94 or better with a DC reactor keep running cost down.
Application Scenarios and Buyers
Wire and Cable Machinery Builders
Straight-line wire drawing machines and power pay-off racks where tension control decides scrap rate.
Lifting and Hoisting Equipment Makers
Loads that must be held and started from standstill without rollback.
Plastics, Papermaking and Pulping Plants
Extruders and pulpers that start into a full, viscous load.
Printing, Dyeing and Ceramics Lines
Multi-section lines needing steady speed accuracy across sections.
Metal Products and Machine Tool Plants
Spindles and forming machinery where speed holding under changing load matters.
Petrochemical and Natural Gas Sites
Process equipment on grids that are not always stable.
What Goes Wrong Without It
The Machine Stalls or Trips on Start
Vector control with PG gives 200% rated torque at 0.5Hz, and without PG still gives 150% at 0.5Hz - so a loaded start is a start, not a fault code.
Line Speed Drifts as Load Changes
Steady-state speed accuracy reaches 0.05% of rated synchronous speed with PG feedback, and 2% without, keeping sections in step.
Brownouts Stop Production
When grid voltage is low the KV600 continues to operate with derating rather than shutting the line down.
The Panel Has No Room Left
The KV600 body is about 30% smaller than the previous generation, freeing cabinet space on retrofits.
One Drive Cannot Cover Every Machine
Expansion cards add I/O, communication and encoder feedback, so a single series covers open-loop and closed-loop machines.
Design Details That Matter on Site
Superior Low-Frequency Torque
200% peak torque output under closed-loop control for heavy-load starting.
Flexible Expansion Capability
A range of expansion cards for I/O, communication and encoder feedback.
Low Voltage Tolerance
Continues operating with derating when grid voltage is low.
Compact Size
Volume about 30% smaller than the previous generation.
Three Control Modes
V/F control, vector control without PG and vector control with PG.
Wide Frequency Range
G type 0 to 600Hz with steady speed accuracy of 0.5% of maximum frequency.
Full Technical Detail From the KEVAN Datasheet
Figures below are as published by KEVAN for this series. Anything not listed is confirmed by our engineers before order.
Shenzhen KEVAN Drive Technology Co., Ltd. introduces the KV600 series high-performance vector inverter, a new generation general-purpose drive designed by KEVAN Drive with years of in-depth exploration of the inverter industry and continuous technological innovation. The KV600 vector inverter easily solves technical and performance challenges encountered in a wide range of industries including cable, machine tool, metal products, petrochemical, natural gas, lifting equipment, pulping and papermaking, textile, printing and dyeing, ceramics, and many others.
With excellent low-frequency torque output performance, compact size, and flexible expansion options, the KV600 series inverter delivers reliable, high-performance motor control for demanding industrial applications.
Main Features of KV600 Series High-Performance Vector Inverter
- Superior Low-Frequency Torque Output
The KV600 vector inverter delivers excellent low-frequency torque output performance, achieving 200% peak torque output under closed-loop control. This ensures stable operation even in heavy-load starting conditions.
- Flexible Expansion Capability
The KV600 series inverter configures a variety of expansion cards to ensure diverse high-performance closed-loop control applications. Add I/O, communication, or encoder feedback cards as needed.
- Low Voltage Tolerance
When grid voltage is low, the KV600 inverter can still operate with derating (refer to the corresponding parameter settings in the manual). This ensures continuous production during brownout conditions.
- Compact Size
The volume of KV600 is about 30% smaller than the previous generation, saving valuable installation space in control cabinets and machinery.
Technical Specifications of KV600 Series High-Performance Vector Inverter
Series: KV600 High-Performance Vector Inverter Control Mode: Vector control, closed-loop control optional Peak Torque: 200% under closed-loop control
| Project | Specification | |
| Power Input | Voltage, Frequency | Single-Phase 220V, 50/60Hz Three-Phase 380V, 50/60Hz |
| Allow Fluctuations | Voltage Unbalance Rate:<3%, Frequency:=””> | |
| Power Factor | ≥0.94 (With DC Reactor) | |
| Inverter Efficiency | ≥96% | |
| Output | Output Voltage | Output Under Rated Conditions: 3-Phase, 0~ Input Voltage, Error Less Than 5% |
| Speed Range | G Type: 0～600Hz | |
| Steady Speed Accuracy | ±0.5% Of The Maximum Frequency Value | |
| Overload Capacity | G Type: 150% Rated Current For 1 Minute, 180% Rated Current For 10 Seconds, 200% Rated Current For 0.5 Seconds | |
| Main Control Performance | Motor Control Mode | V/F Control Without PG, Vector Control Without PG, Vector Control With PG |
| Speed Control Range | Without PG Vector Control, Rated Load 1:100; With PG Vector Control, Rated Load 1:1000 | |
| Steady-State Speed Accuracy | Vector Control Without PG: ≤2% Of Rated Synchronous Speed Vector Control With PG: ≤0.05% Of Rated Synchronous Speed | |
| Starting Torque | Vector Control Without PG: 150% Rated Torque At 0.5Hz Vector Control With PG: 200% Rated Torque At 0Hz | |
| Torque Response | Vector Control Without PG:<20ms Vector=”” Control=”” With=”” Pg:=””> | |
| Frequency Accuracy | Digital Setting: Maximum Frequency × ±0.01% Analog Setting: Maximum Frequency × ±0.2% | |
| Frequency Resolution | Digital Setting: 0.01Hz Analog Setting: Maximum Frequency × 0.05% | |
| Basic Functions Of The Product | DC Braking Capability | Starting Frequency: 0.00～50.00Hz; Braking Time: 0.0～60.0s Braking Current: 0.0～150.0% Rated Current |
| Torque Boost | Automatic Torque Boost 0.0%～100.0% Manual Torque Boost 0.0%～30.0% | |
| V/F Curve | Four Modes: Linear Curve, Multi-Point V/F Curve, Torque Reduction Curve (1.1~1.9 Power), Square V/F Curve | |
| Acceleration And Deceleration Curve | Two Modes: Linear Acceleration And Deceleration, S-Curve Acceleration And Deceleration Four Sets Of Acceleration And Deceleration Time, Time Unit 0.01s, Maximum 650.00s | |
| Rated Output Voltage | The Motor Rated Voltage Is 100%, And Can Be Set Within The Range Of 50-100% (Output Does Not Exceed Input Voltage) | |
| Automatic Voltage Adjustment | When The Grid Voltage Fluctuates, It Can Automatically Keep The Output Voltage Constant | |
| Automatic Energy-Saving Operation | Under V/F Control Mode, The Output Voltage Is Automatically Optimized According To The Load To Achieve Energy-Saving Operation | |
| Standard Features | PID Control, Speed Tracking And Power-Off Restart, Jump Frequency, Frequency Upper And Lower Limit Control, Program Operation, Multi-Speed, RS485, Analog Output, Frequency Pulse Output | |
| Frequency Setting Channel | Keyboard Digital Setting, Keyboard Potentiometer, Analog Terminals AI1, AI2, Communication Setting And Multi-Function Terminal Selection, Main And Auxiliary Channel Combination, Expansion Card, Can Be Switched In Various Ways | |
| Feedback Input Channel | Analog Terminals AI1, AI2, Communication Setting, Pulse Input X5 | |
| Run Command Channel | Operation Panel Setting, External Terminal Setting, Communication Setting, Expansion Card Setting | |
| Input Command Signal | Start, Stop, Forward And Reverse, Jog, Multi-Speed, Reset, Acceleration And Deceleration Time Selection, Frequency Setting Channel Selection, External Fault Alarm | |

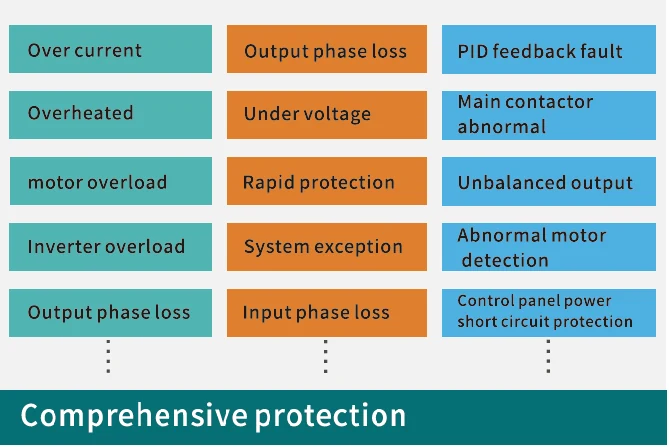

| Protection Function | Overvoltage, Undervoltage, Current Limiter, Overcurrent, Overload, Electronic Thermal Relay, Overheating, Overvoltage Stall, Data Protection, Flying Speed Protection, Input And Output Phase Loss Protection | |
| Environment | Installation Location | Altitude Below 1000 Meters, Derating For Altitudes Above 1000 Meters, Derating By 1% For Every 100 Meters Increase; No Condensation, Icing, Rain, Snow, Hail, Etc., Solar Radiation Below 700W/M2, Air Pressure 70~106kPa |
| Temperature And Humidity | -10～+50℃, Derating Is Possible Above 40℃, Maximum Temperature Is 60℃ (No-Load Operation); 5%～95%RH (Non-Condensing) | |
| Protection Level | IP20 | |
| Cooling Method | Forced Air Cooling |
Low-Frequency Torque: Excellent low-frequency torque output Expansion: Supports various expansion cards for closed-loop applications
Voltage Tolerance: Operates with derating under low grid voltage Size Reduction: 30% smaller than previous generation
Performance characteristics
Standard Connection Diagram
Applications of KV600 Series High-Performance Vector Inverter
The KV600 series vector inverter is designed to solve technical and performance challenges across multiple industries, including:
- Cable Industry – Precise tension control for pay-off and take-up systems
- Machine Tools – Spindle drive and servo control for lathes, milling machines, and machining centers
- Metal Products – Wire drawing, straightening, and cutting machines
- Petrochemical & Natural Gas – Pump and compressor control in hazardous environments
- Lifting Equipment – Cranes, hoists, and elevators requiring high starting torque
- Pulping & Papermaking – Synchronous control of winder, unwinder, and dryer sections
- Textile & Printing/Dyeing – Main motor drive on spinning, weaving, and dyeing lines
- Ceramics Industry – Ball mills, kilns, and polishing line drives
Why Choose KV600 Series High-Performance Vector Inverter?
- High performance – 200% peak torque for heavy-load starting
- Industry-proven – Solves challenges in cable, textile, machine tools, papermaking, and more
- Flexible – Expansion cards for closed-loop and communication applications
- Compact – 30% smaller than previous generation, saves cabinet space
- Reliable – Low voltage tolerance ensures continuous operation
- Cost-effective – High performance at a competitive price
Contact KEVAN for KV600 Inverter Inquiries
For pricing, technical support, or bulk orders of the KV600 series high-performance vector inverter, please contact our overseas sales team:
Overseas Sales Contact: Mr. Li
Phone/WhatsApp: +86-13725501611
Email: [email protected]
Company Address:
Room 501, Building 11, Nangang Second Industrial Park
No. 1026, Songbai Road, Sunshine Community, Xili Street
Nanshan District, Shenzhen, China
Views Wiring and System Diagrams
How It Compares With the Rest of the Range
How the KV600 sits against the other KEVAN series:
| Against KV100 | The KV100 is open-loop only and aimed at fans, pumps, spindles and conveyors. Move up to the KV600 when you need encoder feedback, 200% torque or expansion cards. |
|---|---|
| Against KV500 | The KV500 is a solar and single-phase-input drive. The KV600 is a grid-powered industrial drive for heavy and precise loads. |
| Against SV13 / SV20 | The SV series is purpose-built for pumping from PV panels. The KV600 is for production machinery. |
Use Guide
- Decide early whether the machine needs PG feedback - the torque and accuracy figures differ substantially between with-PG and without-PG operation.
- Order the encoder card with the drive if closed-loop control is required.
- Fit a DC reactor where power factor matters; the 0.94 figure is quoted with one installed.
- Confirm supply: single-phase 220V 50/60Hz or three-phase 380V 50/60Hz, with voltage unbalance under 3%.
- Size for overload duty, not just rated current, on wire drawing and hoisting duty cycles.
- Run a motor auto-tune before production so low-frequency torque matches the published figures.
Other KEVAN Series
KV100 Series Economic Frequency Inverter
A cost-controlled general-purpose drive for lathe spindles, fans, pumps and conveyor lines, built to hold full output in a 50 C cabinet.
View Specifications →
KV500 Series Solar Pump Inverter
Runs a three-phase 380V pump or machine from a single-phase 220V supply or straight from PV panels, with no phase converter in between.
View Specifications →
SV13 Series Photovoltaic Water Pump Inverter
A narrow book-style solar pump drive covering almost every small and mid-size pump voltage, with app monitoring and grid backup built in.
View Specifications →Related Industries
Related Cases
Related Articles
KV600 Series High Performance Vector Inverter FAQ
How much starting torque does the KV600 deliver?
What speed control range is achievable?
What is the overload capacity?
Will it keep running if our grid voltage drops?
Can I add fieldbus communication later?
What is the output frequency range?
Request a Quote for the KV600 Series High Performance Vector Inverter
Single-piece samples ship in 3-5 days, bulk orders in 10-25 days, with an 18-month warranty.
