SV20 Series Solar Pump Inverter
The full-feature KEVAN solar pumping platform: grid-adaptive, light-sensing, app-controlled and able to swap between DC and AC in under 10 milliseconds.
What the SV20 Is For
The SV20 is KEVAN's flagship solar water pump inverter. It reaches up to 96% energy conversion efficiency with peak efficiency quoted at 98.7%, switches between AC and DC sources in under 10ms, detects light intensity to change source automatically, and carries CE certification for export markets.
Key Benefits
- Energy conversion efficiency up to 96%, with the highest efficiency quoted at 98.7%, so more of the array output reaches the water.
- Unattended operation - the system works at sunrise and stops at sunset and is designed for years of maintenance-free service.
- One-time investment with long-term returns, and eligibility for government subsidies in many regions.
- Clean energy operation with no fuel, no pollution and zero carbon dioxide emissions in use.
Application Scenarios and Buyers
Irrigation District Operators
Central irrigation systems where several pumps must run unattended and be supervised from one place.
Agricultural Projects and Co-operatives
Large-area irrigation where every percentage point of conversion efficiency shows up in yield per panel.
Rural and Municipal Water Supply
Systems that cannot tolerate a gap in supply when cloud passes over the array.
Industrial Process Sites
Cable, machine tool, metal products, petrochemical, natural gas, lifting, pulping and papermaking, textile, printing and dyeing and ceramics plants.
Export Distributors and System Integrators
Partners who need CE certification and grid-adaptive behaviour for varied national grid rules.
What Goes Wrong Without It
Cloud Cover Interrupts Pumping
AC/DC switching time under 10ms means the pump keeps turning when the source changes, instead of stopping and restarting.
Grid Connection Rules Differ by Country
Smart grid-adaptive technology is designed to meet varied grid access requirements so the same product ships to different markets.
Somebody Has to Drive Out and Check It
A GPRS module gives remote control from a mobile app, so system status is visible from anywhere.
Manual Switching Wastes Daylight
Automatic light detection identifies light intensity and switches AC and DC input without an operator.
Electrical Noise on Long Cable Runs
Strong EMC anti-interference performance and redundant protection design keep the drive stable on long field cabling.
Design Details That Matter on Site
MPPT Maximum Power Output
Maximum photovoltaic utilisation with multiple protection functions.
Free Switching Under 10ms
AC/DC switching time is less than 10ms, so pumping is uninterrupted.
Grid Adaptive Intelligence
Smart grid-adaptive technology meets various grid access requirements worldwide.
Automatic Light Detection
Identifies light intensity and automatically switches between AC and DC input.
GPRS Remote Control
GPRS module supports remote control from a mobile app.
Broad Motor Support
Drives S.R.M., P.M.S.M. and A.M. motors, with single-phase and three-phase pump compatibility.
Full Technical Detail From the KEVAN Datasheet
Figures below are as published by KEVAN for this series. Anything not listed is confirmed by our engineers before order.
The SV20 series solar water pump frequency converter, launched by Shenzhen KEVAN Drive Technology Co., Ltd., is the result of years of in-depth research, continuous technological innovation, and accumulation in the frequency converter industry. The SV20 series solar pump inverter easily solves technical and performance challenges encountered in cable, machine tool, metal products, petrochemical, natural gas, lifting equipment, pulping and papermaking, textile, printing and dyeing, ceramics, and other industries — while also delivering exceptional performance for solar water pumping applications.
The SV20 series inverter combines clean energy utilization, economic affordability, intelligent control, and international standards, making it the ideal choice for solar-powered water pumping systems worldwide.
Product Features
Safe & Reliable
- Redundant protection design
- Realize all-round protection
- Output high quality electric energy
- Stable operation, adapt to different applications
Energy Saving & High Efficiency
- Energy conversion efficiency up to 96%
- Maximum photovoltaic utilization
- The highest efficiency can reach 98.7%
- Wide input voltage range
Simple & Flexible
- LED interface is friendly, simple setup
- Support remote operation, simple maintenance
- One key operation
Powerful Function
- Support S.R.M. & P.M.S.M. & A.M. driving
- Strong EMC anti-interference performance
Intelligent Features
Grid Adaptive (Intelligence)
Smart grid adaptive technology meets various grid access requirements, ensuring smooth integration with local power grids worldwide.
Free Switching (Switch Freely)
AC/DC switching time is less than 10ms, ensuring uninterrupted water pumping during cloud cover or grid fluctuations.
Core Functions of SV20 Series Solar Pump Inverter
- GPRS Remote Control – Supports GPRS module to achieve remote control by mobile APP
- Automatic Light Detection – Identify light intensity and automatically switch AC and DC input
- Pump Compatibility – Supports single-phase and three-phase pumps
- MPPT – Maximum power output with multiple protection functions
- Motor Versatility – Drive a variety of permanent magnet synchronous (PMSM), asynchronous, and BLDC motors
- Hybrid Mode – Supports AC/DC hybrid mode for 24/7 operation
Sustainability & Compliance
Clean Energy
Inexhaustible energy supply, non-pollution, zero carbon dioxide emissions, actively contributing to curbing global warming.
Economic & Affordable
One-time investment for long-term returns, with eligibility for government subsidies in many regions.
Safe & Reliable Operation
Unattended operation — works at sunrise and stops at sunset. Designed for years of maintenance-free service.
Smart Internet of Things
Powerful GPRS IoT connectivity allows users to master the system status anytime, anywhere via mobile app.
International Standards
In line with national standards and certified with CE certification for global market acceptance.

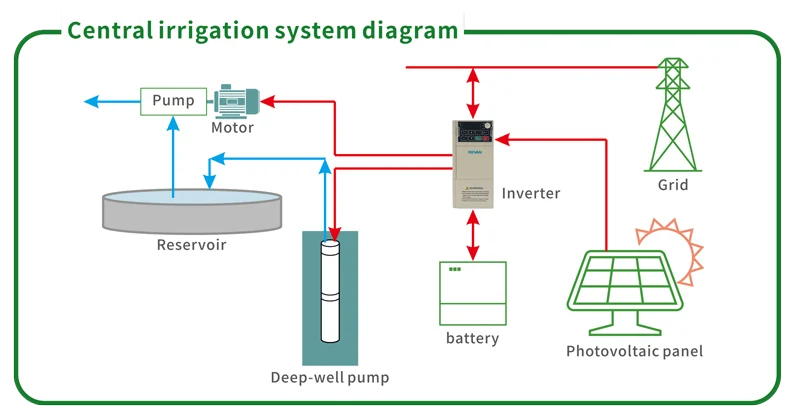

Central Irrigation System Diagram
The SV20 series solar pump inverter integrates seamlessly into a complete solar pumping system:
- Photovoltaic panels → Inverter → Pump → Motor → Reservoir → Distribution

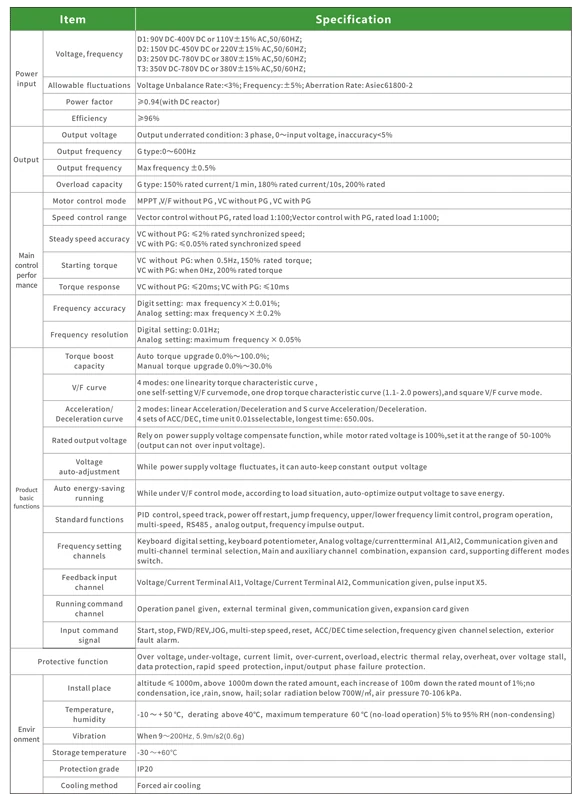

SV20 Series Technical Specifications
Max Efficiency: Up to 98.7% Energy Conversion Efficiency: Up to 96% AC/DC Switching Time: Less than 10ms Motor Support: S.R.M., P.M.S.M., A.M. (asynchronous), BLDC Control: MPPT, GPRS remote control, one-key operation
Pump Support: Single-phase and three-phase pumps Protection: Multiple protection functions, redundant protection design Compliance: CE certified

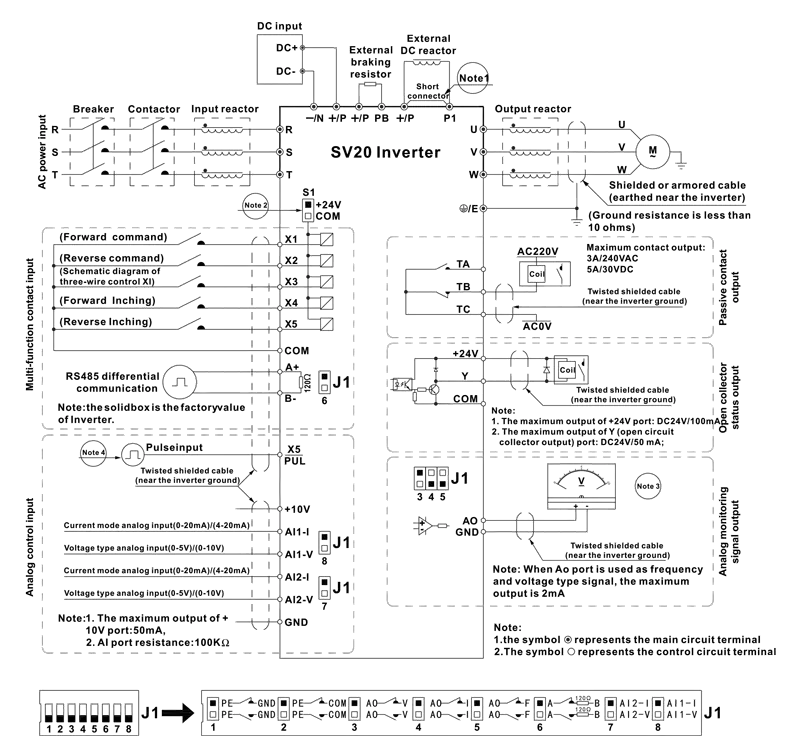

Standard Connection Diagram
Applications of SV20 Series Solar Pump Inverter
The SV20 series solar pump inverter is suitable for a wide range of solar-powered water pumping applications, including:
- Fountain – Decorative and ecological water features in parks and gardens
- Desert Control – Solar-powered irrigation for desert greening and afforestation projects
- Domestic Water – Household water supply for off-grid homes and rural villages
- Seawater Desalination – Small to medium-scale solar desalination plants
- Sewage Disposal – Solar-powered sewage and wastewater treatment systems
- Agricultural Irrigation – Crop irrigation in remote farmlands
- Livestock Watering – Water supply for cattle, sheep, and other livestock
Why Choose SV20 Series Solar Pump Inverter?
- Ultra-high efficiency – Up to 98.7% peak efficiency for maximum energy harvest
- Fast switching – Less than 10ms AC/DC transition ensures uninterrupted operation
- Versatile motor support – Drives PMSM, asynchronous, BLDC, and SRM motors
- Remote monitoring – GPRS IoT with mobile APP control
- Automatic hybrid mode – Seamless solar/grid switching based on sunlight
- Globally certified – CE certified for international markets
- Wide application range – From fountains to desert control to desalination
Contact KEVAN for SV20 Series Solar Pump Inverter Inquiries
For pricing, technical support, or bulk orders of the SV20 series solar pump inverter, please contact our overseas sales team:
Overseas Sales Contact: Mr. Li
Phone/WhatsApp: +86-13725501611
Email: [email protected]
Company Address:
Room 501, Building 11, Nangang Second Industrial Park
No. 1026, Songbai Road, Sunshine Community, Xili Street
Nanshan District, Shenzhen, China
Views Wiring and System Diagrams
How It Compares With the Rest of the Range
How the SV20 sits against the other KEVAN series:
| Against SV13 | The SV13 is the miniaturised, cost-focused solar pump drive. The SV20 adds grid-adaptive control, automatic light detection, sub-10ms source switching and the higher quoted efficiency figures. |
|---|---|
| Against KV500 | The KV500 solves the single-phase 220V in, three-phase 380V out problem. The SV20 is the full solar pumping platform for larger, supervised systems. |
| Against KV100 / KV600 | Those are grid-powered industrial drives without MPPT, PV input or hybrid switching. |
Use Guide
- Confirm pump type and phase - the SV20 supports single-phase and three-phase pumps and S.R.M., PMSM and asynchronous motors.
- Plan the array around the pump duty point so MPPT has enough headroom through the day.
- Order the GPRS module with the drive if the site is to be supervised remotely.
- Configure hybrid mode and light detection thresholds at commissioning rather than leaving defaults.
- Use the LED interface for setup on site; one-key operation covers routine starts and stops.
- Keep CE documentation with the shipment for customs and project sign-off in export markets.
