Double heads CO2 Laser Cutting Machine

What This Machine Is Built To Do

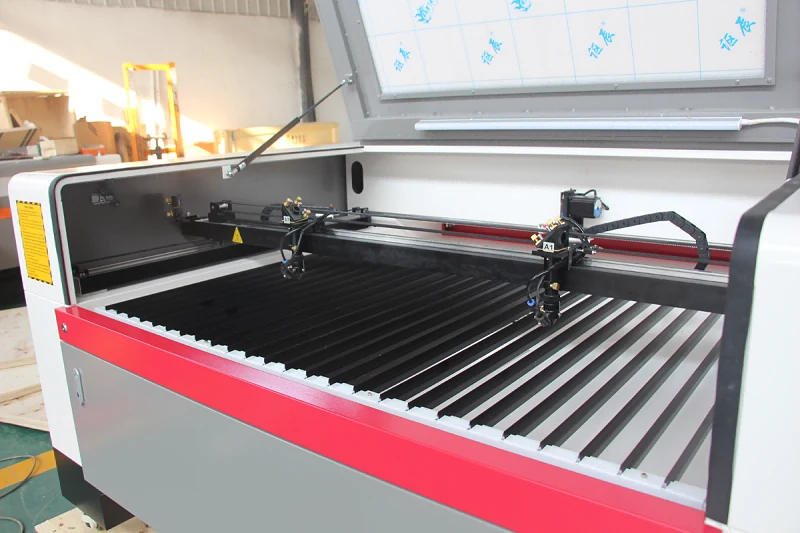

The WH1490-2 is a double-head CO2 laser cutting machine with a 1400 x 900 mm work area and two laser heads. Laser tube power can be selected from 60 W, 80 W, 100 W, 130 W or 150 W, so one head can run a higher-power tube while the other runs a lower-power tube. Engraving speed is 0 to 60000 mm/min and cutting speed is 0 to 30000 mm/min, with a blade or honeycomb table and stepper motor drive. Two laser heads can move toward each other, and a single laser head can achieve a processing width up to 1250 mm. It includes two 550W exhaust fans, two water pumps and two 195W air compressors, and can be optioned with a CW3000w/CW5000/CW5200 chiller, motorized up down table, auto focus, red dot pointer, rotary axis or servo motor. It suits workshops that need cutting and engraving on one frame instead of buying two separate nonmetal laser machines.

• Two laser heads improve efficiency and reduce costs for mixed jobs
• Install two different power tubes, one for cutting and one for engraving
• One frame replaces two separate machines, saving floor space and purchase cost
• Single head can process width up to 1250 mm when heads move toward each other
• Dual fans, pumps and optional chiller support large-scale continuous operation
• Leakage protector automatically cuts power to protect operators
