Mold Repair Cantilever Laser Welder

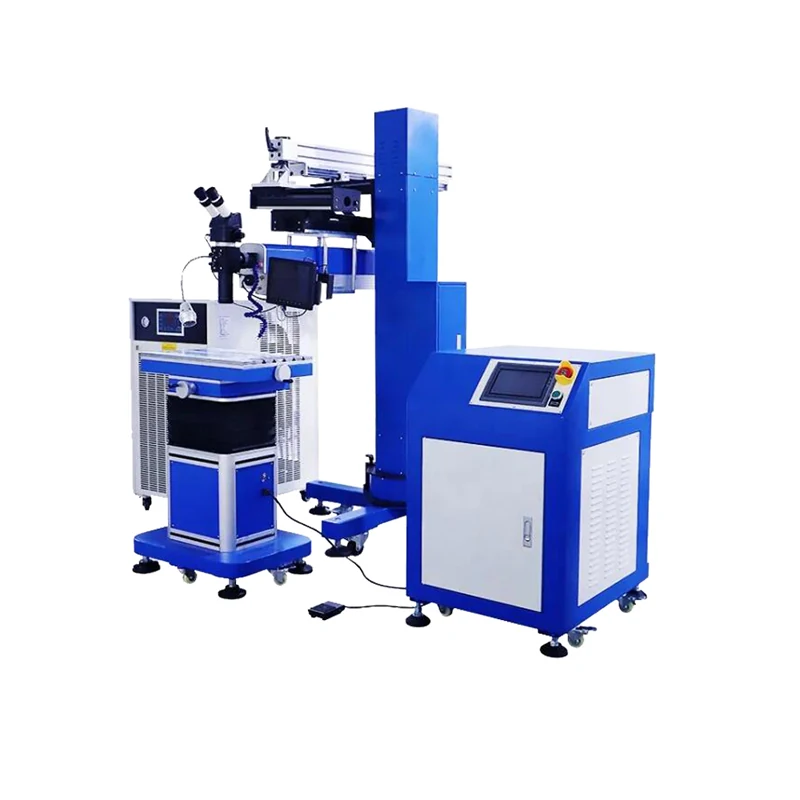

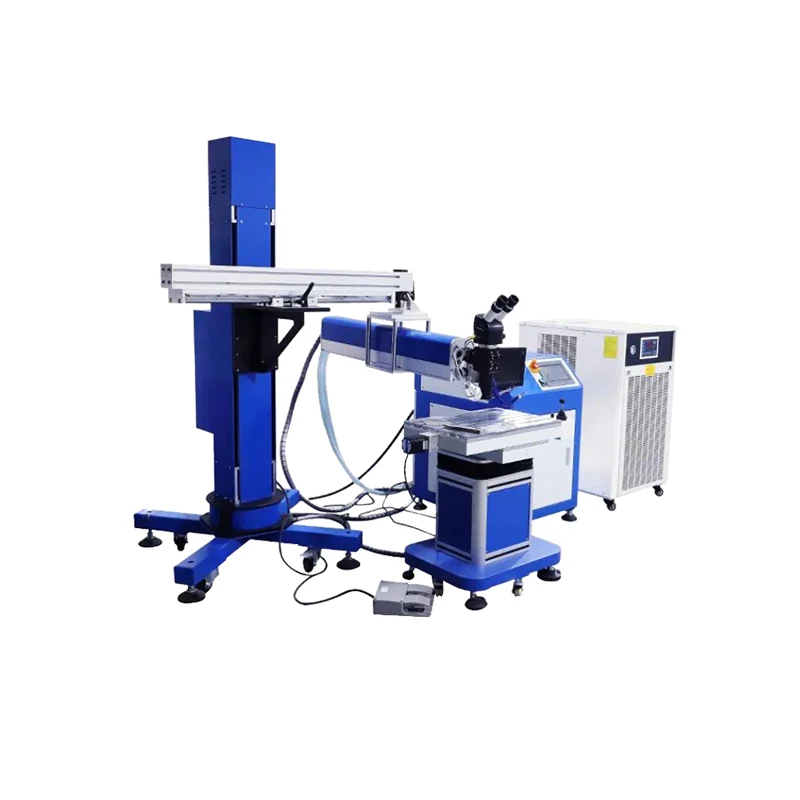

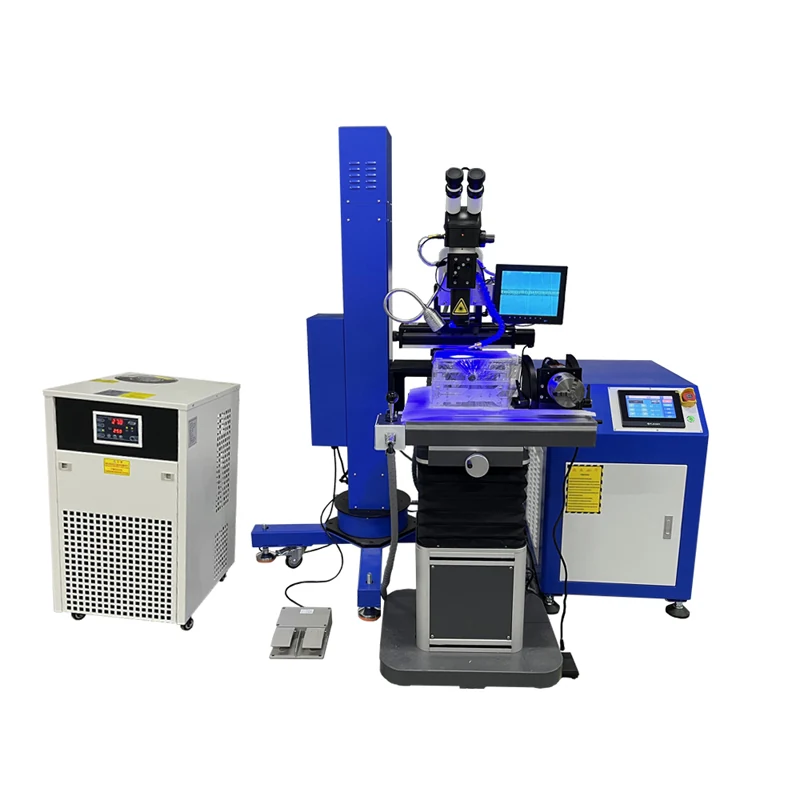

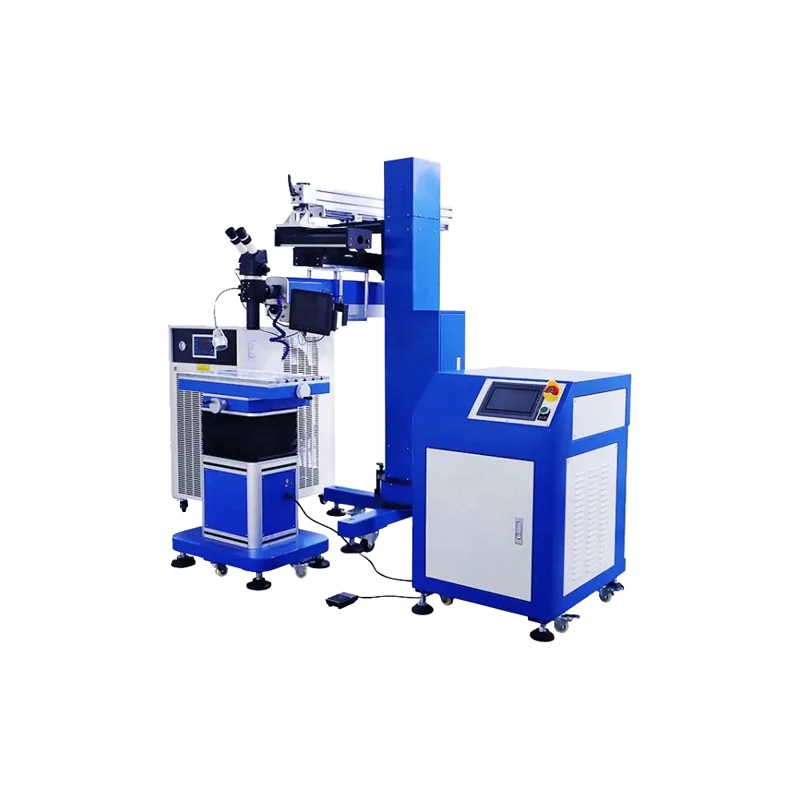

The WH-MW series is a cantilever YAG laser welder for mold repair and precision welding on chassis, auto parts, bearings and engineering machinery molds.
Product Overview
What This Machine Is Built To Do
The WH-MW series is a cantilever YAG laser welder for mold repair and precision welding on chassis, auto parts, bearings and engineering machinery molds. Power options of 200 W, 300 W, 400 W and 500 W produce welding depths from 0.1 mm to 3 mm with a 1064 nm wavelength. The ceramic cavity reflector is rated for 8 to 10 years working life, and the xenon lamp reaches 3 million shots. A 10X stereo microscope with cross cursor aligns the weld point before firing, while an integrated chiller keeps output stable during long repair sessions. It replaces TIG for small mold cavity repairs where heat distortion and post-weld machining time are the main cost.
- Welds mold steel, stainless, precious metals and hard materials without the distortion of TIG
- Ceramic reflector cavity rated for 8 to 10 years cuts long-term lamp and cavity replacement cost
- 10X stereo microscope with cross cursor aligned to laser spot speeds up precise weld placement
- Integrated high-power chiller maintains stable output during extended mold repair sessions
- Intelligent joystick handle allows quick parameter adjustment without stopping the weld
- Four power models from 200 W to 500 W match welding depth to the part being repaired
Where It Is Used
Application Scenarios
- Mold and die repair shops fixing worn cavity surfaces on injection and die-casting molds
- Automotive suppliers repairing chassis, tire and auto part tooling
- Bearings and engineering machinery workshops welding hard materials and aluminum castings
- Large household appliance producers repairing plastic shell molds
- Lost wax casting and precision stamping part repair operations
Buyer Fit
Who It Is For
- Mold repair shops replacing TIG welding for precision cavity work
- Tool and die makers welding mold steel and hard materials
- Automotive and appliance manufacturers maintaining large production molds
- Machine dealers selling YAG laser welders to mold maintenance workshops
Process Problems
Problems It Solves
- TIG welding causes heat distortion that requires extensive re-machining of mold cavities
- Manual electrode changes waste time during precision repair of small features
- Standard reflector cavities erode quickly, increasing downtime and replacement cost
- Misaligned weld points on complex mold geometry lead to scrapped parts
- Unstable cooling during long runs causes output drop and inconsistent weld depth
Engineering
Technical Features
- High-speed liquid crystal light valve filter automatic protection system eliminates eye irritation
- Anti-erosive high temperature resistant ceramic reflector cavity with 8 to 10 year life
- Xenon lamp rated for 3 million shots for long-lasting performance
- 10X stereo microscope with cross cursor aligned to laser spot center
- High-power integrated chiller for stable operation at high power levels
- Intelligent joystick handle for simple and efficient parameter adjustment
Specifications
Published Figures For Mold Repair Cantilever Laser Welder
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Model | WH-MW200 / WH-MW300 / WH-MW400 / WH-MW500 |
|---|---|
| Laser Type | YAG |
| Wavelength | 1064 nm |
| Max Output Power | 200 W / 300 W / 400 W / 500 W |
| Max Single Pulse Energy | 100 J / 110 J / 120 J / 140 J |
| Peak Power | 8 KW / 12 KW / 18 KW / 24 KW |
| Max Pulse Frequency | <=30 Hz / <=30 Hz / <=40 Hz / <=50 Hz |
| Pulse Width | 0.1-6 ms / 0.1-6 ms / 0.1-8 ms / 0.1-10 ms |
| Welding Depth | 0.1-1.5 mm / 0.1-2 mm / 0.1-2.5 mm / 0.1-3 mm |
| Focal Diameter | 0.3-3.0 mm |
| Laser Cavity | Ceramic Cavity / Metal Cavity |
| Xenon Lamp | Single Xenon Lamp / Dual Xenon Lamps |
| Vision System | 10X Stereo Microscope + CCD Camera Display (optional) |
| Worktable Size | X:200 mm, Y:100 mm, Z:200 mm |
| Work Range | X:400 mm, Y:200 mm, Z:700 mm |
| Loading Ability | <=200 kg |
| Cooling System | External Water Cooling |
| Water Chiller | 1P / 1.5P Small / 3P Big |
| Power Supply | AC220V/50Hz-60Hz / AC380V/50Hz-60Hz |
Materials
Materials It Handles
- Mold steel
- Stainless steel
- Cymbals steel
- Precious metals
- Hard materials
- Aluminum
- Aluminum castings
Working Process
From File To Finished Part
Clean the mold cavity surface and remove oxidation or oil
Position the part under the cantilever arm and adjust the worktable
Align the cross cursor on the 10X stereo microscope with the weld point
Set pulse width, frequency and energy on the joystick handle
Weld the area using the YAG laser at 1064 nm wavelength
Inspect the weld bead and repeat passes if depth is insufficient
Quality Control
Quality Control Before Shipment
- Ceramic cavity reflector tested for anti-erosion and high temperature resistance
- Xenon lamp lifespan verified to 3 million shots before shipping
- Cross cursor alignment checked against laser spot center on every unit
- Integrated chiller tested for stable output at rated power levels
Options
Customisation Options
- Choose 200 W, 300 W, 400 W or 500 W output power based on welding depth
- Select single or dual xenon lamp configuration for pulse energy needs
- Add optional 15X or 20X magnification microscope for finer detail work
- Configure power supply for AC220V or AC380V destination market
Comparison
How It Compares With The Alternatives
| TIG Welding | Laser welding produces less heat distortion and requires minimal post-weld machining, though TIG may be cheaper for large structural repairs |
|---|---|
| Standard Metal Cavity YAG Welder | Ceramic cavity offers 8 to 10 year life versus frequent replacement, reducing long-term maintenance cost despite higher initial price |
| Fiber Laser Welder | YAG allows precise pulse control for mold repair with lower peak power, while fiber is faster for long seam welding on sheet metal |
Operating Notes
Use Guide
- Check water chiller level before each shift to prevent output instability
- Clean microscope lenses daily to maintain cross cursor alignment accuracy
- Monitor xenon lamp shot count and replace before 3 million limit
- Use protective eyewear even with the light valve filter for added safety
- Adjust pulse width to 0.1 ms for thin material to avoid burn-through
Buyer Questions
Mold Repair Cantilever Laser Welder FAQ
What is the maximum welding depth?
The WH-MW500 model reaches 3 mm welding depth. The WH-MW400 reaches 2.5 mm, WH-MW300 reaches 2 mm and WH-MW200 reaches 1.5 mm.
How long does the xenon lamp last?
The xenon lamp has a rated lifespan of 3 million shots, providing long-lasting performance for daily mold repair operations.
Can it weld aluminum and hard materials?
Yes, the machine is designed to weld mold steel, stainless steel, cymbals steel, precious metals, hard materials and aluminum castings.
What magnification options are available?
The standard configuration includes a 10X stereo microscope. Optional 15X or 20X magnification is available for finer detail work.
How is the machine protected during operation?
A high-speed liquid crystal light valve filter automatic protection system eliminates eye irritation during working hours.
What is the worktable load capacity?
The worktable has a loading ability of up to 200 kg, with a work range of X:400 mm, Y:200 mm, Z:700 mm.
