Automatic Laser Welding Machine
The Automatic Laser Welding Machine is a platform-based fiber laser welder available with 1000 W, 1500 W, 2000 W, 3000 W or 4000 W sources. It uses a 1080 nm wavelength fiber laser with a spot diameter of 0.4 to 1.0 mm and a 150 mm focus length.
Product Overview
What This Machine Is Built To Do
The Automatic Laser Welding Machine is a platform-based fiber laser welder available with 1000 W, 1500 W, 2000 W, 3000 W or 4000 W sources. It uses a 1080 nm wavelength fiber laser with a spot diameter of 0.4 to 1.0 mm and a 150 mm focus length. The machine features a sealed cabinet design to protect internal components from dust and save floor space. It employs a CNC20000 welding software system and a combination of a welding head with three-axis servo motors to enable seam tracking and multi-angle welding. The system supports continuous working for 16 hours and includes self-diagnostic, protection and warning functions. It is built for workshops welding thin-walled materials and precision parts that require high repeatability and clean weld surfaces.
- Sealed cabinet design prevents dust ingress and reduces the machine footprint

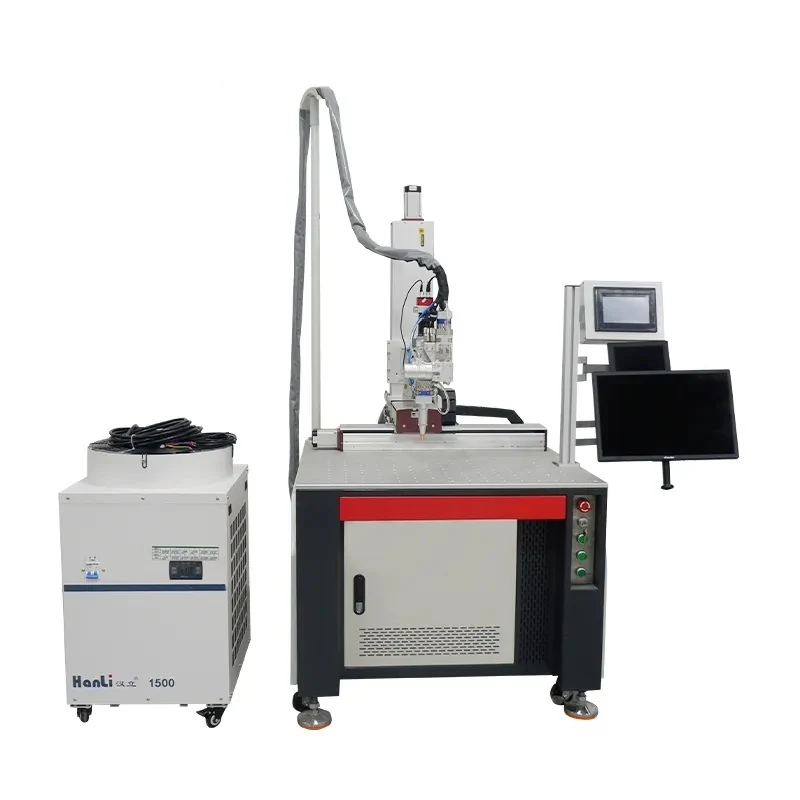

- Three-axis servo motor combination enables seam tracking and multi-angle welding
- CNC20000 software with red light focusing allows for high precision positioning
- Modular design supports functional expansions for spot, butt, overlay and sealing welding
- 16-hour continuous working capability supports long production shifts
- Self-diagnostic and warning functions reduce unexpected downtime during operation
Where It Is Used
Application Scenarios
- Electronics manufacturers welding thin-walled housings and precision components
- Hardware workshops performing butt welding and sealing welding on metal parts
- Automotive suppliers integrating automated welding into production lines
- Jewelry makers requiring small focused laser spots for detailed overlay welding
- Sheet metal fabricators needing seam tracking for irregular weld paths
Buyer Fit
Who It Is For
- Procurement engineers sourcing automated welding cells for precision parts
- Machine dealers offering fiber laser welding solutions with modular expansion
- Fabricators replacing manual TIG welding for thin-walled materials
- Production managers needing 16-hour continuous working capability
- Integrators looking for systems with dedicated industry fixtures
Process Problems
Problems It Solves
- Dust accumulation in open welders causes optical contamination and failure
- Manual positioning errors lead to inconsistent weld seams on curved parts
- Standard welders cannot track seams automatically on complex geometries
- Lack of self-diagnosis results in long troubleshooting times during breakdowns
- Fixed welding angles limit the ability to join parts in multi-axis configurations
Engineering
Technical Features
- Sealed cabinet design for dust-proof operation and space efficiency
- Modular architecture allowing functional expansions and fixture integration

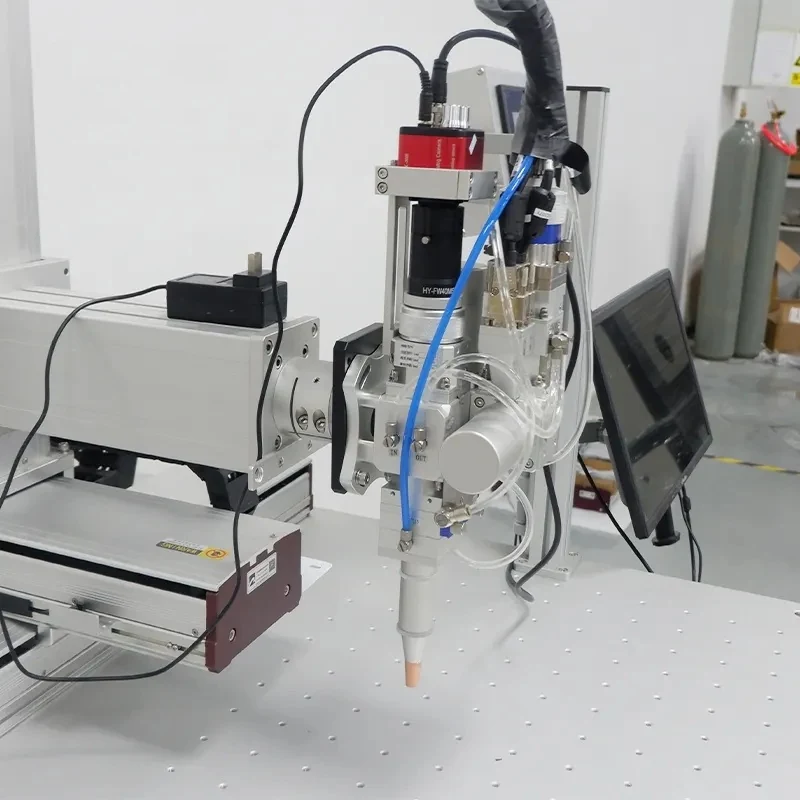

- Red light pointer in welding head for aiming and positioning

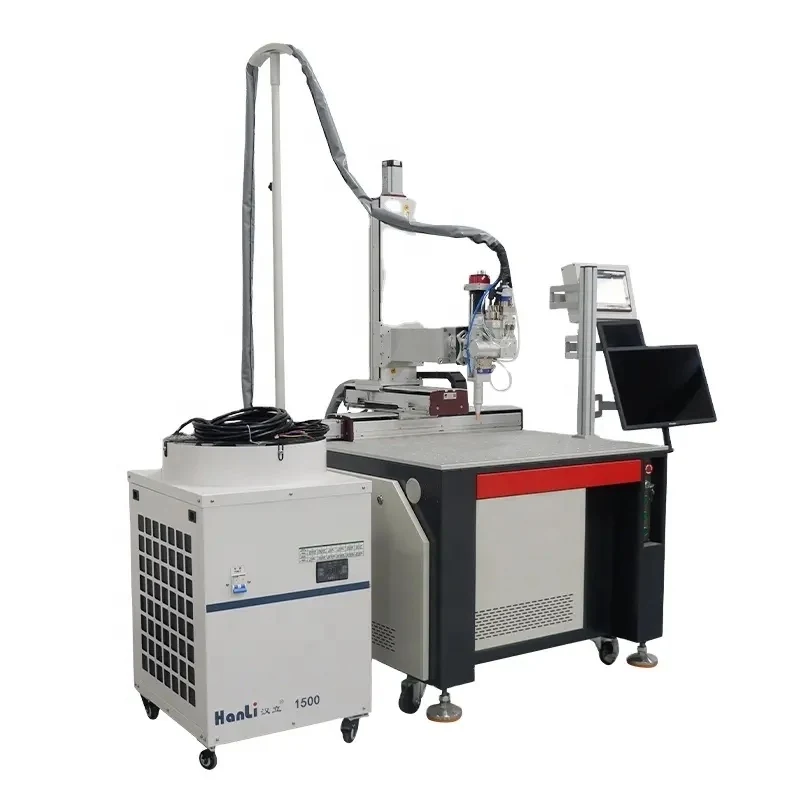

- CNC20000 welding software with intelligent control capabilities
- Professional welding head combined with three-axis servo motors
- Self-diagnostic, protection and warning system functions
Specifications
Published Figures For Automatic Laser Welding Machine
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.

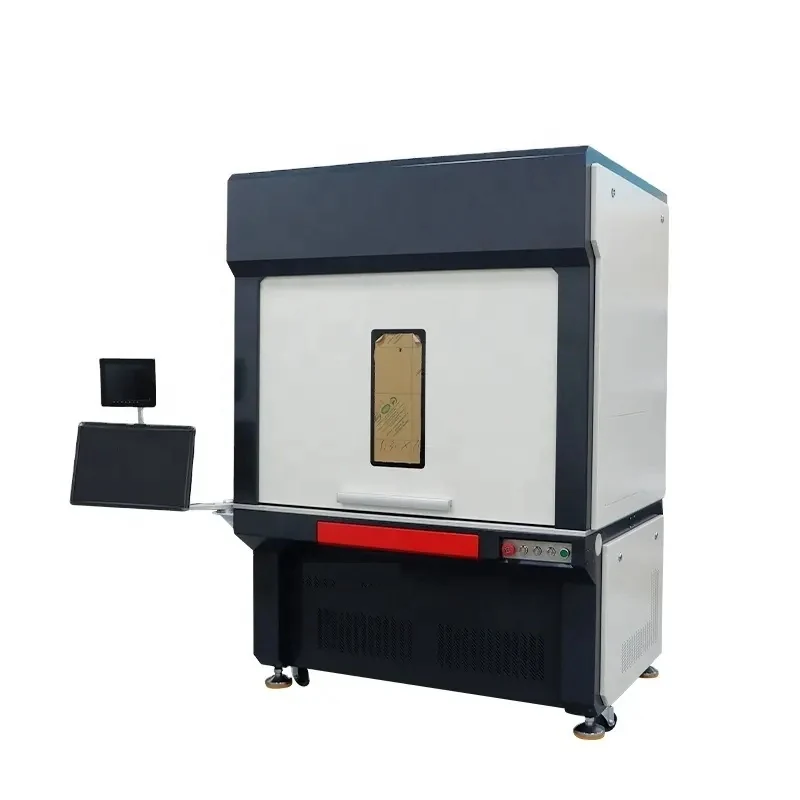

| Laser Power | 1000w/1500w/2000w/3000w/4000w |
|---|---|
| Laser Wavelength | 1080nm |
| Laser Material | Fiber |
| Beam-divergence Angle | <5mrad |
| Laser Energy Instability | <3% |
| Continuous Working | 16hours |
| Pulse Width | 0.05-50MS |
| Aiming and Positioning | Red Light Pointer in Welding Head |
| Welding software | CNC20000 |
| Focus Length | 150mm |
| Spot Diameter | 0.4-1.0mm |
| Focus Range | 30mm |
| Cooling system | Purity Water cooling |
| Input power | 3 Phase, 380v±5%, 50Hz |
| Power rating | 4kw/6kw/8kw/12kw/16kw |
| Machine dimension | 1680*750*1720mm |
| Package dimension | 1740*900*1890mm |
| Net Weight | 250kg |
| Gross Weight | 380kg |
Materials
Materials It Handles
- Thin-walled materials
- Precision parts
Working Process
From File To Finished Part
Load the thin-walled part or precision component into the dedicated fixture
Use the red light pointer to aim and position the welding head
Set parameters in the CNC20000 welding software
Activate the three-axis servo motors for seam tracking and multi-angle welding
Monitor the welding effect through the CCD liquid crystal inspection system
Unload the welded part after the cycle is complete
Quality Control
Quality Control Before Shipment
- Laser energy instability is maintained below 3% for consistent weld depth
- Beam-divergence angle is kept under 5mrad for precise spot focusing
- Self-diagnostic functions monitor system health during operation
- Protection and warning functions alert operators to potential issues
Options
Customisation Options
- Select laser power from 1000 W to 4000 W based on material thickness
- Integrate various dedicated industry fixtures for specific part geometries
- Configure control methods to match automated production line requirements
- Expand functionality through the modular design for different welding types
Comparison
How It Compares With The Alternatives
| Manual handheld laser welder | The automatic platform provides consistent seam tracking and higher precision for small parts |
|---|---|
| TIG welding | Laser welding offers a smaller heat-affected zone and faster cycle times for thin materials |
| Open frame laser welder | The sealed cabinet design protects optics from dust and reduces the required floor space |
Operating Notes
Use Guide
- Ensure the purity water cooling system is filled and circulating before operation
- Verify the input power is stable 3 Phase 380v to prevent control errors
- Clean the red light pointer and lens regularly to maintain positioning accuracy
- Check the self-diagnostic warnings before starting each production shift
- Adjust the focus length and spot diameter according to the material thickness
Buyer Questions
Automatic Laser Welding Machine FAQ
What laser power options are available?
The machine is available with 1000 W, 1500 W, 2000 W, 3000 W or 4000 W fiber laser sources.
What is the maximum continuous working time?
The system is rated for 16 hours of continuous working capability.
What software does the machine use?
It runs on CNC20000 welding software with intelligent control and red light focusing.
What are the machine dimensions?
The machine dimensions are 1680*750*1720mm, with a net weight of 250kg.
What is the spot diameter?
The spot diameter ranges from 0.4 to 1.0 mm, allowing for precision welding of small parts.
How is the machine cooled?
The machine uses a purity water cooling system to maintain stable laser operation.
