Glass Laser Cutting Machine
The Glass Laser Cutting Machine uses a Wuhan Huaray picosecond laser source at 30w, 50w or 70w to cut glass on a 500 x 400 mm marble work table. Its ultra-short pulse processing is specified to reduce heat transfer to surrounding areas, which helps brittle...
Product Overview
What This Machine Is Built To Do

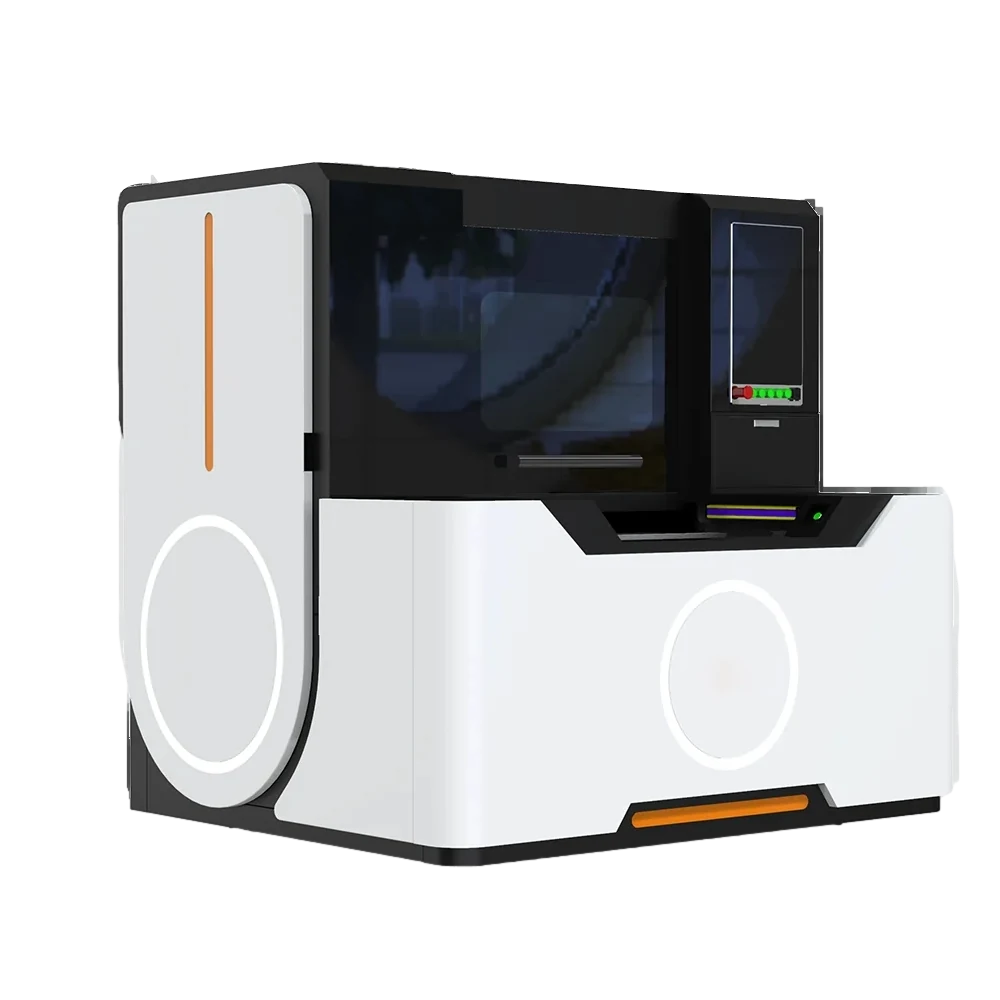

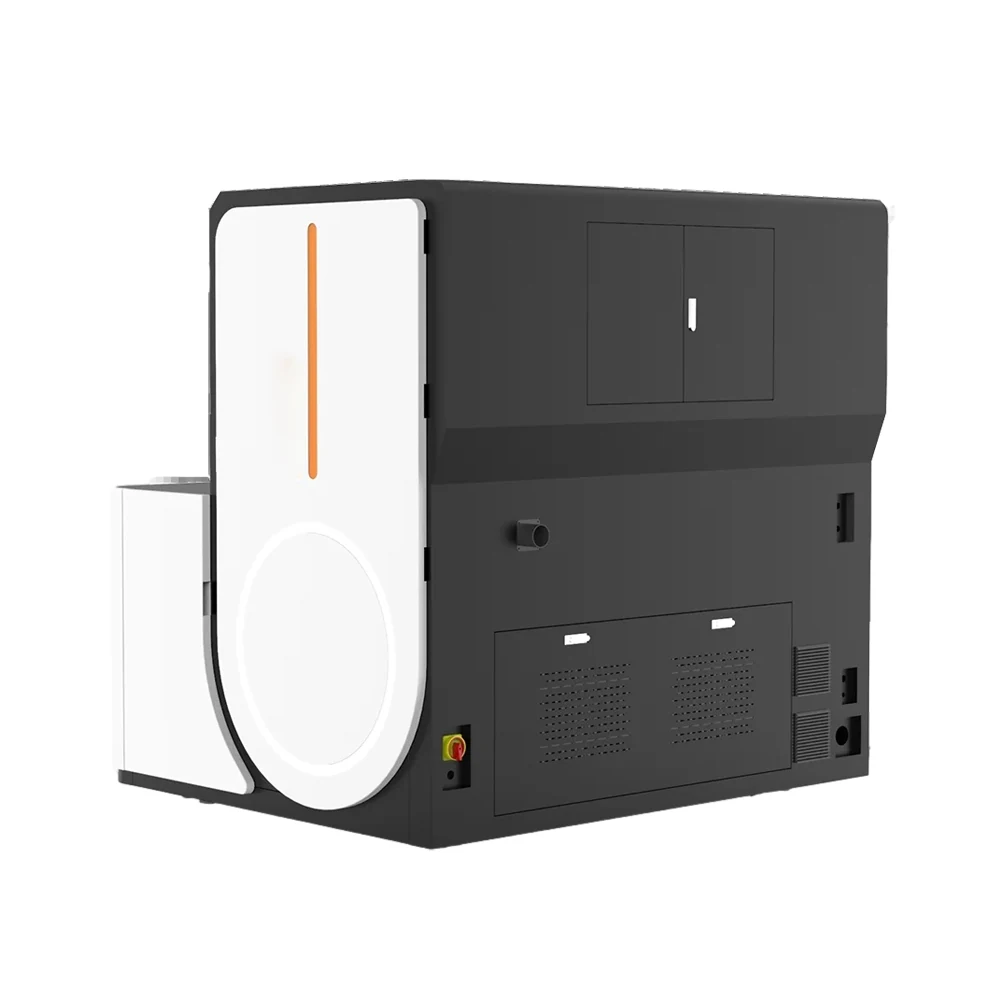

The Glass Laser Cutting Machine uses a Wuhan Huaray picosecond laser source at 30w, 50w or 70w to cut glass on a 500 x 400 mm marble work table. Its ultra-short pulse processing is specified to reduce heat transfer to surrounding areas, which helps brittle glass parts keep their structure. The Cypcut control system, Yaskawa servo motor, CCD vision positioning with ±3um accuracy and ±1.5um reposition accuracy support repeatable glass cutting with less manual alignment. The 2Y interactive dual-workstation design reduces waiting time for loading and unloading, while the 1785x1520x1950mm footprint and 1600kgs weight help workshops plan floor space before purchase.
- Picosecond laser source at 30w, 50w or 70w cuts glass on a 500 x 400 mm bed
- Ultra-short pulse processing is specified to reduce heat transfer around the glass cut
- Ultra-narrow pulse width and small focused spot support incisions as small as 2-3mm
- CCD vision at ±3um and ±1.5um reposition accuracy support repeatable glass placement
- 2Y interactive dual-workstation design reduces waiting time for loading and unloading glass
- Intelligent vacuum constant pressure adsorption holds glass flat on the marble work table
Where It Is Used
Application Scenarios
- Glass workshops cutting small parts within the 500 x 400 mm work size
- Producers of small glass components that need less heat transfer near cuts
- Workshops using DXF, PLT, or DWG files for glass part geometry
- Small batch glass cutting shops that load and unload on two workstations
- Glass part producers that need CCD vision positioning to reduce manual alignment
Buyer Fit
Who It Is For
- Glass cutting workshops that need less heat transfer around brittle glass parts
- Producers of small glass components that fit within 500 x 400 mm
- Shops that need repeatable ±1.5um reposition accuracy for glass part placement
- Workshops that need a Cypcut controlled glass laser with Yaskawa servo motor
Process Problems
Problems It Solves
- Heat transfer around brittle glass cuts can damage surrounding material structure
- Manual alignment of glass targets wastes time before each cutting run
- Loading and unloading on one workstation increases waiting time between parts
- Glass movement during cutting can spoil the cut if not held flat
- Bed deformation from temperature changes can affect stability during long runs
Engineering
Technical Features
- Wuhan Huaray picosecond laser source available at 30w, 50w or 70w
- Cypcut control system supports DXF, PLT, and DWG files
- Yaskawa servo motor drives the machine with adjustable 0 to 500mm/s cutting speed
- Constant temperature water cooling keeps the laser source within its specified cooling system
- Sheet metal welding structure uses natural marble table and shock-absorbing feet cups
- Glass special cutting head is paired with intelligent vacuum constant pressure adsorption
Specifications
Published Figures For Glass Laser Cutting Machine
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Machine Name | Picosecond Laser Glass Cutting Machine |
|---|---|
| Laser Power | 30w 50w 70w |
| Work Size | 500x400mm |
| Laser Source Wavelength | 1064um |
| Laser Source | Wuhan Huaray laser |
| Function | Cutting glass |
| Cutting Speed | 0-500mm/s adjustable |
| Control System Brand | Cypcut |
| Supported Files | DXF,PLT,DWG |
| Servo Motor | Yaskawa |
| Cooling System | Constant temperature water cooling |
| Machine Structure | Sheet metal welding |
| Work Table | Marble |
| Reposition Accuracy | ±1.5um |
| Vacuum Adsorption | Intelligent vacuum constant pressure adsorption system |
| CCD Vision Positioning Accuracy | ±3um |
| Cutting Head | Glass special cutting head |
| Machine Dimension | 1785x1520x1950mm |
| Machine Weight | 1600kgs |
| Product Incision | 2-3mm |
| Dual Workstation | 2Y interactive dual-workstation configuration |
| Linear Motor Platform | two-dimensional linear motor platform |
| Closed-loop Control | fully closed-loop grating detection control system |
Materials
Materials It Handles
- Glass workpieces placed on the marble work table within 500 x 400 mm
- Glass parts cut by the glass special cutting head at 30w, 50w, or 70w
Working Process
From File To Finished Part
Import DXF, PLT, or DWG files into the Cypcut control system
Place the glass workpiece on the marble work table within 500 x 400 mm
Activate intelligent vacuum constant pressure adsorption to hold the glass flat
Use CCD vision positioning to capture the target before cutting
Set the glass special cutting head and choose 30w, 50w, or 70w power
Run cutting speed from 0 to 500mm/s with constant temperature water cooling
Quality Control
Quality Control Before Shipment
- Constant temperature water cooling keeps the specified laser source within its cooling system
- Intelligent vacuum constant pressure adsorption holds glass during the cutting process
- Natural marble work table reduces bed deformation from temperature differences
- Shock-absorbing machine feet cups reduce inertial vibrations during start, stop, and acceleration
- Reposition accuracy of ±1.5um is specified for the machine
Options
Customisation Options
- Choose 30w, 50w, or 70w laser power for the glass cutting machine
Comparison
How It Compares With The Alternatives
| general fiber laser cutter | This machine specifies a glass special cutting head, marble table, and vacuum adsorption for glass |
|---|---|
| single-workstation glass cutter | The 2Y interactive dual-workstation configuration reduces waiting time for loading and unloading |
| non-vacuum glass table | Intelligent vacuum constant pressure adsorption holds glass flat during cutting on the marble table |
Operating Notes
Use Guide
- Use constant temperature water cooling while the laser source is operating
- Set cutting speed within the 0 to 500mm/s adjustable range
- Load DXF, PLT, or DWG files into the Cypcut control system
- Keep glass flat with intelligent vacuum constant pressure adsorption during cutting
- Use the glass special cutting head specified for glass cutting
Buyer Questions
Glass Laser Cutting Machine FAQ
What glass workpiece sizes can this machine cut on its table?
The work size is 500 x 400 mm, so glass workpieces must fit within that table area.
What laser power options are available for this glass machine?
The machine is specified with 30w, 50w, or 70w picosecond laser power from Wuhan Huaray.
What positioning accuracy does this glass laser cutter provide?
Reposition accuracy is ±1.5um, and CCD vision positioning accuracy is ±3um according to the parameters.
What file formats does the Cypcut control system support?
The Cypcut control system supports DXF, PLT, and DWG files for glass cutting part geometry.
What material is this machine specified to cut?
It is specified for cutting glass, using a glass special cutting head and marble work table.
How is the glass held on the marble work table?
The machine uses an intelligent vacuum constant pressure adsorption system to hold glass on the marble table.
Can loading and unloading overlap during the cutting cycle?
Yes, the 2Y interactive dual-workstation configuration reduces waiting time for loading and unloading glass.
