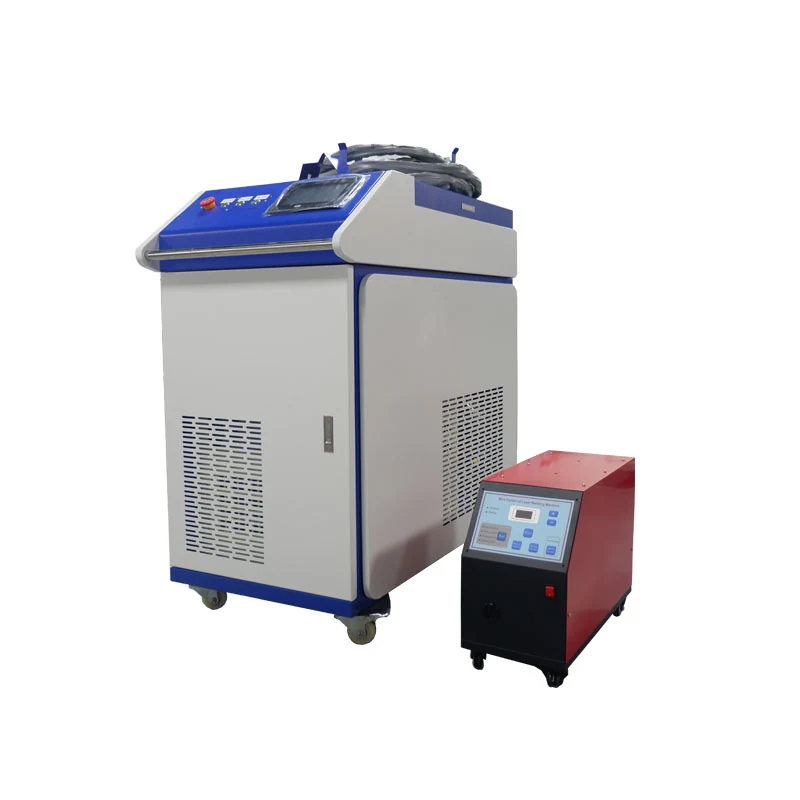

Fiber laser welding machine
The handheld fiber laser welding machine replaces traditional argon and electric welding for thin metal sheets.
Continuous Fiber Laser Cleaning Machines

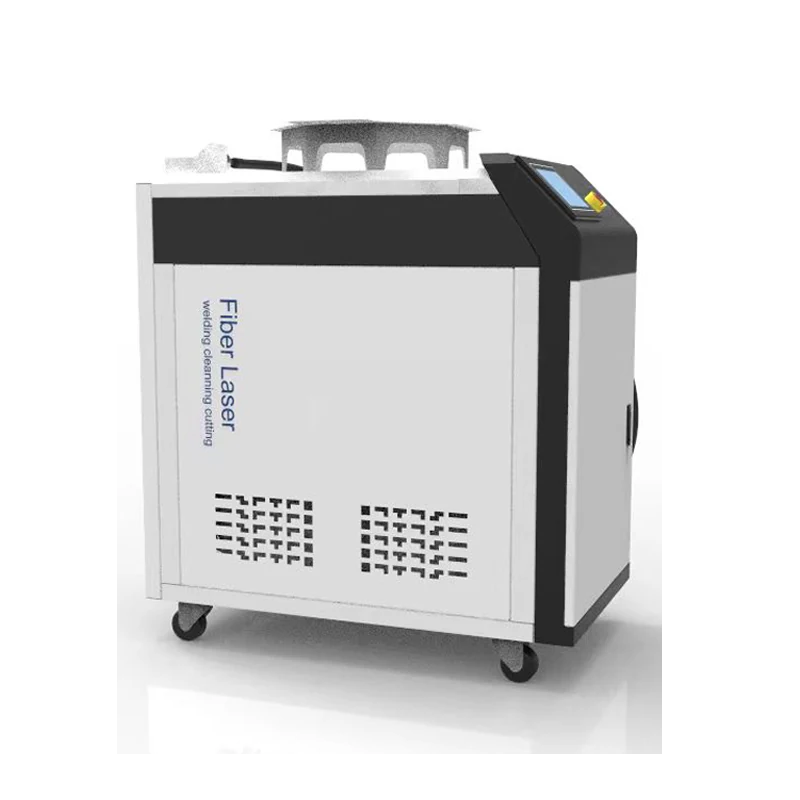

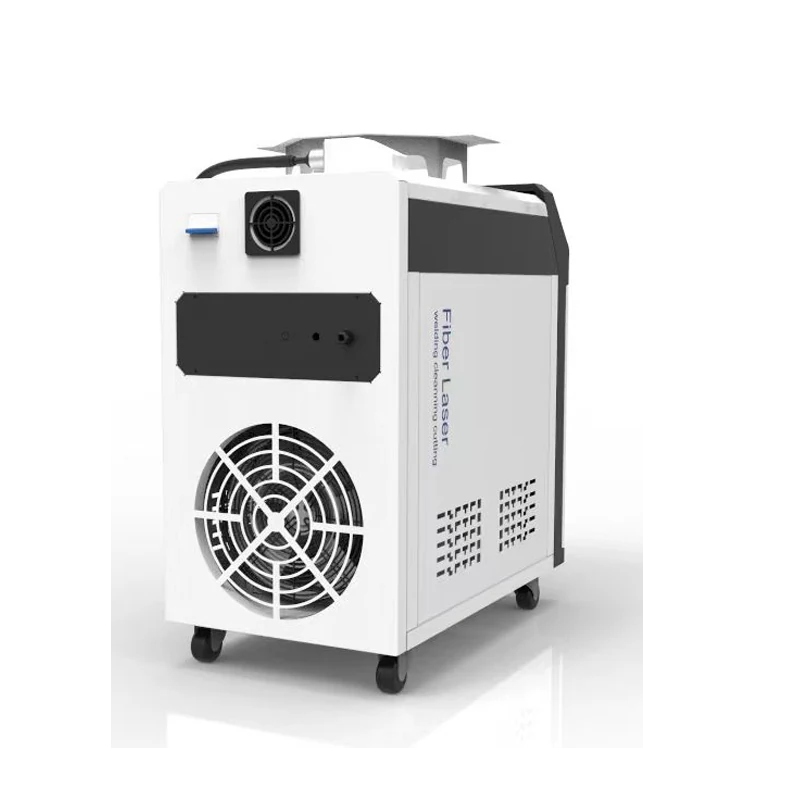

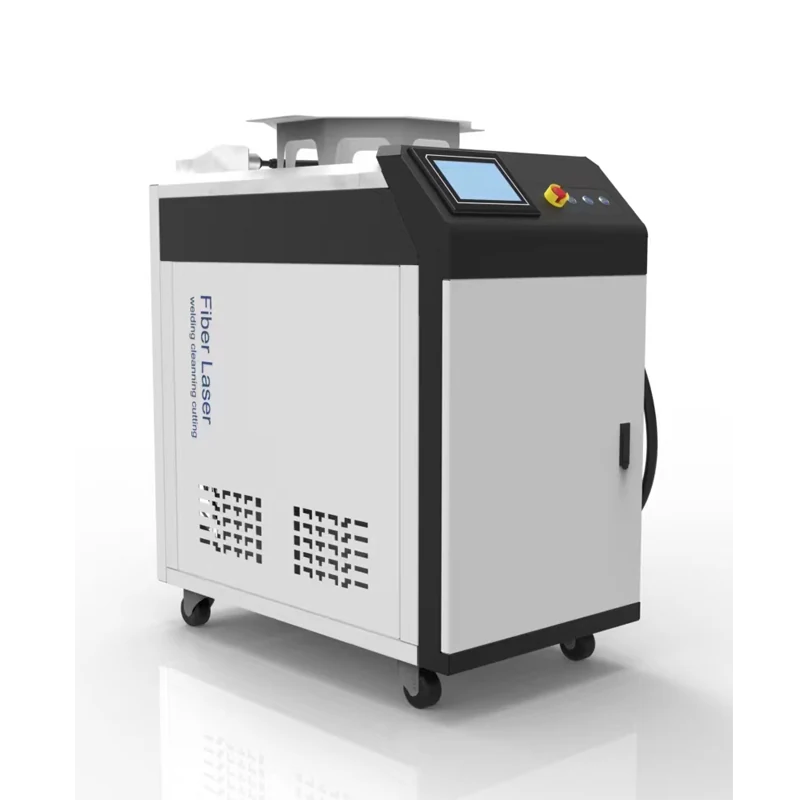

1500w/2000w/3000w Handheld Fiber Laser Cleaning Machine
The handheld fiber laser cleaning machine uses a continuous wave fiber laser source with a 1064 nm wavelength to remove surface contaminants without chemical solvents or abrasive media.
Product Overview
What This Machine Is Built To Do
The handheld fiber laser cleaning machine uses a continuous wave fiber laser source with a 1064 nm wavelength to remove surface contaminants without chemical solvents or abrasive media. Available in 1000 W, 1500 W, 2000 W and 3000 W configurations, it achieves a cleaning width of 200 to 300 mm and an efficiency of 1 to 2 square meters per minute depending on surface condition. The system integrates a Relfar control interface and a Max laser source, with Raycus and BWT options available. A 10 m or 15 m fiber cable connects the handheld gun to the 600 x 1000 x 1100 mm cabinet, allowing operators to reach large or irregular workpieces. It is designed for workshops that need to strip rust, paint or oil from metal parts while avoiding the dust and wastewater associated with sandblasting.
- Chemical-free cleaning removes rust and coatings without generating hazardous waste or wastewater
- Cleaning width adjustable between 200 and 300 mm allows operators to match beam size to part geometry
- Continuous fiber laser source processes 1 to 2 square meters per minute on standard surfaces

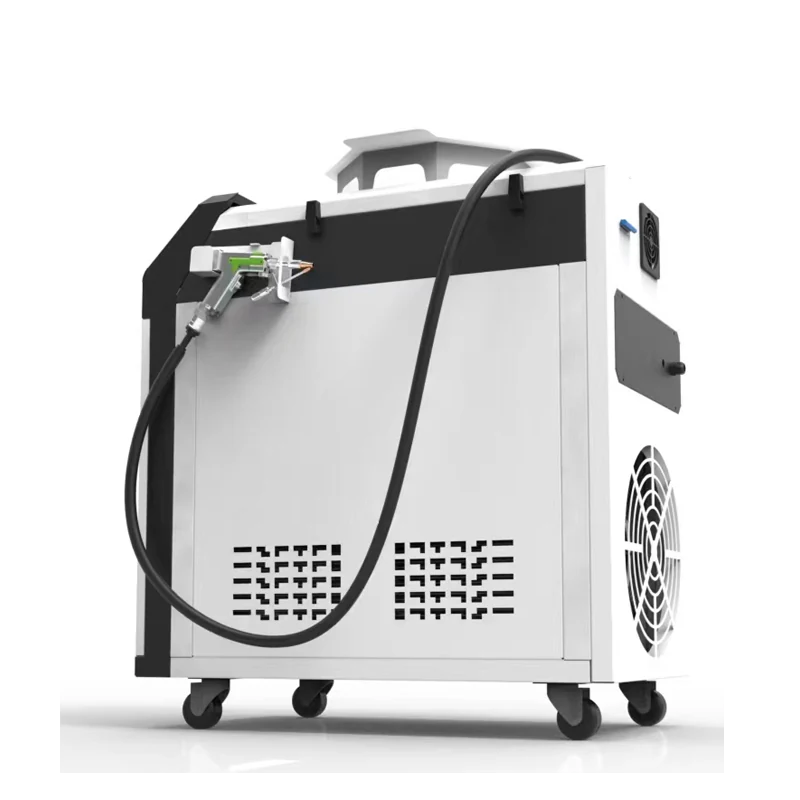

- 10 m or 15 m fiber cable provides sufficient reach for large molds or welded frames
- Relfar control system with full touch screen simplifies parameter setting for different contaminants
- S&A chiller provides separate cooling for the laser source and cleaning head to maintain stability
Where It Is Used
Application Scenarios
- Mould and die repair shops stripping rust and oil from tooling surfaces before welding
- Metal fabricators removing mill scale and welding oxides from carbon steel plates
- Aerospace and automotive suppliers cleaning aluminum parts without abrasive media
- Ship repair yards removing old coatings from hull sections and structural beams
- Restoration workshops stripping paint from historical metal artifacts without damage
Buyer Fit
Who It Is For
- Procurement engineers replacing solvent-based cleaning lines with laser systems
- Maintenance supervisors cleaning heavy machinery parts in situ
- Laser equipment dealers adding cleaning machines to their metalworking portfolio
- Fabrication shops needing to prepare surfaces for coating or welding
Process Problems
Problems It Solves
- Sandblasting creates dust clouds and requires expensive filtration systems and PPE
- Chemical stripping generates hazardous waste that requires specialized disposal
- Manual grinding is slow and removes base material along with the contaminant
- Ultrasonic cleaning cannot handle large structures or fixed installations
- Inconsistent surface preparation leads to poor adhesion for subsequent welding or painting
Engineering
Technical Features
- Continuous fiber laser source with 1064 nm wavelength
- Relfar control system and Relfar laser head for consistent beam delivery
- Guangzhou S&A water cooling chiller with adaptive dual-temperature regulation
- Intelligent control panel with full touch screen interface for status monitoring
- Standardized wiring layout with labeled components for easy maintenance
- Protective mirror D20*2 and compressed air protection for the optical path
Specifications
Published Figures For 1500w/2000w/3000w Handheld Fiber Laser Cleaning Machine
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Model | Handheld Fiber Laser Cleaning Machine |
|---|---|
| Laser Power | 1000 W / 1500 W / 2000 W / 3000 W |
| Laser Source | Max (Raycus, BWT optional) |
| Laser Type | Continuous fiber laser |
| Wavelength | 1064 nm |
| Cleaning Width | 200 - 300 mm |
| Cleaning Efficiency | 1 - 2 m2/minute |
| Fiber Cable Length | 10 m / 15 m |
| Control System | Relfar |
| Laser Head | Relfar |
| Protective Gas | Compressed air |
| Cooling System | Water cooling |
| Voltage | AC220V (1000W-2000W) / AC380V (3000W) |
| Machine Size | 600 x 1000 x 1100 mm |
| Machine Weight | 140 kg |
| Operating Temperature | 5°C to 35°C |
Materials
Materials It Handles

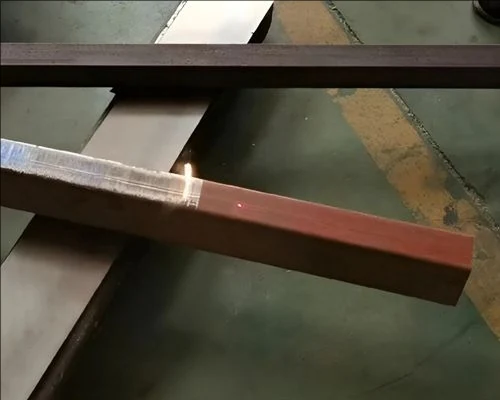

- Carbon steel rust and mill scale
- Aluminum oxide and surface discoloration
- Paint and coating layers
- Oil, grease and resin residues
- Welding oxides and slag
Working Process
From File To Finished Part
Connect the handheld gun to the machine via the fiber cable
Turn on the water chiller and verify the compressed air supply
Power on the main control panel and select the cleaning parameters
Aim the laser head at the surface to be cleaned from a safe distance
Move the head steadily to remove rust, paint or oil without damaging the substrate
Adjust cleaning width and power settings if the contamination is heavy
Quality Control
Quality Control Before Shipment
- Laser source output is tested for stability before assembly
- Cooling system is checked for dual-temperature regulation accuracy
- Wiring layout is verified against standardized labels for maintenance access
- Cleaning head optics are inspected for contamination before shipping
Options
Customisation Options
- Select laser source brand: Max, Raycus or BWT
- Choose fiber cable length: 10 m or 15 m
- Configure voltage for local grid: AC220V or AC380V
- English user manuals and video guidance supplied with the machine
Comparison
How It Compares With The Alternatives
| Sandblasting | Laser cleaning is non-contact and produces no dust or spent media, but requires a power supply and has higher equipment cost |
|---|---|
| Chemical stripping | Laser cleaning avoids hazardous waste disposal fees and solvent smells, but is limited to surface contaminants rather than deep cleaning |
| Manual grinding | Laser cleaning is faster and removes only the contaminant layer, preserving the base material tolerance, but cannot remove heavy structural deformation |
Operating Notes
Use Guide
- Always wear certified laser safety glasses rated for 1064 nm
- Ensure the compressed air supply is dry to prevent lens contamination
- Keep the cleaning head moving steadily to avoid overheating the substrate
- Check the water chiller level and temperature settings before each shift
- Clean the protective mirror regularly if the laser output power drops
Buyer Questions
1500w/2000w/3000w Handheld Fiber Laser Cleaning Machine FAQ
What is the cleaning speed?
The machine achieves 1 to 2 square meters per minute depending on the type of metal surface and the thickness of the contamination layer.
How long is the fiber cable?
You can choose between a 10 meter or 15 meter fiber cable, which determines the maximum distance between the handheld gun and the main cabinet.
Does it require consumables?
No chemical consumables are required. The system uses compressed air for lens protection and water for cooling, making it a medium-free process.
What voltage is required?
The 1000 W, 1500 W and 2000 W models require AC220V. The 3000 W model requires AC380V.
Can it clean curved surfaces?
Yes, the handheld design and adjustable cleaning width allow operators to clean curved, irregular or large workpieces that do not fit in a standard chamber.
What is the warranty?
We provide a two-year warranty on the whole machine and free lifetime technical support for software and operational questions.
Related Machines
All machines
Laser Cleaning Machines
3 in 1 handheld laser cleaning machine
The 3 in 1 handheld laser cleaning machine combines rust removal, welding, and cutting functions into a single portable unit.
Laser Cleaning Machines

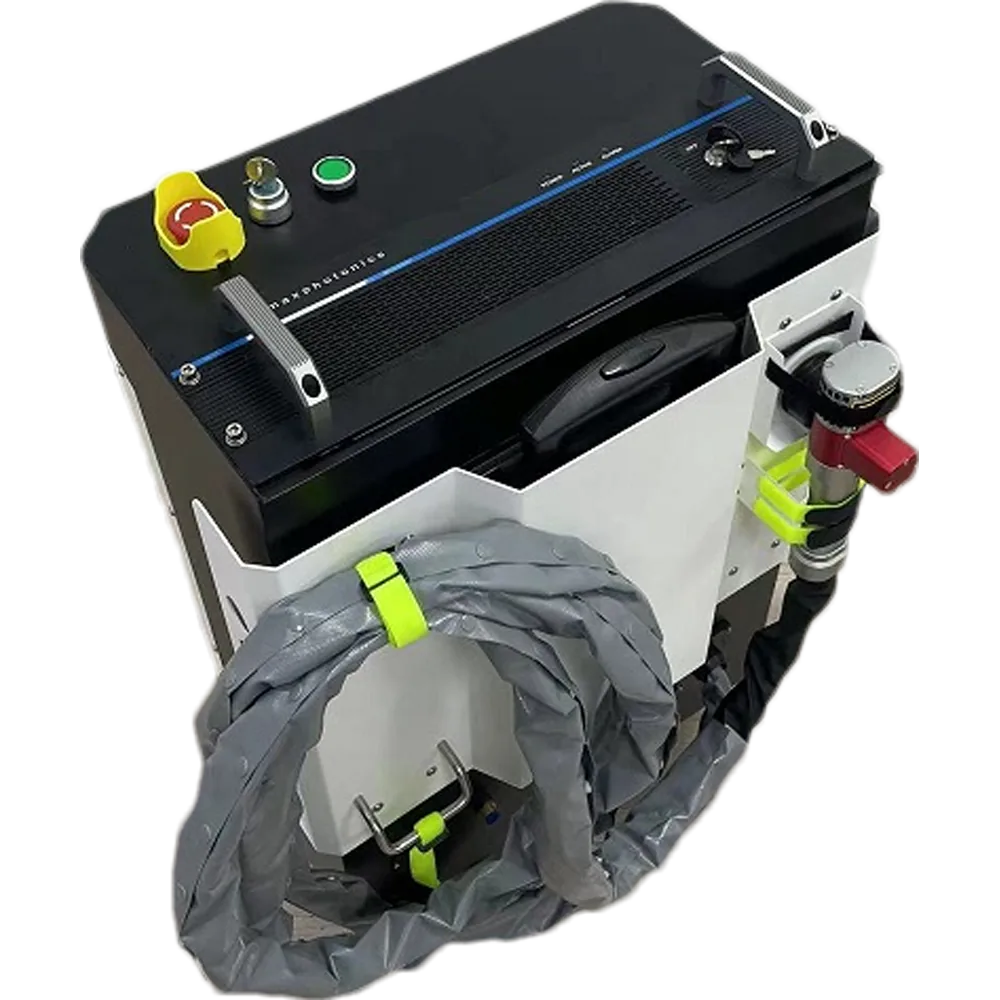

Pulse laser cleaner-Rust, Oil, Debris & Paint Removal
