3 in 1 handheld laser cleaning machine
The 3 in 1 handheld laser cleaning machine combines rust removal, welding, and cutting functions into a single portable unit. It uses a continuous fiber laser source with power options of 1000W, 1500W, 2000W, or 3000W from brands including Raycus, Max, and...
Product Overview
What This Machine Is Built To Do

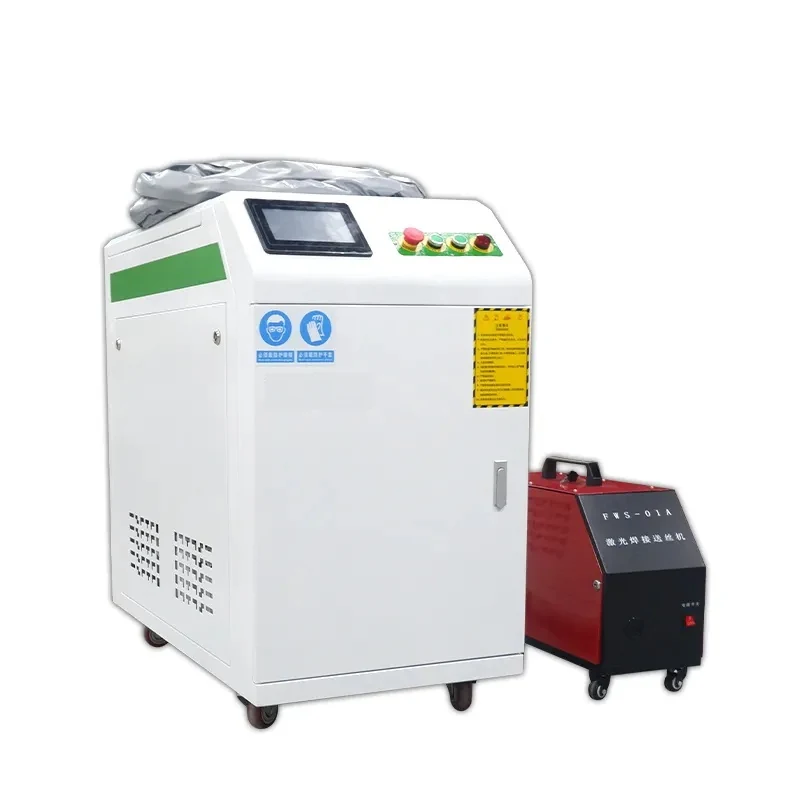

The 3 in 1 handheld laser cleaning machine combines rust removal, welding, and cutting functions into a single portable unit. It uses a continuous fiber laser source with power options of 1000W, 1500W, 2000W, or 3000W from brands including Raycus, Max, and BWT. The system achieves a cleaning efficiency of 15 to 45 square meters per hour and operates with a total power draw of 7500 to 9500W, including the chiller. It is designed for workshops that need to prepare metal surfaces for welding or remove coatings without using chemicals or abrasives.
- Combines cleaning, welding, and cutting in one handheld unit to save floor space
- Removes rust, paint, oil, and coatings from metal surfaces without chemical solvents
- Cleans 15 to 45 square meters per hour depending on contamination level

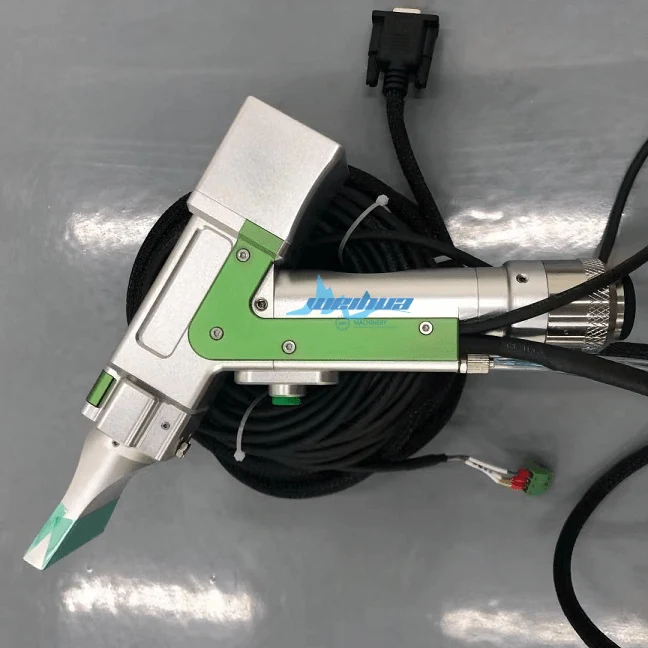

- Uses a Ruifa brand cleaning head for consistent beam delivery on various surfaces
- Offers four power options from 1000W to 3000W to match specific workload demands
- Includes an auto wire feeder for welding with diameters from 0.8mm to 1.6mm
Where It Is Used
Application Scenarios
- Mould repair shops removing residue from rubber molds before recasting
- Sheet metal fabricators preparing surfaces for welding or painting
- Stone statue restoration projects removing dust and surface attachments
- Electronics and medical device manufacturers cleaning copper and aluminum parts
- General maintenance teams removing rust from tools and machinery components
Buyer Fit
Who It Is For
- Mould and die repair shops needing precise surface preparation
- Fabricators who want to eliminate sandblasting or chemical stripping steps
- Small welding workshops integrating surface prep into their workflow
- Maintenance teams requiring portable equipment for on-site cleaning
- Dealers offering multi-functional laser systems to diverse industrial clients
Process Problems
Problems It Solves
- Chemical rust removers leave residue and require disposal costs
- Sandblasting damages thin metal substrates and creates dust hazards
- Separate machines for cleaning and welding take up unnecessary floor space
- Manual scraping of mold residue is slow and inconsistent
- Surface oxidation before welding leads to poor joint strength
Engineering
Technical Features
- Continuous fiber laser source with wavelength of 1064±10nm
- Handheld operating system for flexible cleaning and welding positions
- Total power consumption between 7500W and 9500W including chiller
- Auto wire feeder compatible with 0.8mm to 1.6mm wire diameters

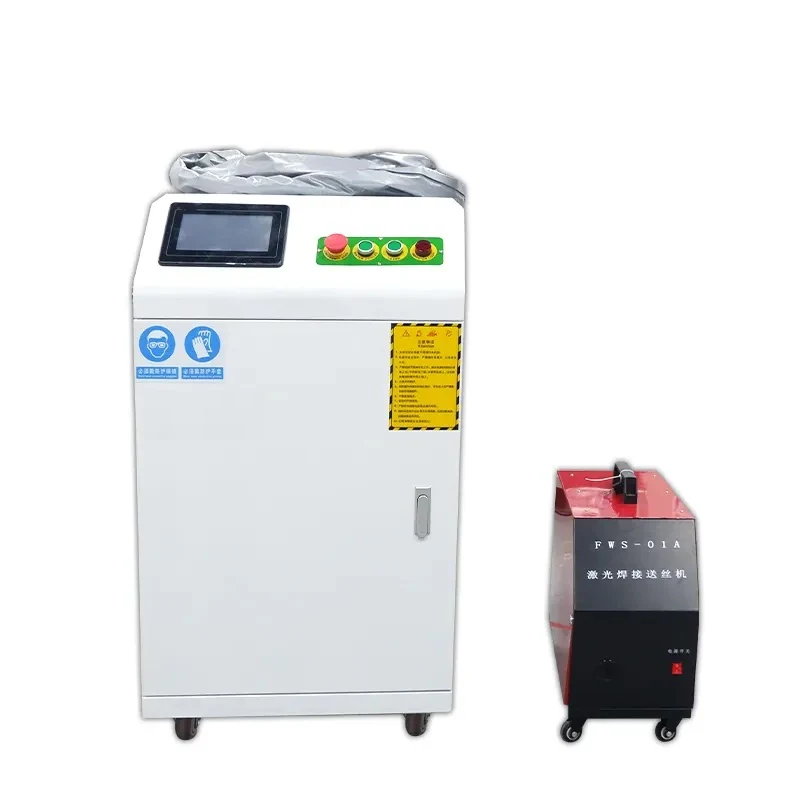

- Water cooling system integrated into the unit for stable operation
- Voltage compatibility for 220V and 380V at 50/60Hz with transformer
Specifications
Published Figures For 3 in 1 handheld laser cleaning machine
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Laser Source Power | 1000W / 1500W / 2000W / 3000W |
|---|---|
| Laser Type | Continuous |
| Laser Source Brand | Raycus, Max, BWT |
| Cleaning Head | Ruifa brand head |
| Operating System | Handheld Welding/Cleaning/Cutting System |
| Total Power | 7500-9500W (Chiller included) |
| Cleaning Efficiency | 15-45m2/h |
| Laser Wavelength | 1064±10nm |
| Auto Wire Feeder | Wire diameter 0.8mm/1.0mm/1.2mm/1.4mm/1.6mm |
| Environment Humidity | <=70% no condensation |
| Cooling System | Water cooling |
Materials
Materials It Handles
- Metal products with rust, paint, oil, or plating
- Stone statue surfaces with dust and attachments
- Rubber mold residues
- Copper and aluminum parts
- Welding and spraying surfaces
Working Process
From File To Finished Part
Select the appropriate laser power for the contamination level
Connect the handheld gun and wire feeder if welding is required
Adjust the distance and angle of the laser head to the surface
Move the gun steadily across the area to remove coatings or rust
Inspect the surface for remaining residue and repeat if necessary
Quality Control
Quality Control Before Shipment
- Each machine is tested for laser output stability before shipping
- Cleaning head alignment is verified to ensure uniform beam coverage
- Water cooling system is checked for leaks and flow rate
- Electrical components are inspected for secure connections
- Final packaging includes all accessories and user manuals
Options
Customisation Options
- Choose between 1000W, 1500W, 2000W, or 3000W laser power
- Select laser source brand from Raycus, Max, or BWT
- Configure voltage input for 220V or 380V markets
- Include transformer if required for destination power grid
- Request specific wire feeder compatibility for welding tasks
Comparison
How It Compares With The Alternatives
| Single function laser cleaner | The 3 in 1 unit adds welding and cutting capability, reducing the need for multiple machines |
|---|---|
| Sandblasting equipment | Laser cleaning is non-contact and produces no abrasive waste, though it requires higher initial investment |
| Chemical stripping | Laser cleaning avoids chemical disposal costs and health hazards, but is limited to surface treatments |
Operating Notes
Use Guide
- Ensure ambient humidity is below 70% and no condensation is present
- Check water level and temperature in the chiller before starting
- Wear appropriate laser safety goggles during operation
- Keep the cleaning head moving to avoid overheating the substrate
- Clean the protective lens regularly to maintain power output
Buyer Questions
3 in 1 handheld laser cleaning machine FAQ
What is the warranty period?
The machine body comes with a one-year warranty.
How fast can it clean surfaces?
Cleaning efficiency ranges from 15 to 45 square meters per hour depending on the contamination.
Which laser sources are available?
You can choose from Raycus, Max, or BWT continuous fiber laser sources.
Can it weld as well as clean?
Yes, the system includes a welding function with an auto wire feeder for 0.8mm to 1.6mm wires.
What voltage does it require?
It operates on 220V or 380V at 50/60Hz, and a transformer is provided for compatibility.
How is it shipped?
The machine can be delivered by sea or air freight.
