3D Printer Accessory

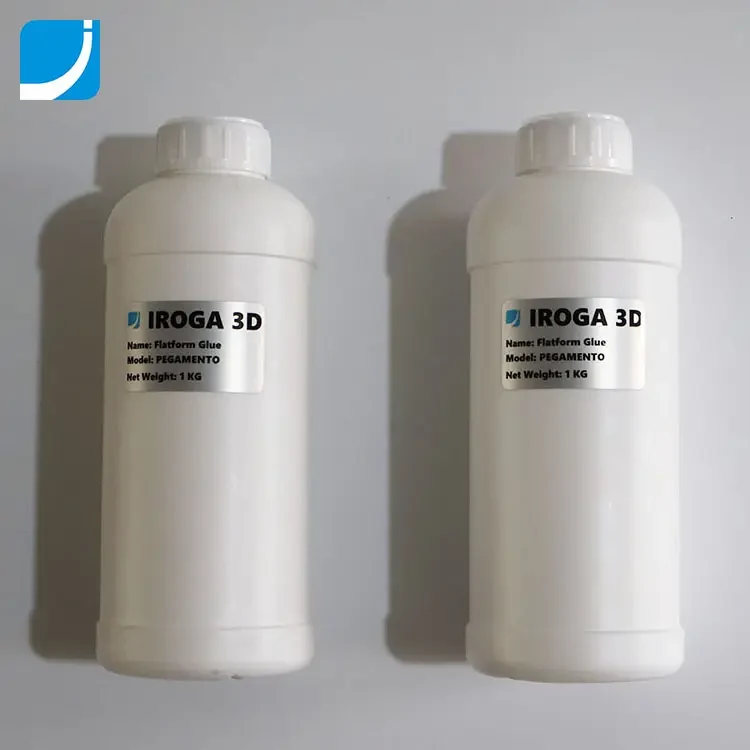

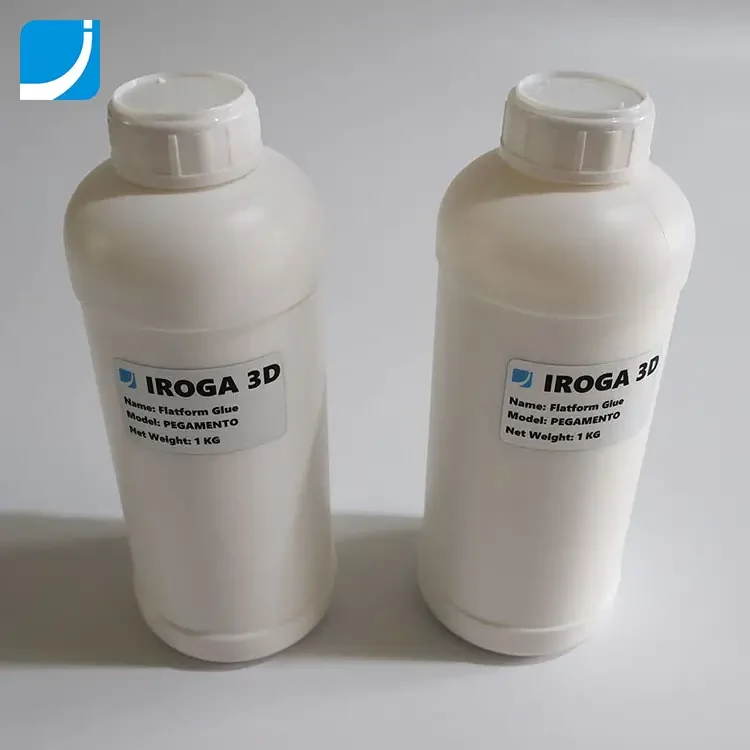

Platform Glue of 3D Sign Printer
Model PEGAMENTO
The adhesive that holds a printed sign to the bed while it is being built. It becomes tacky once the platform reaches 40 to 50 degrees Celsius, which is what stops a large flat letter lifting at the corners halfway through a long print. Without it the print does not stay on the platform and the job fails.
- Holds large flat letter shapes down through hours of printing
- Prevents the warping and curling that ruins a finished letter face
- Activates at 40 to 50 degrees Celsius which matches the normal 40 to 60 degree platform range
- MSDS certificate available for air and sea freight documentation
Product Overview
The adhesive that holds a printed sign to the bed while it is being built. It becomes tacky once the platform reaches 40 to 50 degrees Celsius, which is what stops a large flat letter lifting at the corners halfway through a long print. Without it the print does not stay on the platform and the job fails.
Who It Is For
- Machine operators preparing the printing bed
- Workshop managers holding consumable stock
- Freight forwarders needing MSDS documentation for a shipment
Problems It Solves
- A print that lifts off the bed is scrap and the machine time is lost
- Warping and curling distort a letter face so it will not sit flat in the sign
- Chemicals without an MSDS are held up in air freight
Key Benefits
- Holds large flat letter shapes down through hours of printing
- Prevents the warping and curling that ruins a finished letter face
- Activates at 40 to 50 degrees Celsius which matches the normal 40 to 60 degree platform range
- MSDS certificate available for air and sea freight documentation
- Two bottles are supplied free with every IROGA 3D sign printer
Technical Features
- Becomes sticky when the platform reaches 40 to 50 degrees Celsius
- Net weight 1 KG and gross weight 1.25 KG
- White colour
- Applied to the platform of a 3D signage printer
- MSDS certificate
Application Scenarios
- Preparing the bed before every signage print
- Large footprint letters where corner lift is most likely
- Restocking a workshop that prints continuously
- Export shipments that require an MSDS for the chemical
Customisation Options
Standard specification only.
Product Gallery
Specifications
| Product Model | PEGAMENTO |
|---|---|
| Brand Name | IROGA 3D |
| Color | White |
| Net Weight | 1 KG |
| Gross Weight | 1.25 KG |
| Application | Spreading on The Platform of 3D Signage Printer |
| Certificate | MSDS |
Materials
- Adhesive solution for 3D printing platforms
Certifications
- MSDS
Manufacturing and Quality Control
Process
Produced to the specification above.
Quality Control
- Batch checked for consistency before filling
- MSDS held on file for each batch
Comparison With Other Options
Compared with Printing without glue
Without platform glue the printed product cannot stick to the platform and the print fails.
Compared with Adhesive sheets or tape
A brushed glue layer covers the whole printing area evenly including large irregular letter outlines that a sheet has to be cut around.
Use Guide
- Spread an even layer across the entire area the nozzle will print on
- Apply before the print starts not after the platform is hot
- Let the platform cool before removing the finished print
- Reapply when coverage becomes patchy rather than adding glue only at the corners
Questions
Frequently Asked Questions
Answers to what buyers ask before ordering Platform Glue of 3D Sign Printer.
Why is platform glue necessary
Without it the printed product cannot stick to the platform, so the print fails. The glue also prevents warping and curling.
At what temperature does it work
It becomes sticky when the platform temperature reaches 40 to 50 degrees Celsius.
How much is in a bottle
1 KG net weight and 1.25 KG gross weight.
Is any glue supplied with the machine
Yes, two bottles of platform glue are included in the free accessories with each 3D sign printer.
Do you have an MSDS for shipping
Yes. The platform glue holds an MSDS certificate.
When should I remove the print
Wait until the platform is cool before removing it, otherwise the print can distort.
