Model MITO-120 Pro

MITO-120 Pro puts the printer and the UV curing machine in one column. The printer builds the side wall and the UV unit cures a liquid acrylic face panel on top of it, so a sign shop produces a glossy seamless acrylic face without a separate curing station or a second supplier. Curing takes 90 to 120 minutes per cycle.

Printed side wall and cured liquid acrylic face are produced on one machine
1200 x 1200 x 120 mm build area matches the largest letters in the range
A liquid acrylic face gives the glossy depth that a printed face alone cannot
No separate UV curing station to buy site and power

Product Overview

MITO-120 Pro puts the printer and the UV curing machine in one column. The printer builds the side wall and the UV unit cures a liquid acrylic face panel on top of it, so a sign shop produces a glossy seamless acrylic face without a separate curing station or a second supplier. Curing takes 90 to 120 minutes per cycle.

Who It Is For

Signage companies competing on finish quality not only on price
Workshops that currently outsource acrylic face panels
Advertising companies serving premium retail and hospitality brands
Buyers who want printer and curing capability in one purchase

Problems It Solves

A printed face shows layer texture at close range on premium signs
Outsourcing acrylic faces adds a supplier a lead time and a quality risk
A standalone UV curing machine needs its own floor space and power
Traditional acrylic faces require cutting bending and polishing equipment

Key Benefits

Printed side wall and cured liquid acrylic face are produced on one machine
1200 x 1200 x 120 mm build area matches the largest letters in the range
A liquid acrylic face gives the glossy depth that a printed face alone cannot
No separate UV curing station to buy site and power
MSDS and CE documentation covers both the machine and the chemistry for export

Technical Features

Maximum printing size 1200 x 1200 x 120 MM
UV curing time 90 to 120 minutes
Purpose 3D printed side wall and liquid acrylic face panel
Power 1800 W
Machine size 1710 x 1980 x 1450 MM and packaging 1830 x 1790 x 1520 MM
Net weight 422 KG and gross weight 576 KG

Application Scenarios

Premium storefront letters where the client expects an acrylic gloss face
Flagship store and shopping mall signage
Hotel and automotive brand signs with high finish expectations
Sign shops adding a higher priced product tier to an existing printed letter line
Projects where a printed face texture would be visible at close viewing distance

Customisation Options

OEM and ODM branding from 10 sets
Voltage set for the destination market

Product Gallery

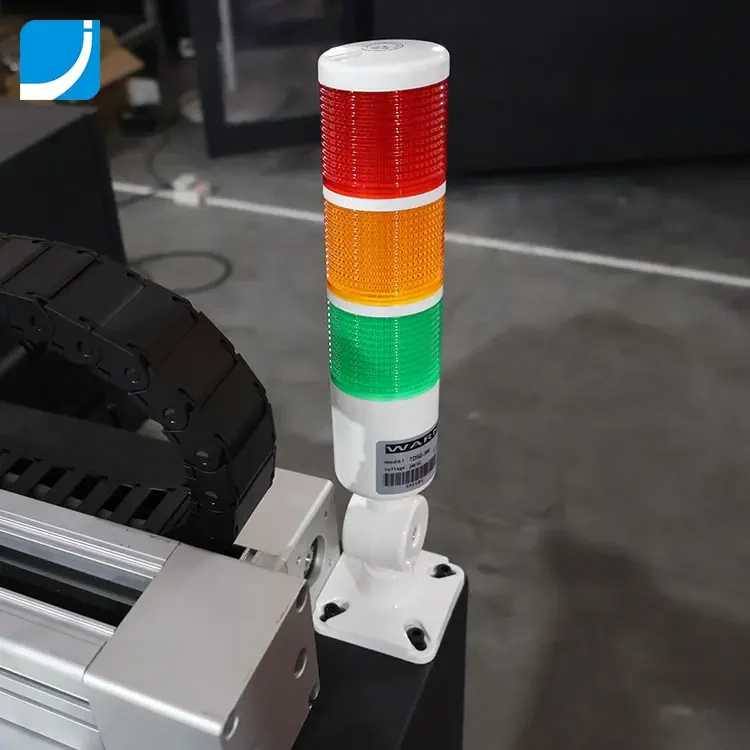

Large Format 3D Printer with UV Curing Machine for LED Letters and Illuminated Signages detail view 6

Large Format 3D Printer with UV Curing Machine for LED Letters and Illuminated Signages detail view 7

Specifications


Product Model	MITO-120 Pro
Brand Name	IROGA 3D
Color	Black
Packaging Size	1830 x 1790 x 1520 MM
Machine Size	1710 x 1980 x 1450 MM
Maximum Printing Size	1200 x 1200 x 120 MM
Net Weight	422 KG
Gross Weight	576 KG
Power	1800 W
UV Curing Time	90 ~ 120 M
Purpose	3D Printed Side Wall and Liquid Acrylic Face Panel
Certificate	MSDS / CE

Materials

3D printing filament for the side wall
Liquid acrylic for the face panel

Certifications

MSDS
CE

Manufacturing and Quality Control

Process

FDM printing of the side wall
UV curing of the liquid acrylic face panel

Quality Control

Machine tested before delivery
Fumigation free wooden box packing
MSDS held for the chemistry supplied with the machine

Comparison With Other Options

Compared with New MITO-120 without UV curing

The standard machine prints the whole letter including the face. The Pro adds UV curing so the face can be a liquid acrylic panel with a glossy finish, at 422 kg against 220 kg net.

Compared with MITO-80 Pro

Same UV curing capability in a smaller 800 x 800 mm build area at 900 W and 295 kg net.

Compared with Buying a separate UV curing machine

A combined column takes one floor position and one power connection instead of two, and the two processes are matched by the manufacturer.

Use Guide

Print the side wall first and check it is flat before curing
Pour the liquid acrylic face panel following the supplied method
Allow the full 90 to 120 minute curing cycle before handling
Keep the MSDS with the workshop chemical register
Plan production around the curing cycle so the printer is not idle while a panel cures
