3D Sign Printer
Industrial 3D Printer with UV Curing Machine for 3D Printing Wall and Liquid Acrylic Face
Model MITO-80 Pro
MITO-80 Pro is the compact version of the printer and UV curing column. It prints the side wall of a letter up to 800 x 800 x 120 mm and cures a liquid acrylic face panel on the same machine, which lets a smaller workshop offer a premium acrylic finish without the footprint and the freight of the 1200 mm machine.
- Premium acrylic face capability in a workshop that cannot host the 1200 mm column
- 900 W keeps the electrical requirement the same as the standard MITO-80
- 295 kg net is around 130 kg lighter than the large format Pro which simplifies installation
- One machine covers both the structural print and the finish process
Product Overview
MITO-80 Pro is the compact version of the printer and UV curing column. It prints the side wall of a letter up to 800 x 800 x 120 mm and cures a liquid acrylic face panel on the same machine, which lets a smaller workshop offer a premium acrylic finish without the footprint and the freight of the 1200 mm machine.
Who It Is For
- Small and medium sign shops moving upmarket
- Workshops whose letters stay within 800 mm
- Advertising companies producing high finish interior signage
- Buyers constrained by floor loading or ceiling height
Problems It Solves
- The large format Pro column does not fit every workshop
- Outsourced acrylic faces are slow and hard to colour match
- Layer texture on a printed face is visible on close viewed interior signs
- A separate curing machine is a second capital purchase
Key Benefits
- Premium acrylic face capability in a workshop that cannot host the 1200 mm column
- 900 W keeps the electrical requirement the same as the standard MITO-80
- 295 kg net is around 130 kg lighter than the large format Pro which simplifies installation
- One machine covers both the structural print and the finish process
- MSDS and CE documentation supports export shipment of machine and chemistry
Technical Features
- Maximum printing size 800 x 800 x 120 MM
- UV curing time 90 to 120 minutes
- Purpose 3D printed side wall and liquid acrylic face panel
- Power 900 W
- Machine size 1310 x 1580 x 1450 MM and packaging 1390 x 1390 x 1520 MM
- Net weight 295 KG and gross weight 415 KG
Application Scenarios
- Boutique and specialist sign shops offering a premium finish tier
- Interior lettering where viewers stand close to the sign
- Sample and showroom pieces used to win larger contracts
- Workshops adding acrylic face capability without a full floor rebuild
- Letters up to 32 inch that need a glossy seamless face
Customisation Options
- OEM and ODM from 10 sets
- Voltage and frequency configured per market
Product Gallery
Specifications
| Product Model | MITO-80 Pro |
|---|---|
| Brand Name | IROGA 3D |
| Color | Black |
| Packaging Size | 1390 x 1390 x 1520 MM |
| Machine Size | 1310 x 1580 x 1450 MM |
| Maximum Printing Size | 800 x 800 x 120 MM |
| Net Weight | 295 KG |
| Gross Weight | 415 KG |
| Power | 900 W |
| UV Curing Time | 90 ~ 120 M |
| Purpose | 3D Printed Side Wall and Liquid Acrylic Face Panel |
| Certificate | MSDS / CE |
Materials
- 3D printing filament for the side wall
- Liquid acrylic for the face panel
Certifications
- MSDS
- CE
Manufacturing and Quality Control
Process

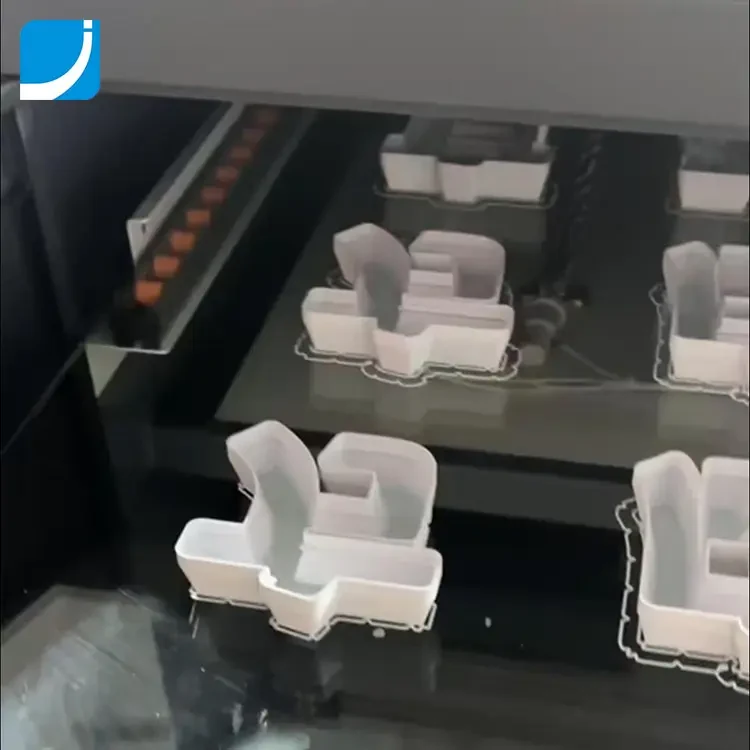

- FDM printing of the side wall

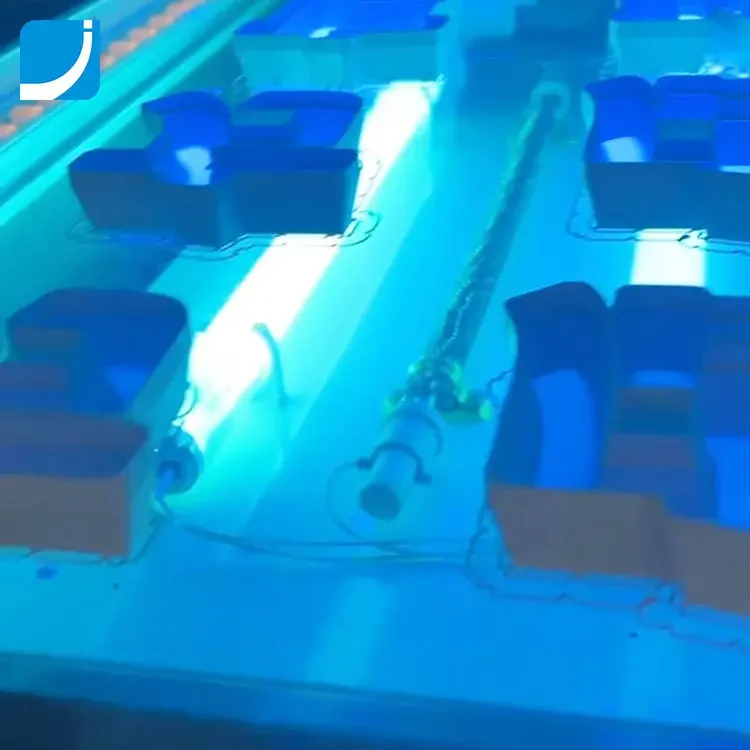

- UV curing of the liquid acrylic face panel
Quality Control
- Tested before delivery
- Fumigation free wooden box packing
- MSDS on file
Comparison With Other Options
Compared with MITO-120 Pro
Same UV curing process with a 1200 x 1200 mm bed, 1800 W and 422 kg net. Choose the 80 Pro when letters stay within 800 mm.
Compared with New MITO-80 without UV curing
The standard machine prints the face as well. The Pro adds the liquid acrylic face option at 295 kg net against 140 kg.
Compared with Traditional acrylic face fabrication
No cutting bending or polishing line is needed because the face is poured and cured in place on the printed side wall.
Use Guide
- Print and inspect the side wall before pouring the face
- Pour the liquid acrylic evenly and avoid trapped air at the corners
- Run the full 90 to 120 minute cure before moving the piece
- Schedule printing of the next letter while a panel cures
- Store and handle the liquid acrylic according to its MSDS
Questions
Frequently Asked Questions
Answers to what buyers ask before ordering Industrial 3D Printer with UV Curing Machine for 3D Printing Wall and Liquid Acrylic Face.
What is the difference from the standard MITO-80
This version adds a UV curing machine so a liquid acrylic face panel can be cured onto the 3D printed side wall.
What is the maximum printing size
800 x 800 x 120 MM.
How long does UV curing take
90 to 120 minutes per cycle.
What is the shipping weight
415 KG gross, 295 KG net, packed at 1390 x 1390 x 1520 MM.
Which certificates apply
MSDS and CE.
What is the warranty
18 months quality warranty with lifetime technical support.
How is it packed
Inside a fumigation free wooden box, shipped by sea air or train.
