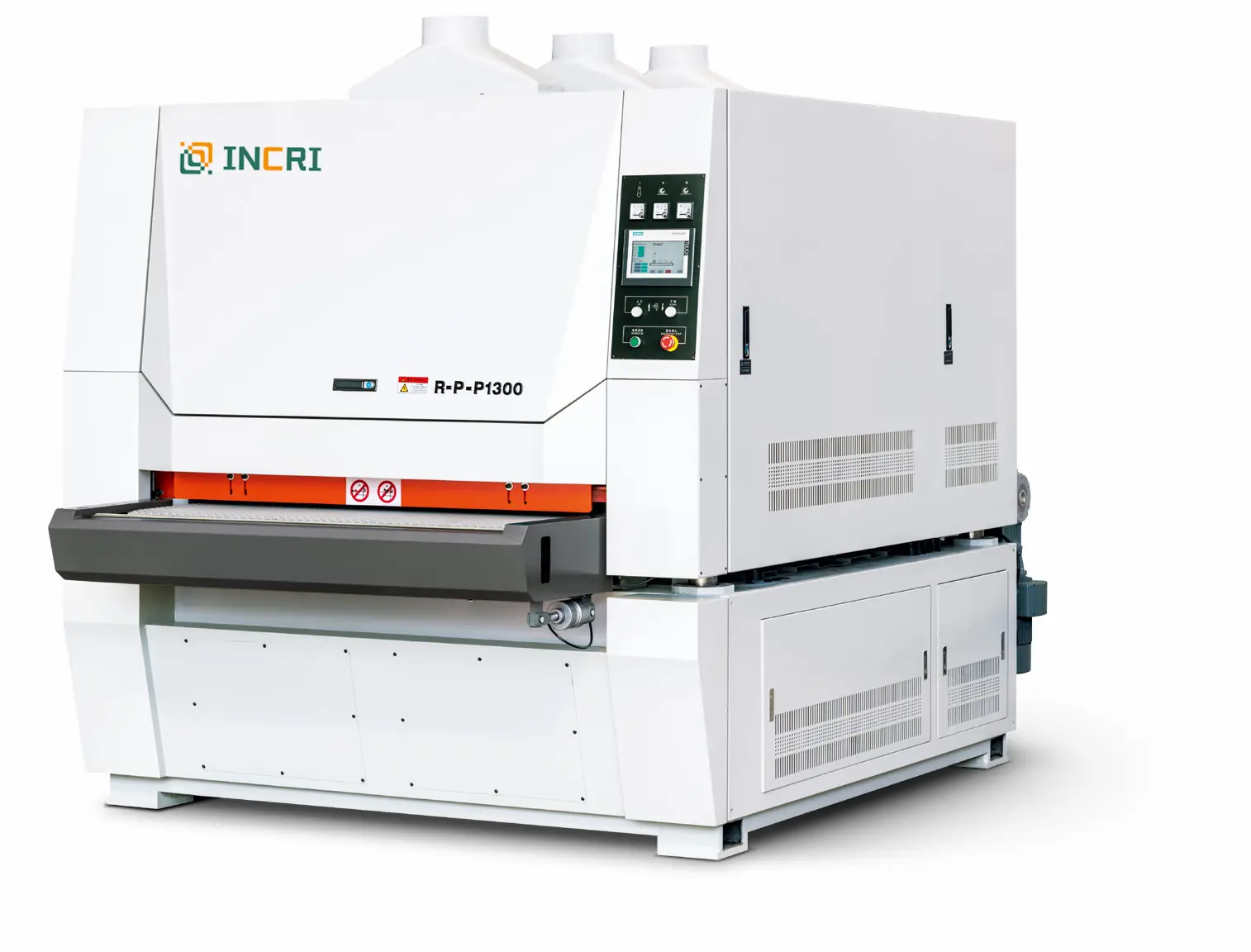

Solid Wood Sander Wide Belt Sanding Machine
Three head floating sander for full width panels up to 1300 mm. The full width solid wood configuration, at 1000 or 1300 mm.
Product Overview
3 Head Wide Belt Sander 1000-1300 mm For Solid Wood Sanding At Full Width
The full width solid wood configuration, at 1000 or 1300 mm.
A three head floating wide belt sander built for full size panels: 1000 mm and 1300 mm working width on a 2200 mm long abrasive belt. Total motor power is 24.26 kW and the machine weighs 5700-6000 kg, which is what keeps a 1300 mm head stable through a full sheet.
IBSG2310R-P-P for 1000 mm widthIBSG2313R-P-P for 1300 mm width
Key Benefits
What This Machine Changes On Your Floor
1
2200 mm belt length gives more abrasive surface and longer belt life
2
Three heads combine calibration, intermediate and finish sanding in one pass
3
1300 mm working width takes a full panel without ripping first
4
6000 kg frame resists chatter under a loaded wide head
Who It Is For
Plants That Buy This Machine
- Panel furniture plants sanding full sheets of MDF and plywood
- Door plants running wide door leaves
- Board converters who calibrate before a coating line
Problems It Solves
What It Removes From Your Process
- Full size sheets have to be ripped before sanding because the sander is too narrow
- A light frame chatters when a 1300 mm head is loaded and leaves witness marks
- Panel thickness drifts edge to edge across a wide sheet
Application Scenarios
Typical Jobs It Runs
Calibrating 1220 mm wide MDF before a roller coater line
Sanding wardrobe and wall panel blanks
Levelling veneered sheets before a curtain coater
Technical Features
How It Is Built
- Large diameter sanding roller with sisal backing for flexible contact on profiled work
- Thickness display on each sanding group
- Three floating heads with electronic auto oscillating
- Auto stop on belt break or belt movement
Specifications
Technical Data
| Parameter | IBSG2310R-P-P | IBSG2313R-P-P |
|---|---|---|
| Working Width | 1000mm | 1300mm |
| Working Thickness | 2-90mm | 2-90mm |
| Size of Abrasive Belt(WxP) | 1000*2200mm | 1300*2200mm |
| Working Air Pressure Abrasive Belt Speed | 3-12m/s | 3-12m/s |
| Feeding Speed | 4-20m/min | 4-20m/min |
| Total Motor Power | 24.26kw | 24.26kw |
| Dimension(L x W x H) | 3110*1770*2280mm | 3110*2070*2280mm |
| Net Weight | 5700kg | 6000kg |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Head parallelism measured across the full 1300 mm width
- Thickness consistency checked at both panel edges and centre
- Belt break auto stop function tested
- Frame run in under load to confirm no chatter
Customisation Options
Specified Per Order
- 1000 mm or 1300 mm working width
- Head sequence R-P-P or other arrangements to order
- Dust extraction ports sized for your fan
Comparison
How It Compares With The Alternatives
vs 600-750 mm wide belt sander
The wide machine takes a full sheet in one pass instead of ripping panels down first
vs Primer sander IBSG2210R-P
This machine calibrates raw board. The primer sander is set up for sanding cured primer instead
Use Guide
Setting The Machine Up For A Run
Load belts coarse to fine across the three heads
Set working thickness within 2-90 mm
Verify air pressure at 0.6 MPa minimum
Feed at 4-20 m per minute and measure the first panel at both edges
Related Machines
Wood Sander Machine Wide Belt Sanding Machine Sanding Primer Sander Machine
Three floating heads that calibrate and finish narrow panels up to 750 mm wide. Built to order.
View Machine Data →
Width Sander Wide Belt sanding machine Sander machine For Wood
Three floating heads that calibrate and finish narrow panels up to 750 mm wide. Built to order.
View Machine Data →
Automatic thickness broadband sanding machine floating primer sanding machine
Three floating heads that calibrate and finish narrow panels up to 750 mm wide. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for solid wood sanding at full width?
Yes. The full width solid wood configuration, at 1000 or 1300 mm. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
What is the connected load?
24.26 kW total motor power.
Can it sand cured primer?
For primer sanding we build the IBSG2210R-P floating primer sander, which is set up for that duty.
What is the maximum panel width?
1300 mm on the IBSG2313R-P-P.
How much does the machine weigh?
5700 kg for the 1000 mm model, 6000 kg for the 1300 mm model.
What abrasive belt length does it use?
2200 mm.
Ask For A Quotation On The Solid Wood Sander Wide Belt Sanding Machine
Send your panel size, coating system and line speed. You will get the model recommendation, full technical data and a price.
