Primer Sanding Machine
Width Sander Wide Belt sanding machine Sander machine For Wood
Three floating heads that calibrate and finish narrow panels up to 750 mm wide. A width sanding configuration, used where thickness consistency across the board is the main requirement.
Product Overview

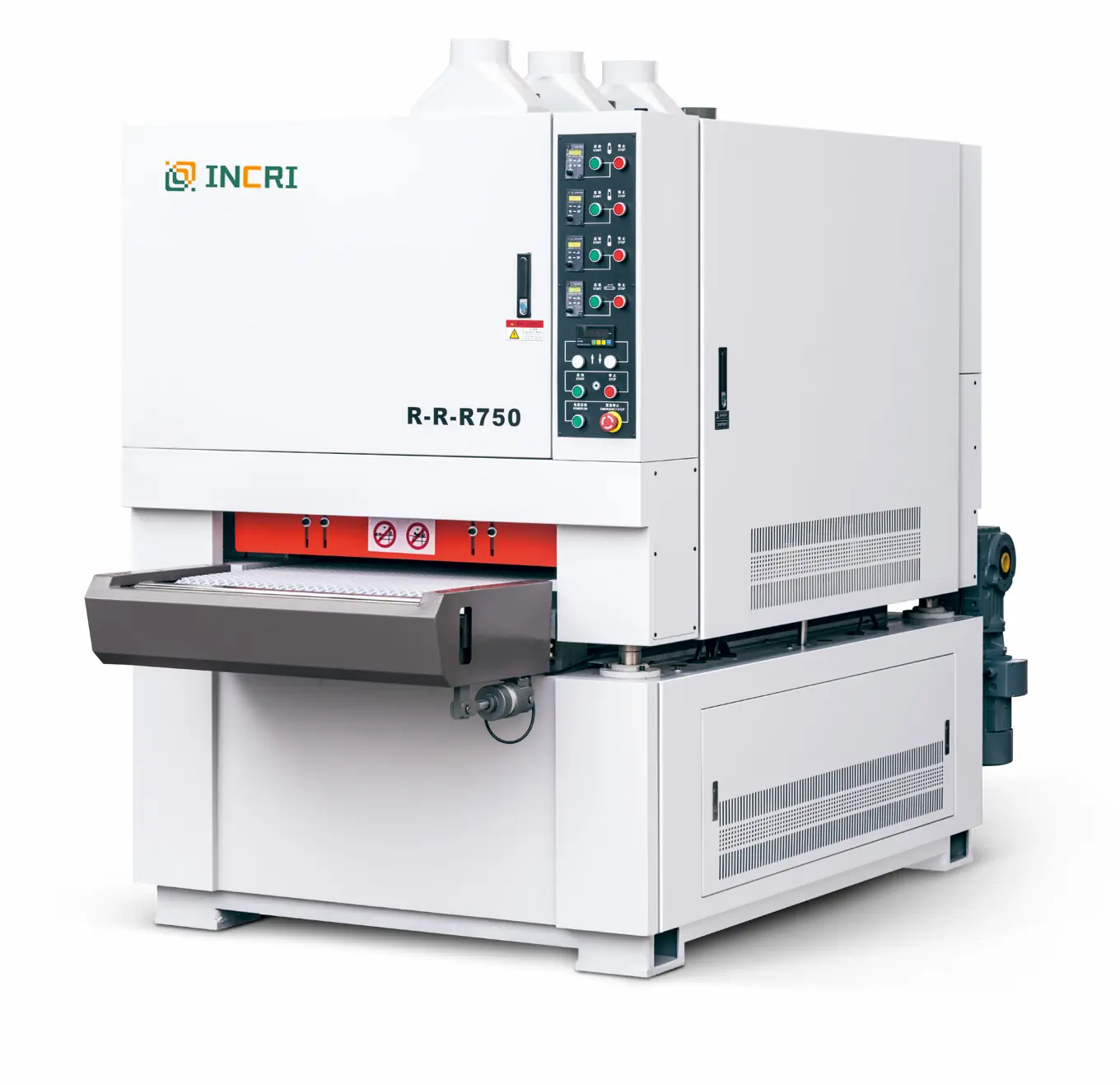

3 Head Wide Belt Sander 600-750 mm For Width Sanding On Hardwood
A width sanding configuration, used where thickness consistency across the board is the main requirement.
A three head floating wide belt sander for panel widths of 600 mm and 750 mm. Each head runs its own abrasive belt, so calibration, intermediate sanding and finish sanding happen in a single pass at a feed of 4-20 m per minute. Total motor power is 21.07 kW.
IBSG2360R-R-R for 600 mm beltsIBSG2375R-R-R for 750 mm belts
Key Benefits
What This Machine Changes On Your Floor
1
Each sanding unit has a thickness display, so settings are read off rather than guessed
2
Three heads in one pass replace three trips through a single head machine
3
Electronic auto oscillating keeps the belt tracking and spreads wear across its width
4
Auto stop triggers when a belt breaks or moves off track, so a batch is not scrapped
5
Belt speed is adjustable from 3 to 12 m per second for different grits and species
Who It Is For
Plants That Buy This Machine
- Workshops that need one machine to cover calibration and finishing
- Door and furniture plants sanding narrow stiles, rails and small fronts
- Flooring producers calibrating strip and engineered boards
Problems It Solves
What It Removes From Your Process
- Belt breakage is only noticed after a whole batch is scrapped
- Thickness varies along the panel because the feed belt height drifts
- Panels leave the sander with visible sanding lines that show through the top coat
- Three separate passes on a single head sander tie up an operator all day
Application Scenarios
Typical Jobs It Runs
Levelling veneered panels before a roller coater
Calibrating solid wood door components before assembly
Finish sanding narrow cabinet fronts ahead of a primer line
Technical Features
How It Is Built
- Thickness display on each sanding group, memory function optional

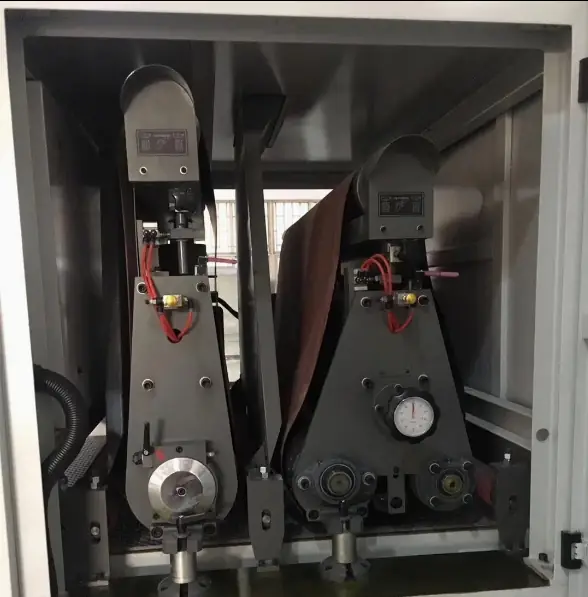

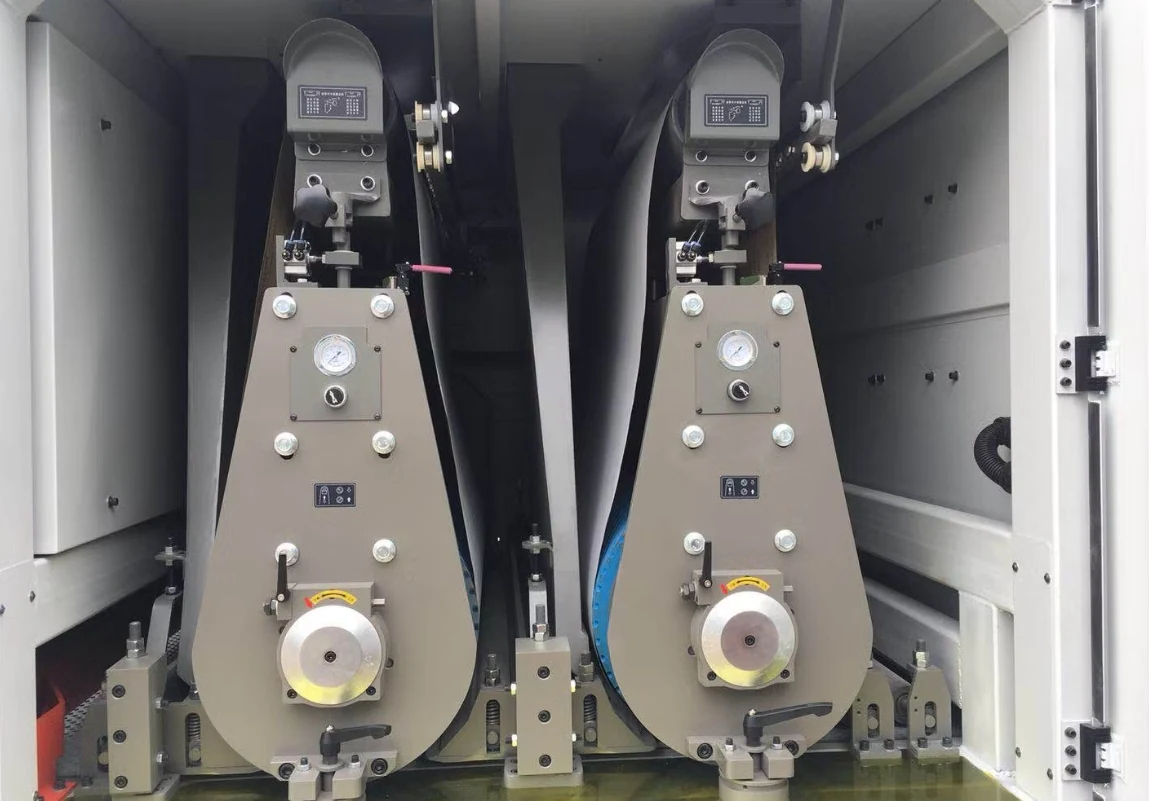

- Electronically controlled auto oscillating sanding unit
- Auto stop when the abrasive belt breaks or moves
- Sanding units adjust up and down by hand
- Large diameter sanding roller matched with quality abrasive and Mexican sisal for flexible contact
Specifications
Technical Data
| Parameter | IBSG2360R-R-R | IBSG2375R-R-R |
|---|---|---|
| Working Thickness | 2-90mm | 2-90mm |
| Size of Abrasive Belt(WxP) | 600*1900mm | 750*1900mm |
| Working Air Pressure Abrasive Belt Speed | 3-12m/s | 3-12m/s |
| Feeding Speed | 4-20m/min | 4-20m/min |
| Total Motor Power | 21.07kw | 21.07kw |
| Dimension(L x W x H) | 2750*1260*2060mm | 2750*1380*2060mm |
| Net Weight | 3000kg | 3560kg |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Belt tracking and oscillation run in before shipment
- Auto stop tested by simulating a belt break
- Thickness repeatability checked on sample panels across the working width
- Air pressure circuit leak tested at 0.6 MPa
Customisation Options
Specified Per Order
- Working width 600 mm or 750 mm
- Head sequence arranged for calibrating or finishing duty
- Memory function for stored thickness settings
- Dust extraction connection sized to your workshop system
Comparison
How It Compares With The Alternatives
vs Single head wide belt sander
One pass instead of three. The extra two heads pay back in labour as soon as volume is steady
vs Hand orbital sanding
Thickness is held to a set figure across the panel rather than left to operator feel
vs Wider 1000-1300 mm sander
For narrow parts the 600-750 mm machine costs less to run and uses less abrasive per panel
Use Guide
Setting The Machine Up For A Run
Set belt grit coarse to fine across the three heads
Adjust each sanding unit height and read the thickness display
Check air supply is at 0.6 MPa or above before starting
Feed at 4-20 m per minute depending on stock removal
Inspect belts for wear at every shift change
Related Machines
Wood Sander Machine Wide Belt Sanding Machine Sanding Primer Sander Machine
Three floating heads that calibrate and finish narrow panels up to 750 mm wide. Built to order.
View Machine Data →
Automatic thickness broadband sanding machine floating primer sanding machine
Three floating heads that calibrate and finish narrow panels up to 750 mm wide. Built to order.
View Machine Data →
750R-R-R Primer Wide Belt Automatic Sanding Machine For Wood
Three floating heads that calibrate and finish narrow panels up to 750 mm wide. Built to order.
View Machine Data →
Where This Machine Fits
Questions About This Machine
Is this model set up for width sanding on hardwood?
Yes. A width sanding configuration, used where thickness consistency across the board is the main requirement. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
How fast can I feed?
4 to 20 m per minute.
What happens if a belt breaks mid batch?
The auto stop equipment halts the machine when a belt breaks or moves off track.
What air supply do I need?
At least 0.6 MPa working air pressure.
Can the machine be customised?
Yes. Working width, head arrangement and dust extraction are all specified to order.
What panel thickness can it sand?
Working thickness is 2 to 90 mm.
What abrasive belt size does it take?
600 x 1900 mm on the IBSG2360R-R-R and 750 x 1900 mm on the IBSG2375R-R-R.
