Primer Sanding Machine

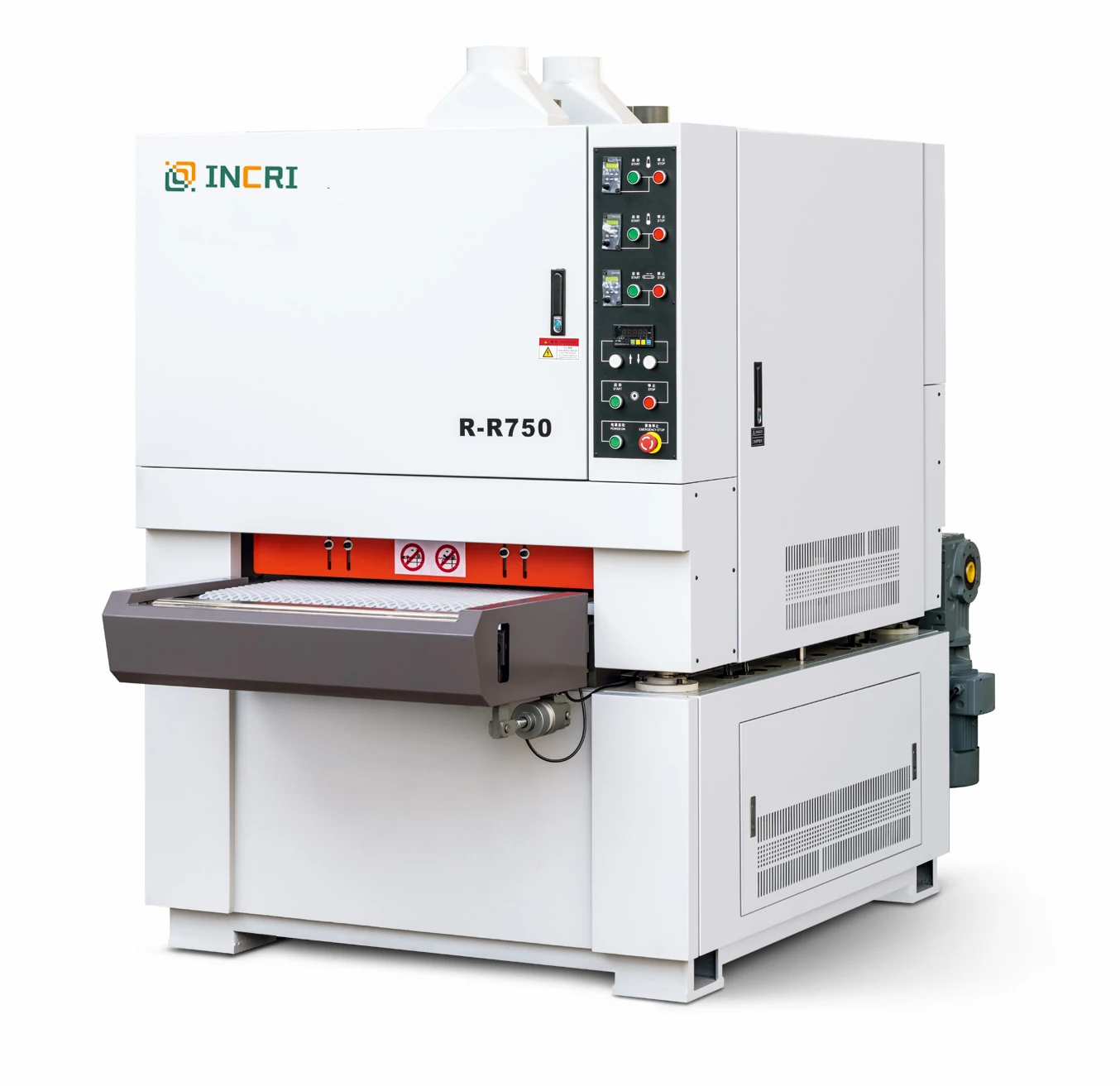

750mm Automatic Wide Belt Sanding Machine for door
Two floating heads for calibrating and finishing doors up to 750 mm wide. A 750 mm two head machine specified for door components.
Product Overview
2 Head Wide Belt Sander 600-750 mm For 750 Mm Door Sanding
A 750 mm two head machine specified for door components.
A two head floating wide belt sander sized for door components 600 mm and 750 mm wide. One head calibrates and one finishes, at 14.02 kW total motor power. It suits plants that do not need a third head and want lower connected load and a shorter machine footprint at 2365 mm long.
IBSG2260R-R for 600 mm beltsIBSG2275R-R for 750 mm belts
Key Benefits
What This Machine Changes On Your Floor
1
2365 mm frame length fits a shorter run of line
2
Same floating head design, belt speed and feed range as the three head machine
3
Auto stop and auto oscillating are standard, not options
4
14.02 kW instead of 21.07 kW keeps the electrical load down
Who It Is For
Plants That Buy This Machine
- Plants with a limited electrical supply
- Door factories sanding leaves and frames up to 750 mm
- Small and mid size furniture plants adding a first wide belt sander
Problems It Solves
What It Removes From Your Process
- Connected load is limited and 21 kW cannot be added to the panel
- A three head machine is more sander than a door shop actually needs
- Floor space is tight and a 2750 mm long frame will not fit the line
Application Scenarios
Typical Jobs It Runs
Sanding veneered door skins before lamination
Calibrating then finish sanding door stiles in one pass
Preparing narrow panels before a primer sander
Technical Features
How It Is Built
- Auto stop when the belt breaks or moves
- Manual up and down adjustment of each sanding unit
- Adjustable feeding belt speed
- Two floating sanding heads with electronic auto oscillating
Specifications
Technical Data
| Parameter | IBSG2260R-R | IBSG2275R-R |
|---|---|---|
| Working Thickness | 2-90mm | 2-90mm |
| Size of Abrasive Belt(WxP) | 600*1900mm | 750*1900mm |
| Working Air Pressure Abrasive Belt Speed | 3-12m/s | 3-12m/s |
| Feeding Speed | 4-20m/min | 4-20m/min |
| Total Motor Power | 14.02kw | 14.02kw |
| Dimension(L x W x H) | 2365*1260*2060mm | 2365*1380*2060mm |
| Net Weight | 2260kg | 2890kg |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Both heads run in and checked for parallel contact
- Belt break auto stop tested before shipment
- Feed belt speed verified across the 4-20 m/min range
Customisation Options
Specified Per Order
- 600 mm or 750 mm working width
- Head configuration for calibrating or finishing
- Dust hood positions set for your extraction layout
Comparison
How It Compares With The Alternatives
vs 3 head IBSG2360R-R-R
The two head machine draws 14.02 kW against 21.07 kW and is 385 mm shorter, at the cost of one sanding stage
vs Single head sander
Two heads let you calibrate and finish in one pass rather than feeding the panel twice
Use Guide
Setting The Machine Up For A Run
Fit a coarser belt on the first head and a finer belt on the second
Set the working thickness within the 2-90 mm range
Confirm air pressure is at least 0.6 MPa
Run a test panel and measure thickness at both edges
Related Machines
Wood Sander Machine Wide Belt Sanding Machine Sanding Primer Sander Machine
Three floating heads that calibrate and finish narrow panels up to 750 mm wide. Built to order.
View Machine Data →
Width Sander Wide Belt sanding machine Sander machine For Wood
Three floating heads that calibrate and finish narrow panels up to 750 mm wide. Built to order.
View Machine Data →
Automatic thickness broadband sanding machine floating primer sanding machine
Three floating heads that calibrate and finish narrow panels up to 750 mm wide. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for 750 mm door sanding?
Yes. A 750 mm two head machine specified for door components. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
How heavy is the machine?
2260 kg for the 600 mm model and 2890 kg for the 750 mm model.
Can I upgrade to three heads later?
The machines are built to order, so specify the head count when you enquire.
What is the belt speed range?
3 to 12 m per second.
How wide a panel can it take?
Abrasive belt width is 600 mm or 750 mm depending on model.
What is the total power?
14.02 kW.
Ask For A Quotation On The 750mm Automatic Wide Belt Sanding Machine for Door
Send your panel size, coating system and line speed. You will get the model recommendation, full technical data and a price.
