Vacuum Membrane Press Machine
Vacuum Press Machine for Wood Doors & Cabinets Negative Pressure Increase
Presses PVC and PET film onto routed MDF door fronts in one heated vacuum cycle. A wood door and cabinet configuration, where the press handles both door leaves and cabinet fronts on the same table.
Product Overview

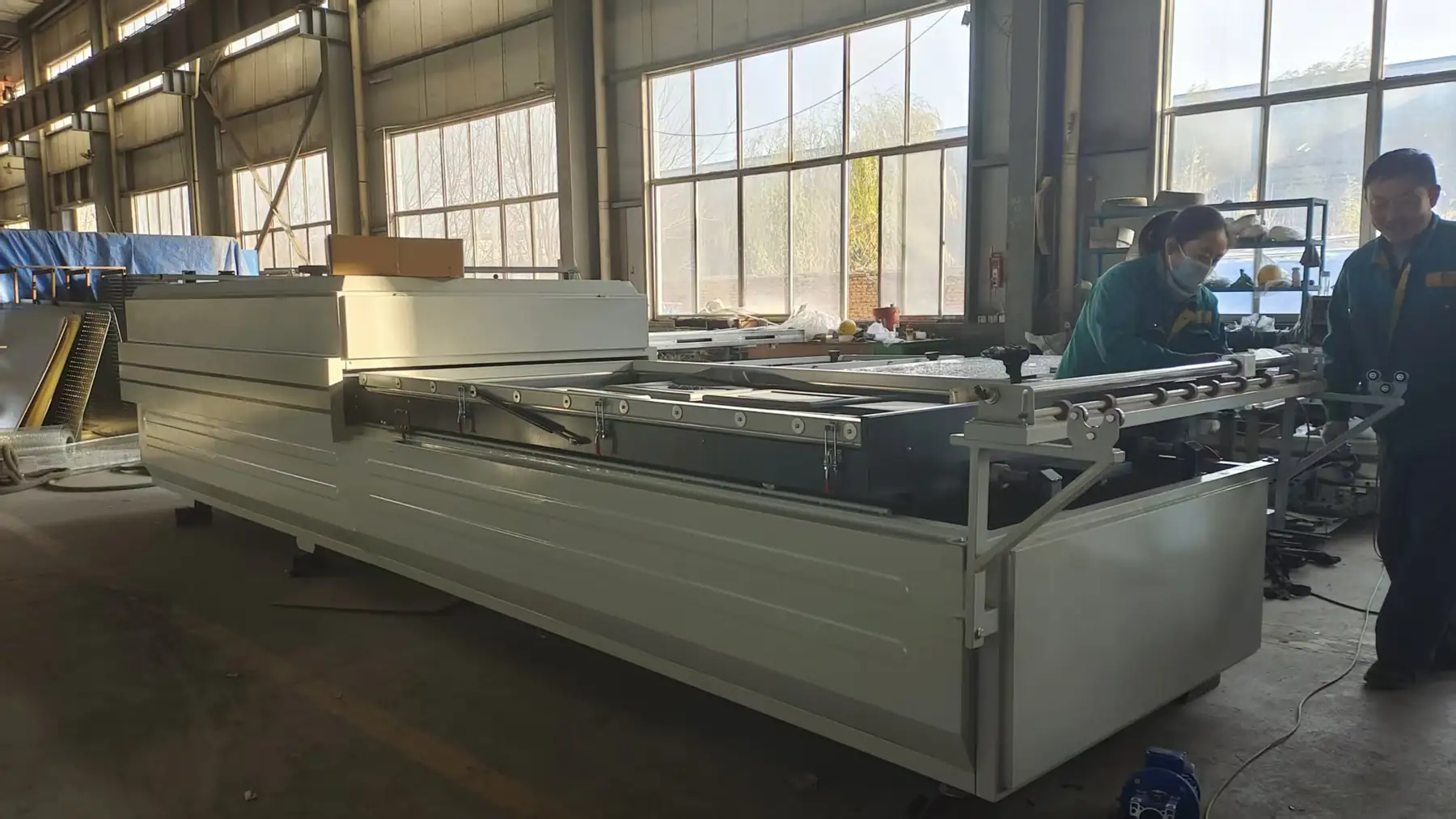

Vacuum Membrane Press For Wood Doors And Cabinets
A wood door and cabinet configuration, where the press handles both door leaves and cabinet fronts on the same table.
The vacuum membrane press covers PVC film onto the face of a routed panel: compound doors, cabinet fronts, furniture parts and speaker boxes. A heated membrane is pulled down over the panel under negative pressure, so the film follows deep grooves and 3D profiles instead of bridging over them. A full cycle runs 2-4 minutes per load, and the vacuum reaches -0.1 MPa with a plated working pressure of at least -0.095 MPa.

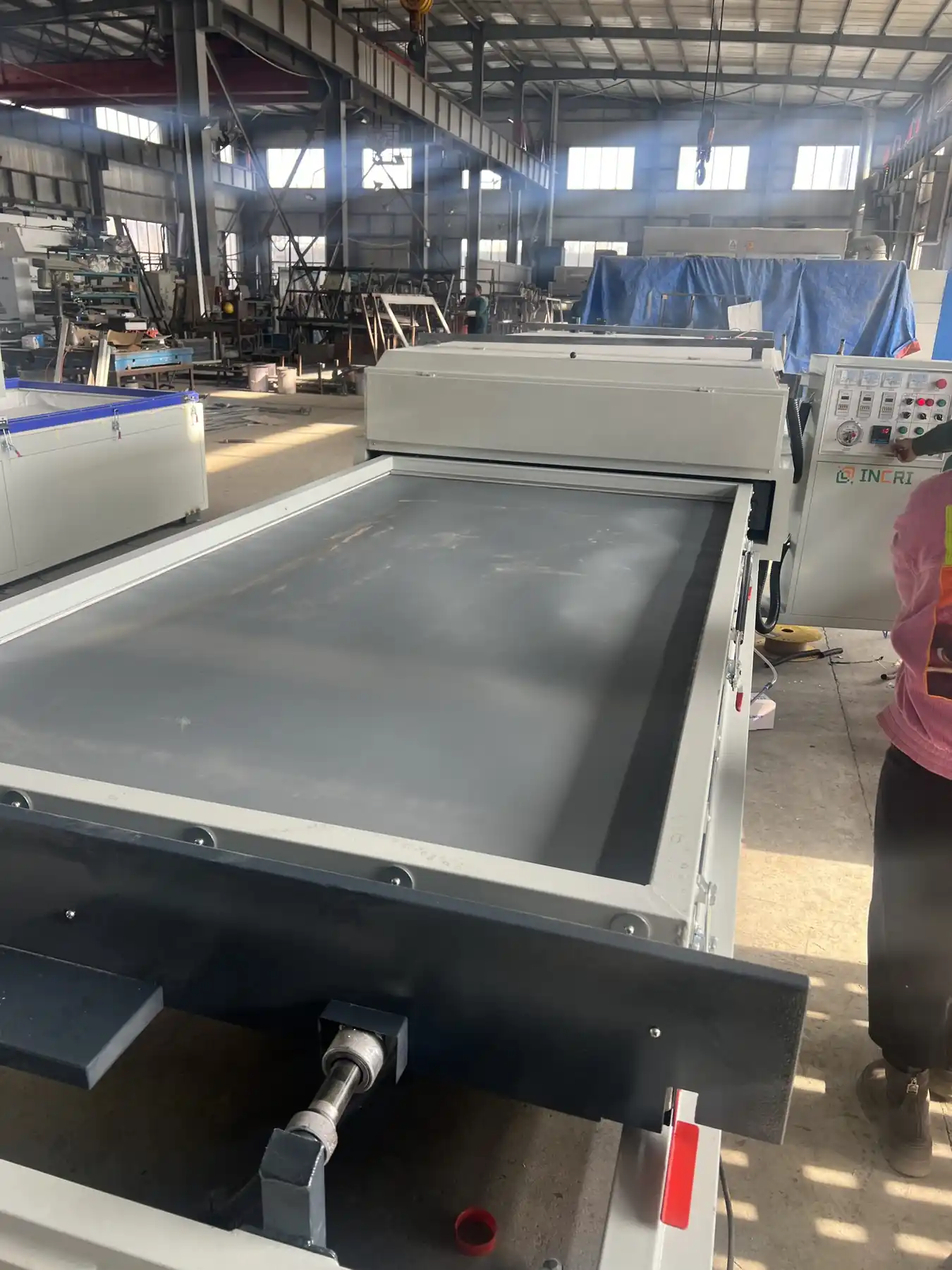

Single worktable, worktable size 2300 x 1100 mmDouble worktable for continuous loading while the other table pressesAutomatic clamshell type with one removable worktable, semi-automatic operation
Key Benefits
What This Machine Changes On Your Floor
1

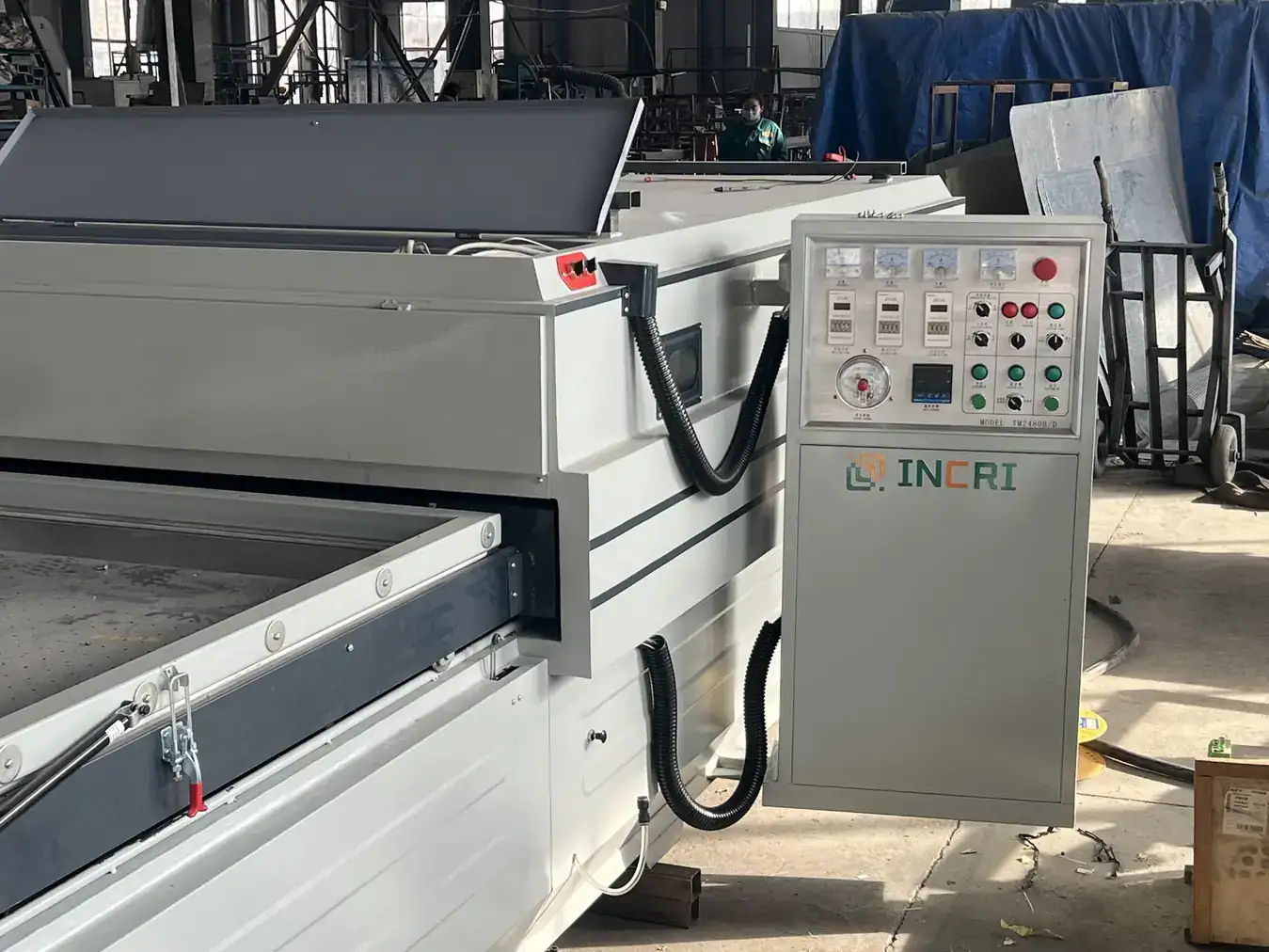

PLC with LED touch screen stores the cycle, so the second shift repeats the first shift's settings
2
Double gas path with an enlarged storage tank gives uniform suction and stops film tearing
3
Double layer thermal insulation and full sealing cut the energy used per press cycle
4
Negative pressure of -0.1 MPa pulls film into deep grooves without bridging or bubbles
5
Double upper and lower heating keeps the panel face at an even temperature across 2300 x 1100 mm
Who It Is For
Plants That Buy This Machine
- Contract finishers who need a repeatable cycle for mixed customer batches
- Kitchen cabinet factories running routed MDF fronts in PVC or PET film
- Interior door plants laminating compound door skins
- Furniture workshops finishing 3D profiled panels and speaker cabinets
Problems It Solves
What It Removes From Your Process
- Operators cannot repeat yesterday's temperature setting, so batch colour and gloss drift
- Hand-laminated door fronts lift at the groove edges after a few weeks in a humid warehouse
- Film bubbles and white stress marks appear on deep-routed shaker profiles
- Membrane pressing is done on a rented press two towns away, so lead time is set by someone else
Application Scenarios
Typical Jobs It Runs
Speaker box shells where the film wraps a curved edge
Shaker and raised-panel kitchen doors in PVC foil
Compound interior door leaves with moulded profiles
Wardrobe and TV cabinet fronts with deep V grooves

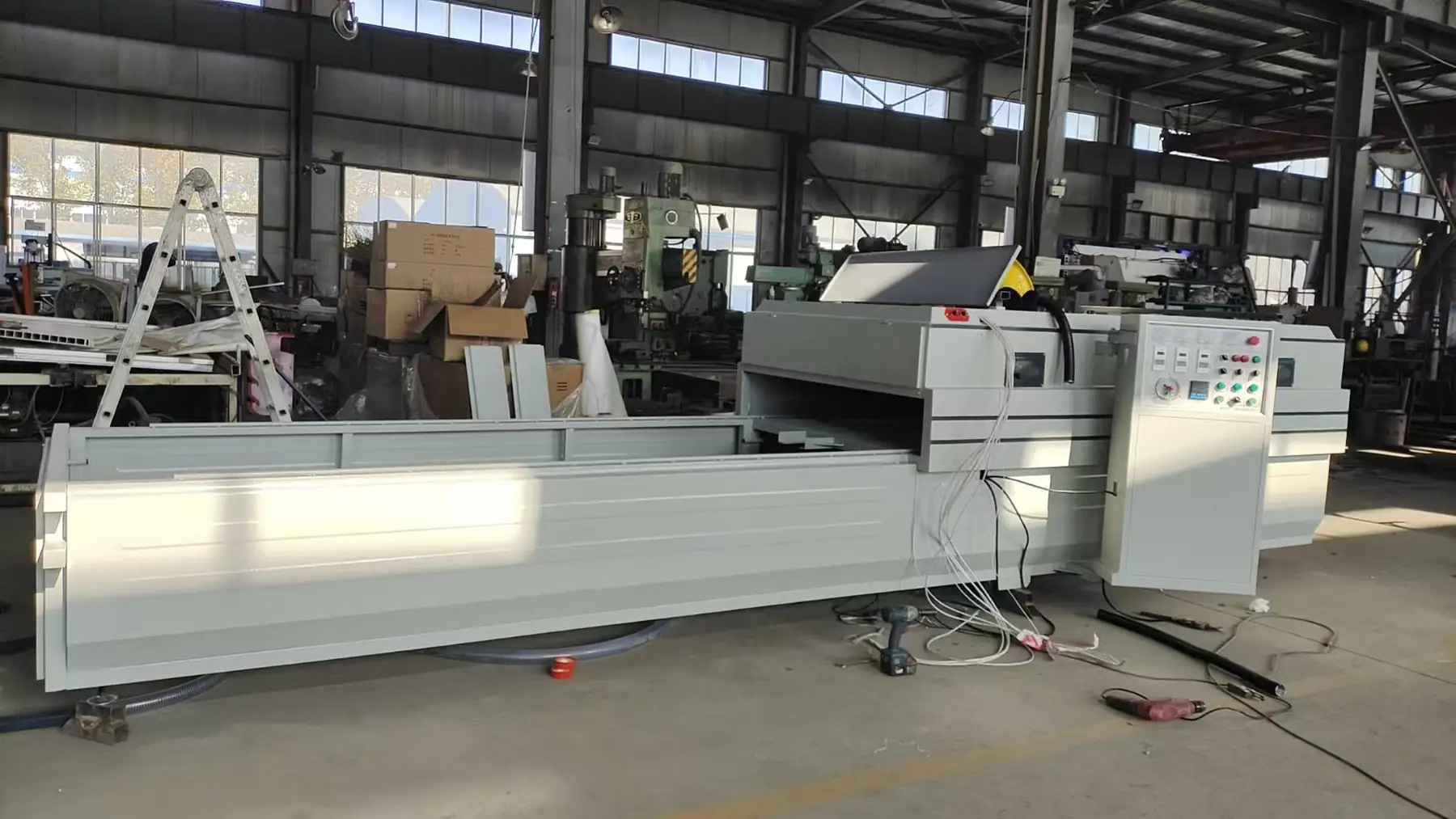

Technical Features
How It Is Built
- Special steel plate worktable resists high temperature and corrosion
- High quality vacuum pump with German technology, compact and quiet in operation
- Two frequency converters control automatic table entry and exit, speed, start and braking
- Thermocouple temperature control with a top temperature of 180 C
- Double layer thermal preservation with full sealing for heat retention
- Stainless steel heating elements heat evenly across the table
Specifications
Technical Data
| Parameter | Value |
|---|---|
| Plated working pressure | Negative pressure >= -0.095 MPa |
| Max vacuum press | -0.1 MPa |
| Max processing height | 80 mm |
| PVC film thickness | 0.10-0.60 mm |
| Working speed | 2-4 min per piece |
| Machine weight | 1500 kg |
| Total power | 20 kW |
| Power consumption | 5 kW |
| Top temperature | 180 C |
| Voltage | 380 V 50 Hz 3 phase |
| Heating | Double upper and lower heating |
| Vacuum pump | Single vacuum pump |
| Control system | PLC with LED touch screen |
| Temperature control | Thermocouple |
| Packing size | 3500 x 2100 x 2400 mm |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Vacuum level checked against the -0.095 MPa plated pressure before the machine leaves the floor
- Heating plate temperature mapped with thermocouples across the full table
- Membrane and seal run tested through repeated cycles for leak tightness
- Frequency converter travel, braking and emergency stop function verified
Customisation Options
Specified Per Order
- Single, double or clamshell worktable configuration
- Worktable size matched to your door size
- Voltage and frequency set for your grid
- Film handling and loading layout planned with your line
Comparison
How It Compares With The Alternatives
vs Hand lamination with contact adhesive
The press applies even pressure over the whole face, so groove edges do not lift and one operator can run the cycle
vs Flat hot press
A flat press cannot follow a routed profile. The membrane wraps the groove walls and edge profile in the same cycle
vs Outsourced membrane pressing
Bringing the press in house removes freight between shops and lets you finish a door order in the same week
Use Guide
Setting The Machine Up For A Run
Sand and dedust the routed panel so no chips sit under the film
Set the plate temperature for the film grade you run and let the table stabilise
Load panels with the spacing your film width allows and close the membrane frame
Run the vacuum cycle, typically 2-4 minutes per piece, and unload when pressure releases
Trim the overhang and check groove corners before the panels go to packing
Related Machines
Vacuum Membrane Press for MDF Kitchen Cabinet Doors Save 60% of labor force
Presses PVC and PET film onto routed MDF door fronts in one heated vacuum cycle. Built to order.
View Machine Data →
Vacuum Membrane Press for MDF Kitchen Cabinet Doors Save 60% of labor force
Presses PVC and PET film onto routed MDF door fronts in one heated vacuum cycle. Built to order.
View Machine Data →
Vacuum Membrane Press Machine for Furniture Save 60% of labor force
Presses PVC and PET film onto routed MDF door fronts in one heated vacuum cycle. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for wood doors and cabinets?
Yes. A wood door and cabinet configuration, where the press handles both door leaves and cabinet fronts on the same table. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
How long is one press cycle?
2 to 4 minutes per piece depending on film grade, panel thickness and plate temperature.
What is the maximum panel height?
Max processing height is 80 mm.
Do you supply the machine with a single or double worktable?
Both. A double worktable lets one table load while the other presses. A clamshell version with one removable table is also available.
What power supply does it need?
380 V, 50 Hz, three phase. Total power is 20 kW with around 5 kW consumed in normal running.
Is installation included?
The machine is almost fully assembled before loading, and video guidance plus an English manual are free. An engineer can travel to your site if you cover travel, visa, insurance, hotel and USD 200 per day labour.
What film thickness can the press handle?
PVC film from 0.10 mm to 0.60 mm. The plated setting normally runs at 0.1-0.45 mm.
Ask For A Quotation On The Vacuum Press Machine for Wood Doors & Cabinets Negative Pressure Increase
Send your panel size, coating system and line speed. You will get the model recommendation, full technical data and a price.
