Roller Coater Machine For Uv Line Automatic Flat Line Furniture
Double roller coater that lays two controlled layers in a single pass. The UV line configuration for automatic flat line furniture.
Product Overview

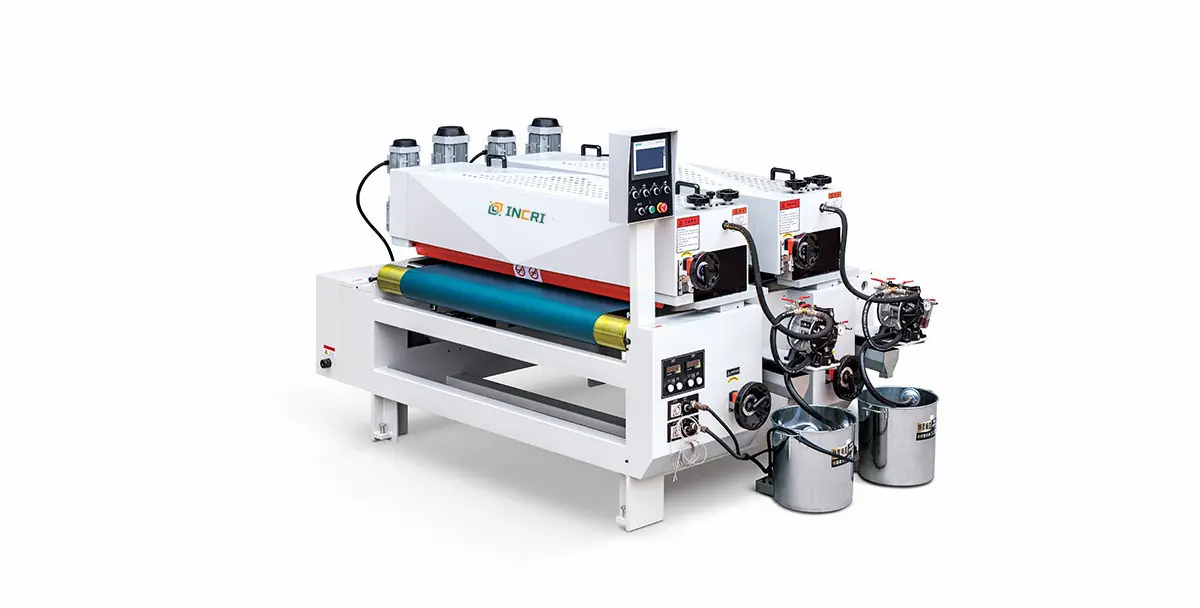

Two Head Roller Coater For Uv Line Flat Line Furniture Coating
The UV line configuration for automatic flat line furniture.
A two head roller coating machine for flat line furniture, flooring and door panels. Two applicator and doctor roller pairs let you put down two layers, or a filler and a primer, in one pass through the machine at 9.6 kW total power. It handles UV, PU, PE, NC and water borne coatings and recycles the paint.
600 mm1000 mm1300 mm working widths
Key Benefits
What This Machine Changes On Your Floor
1
9.6 kW total power for a two stage coating operation
2

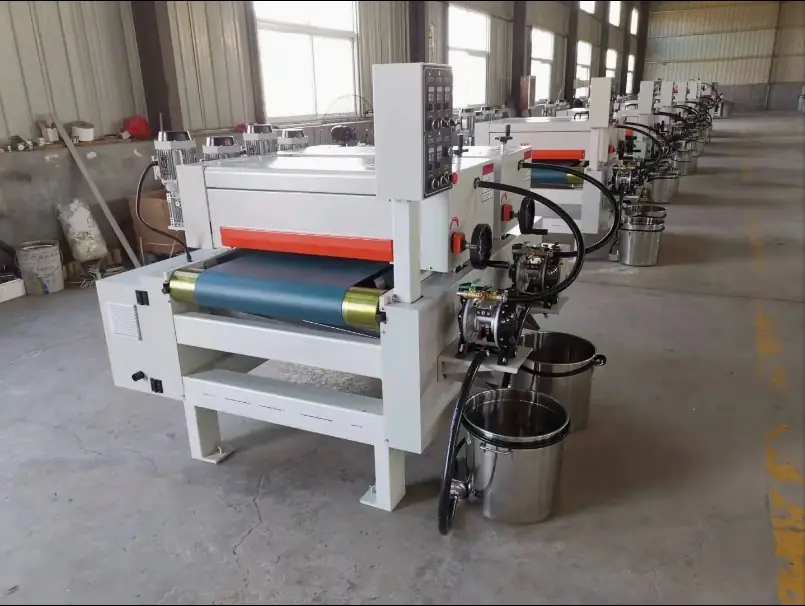

Anti-collision feeding plate protects the rollers
3
Two coating heads apply both layers before the panel leaves the machine
4
Each head can be set independently for filler and primer duty
Who It Is For
Plants That Buy This Machine
- Flooring producers applying two UV layers in sequence
- Plants that need more throughput than a single head allows
- Flat line furniture plants running filler plus primer
Problems It Solves
What It Removes From Your Process
- The second coat picks up dust because the panel sits between passes
- Line throughput is capped by the coater rather than the dryer
- Two passes through a single head machine means double handling on every panel
Application Scenarios
Typical Jobs It Runs
Two coat UV build on flooring before the finish coat
Precise double roller coating on cabinet door blanks
Filler then primer on MDF in one pass
Technical Features
How It Is Built
- Paint recycling on both heads
- Electrical box separated from the main structure
- Anti-collision feeding plate

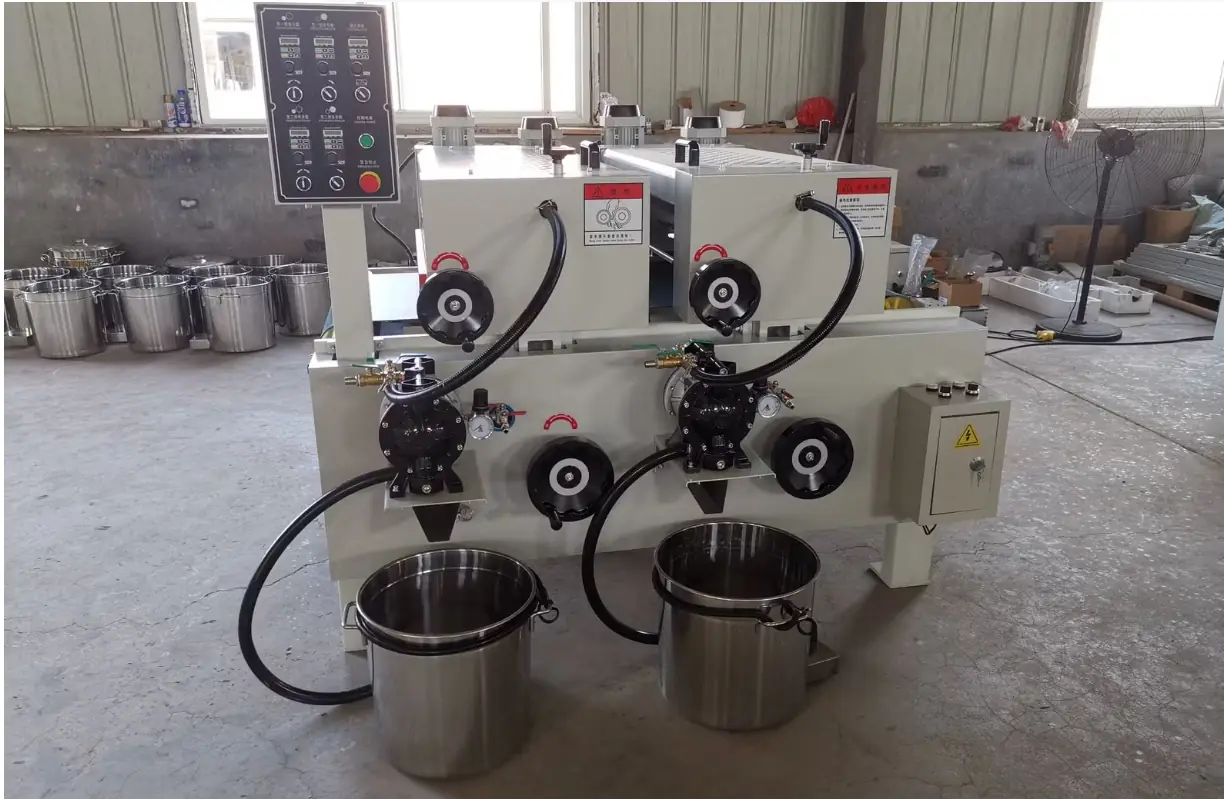

- Two applicator and doctor roller pairs, independently adjustable

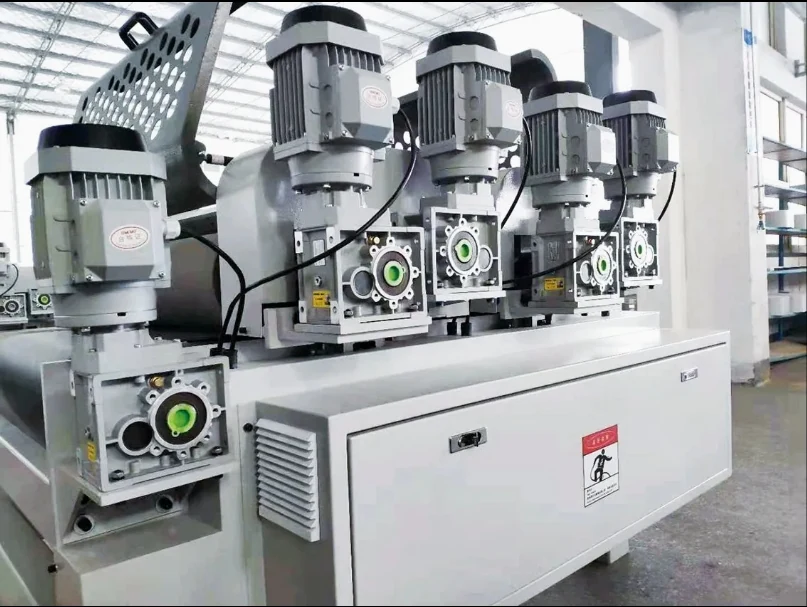

- Frequency converter speed control on each group
Specifications
Technical Data
| Parameter | Value |
|---|---|
| Max processing width | 600 mm / 1000 mm / 1300 mm |
| Processing thickness | 2-90 mm |
| Min processing length | 300 mm |
| Feeding speed | 0-20 m/min |
| Feeding power | 1.5 kW |
| Coating roller power | 1.5 kW x2 |
| Doctor roller power | 0.55 kW x2 |
| Total power | 9.6 kW |
| Paint film | 5-10 g/m2 |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Both roller pairs set and film weight measured separately
- Inter-head panel transfer checked for slip
- Paint recirculation tested on both heads
Customisation Options
Specified Per Order
- Working width from 600 to 1300 mm
- Roller pair configuration for filler, primer or double primer
- Integration with IR levelling and UV curing downstream
Comparison
How It Compares With The Alternatives
vs One head roller coater
The second head removes a whole pass and the handling that goes with it, for 3.85 kW more connected load
vs Three head roller coater
If you need filler, primer and a third layer in one pass, the 11.1 kW three head machine is the next step up
Use Guide
Setting The Machine Up For A Run
Set each doctor gap for its own layer weight
Match feed speed to the cure capacity of the dryer that follows
Run a test panel and check both layers for coverage
Wash both roller sets separately at the end of the run
Related Machines
Back Coating Machine For MDF UV Back Coating Equipment
Seals the underside of solid wood flooring so boards stop cupping in service. Built to order.
View Machine Data →
Carpentry Tools Back Coating Machine For Cabinet/Floor Wood precise back coating
Seals the underside of solid wood flooring so boards stop cupping in service. Built to order.
View Machine Data →
Precise Stain Machine Furniture Wood Flooring woodworking stain machine 600mm
Brush roller stain coater that colours open grain and pore holes evenly. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for UV line flat line furniture coating?
Yes. The UV line configuration for automatic flat line furniture. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
What is the feed range?
0 to 20 m per minute.
What panel thickness does it take?
2 to 90 mm.
Can I run water borne coatings?
Yes, along with UV, PU, PE and NC.
Can each head run a different product?
Yes. The applicator roller, doctor roller and scraper on each group can be set for different working modes.
What is the total power?
9.6 kW.
Ask For A Quotation On The Roller Coater Machine for Uv Line Automatic Flat Line Furniture
Send your panel size, coating system and line speed. You will get the model recommendation, full technical data and a price.
