Prime UV One Head roller coater machine Roller Coating Machine
Single head roller coater for primer or top coat at 5.75 kW connected load. The one head UV primer build.
Product Overview

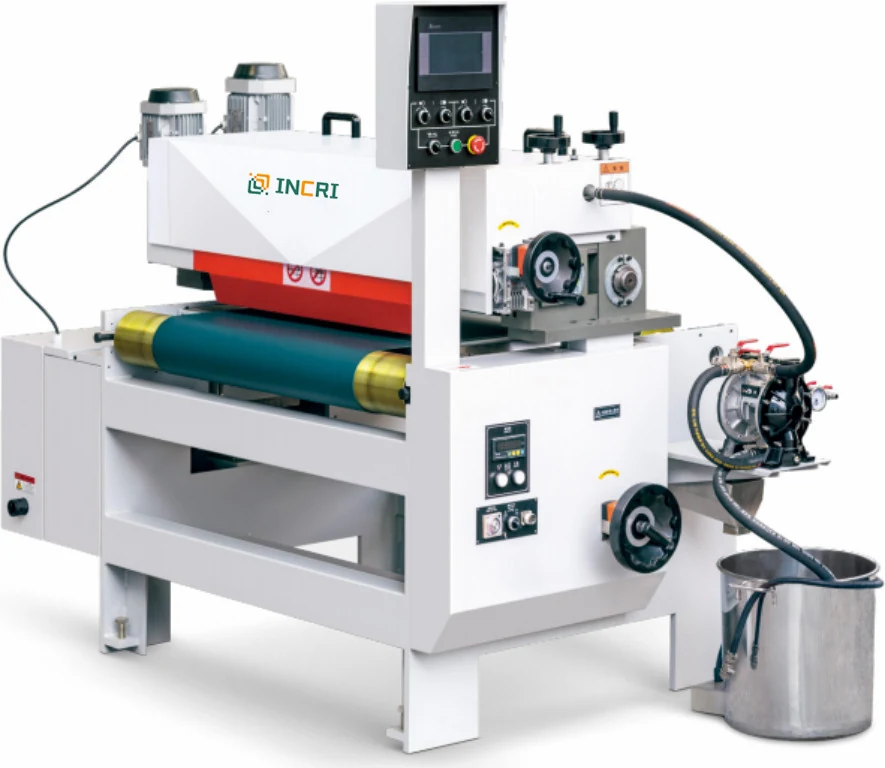

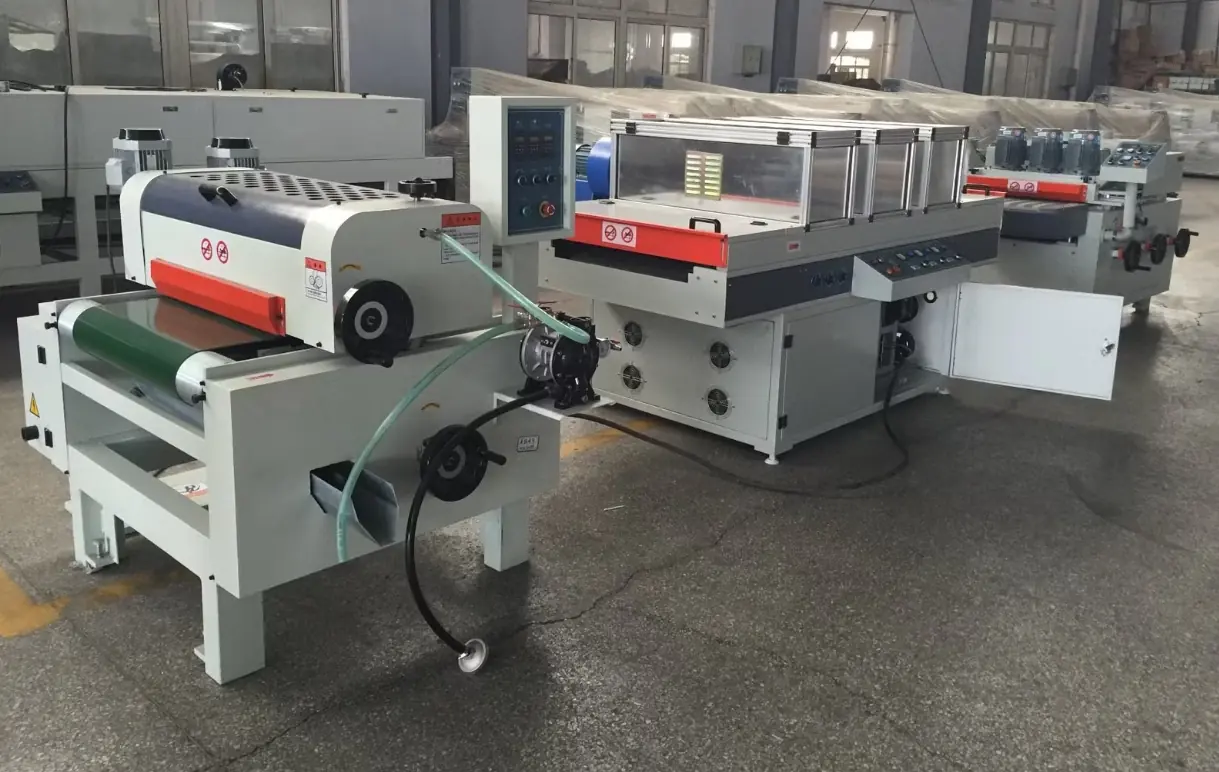

One Head Roller Coater For One Head Uv Primer Coating
The one head UV primer build.
A one head roller coating machine for board type furniture, flooring, flush doors, ceramic and handicraft surfaces. One applicator roller and one doctor roller lay primer or top coat and the paint that does not transfer is recycled. It runs UV, PU, PE, NC and water borne coatings at a feed of 0-20 m per minute and 5.75 kW total power.
ICGT-1-600ICGT-1-1000ICGT-1-1300
Key Benefits
What This Machine Changes On Your Floor
1
Film thickness controlled at 5-10 g/m2 by the doctor roller gap
2
Paint is recycled, so material cost per panel drops against spraying
3
Runs UV, PU, PE, NC and water borne coatings on the same machine
4
Electrical box separated from the main structure for safer washdown
5
5.75 kW total power is the lowest connected load in the roller coater range
Who It Is For
Plants That Buy This Machine
- Small and mid size panel plants buying a first roller coater
- Workshops applying a single primer coat before an outsourced top coat
- Flooring producers adding a sealer stage
Problems It Solves
What It Removes From Your Process
- A first coating machine has to be affordable to buy and cheap to power
- Brush and spray application wastes expensive UV paint
- Film thickness is judged by eye instead of set on a dial
Application Scenarios
Typical Jobs It Runs
UV primer on MDF panel before a sanding stage
Sealer on engineered flooring blanks
Single top coat on flush door skins

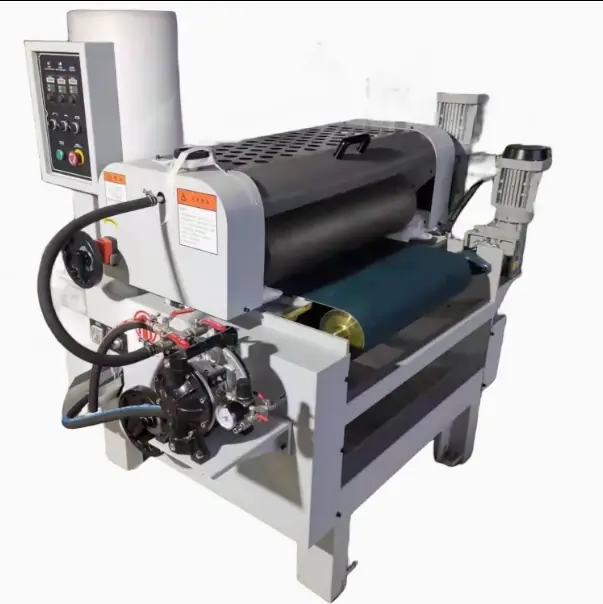

Technical Features
How It Is Built
- Gear box with imported motor and frequency conversion speed control
- Anti-collision feeding plate protects the roller from panel impact
- Electrical box separated from the main structure
- Heater power 2 kW for paint viscosity
- Applicator roller, doctor roller and scraper can be set for different working modes
Specifications
Technical Data
| Parameter | ICGT-1-600 | ICGT-1-1000 | ICGT-1-1300 |
|---|---|---|---|
| Max.Processing Width | 600mm | 1000mm | 1300mm |
| Processing Thickness | 2-90mm | 2-90mm | 2-90mm |
| Min. Processing Length | 300mm | 300mm | 300mm |
| Feeding Speed | 0-20m/min | 0-20m/min | 0-20m/min |
| Feeding Power | 1.5kw | 1.5kw | 1.5kw |
| Coating Roller Power | 1.5kw | 1.5kw | 1.5kw |
| Doctor Roller Power | 0.75kw | 0.75kw | 0.75kw |
| Heater Power | 2kw | 2kw | 2kw |
| TTotal Power | 5.75kw | 5.75kw | 5.75kw |
| Dimension(L x W x H) | 1130*1920*1640 | 1130*2315*1640 | 1130*2615*1640 |
| Net Weight | 820kg | 900kg | 980kg |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Roller parallelism and doctor gap set on the machine
- Applied film weight measured on sample panels
- Recirculation pump and scraper run tested
Customisation Options
Specified Per Order
- 600, 1000 or 1300 mm processing width
- Roller hardness and surface selected for your coating
- Line connection to a UV dryer or IR leveller
Comparison
How It Compares With The Alternatives
vs Two head roller coater
One head applies one coat per pass. The two head machine puts primer and a second layer down in a single pass at 9.6 kW
vs Spray booth
Roller coating transfers most of the paint to the panel and recycles the rest, where spraying loses material as overspray
Use Guide
Setting The Machine Up For A Run
Set the doctor roller gap for your target film weight
Bring the heater up so paint viscosity is stable
Feed at 0-20 m per minute and check the first panel for even coverage
Wash the roller and scraper at the end of the run
Related Machines
Back Coating Machine For MDF UV Back Coating Equipment
Seals the underside of solid wood flooring so boards stop cupping in service. Built to order.
View Machine Data →
Carpentry Tools Back Coating Machine For Cabinet/Floor Wood precise back coating
Seals the underside of solid wood flooring so boards stop cupping in service. Built to order.
View Machine Data →
Precise Stain Machine Furniture Wood Flooring woodworking stain machine 600mm
Brush roller stain coater that colours open grain and pore holes evenly. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for one head UV primer coating?
Yes. The one head UV primer build. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
What film thickness does it apply?
The paint film is controlled in the 5 to 10 g/m2 range.
What is the smallest panel it can coat?
Minimum processing length is 300 mm.
What is the connected load?
5.75 kW total power.
Is the paint recycled?
Yes, paint that does not transfer to the panel is recycled.
What paints can I run?
UV, PU, PE, NC and water borne coatings.
Ask For A Quotation On The Prime UV One Head Roller Coater Machine Roller Coating Machine
Send your panel size, coating system and line speed. You will get the model recommendation, full technical data and a price.
