Coating Machine

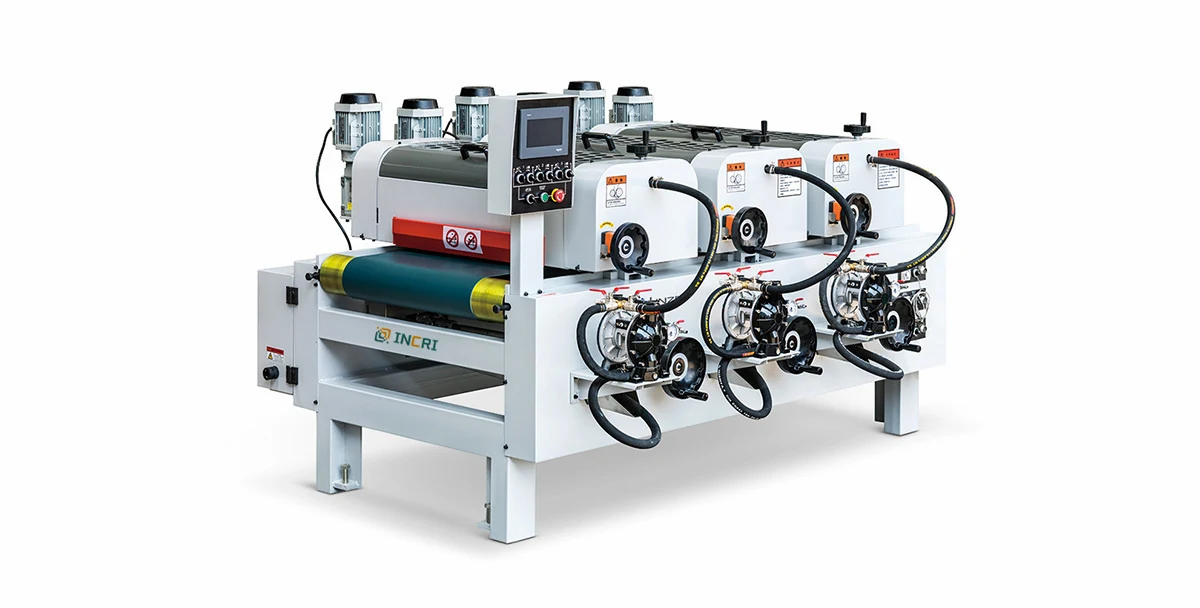

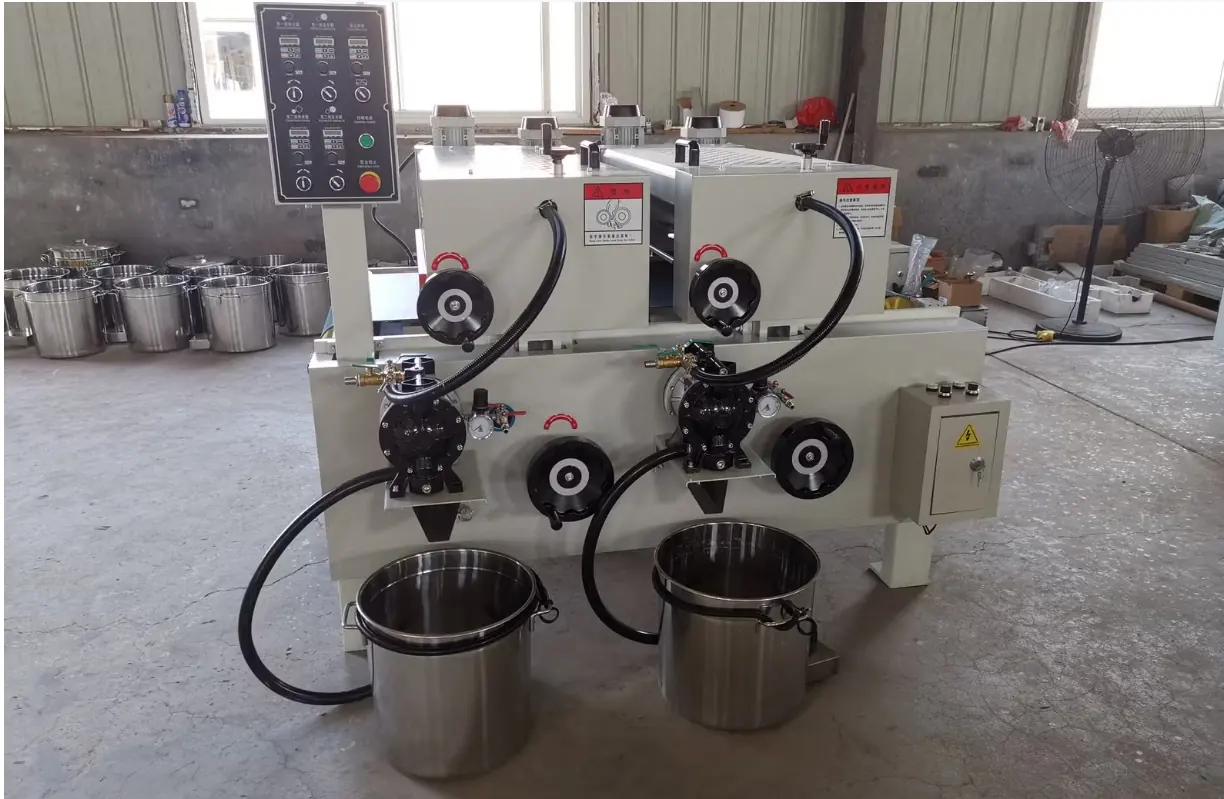

Three Heads Paint Roller Coater Machine roller coating machine for wood
Three coating groups plus a filling roller for a complete UV build in one pass. The three head paint configuration for wood panel.
Product Overview
Three Head Roller Coater For 3 Head Paint Roller Coating For Wood Panel
The three head paint configuration for wood panel.
A three head roller coater for board type furniture, flooring, flush doors, ceramic and handicraft surfaces. Three frequency converter groups run independently, and each can be used on its own, so filler, primer and top coat can all be applied in one pass. Total power is 11.1 kW at 600 and 1000 mm and 11.8 kW at 1300 mm.
ICDT600ICDT1000ICDT1300
Key Benefits
What This Machine Changes On Your Floor
1
Available for UV, PU, water base, and paint is recycled
2
Three groups with their own frequency converters, each usable alone
3
A filling roller at 1.5 kW covers the pore filling stage in the same frame
4
Paint film held at 5-10 g/m2 across all groups
5
One pass instead of three removes handling and the dust it picks up
Who It Is For
Plants That Buy This Machine
- Panel furniture plants with a high daily output
- Flooring producers with limited floor space for separate machines
- UV coating lines running a complete primer to top coat build
Problems It Solves
What It Removes From Your Process
- Colour and gloss drift between passes because each pass is set up again
- Three separate machines take floor space a plant does not have
- A full UV build needs three passes and three handling cycles per panel
Application Scenarios
Typical Jobs It Runs
Two primer layers plus a sealer on engineered flooring
Coating flush door skins in a continuous line
Filler, UV primer and UV top coat on MDF panel in one pass
Technical Features
How It Is Built
- Anti-collision feeding plate and separated electrical box
- Three frequency converter groups, or PLC control as an option
- Applicator, doctor roller and scraper set independently on each group
- Filling roller at 1.5 kW
- Heater power 2 kW x2 for paint viscosity
Specifications
Technical Data
| Parameter | ICDT600 | ICDT1000 | ICDT1300 |
|---|---|---|---|
| Max.Processing Width | 600mm | 1000mm | 1300mm |
| Processing Thickness | 2-90mm | 2-90mm | 2-90mm |
| Min. Processing Length | 300mm | 300mm | 300mm |
| Feeding Speed | 0-20m/min | 0-20m/min | 0-20m/min |
| Feeding Power | 1.5kw | 1.5kw | 2.2kw |
| Coating Roller Power | 1.5kw*2 | 1.5kw*2 | 1.5KW*2 |
| Doctor Roller Power | 0.55kw*2 | 0.55kw*2 | 0.55kw*2 |
| Filling Roller Power | 1.5kw | 1.5kw | 1.5kw |
| Heater Power | 2kw*2 | 2kw*2 | 2kw*2 |
| TTotal Power | 11.1kw | 11.1kw | 11.8kw |
| Dimension(L x W x H)mm | 2145*1920*1640 | 2145*2300*1640 | 2145*2600*1640 |
| Net Weight | 1400kg | 1750kg | 2000kg |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Each of the three groups set and measured for film weight independently
- Frequency converter response tested group by group
- Full pass run on sample panels and inspected for chromatic difference
Customisation Options
Specified Per Order
- 600, 1000 or 1300 mm processing width
- PLC control instead of three separate frequency converters
- Group arrangement for filler, primer and top coat
Comparison
How It Compares With The Alternatives
vs Two head roller coater
The third group plus the filling roller covers pore filling as well, which a two head machine cannot do in the same pass
vs Curtain coater
Roller coating is the right tool for primer and filler build. Curtain coating is for the mark free high gloss top coat
Use Guide
Setting The Machine Up For A Run
Set the three groups in sequence for filler, primer and top coat
Bring both heaters up before starting the first panel
Feed at 0-20 m per minute matched to the dryer capacity
Inspect the first panel for chromatic difference between groups
Related Machines
Back Coating Machine For MDF UV Back Coating Equipment
Seals the underside of solid wood flooring so boards stop cupping in service. Built to order.
View Machine Data →
Carpentry Tools Back Coating Machine For Cabinet/Floor Wood precise back coating
Seals the underside of solid wood flooring so boards stop cupping in service. Built to order.
View Machine Data →
Precise Stain Machine Furniture Wood Flooring woodworking stain machine 600mm
Brush roller stain coater that colours open grain and pore holes evenly. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for 3 head paint roller coating for wood panel?
Yes. The three head paint configuration for wood panel. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
How heavy is the 1300 mm machine?
2000 kg.
Can I use just one of the three heads?
Yes. Each group has its own frequency converter and can be used alone.
What is the paint film thickness?
5 to 10 g/m2.
What is the connected load?
11.1 kW at 600 and 1000 mm, 11.8 kW at 1300 mm.
Is PLC control available?
Yes, as an alternative to the three frequency converters.
