Primer Sanding Machine
Floating Type Primer Sander Machine Primer sanding machine for door floor
Two head floating sander that cuts cured UV primer flat without burning through. The floating type build, used on door and flooring primer where burn through at the edge is the risk.
Product Overview

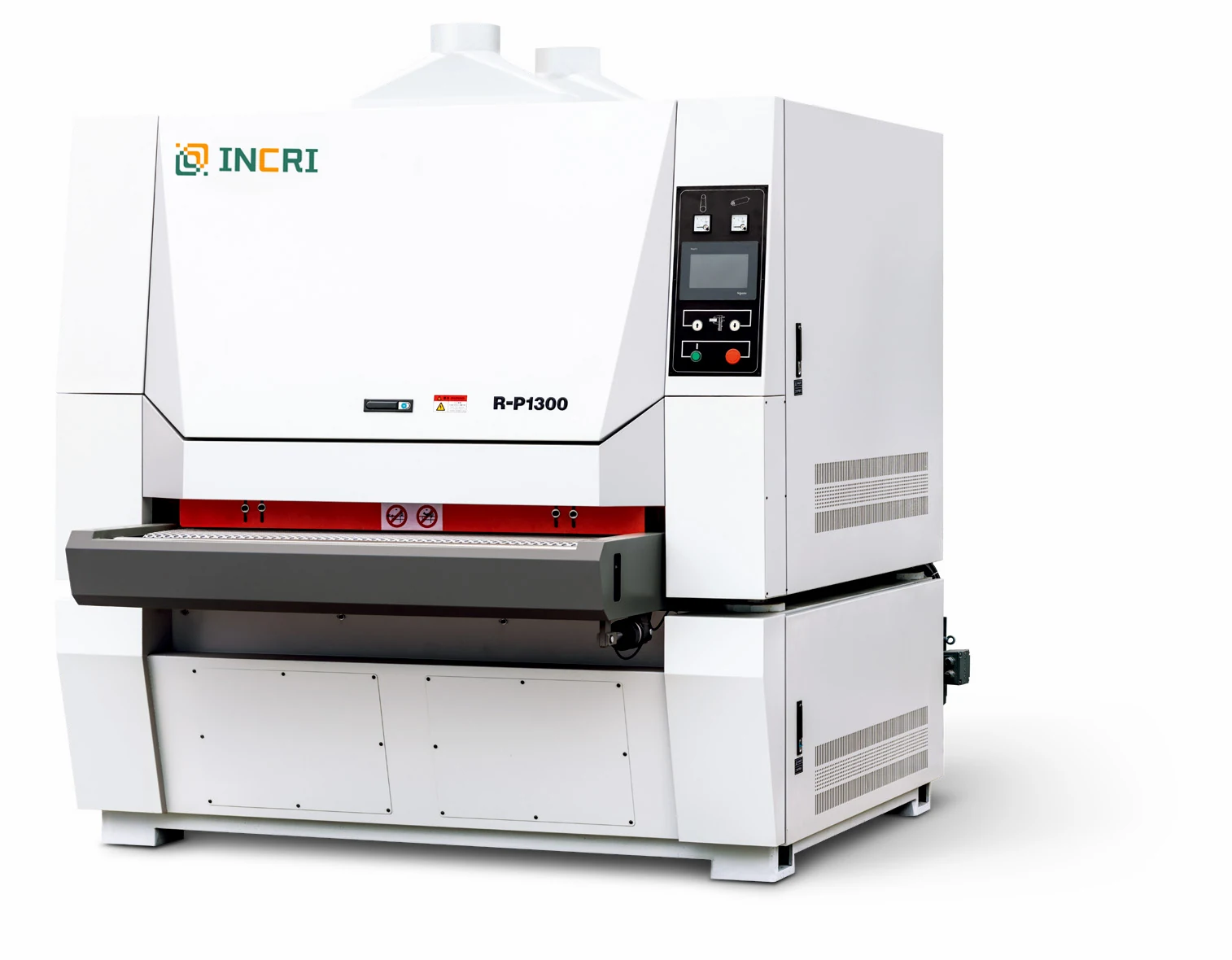

Upper Floating Primer Sander For Floating Type Primer Sanding For Doors And Floors
The floating type build, used on door and flooring primer where burn through at the edge is the risk.
An upper floating primer sanding machine for 1000 mm and 1300 mm panels. The floating head follows the panel so the abrasive removes cured primer evenly instead of cutting through to the substrate at the edges. Total motor power is 22.09 kW on a 4800-5025 kg frame.
IBSG2210R-P for 1000 mmIBSG2213R-P for 1300 mm
Key Benefits
What This Machine Changes On Your Floor
1
Upper floating head follows the panel and takes primer off evenly across the width
2
Belt speed adjustable 3-12 m/s to match the grit used on cured UV primer
3
Auto stop on belt break prevents a full batch of primed panels being scrapped
4
4800 kg frame keeps the cut steady at 1300 mm width
Who It Is For
Plants That Buy This Machine
- Flooring plants sanding primer before the finish roller coater
- UV and PU coating lines that sand between primer and top coat
- Door and cabinet plants running a primer, sand, top coat sequence
Problems It Solves
What It Removes From Your Process
- Operators slow the line down because they do not trust the sander on cured UV primer
- Primer is sanded through at the panel edges and the board shows under the top coat
- Orange peel in the primer is still visible after the top coat is applied
Application Scenarios
Typical Jobs It Runs
Denibbing primed panels ahead of a curtain coater
Sanding UV primer on MDF door fronts before top coating
Levelling primer on flooring blanks in a continuous line
Technical Features
How It Is Built
- Upper floating sanding unit with electronic auto oscillating
- Auto stop equipment when the belt breaks or moves
- Manual up and down adjustment of the sanding unit
- Adjustable feeding belt speed
Specifications
Technical Data
| Parameter | IBSG2210R-P | IBSG2213R-P |
|---|---|---|
| Working Width | 1000mm | 1300mm |
| Working Thickness | 2-90mm | 2-90mm |
| Size of Abrasive Belt(WxP) | 1000*2200mm | 1300*2200mm |
| Working Air Pressure Abrasive Belt Speed | 3-12m/s | 3-12m/s |
| Feeding Speed | 4-20m/min | 4-20m/min |
| Total Motor Power | 22.09kw | 22.09kw |
| Dimension(L x W x H) | 2580*1770*2280mm | 2580*2070*2280mm |
| Net Weight | 4800kg | 5025kg |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Floating head pressure checked across the full width
- Test panels sanded and inspected for burn through at the edges
- Auto stop tested on belt break
Customisation Options
Specified Per Order
- 1000 mm or 1300 mm working width
- Head configuration for primer or calibration duty
- Integration with an upstream roller coater and UV dryer
Comparison
How It Compares With The Alternatives
vs Calibrating wide belt sander
A calibrating head cuts raw board. The floating head is set up to shave cured primer without reaching the substrate
vs Hand denibbing
A floating primer sander holds the same cut across the panel and across the shift
Use Guide
Setting The Machine Up For A Run
Let the primer cure fully under the UV dryer before sanding
Fit the grit your primer system calls for and set belt speed to suit
Start with light pressure and increase until the primer is flat
Check the panel edges for burn through on the first piece of each batch
Related Machines
Wood Sander Machine Wide Belt Sanding Machine Sanding Primer Sander Machine
Three floating heads that calibrate and finish narrow panels up to 750 mm wide. Built to order.
View Machine Data →
Width Sander Wide Belt sanding machine Sander machine For Wood
Three floating heads that calibrate and finish narrow panels up to 750 mm wide. Built to order.
View Machine Data →
Automatic thickness broadband sanding machine floating primer sanding machine
Three floating heads that calibrate and finish narrow panels up to 750 mm wide. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for floating type primer sanding for doors and floors?
Yes. The floating type build, used on door and flooring primer where burn through at the edge is the risk. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
Will it sand through the primer at the edges?
The upper floating head follows the panel surface, which is what keeps the cut even across the width and at the edges.
What working widths do you build?
1000 mm and 1300 mm.
What is the total motor power?
22.09 kW.
Can it also calibrate raw board?
It is set up for primer sanding. For raw board calibration the IBSG2310R-P-P three head machine is the right choice.
How fast does it feed?
4 to 20 m per minute.
Ask For A Quotation On The Floating Type Primer Sander Machine Primer Sanding Machine for Door Floor
Send your panel size, coating system and line speed. You will get the model recommendation, full technical data and a price.
