Wood Flooring Precise Stain Machine Furniture Wood Flooring Precise Stain Machine
Brush roller stain coater that colours open grain and pore holes evenly. The stain roller build, listed for buyers searching by roller rather than by machine.
Product Overview
Precise Stain Machine For Stain Roller Configuration
The stain roller build, listed for buyers searching by roller rather than by machine.

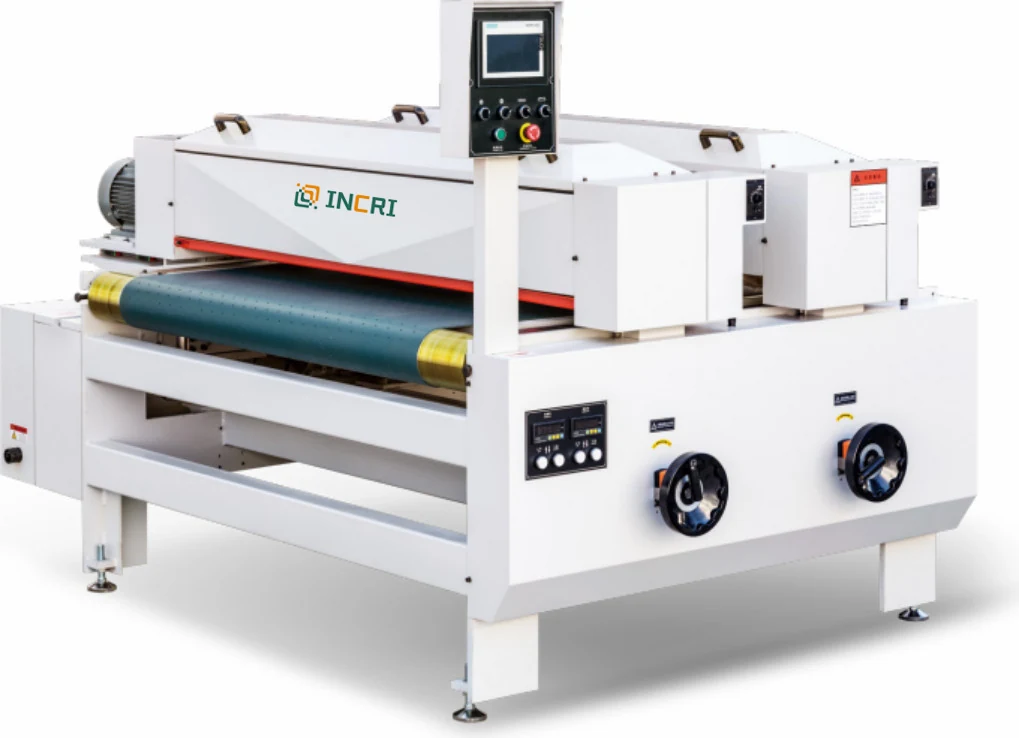

A precise stain machine for flat line furniture and solid wood flooring. Brush rollers push stain into the pore holes and grain of the wood surface rather than laying colour only on the top, so the grain reads clearly after coating. Coating widths are 600, 1000 and 1300 mm at a feed of 0-20 m per minute.
ICZS600ICZS1000ICZS1300
Key Benefits
What This Machine Changes On Your Floor
1
Three coating widths at 600, 1000 and 1300 mm
2

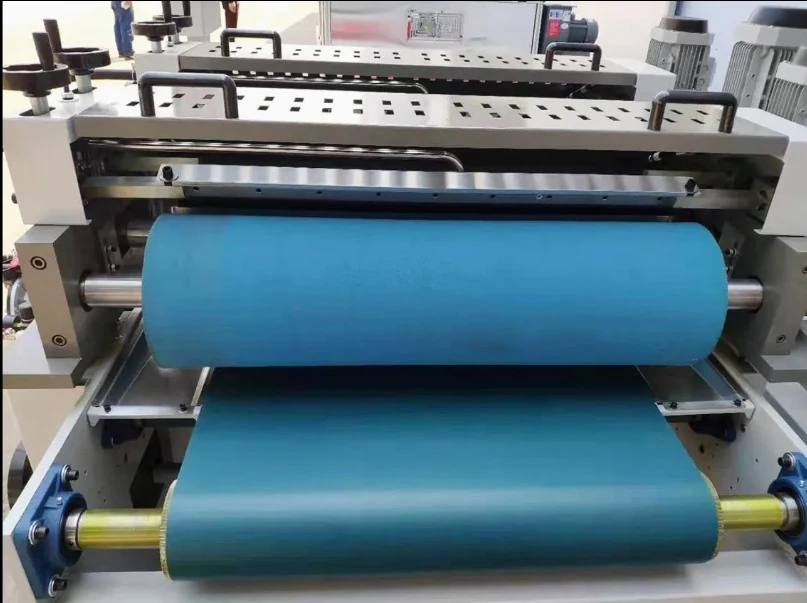

Brush rollers colour the dented holes in the wood surface, making the grain clearer
3

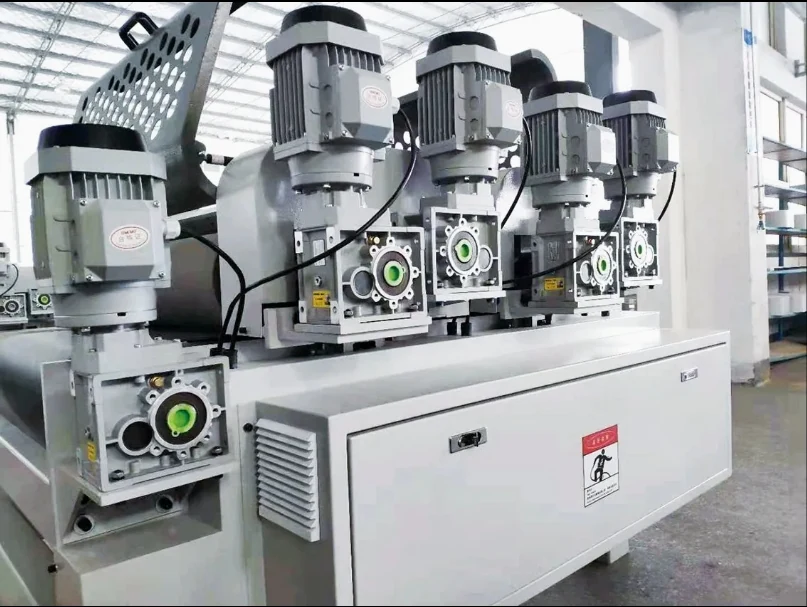

Conveyor belt and brush wheel both run on frequency converters for stable, uniform colouring
4
Quick release brush roller slides out on rails for washing between colours
Who It Is For
Plants That Buy This Machine
- Flat line furniture plants matching colour across batches
- Finishers running several stain colours through one machine
- Solid wood flooring producers applying stain before a UV line
Problems It Solves
What It Removes From Your Process
- Colour varies between the start and the end of a batch
- Cleaning the roller between colours takes half a shift
- Stain sits on the surface and the open pores stay light, so the grain looks washed out
Application Scenarios
Typical Jobs It Runs
Colouring flat furniture panels before a roller coater
Running a rustic stain effect on engineered board
Staining oak flooring so the pores take colour evenly
Technical Features
How It Is Built
- Three machine widths sharing the same control layout
- Brush roller with quick release, slides out on rails for washing
- Frequency converter on both conveyor belt and brush wheel
- Absorption unit optional at 3-4 kW
Specifications
Technical Data
| Parameter | ICZS600 | ICZS1000 | ICZS1300 |
|---|---|---|---|
| Max.Coating Width | 600mm | 1000mm | 1300mm |
| Processing Thickness | 2-90mm | 2-90mm | 2-90mm |
| Feeding Speed | 0-20m/min | 0-20m/min | 0-20m/min |
| Feeding Power | 0.75kw | 1.5kw | 1.5kw |
| Brush Roller Power | 0.75kw*2 | 1.5kw*2 | 1.5kw*2 |
| Absorption Power (optional) | 3kw | 4kw | 4kw |
| TTotal Power | 3.75kw | 8.2kw | 8.2kw |
| Dimension(L x W x H) mm | 1785*1920*1640 | 1785*2300*1640 | 1785*2600*1640 |
| Net Weight | 720kg | 950kg | 1150kg |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Brush roller runout measured before assembly
- Colour uniformity checked on sample boards across the full width
- Quick release rails tested for smooth roller removal
Customisation Options
Specified Per Order
- 600, 1000 or 1300 mm coating width
- Absorption unit fitted or omitted
- Brush grade selected for your stain viscosity
Comparison
How It Compares With The Alternatives
vs Roller coater applying stain
A smooth roller lays stain on the surface. The brush roller works it into the pore, which is what makes the grain read
vs Hand wiping stain
Machine staining removes the operator variable and holds colour from the first board to the last
Use Guide
Setting The Machine Up For A Run
Sand and dedust the board so the pores are open
Set feed speed within 0-20 m per minute for the colour depth you want
Run sample boards and compare against your colour standard
Slide the brush roller out on its rails and wash it before a colour change
Related Machines
Back Coating Machine For MDF UV Back Coating Equipment
Seals the underside of solid wood flooring so boards stop cupping in service. Built to order.
View Machine Data →
Carpentry Tools Back Coating Machine For Cabinet/Floor Wood precise back coating
Seals the underside of solid wood flooring so boards stop cupping in service. Built to order.
View Machine Data →
Precise Stain Machine Furniture Wood Flooring woodworking stain machine 600mm
Brush roller stain coater that colours open grain and pore holes evenly. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for stain roller configuration?
Yes. The stain roller build, listed for buyers searching by roller rather than by machine. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
How do I change colour?
The brush roller has a quick release and slides out on rails for washing.
Is dust extraction included?
An absorption unit at 3-4 kW is optional depending on model.
What feed speed should I use?
The range is 0 to 20 m per minute. Slower feed puts more colour into the pore.
What is the widest board it can stain?
1300 mm on the ICZS1300.
How thick a board can pass through?
2 to 90 mm.
Ask For A Quotation On The Wood Flooring Precise Stain Machine Furniture Wood Flooring Precise Stain Machine
Send your panel size, coating system and line speed. You will get the model recommendation, full technical data and a price.
