Woodworking Panel Bundle Plate Plywood Panel Turnover machine Flipping Machine
Hydraulic flipper that turns a panel 180 degrees at up to 7 times per minute. Configured for plywood and bundle plate handling.
Product Overview

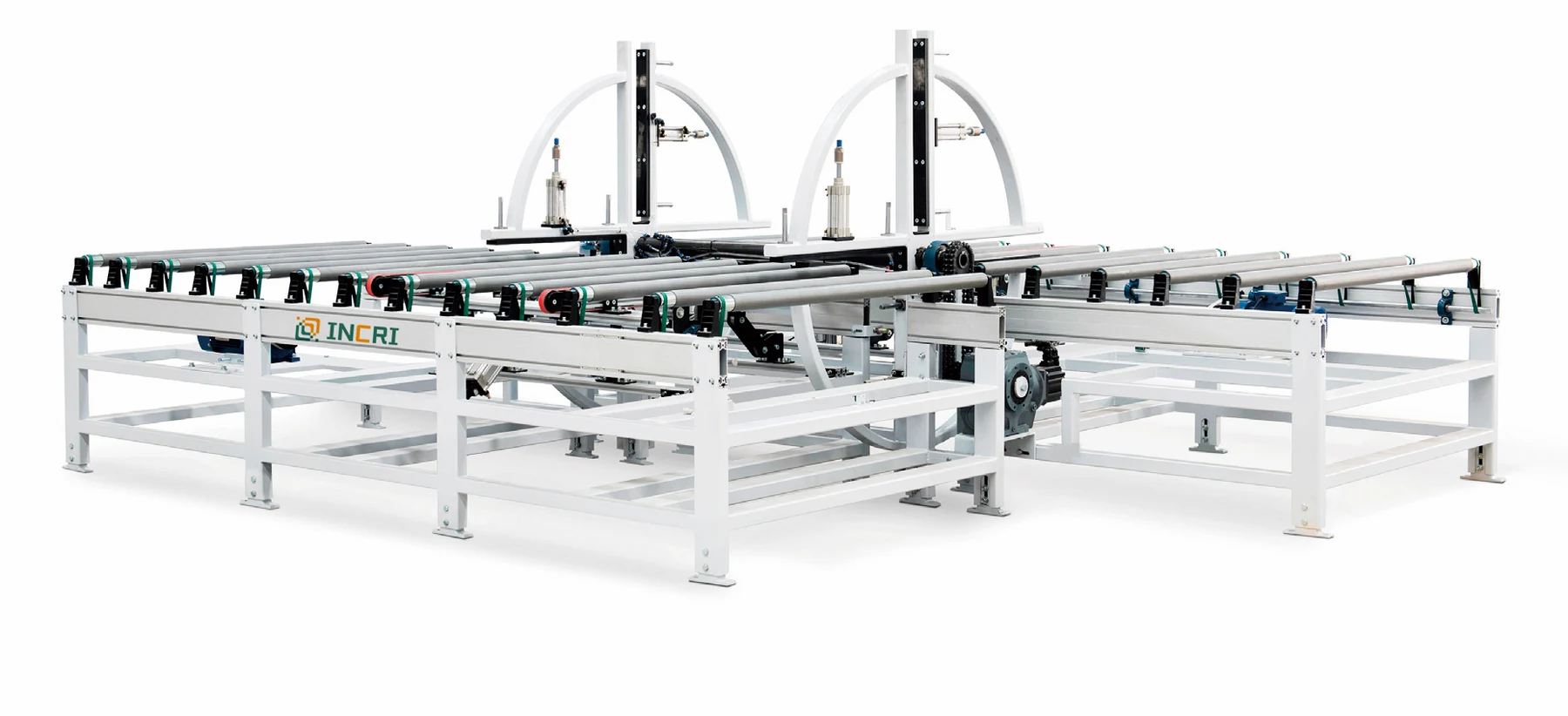

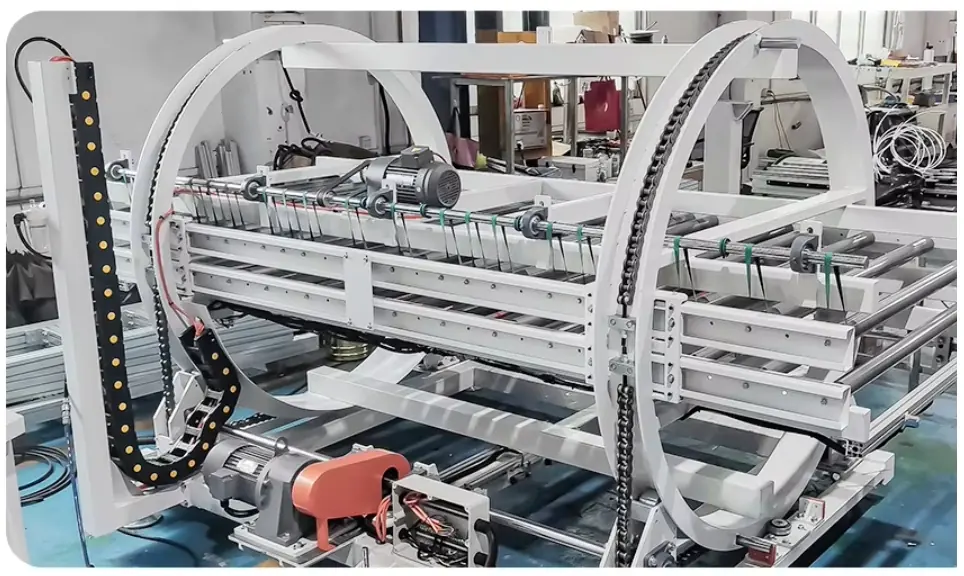

Panel Turnover Machine For Plywood And Bundle Plate Flipping
Configured for plywood and bundle plate handling.
An automatic panel turnover machine with hydraulic control, used to flip a panel so the second face is ready for the next process. It runs continuously at up to 7 turns per minute, takes panels to 2440 by 1200 mm and 60 kg, and carries an emergency stop rotary switch on the electric operating display.
ICFB-850
Key Benefits
What This Machine Changes On Your Floor
1
Up to 7 turns per minute, so flipping is no longer the bottleneck
2
Emergency stop rotary switch on the electric operating display for fast braking
3
Locking device protects the panel during the turn
4
Flexible butting form and flexible panel transport direction
5
Hydraulic control turns the panel continuously and reduces operator work intensity
Who It Is For
Plants That Buy This Machine
- Plywood and bundle plate handling operations
- Door plants coating both faces of a leaf
- Panel furniture lines sanding or coating two sides
Problems It Solves
What It Removes From Your Process
- Panel faces get damaged when they are turned on a floor or trestle
- Flipping a heavy panel by hand is the injury risk nobody wants to talk about
- Two people are needed to turn a full sheet safely
Application Scenarios
Typical Jobs It Runs
Presenting the second face to a sander without manual handling
Flipping a door leaf between primer coats on face one and face two
Turning plywood bundles in a panel line

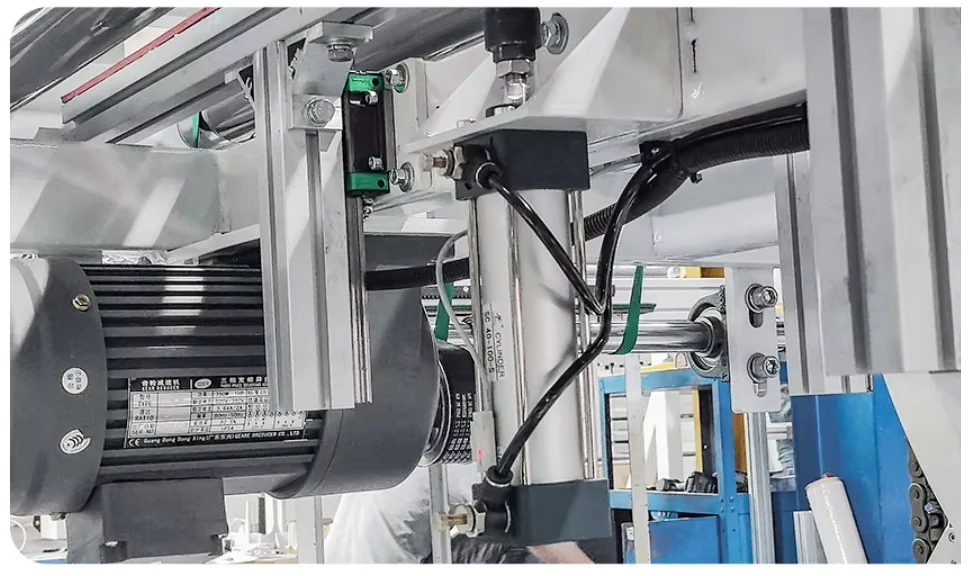

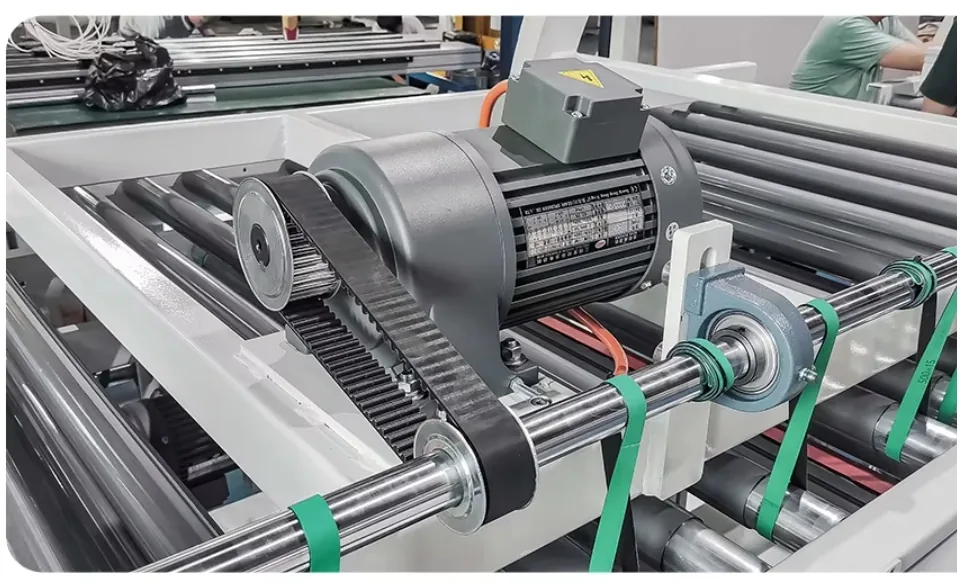

Technical Features
How It Is Built
- Electric operating display with emergency stop rotary switch
- Locking device to protect the panel
- Flexible butting and transport direction
- Hydraulic control for continuous production
Specifications
Technical Data
| Parameter | Value |
|---|---|
| Model | ICFB-850 |
| Dimension | 4560X3400X1760 |
| Processing Length | 2440mm |
| Processing Width | 1200mm |
| Processing Thickness | 10-60mm |
| Max. Loading | 60kg |
| Processing Speed | 7Times/min |
| TTotal Power | 4.04kw |
| Net Weight | 700kg |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Hydraulic circuit pressure tested
- Emergency stop braking time verified
- Turn rate measured against the 7 per minute figure
Customisation Options
Specified Per Order
- Butting form and transport direction set for your line
- Panel size range matched to your product
- Integration with a conveyor either side
Comparison
How It Compares With The Alternatives
vs Manual flipping
A 60 kg panel turned 7 times a minute by machine is work two people cannot safely keep up with
vs Gantry loader with vacuum pads
The turnover machine flips in place. A gantry loader picks and stacks, which is a different job
Use Guide
Setting The Machine Up For A Run
Confirm panel weight is within the 60 kg limit
Set the butting form to match the conveyor before it
Test the emergency stop before each shift
Run at a turn rate the downstream machine can absorb
Related Machines
Curve return line Machine Return production Line for Edge Bander Machine
90 and 180 degree return table that sends the panel back to the operator. Built to order.
View Machine Data →
Curve return line Machine Return Line Automatic
90 and 180 degree return table that sends the panel back to the operator. Built to order.
View Machine Data →
Wooden Door Series-Powered Roller Conveyor with Translation Device power conveyor roller
Powered transfer table that moves panels 90 degrees between two machines. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for plywood and bundle plate flipping?
Yes. Configured for plywood and bundle plate handling. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
What is the maximum panel size?
2440 mm long by 1200 mm wide, 10 to 60 mm thick.
How heavy a panel can it take?
60 kg.
Is there an emergency stop?
Yes, a rotary emergency stop switch on the electric operating display for fast braking.
What power does it need?
4.04 kW total.
How fast does it turn panels?
Up to 7 times per minute.
