Rear Backup Sensor Wire Harness For Chevrolet And GMC - Garfour view 1

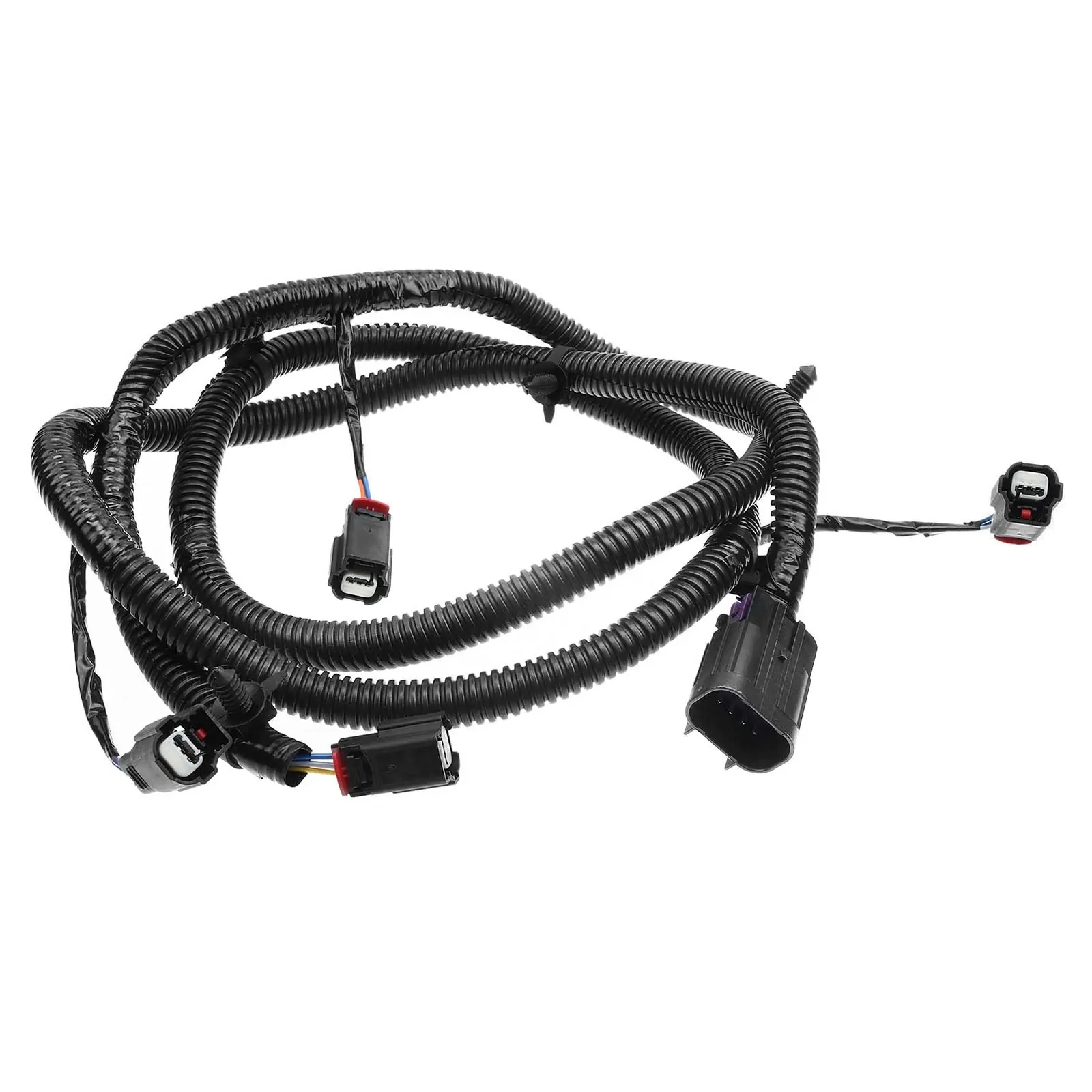

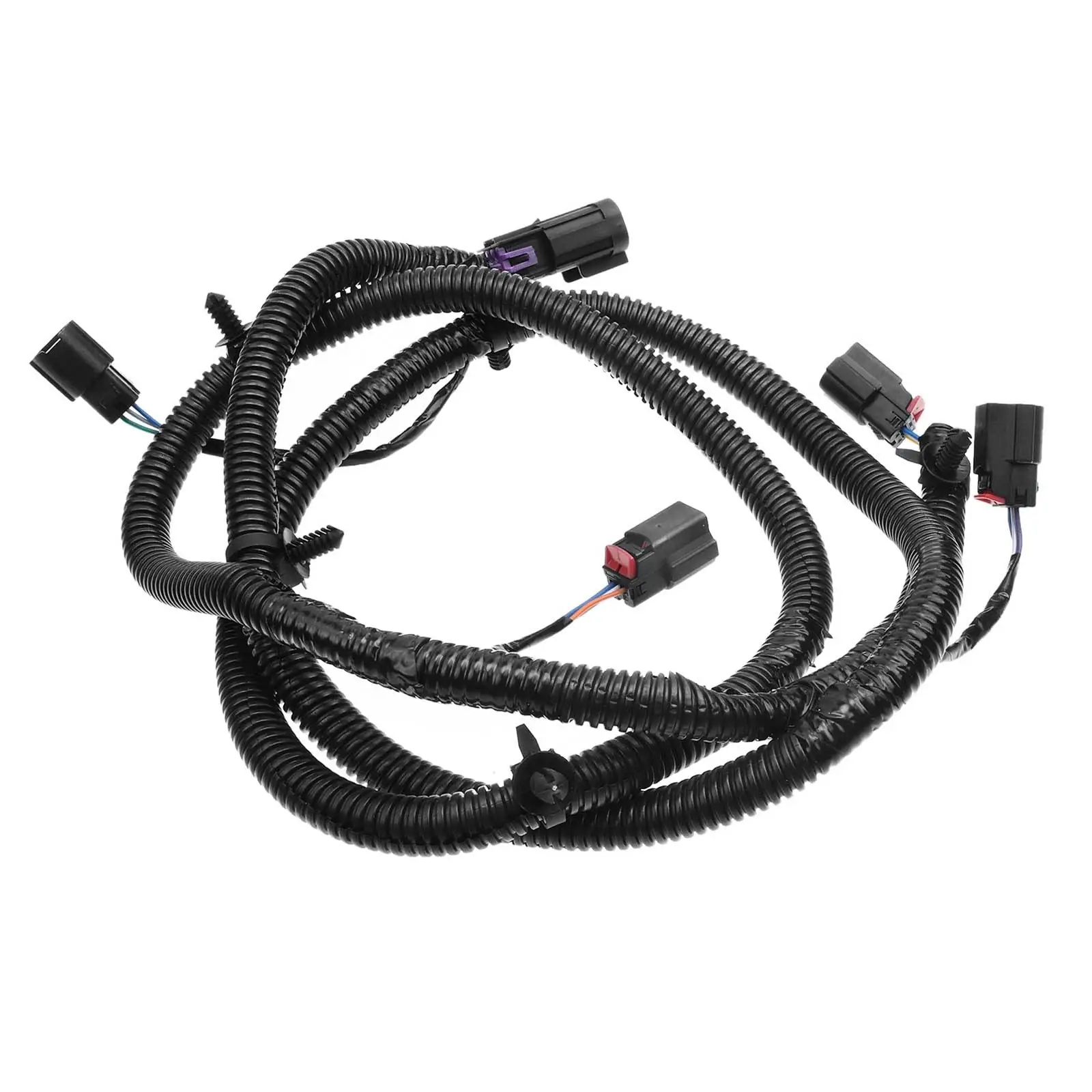

Rear Backup Sensor Wire Harness For Chevrolet And GMC - Garfour view 2Rear Backup Sensor Wire Harness For Chevrolet And GMC - Garfour view 3Rear Backup Sensor Wire Harness For Chevrolet And GMC - Garfour view 4Rear Backup Sensor Wire Harness For Chevrolet And GMC - Garfour view 5Rear Backup Sensor Wire Harness For Chevrolet And GMC - Garfour view 6
Automotive Wiring Harness

Rear Backup Sensor Wire Harness For Chevrolet And GMC

A rear backup sensor harness built for Chevrolet Suburban and Tahoe and GMC Yukon platforms in 1500 and 2500 variants. Rear looms sit low behind the bumper where road salt and spray reach them, so a clean replacement is a common service part.

  • Direct-fit connectors for the Suburban, Tahoe and Yukon sensor layout
  • Replaces corroded rear looms without cutting the vehicle harness
  • Factory-style routing so the loom clips back to the original points
  • Consistent build for workshops fitting the same repair repeatedly
Request A Quote Email This Specification

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

  • Rear looms corrode where salt spray reaches the connectors
  • Splicing new leads into a damaged loom leaves unreliable joints
  • Parking sensor faults are hard to trace when the harness is patched

Who It Is For

  • Collision and service workshops
  • Aftermarket parts distributors
  • Fleet maintenance operations

Application Scenarios

  • Replacing corroded rear parking sensor looms
  • Collision repair on rear bumper assemblies
  • Fleet maintenance on light trucks and SUVs

Technical Features

  • Backup sensor circuit layout
  • Platform-specific connectors
  • Replacement loom for rear bumper routing

Specifications

ApplicationChevrolet Suburban 1500 2500, Tahoe, GMC Yukon and Yukon XL 1500 2500
FunctionRear backup sensor harness
MOQ50 PCS

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

  • Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
  • Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
  • Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
  • Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

  • Connector family and terminal type to your part numbers
  • Conductor gauge selected from the current per circuit
  • Finished length and breakout positions to your drawing
  • Jacket colour, marking and labelling to your scheme
  • Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Splice repair kits

A full replacement loom restores factory connectors instead of adding joints

Universal sensor wiring

Platform-specific connectors plug in without adapters

Use Guide

  • Check the sensor connector style on the vehicle before ordering
  • Route and clip the loom to the original attachment points to avoid chafe
  • Test each sensor position after fitting before refitting the bumper
Related Products

Other Assemblies In Automotive Wiring Harness

4C3Z-12B637-CA Engine Wiring Harness For Ford Super Duty - Garfour view 1 Automotive Wiring Harness 4C3Z-12B637-CA Engine Wiring Harness For Ford Super DutyGlow plug and engine harness for 2004 Ford 6.0L Super Duty and Excursion View Specifications Dual Electric Fan Upgrade Wiring Harness For GM Trucks - Garfour view 1 Automotive Wiring Harness Dual Electric Fan Upgrade Wiring Harness For GM TrucksECU controlled electric cooling fan harness kit for 1999 to 2006 GM vehicles View Specifications 4L60E Standalone Wiring Harness For Vortec LS Engines - Garfour view 1 Automotive Wiring Harness 4L60E Standalone Wiring Harness For Vortec LS EnginesStandalone engine and transmission harness for 2003 to 2007 Vortec LS swaps View Specifications LS Standalone Harness With Drive By Wire Pedal Circuits - Garfour view 1 Automotive Wiring Harness LS Standalone Harness With Drive By Wire Pedal CircuitsStandalone LS harness including drive by wire pedal wiring for swap builds View Specifications
Related Reading

Guides That Cover This Build

Buying Guide

How To Specify A Custom Wire Harness For Quotation

What a harness manufacturer actually needs from you before a quotation means anything, and what happens when those details are missing.

 Process Guide

Four Tests That Decide Whether A Wire Harness Is Sound

Continuity, circuit configuration, terminal retention and ingress protection, and what each one catches that the others do not.

 Buying Guide

What To Check Before Ordering A Standalone Engine Harness

Crank reluctor generation, throttle type and transmission control decide whether a standalone loom will run your engine at all.

Rear Backup Sensor Wire Harness For Chevrolet And GMC FAQ

Which model years does it cover?

It is built for the Suburban, Tahoe and Yukon platforms listed. Send your VIN or connector photo and we confirm the match.

What is the minimum order?

This part starts at 50 PCS.

Do you accept small batch orders of Rear Backup Sensor Wire Harness For Chevrolet And GMC?

Yes. Small batch orders are accepted and quoted case by case. Our production lines are set up for small batch, multiple variety work rather than only long runs.

What quality system do you work to?

Dongguan JiaFu Automobile Accessories Co., Ltd is certified to IATF 16949 and UL standards, and harness testing covers continuity, circuit configuration, terminal retention strength and ingress protection rating.

Can you mark or label the circuits on Rear Backup Sensor Wire Harness For Chevrolet And GMC?

Yes. Send your labelling scheme with the order and both ends are marked to it, which makes commissioning and later service much faster.

Get A Price On Rear Backup Sensor Wire Harness For Chevrolet And GMC

Tell us the quantity, the finished length and any change to the connector set. We come back with the price, the lead time and a sample plan.
