4C3Z-12B637-CA Engine Wiring Harness For Ford Super Duty

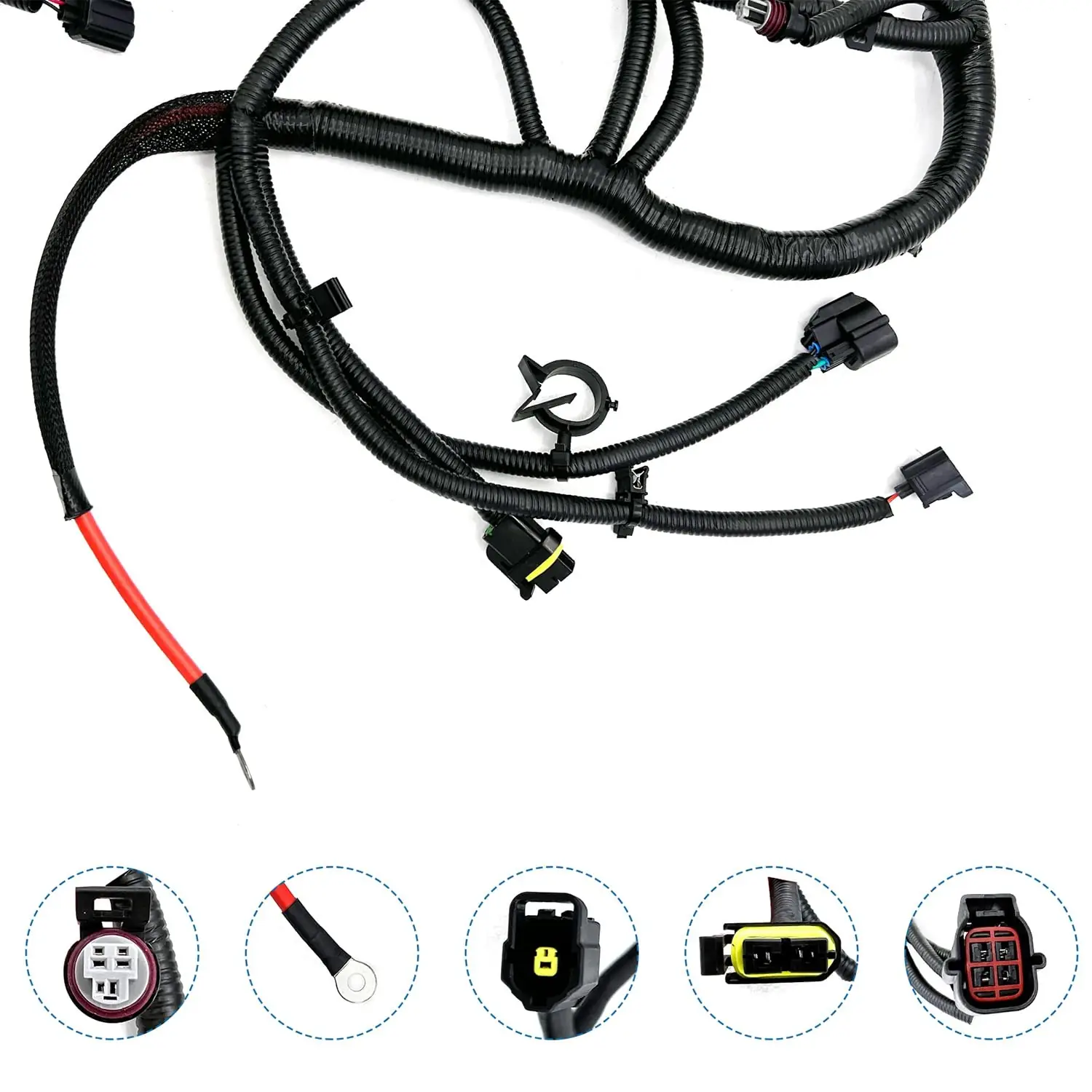

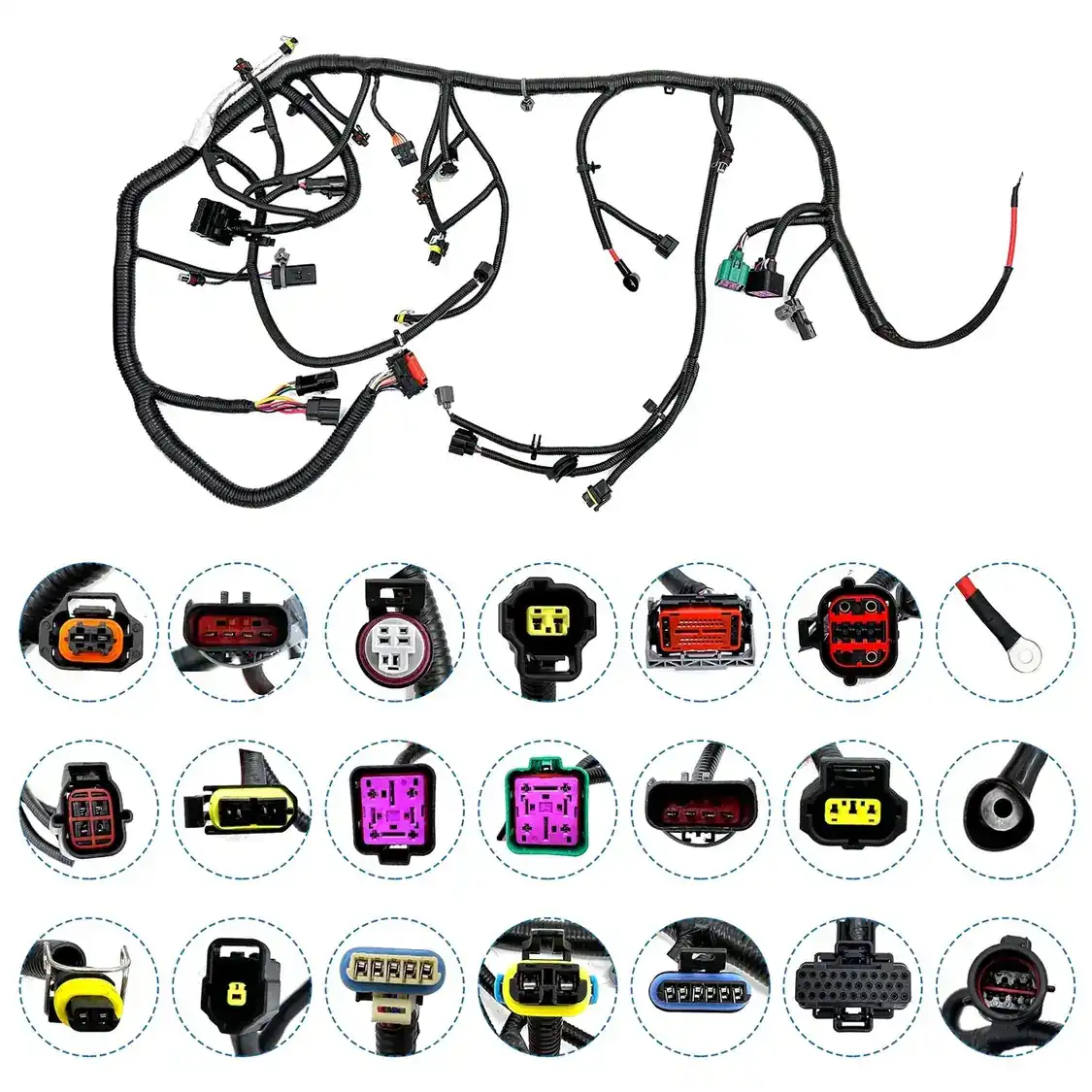

An engine wiring harness built to the 4C3Z-12B637-CA layout for 2004 Ford Excursion and F250 to F550 Super Duty trucks with the 6.0L engine. It serves the engine top-side circuits that run in the hottest part of the bay and fail with age.

  • Built to the 4C3Z-12B637-CA circuit layout for direct fitment
  • Covers the 2004 Excursion and F250 through F550 Super Duty range
  • Replacement loom avoids splicing into heat-damaged factory wiring
  • Consistent connector positions so the loom clips to the original routing
Request A Quote Email This Specification

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

  • Engine bay heat embrittles insulation and causes intermittent faults
  • Patching a failed loom rarely holds in a hot engine bay
  • Sourcing the exact circuit layout for older trucks is difficult

Who It Is For

  • Diesel truck repair workshops
  • Fleet maintenance teams
  • Aftermarket truck parts distributors

Application Scenarios

  • 6.0L Super Duty engine electrical repairs
  • Fleet truck maintenance
  • Workshop repair of heat-damaged engine looms

Technical Features

  • 4C3Z-12B637-CA circuit layout
  • 6.0L Super Duty engine application
  • Replacement engine harness build

Specifications

Model NumberGF-E-9798

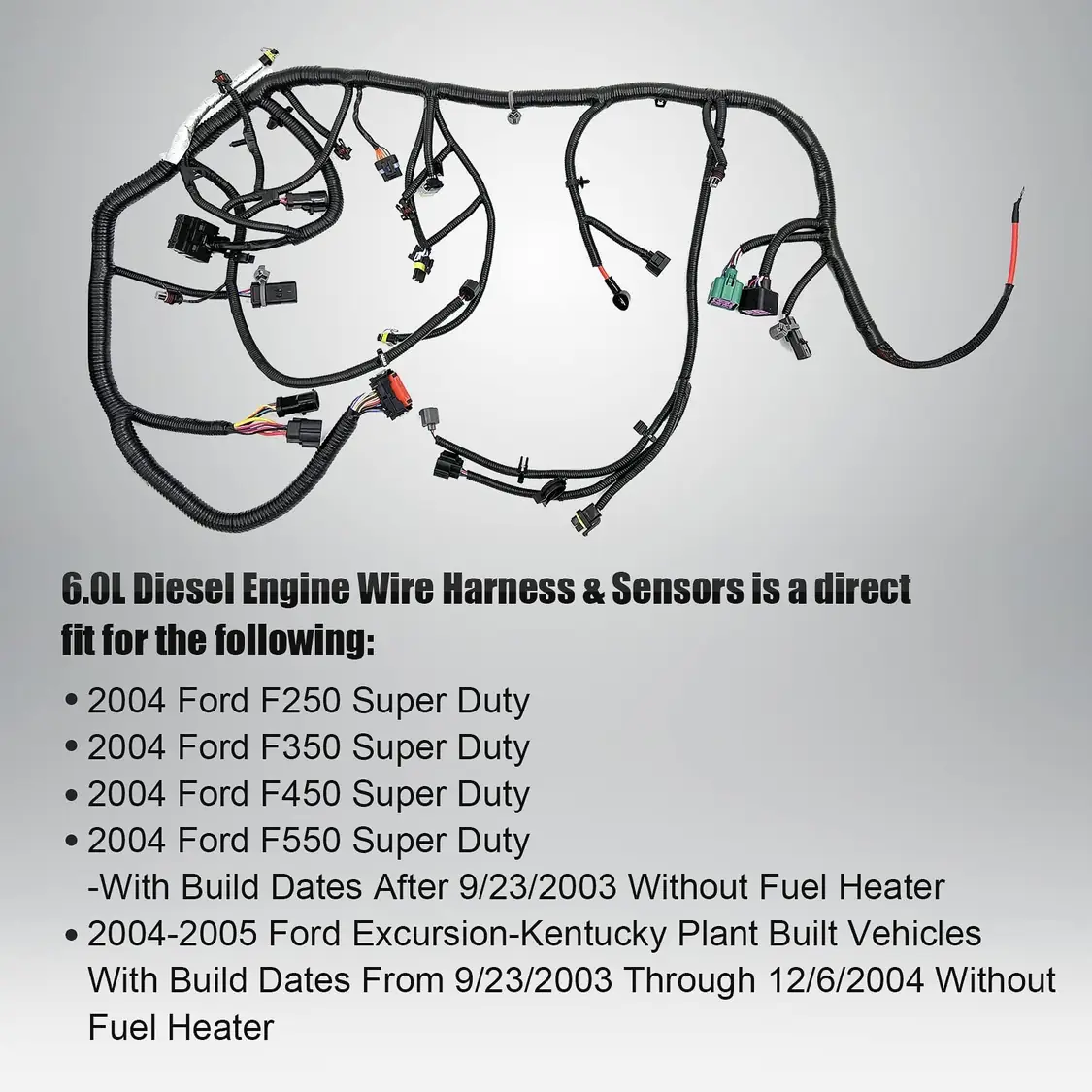

Application2004 Ford Excursion, F250 F350 F450 F550 Super Duty 6.0L
Part Reference4C3Z-12B637-CA

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

  • Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
  • Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
  • Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
  • Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

  • Connector family and terminal type to your part numbers
  • Conductor gauge selected from the current per circuit
  • Finished length and breakout positions to your drawing
  • Jacket colour, marking and labelling to your scheme
  • Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Splice and repair

A complete harness removes every heat-aged joint at once

Used donor harnesses

A new build does not carry the same age-related insulation damage

Use Guide

  • Compare the new loom against the old one before removing the vehicle wiring
  • Keep the loom clear of exhaust components and secure it at the factory clips
  • Check every connector latches fully before starting the engine
