K20 K24 K-Series Tucked Engine Harness - Garfour view 1

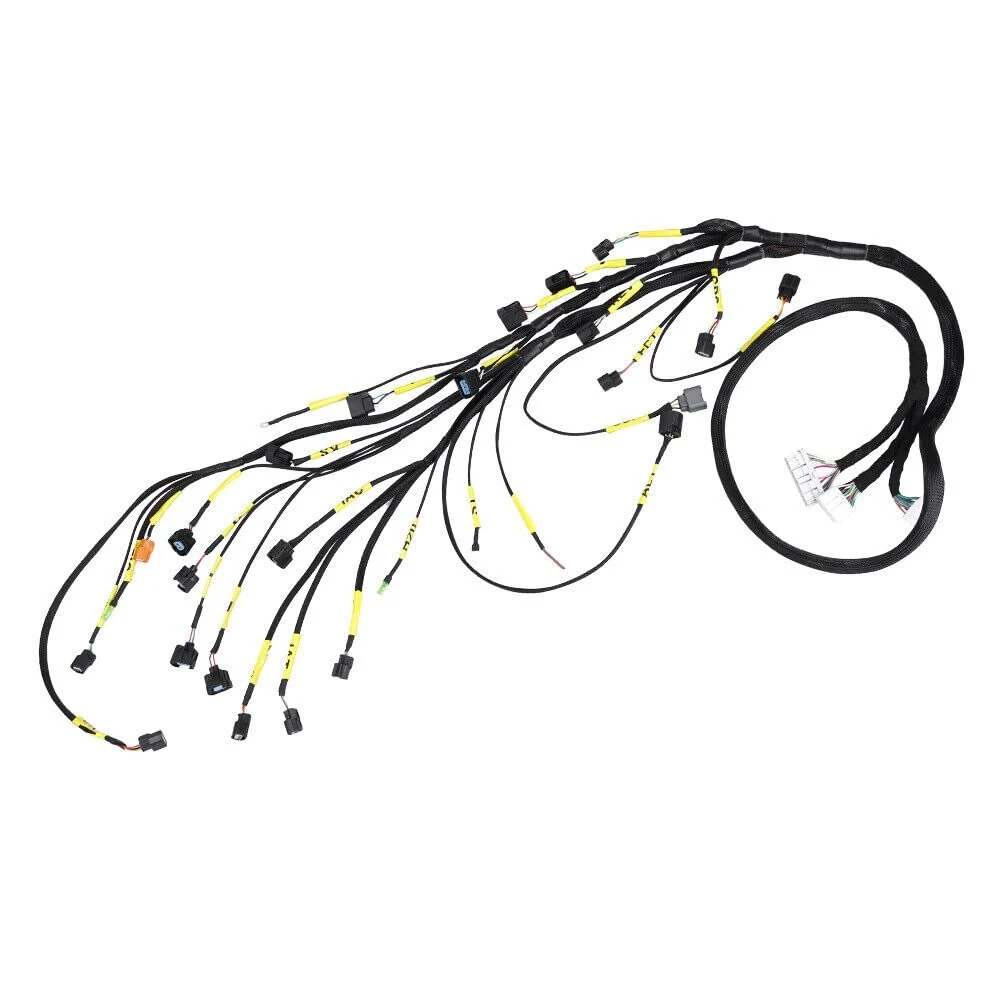

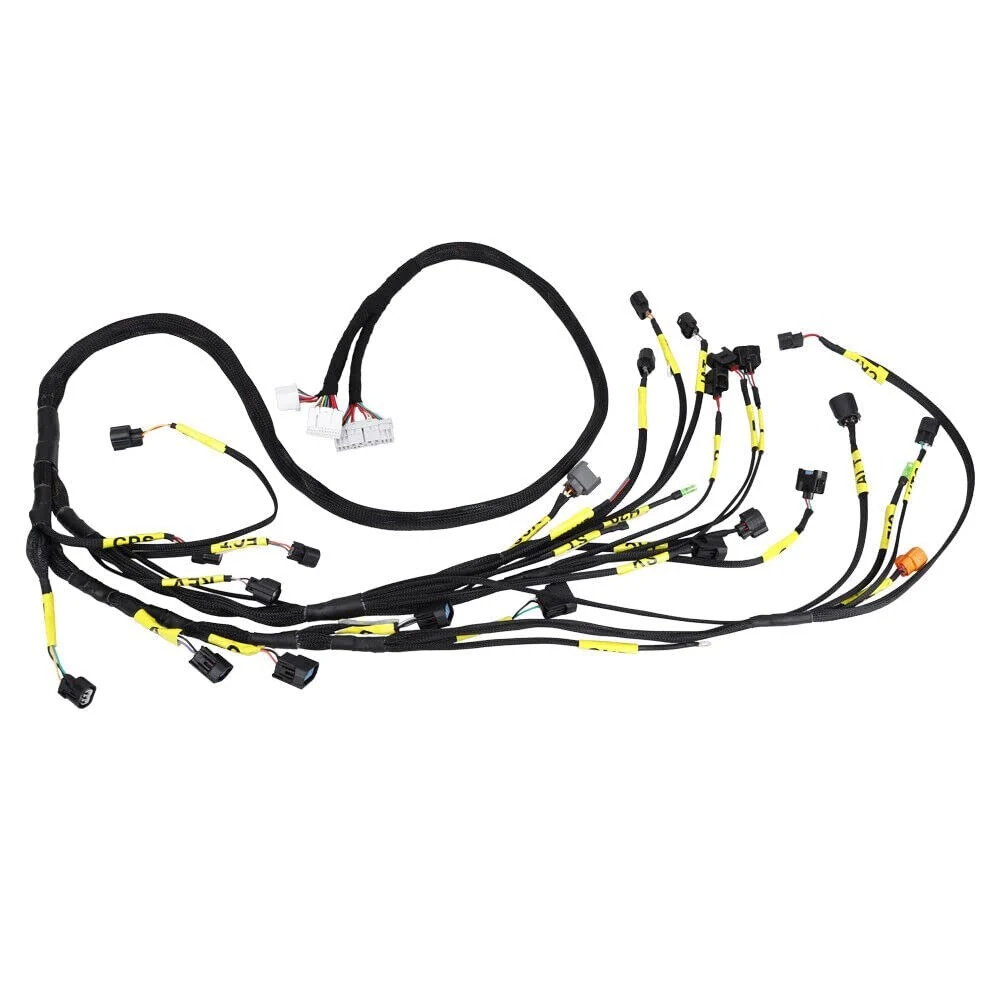

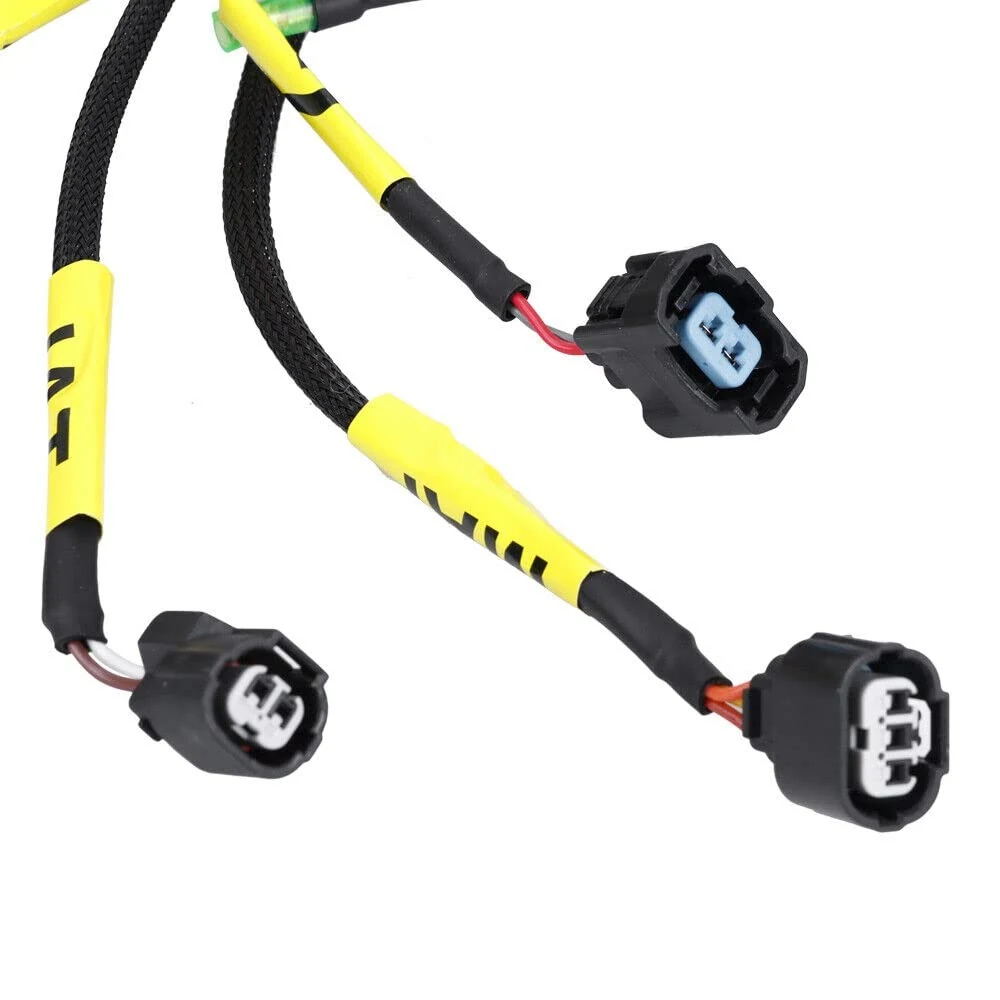

K20 K24 K-Series Tucked Engine Harness - Garfour view 2K20 K24 K-Series Tucked Engine Harness - Garfour view 3K20 K24 K-Series Tucked Engine Harness - Garfour view 4K20 K24 K-Series Tucked Engine Harness - Garfour view 5K20 K24 K-Series Tucked Engine Harness - Garfour view 6
Automotive Wiring Harness

K20 K24 K-Series Tucked Engine Harness

A tucked engine harness for Honda K20 and K24 engines in K-swap builds on Integra, Civic and CRX chassis. Tucked routing moves the loom behind the head and out of the engine bay sightline, which is the point of the build.

  • Tucked routing keeps the loom out of the engine bay sightline
  • Built for the K-series sensor and injector layout rather than adapted from a generic loom
  • Pre-terminated connectors remove splice joints that fail under heat and vibration
  • Consistent circuit map so the same install repeats across builds
Request A Quote Email This Specification

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

  • Adapting a factory loom leaves splices that fail under bay heat
  • Untucked wiring spoils the finish on a show build
  • Generic looms miss K-series specific sensor circuits

Who It Is For

  • Performance workshops doing repeat K-swaps
  • Engine swap specialists
  • Aftermarket performance distributors

Application Scenarios

  • K-series engine swaps into Integra, Civic, CRX and EK chassis
  • Performance and show car builds
  • Workshop swap programmes

Technical Features

  • K20 and K24 K-series circuit layout
  • Tucked routing build
  • Sensor and injector connectors terminated
  • Built for K-swap chassis

Specifications

ApplicationHonda Acura K20 K24 K-series engine swap
BuildTucked engine harness
MOQ100pcs
Product CertificatesUL

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

  • Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
  • Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
  • Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
  • Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

  • Connector family and terminal type to your part numbers
  • Conductor gauge selected from the current per circuit
  • Finished length and breakout positions to your drawing
  • Jacket colour, marking and labelling to your scheme
  • Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Modified factory looms

A purpose-built harness has no splices to work loose in the bay

Universal engine looms

K-series specific circuits are present instead of adapted

Use Guide

  • Confirm your chassis and engine combination before fitting, the routing differs
  • Secure the loom clear of the exhaust and moving driveline components
  • Check every sensor connector is fully latched before first start
Related Products

Other Assemblies In Automotive Wiring Harness

Rear Backup Sensor Wire Harness For Chevrolet And GMC - Garfour view 1 Automotive Wiring Harness Rear Backup Sensor Wire Harness For Chevrolet And GMCReverse parking sensor harness for Suburban Tahoe and Yukon platforms View Specifications 4C3Z-12B637-CA Engine Wiring Harness For Ford Super Duty - Garfour view 1 Automotive Wiring Harness 4C3Z-12B637-CA Engine Wiring Harness For Ford Super DutyGlow plug and engine harness for 2004 Ford 6.0L Super Duty and Excursion View Specifications Dual Electric Fan Upgrade Wiring Harness For GM Trucks - Garfour view 1 Automotive Wiring Harness Dual Electric Fan Upgrade Wiring Harness For GM TrucksECU controlled electric cooling fan harness kit for 1999 to 2006 GM vehicles View Specifications 4L60E Standalone Wiring Harness For Vortec LS Engines - Garfour view 1 Automotive Wiring Harness 4L60E Standalone Wiring Harness For Vortec LS EnginesStandalone engine and transmission harness for 2003 to 2007 Vortec LS swaps View Specifications
Related Reading

Guides That Cover This Build

Buying Guide

How To Specify A Custom Wire Harness For Quotation

What a harness manufacturer actually needs from you before a quotation means anything, and what happens when those details are missing.

 Process Guide

Four Tests That Decide Whether A Wire Harness Is Sound

Continuity, circuit configuration, terminal retention and ingress protection, and what each one catches that the others do not.

 Buying Guide

What To Check Before Ordering A Standalone Engine Harness

Crank reluctor generation, throttle type and transmission control decide whether a standalone loom will run your engine at all.

K20 K24 K-Series Tucked Engine Harness FAQ

Which chassis does this suit?

It is built for K-series swaps into Integra, Civic, CRX and EK chassis. Confirm your exact combination with your enquiry.

Can you build to our own circuit map?

Yes. Send the drawing or a sample loom and we build to it.

What quality system do you work to?

Dongguan JiaFu Automobile Accessories Co., Ltd is certified to IATF 16949 and UL standards, and harness testing covers continuity, circuit configuration, terminal retention strength and ingress protection rating.

Can you mark or label the circuits on K20 K24 K-Series Tucked Engine Harness?

Yes. Send your labelling scheme with the order and both ends are marked to it, which makes commissioning and later service much faster.

What lead time should we plan for on K20 K24 K-Series Tucked Engine Harness?

Sample orders ship within 3 days of confirmation. Production lead time for bulk orders is typically 7 to 12 days, and we confirm the date against your quantity when we quote.

Get A Price On K20 K24 K-Series Tucked Engine Harness

Tell us the quantity, the finished length and any change to the connector set. We come back with the price, the lead time and a sample plan.
