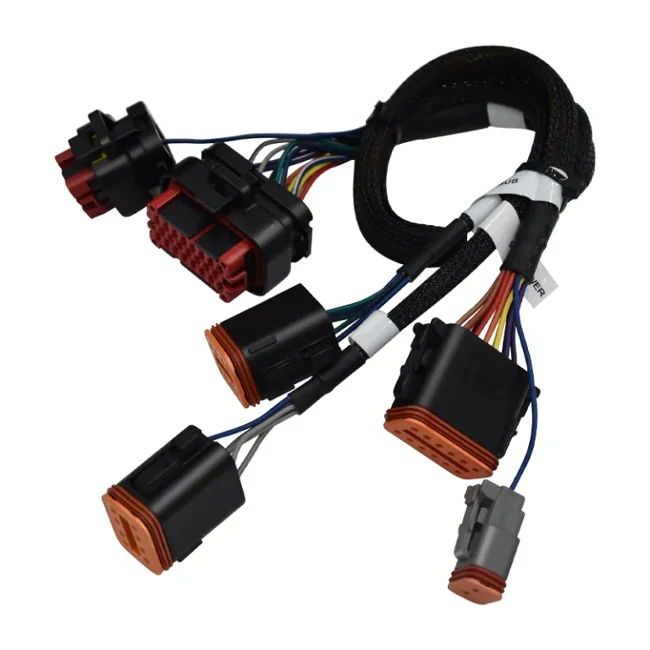

Car Stereo ISO Amplifier Board Wire Harness - Garfour view 2

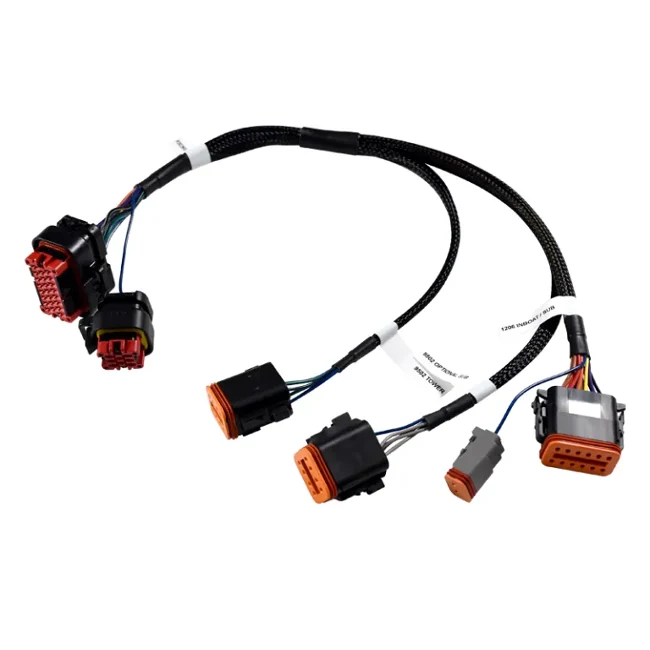

Car Stereo ISO Amplifier Board Wire Harness - Garfour view 3

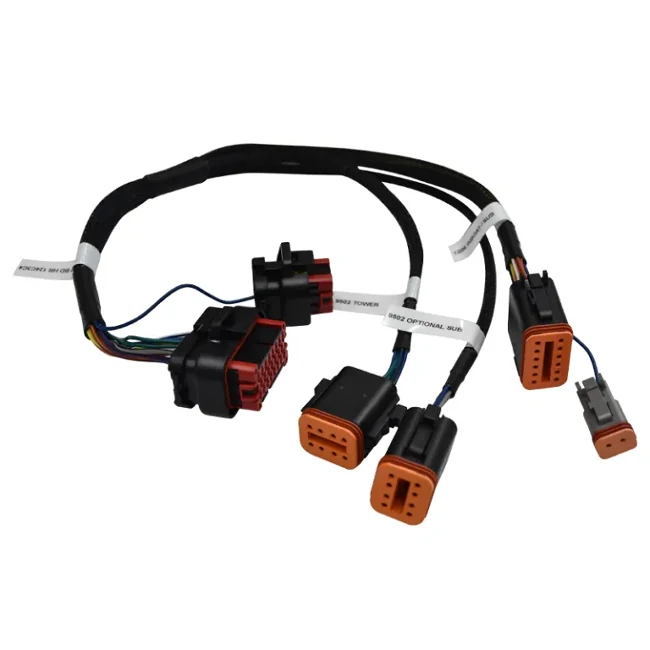

Car Stereo ISO Amplifier Board Wire Harness - Garfour view 4

Car Stereo ISO Amplifier Board Wire Harness - Garfour view 5

Automotive Wiring Harness

Car Stereo ISO Amplifier Board Wire Harness

An ISO standard harness for car stereo amplifier boards, used in aftermarket audio installs where a head unit or amplifier has to meet the vehicle loom without cutting factory wiring. The ISO block keeps the install reversible.

ISO connector keeps the factory vehicle loom uncut and the install reversible
Amplifier board side is pre-terminated so the fitter only plugs in
Colour-coded circuits follow the ISO map so speaker polarity stays correct
Built for repeat aftermarket fitting rather than one-off splicing

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

Cutting factory wiring destroys resale value and voids warranty work
Hand-splicing speaker lines causes phase and polarity mistakes
Every vehicle wired differently slows the installation bay

Who It Is For

Car audio installers
Aftermarket audio brands
Automotive accessory distributors

Application Scenarios

Aftermarket head unit and amplifier installs
Audio upgrade shops working across vehicle brands
Distributor stock for retail audio kits

Technical Features

ISO standard connector interface
Amplifier board termination
Colour-coded speaker and power circuits

Specifications

Connector	ISO amplifier board
Application	Car audio system
MOQ	100 Pcs
Product Certificates	UL

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

Connector family and terminal type to your part numbers
Conductor gauge selected from the current per circuit
Finished length and breakout positions to your drawing
Jacket colour, marking and labelling to your scheme
Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Cut and splice installs

An ISO harness plugs in and can be removed without a trace

Universal bare-wire harnesses

A finished ISO block removes the guesswork on speaker polarity

Use Guide

Disconnect the vehicle battery before working on the audio loom
Match the ISO block keying, power and speaker blocks are not interchangeable
Check speaker polarity at the head unit before closing the dash

Other Assemblies In Automotive Wiring Harness

K20 K24 K-Series Tucked Engine Harness - Garfour view 1

Automotive Wiring Harness K20 K24 K-Series Tucked Engine HarnessTucked engine harness for Honda and Acura K-swap builds View Specifications

Rear Backup Sensor Wire Harness For Chevrolet And GMC - Garfour view 1

Automotive Wiring Harness Rear Backup Sensor Wire Harness For Chevrolet And GMCReverse parking sensor harness for Suburban Tahoe and Yukon platforms View Specifications

4C3Z-12B637-CA Engine Wiring Harness For Ford Super Duty - Garfour view 1

Automotive Wiring Harness 4C3Z-12B637-CA Engine Wiring Harness For Ford Super DutyGlow plug and engine harness for 2004 Ford 6.0L Super Duty and Excursion View Specifications

Dual Electric Fan Upgrade Wiring Harness For GM Trucks - Garfour view 1

Automotive Wiring Harness Dual Electric Fan Upgrade Wiring Harness For GM TrucksECU controlled electric cooling fan harness kit for 1999 to 2006 GM vehicles View Specifications

Guides That Cover This Build

Buying Guide

How To Specify A Custom Wire Harness For Quotation

What a harness manufacturer actually needs from you before a quotation means anything, and what happens when those details are missing.

Process Guide

Four Tests That Decide Whether A Wire Harness Is Sound

Continuity, circuit configuration, terminal retention and ingress protection, and what each one catches that the others do not.

Buying Guide

What To Check Before Ordering A Standalone Engine Harness

Crank reluctor generation, throttle type and transmission control decide whether a standalone loom will run your engine at all.

Car Stereo ISO Amplifier Board Wire Harness FAQ

Does this fit my vehicle?

ISO blocks are standardised but vehicle side connectors vary. Send the make, model and year and we confirm the matching build.

What is the minimum order?

This harness starts at 100 Pcs per build.

What lead time should we plan for on Car Stereo ISO Amplifier Board Wire Harness?

Sample orders ship within 3 days of confirmation. Production lead time for bulk orders is typically 7 to 12 days, and we confirm the date against your quantity when we quote.

How is Car Stereo ISO Amplifier Board Wire Harness packed for export?

Products are typically individually packed in PE bags and then boxed according to the specified quantity. Tell us any special packing requirement when you place the order.

Do you charge for samples of Car Stereo ISO Amplifier Board Wire Harness?

Samples are charged for the sample and the shipping. The cost and the timing are confirmed with your quotation before anything is built.

Get A Price On Car Stereo ISO Amplifier Board Wire Harness

Tell us the quantity, the finished length and any change to the connector set. We come back with the price, the lead time and a sample plan.
