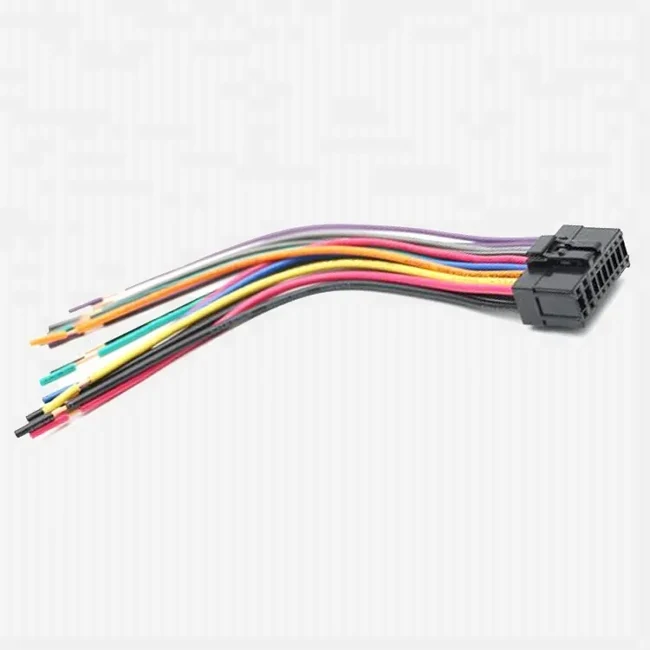

Car Audio Wiring Harness For DEH-P80MP Head Units - Garfour view 2

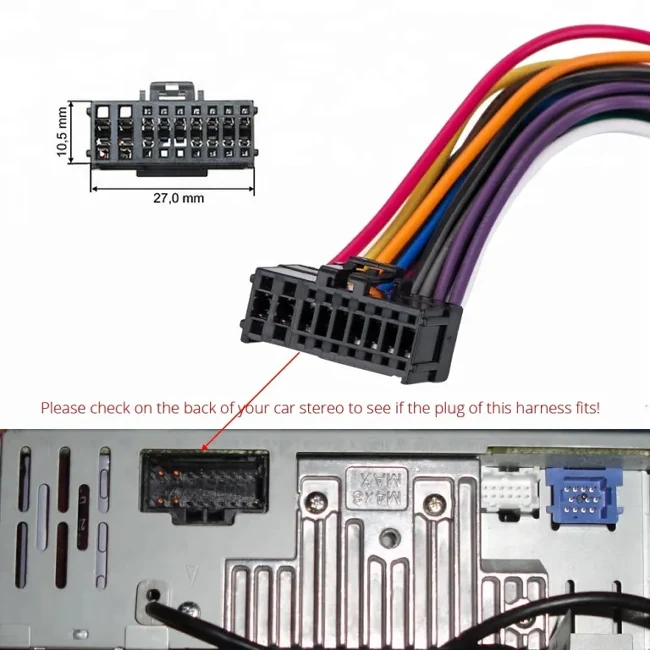

Car Audio Wiring Harness For DEH-P80MP Head Units - Garfour view 3

Car Audio Wiring Harness For DEH-P80MP Head Units - Garfour view 4

Car Audio Wiring Harness For DEH-P80MP Head Units - Garfour view 5

Automotive Wiring Harness

Car Audio Wiring Harness For DEH-P80MP Head Units

A car audio wiring harness built for the DEH-P80MP head unit connection, covering the audio and video interface. Replacing a head unit is routine work, and having the correct plug for the unit keeps the install out of splice territory.

Connector matched to the head unit rather than adapted with bullet joints
Audio and video circuits terminated in one harness
27mm connector body fits the space behind a standard DIN aperture
Consistent colour coding so speaker channels stay in order

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

Bullet-joint splices behind a head unit rattle loose and buzz
Miswired speaker channels put the system out of phase
Bulky adapter stacks do not fit behind the DIN aperture

Who It Is For

Car audio installers
Aftermarket audio distributors
Vehicle accessory retailers

Application Scenarios

Head unit replacement in aftermarket audio installs
Workshop audio upgrades
Distributor stock for head unit fitting kits

Technical Features

Head unit connector for DEH-P80MP
Audio and video circuits
27mm connector dimension
Colour-coded speaker wiring

Specifications

Application	DEH-P80MP head unit
Function	Audio and video connection
Connector Size	27mm

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

Connector family and terminal type to your part numbers
Conductor gauge selected from the current per circuit
Finished length and breakout positions to your drawing
Jacket colour, marking and labelling to your scheme
Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Bare wire adapters

A matched connector plugs in and cannot be miswired

Cut and splice installs

A harness keeps the vehicle loom original and the install reversible

Use Guide

Disconnect the battery before removing the head unit
Check speaker polarity at the harness before refitting the dash panel
Leave a small service loop so the unit can be drawn forward later

Other Assemblies In Automotive Wiring Harness

20A Alligator Clip Jumper Battery Charger Harness - Garfour view 1

Automotive Wiring Harness 20A Alligator Clip Jumper Battery Charger HarnessBattery charging harness with 20A alligator clips for boosters and jump starters View Specifications

OBD2 Diagnostic Cable Harness For GPS Tracking Devices - Garfour view 1

Automotive Wiring Harness OBD2 Diagnostic Cable Harness For GPS Tracking DevicesOvermoulded OBD II 16 pin harness for vehicle GPS navigation and tracking View Specifications

Automotive Chassis Wire Harness Assembly - Garfour view 1

Automotive Wiring Harness Automotive Chassis Wire Harness AssemblyMoulded chassis harness and vehicle cable assembly built to customer layout View Specifications

Automotive Stereo Wire Harness Kit Looms - Garfour view 1

Automotive Wiring Harness Automotive Stereo Wire Harness Kit LoomsStereo harness kit looms for vehicle audio fitting programmes View Specifications

Guides That Cover This Build

Buying Guide

How To Specify A Custom Wire Harness For Quotation

What a harness manufacturer actually needs from you before a quotation means anything, and what happens when those details are missing.

Process Guide

Four Tests That Decide Whether A Wire Harness Is Sound

Continuity, circuit configuration, terminal retention and ingress protection, and what each one catches that the others do not.

Buying Guide

What To Check Before Ordering A Standalone Engine Harness

Crank reluctor generation, throttle type and transmission control decide whether a standalone loom will run your engine at all.

Car Audio Wiring Harness For DEH-P80MP Head Units FAQ

Will this fit other head unit models?

This build matches the DEH-P80MP connector. Send your model number and we confirm the matching harness.

Can you add an ISO vehicle side connector?

Yes. Tell us the vehicle and we build the matching vehicle side block.

What quality system do you work to?

Dongguan JiaFu Automobile Accessories Co., Ltd is certified to IATF 16949 and UL standards, and harness testing covers continuity, circuit configuration, terminal retention strength and ingress protection rating.

Can you mark or label the circuits on Car Audio Wiring Harness For DEH-P80MP Head Units?

Yes. Send your labelling scheme with the order and both ends are marked to it, which makes commissioning and later service much faster.

What lead time should we plan for on Car Audio Wiring Harness For DEH-P80MP Head Units?

Sample orders ship within 3 days of confirmation. Production lead time for bulk orders is typically 7 to 12 days, and we confirm the date against your quantity when we quote.

Get A Price On Car Audio Wiring Harness For DEH-P80MP Head Units

Tell us the quantity, the finished length and any change to the connector set. We come back with the price, the lead time and a sample plan.
