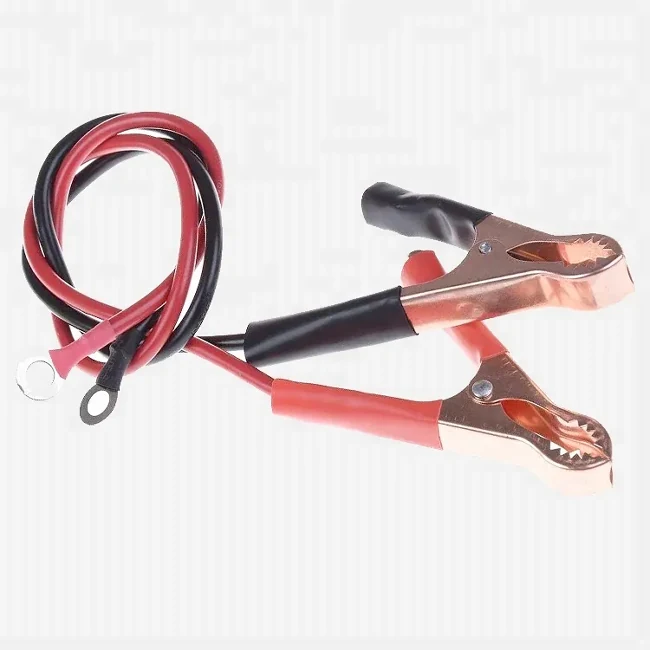

20A Alligator Clip Jumper Battery Charger Harness - Garfour view 2

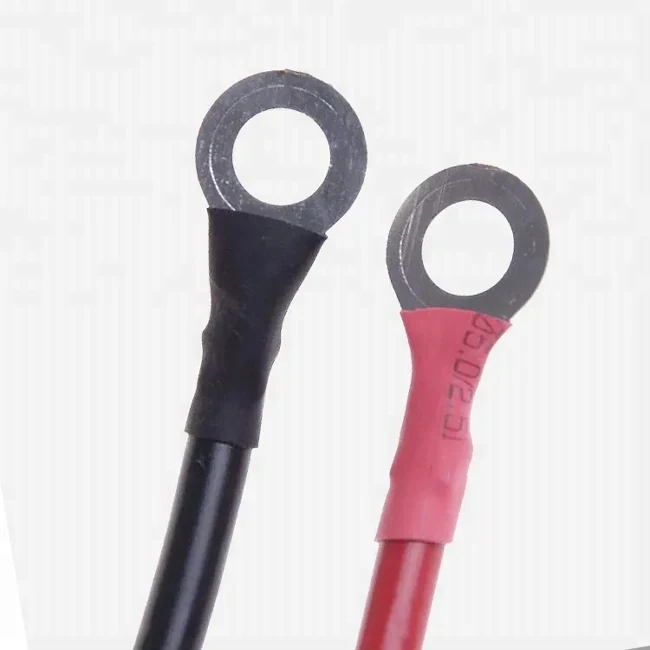

20A Alligator Clip Jumper Battery Charger Harness - Garfour view 3

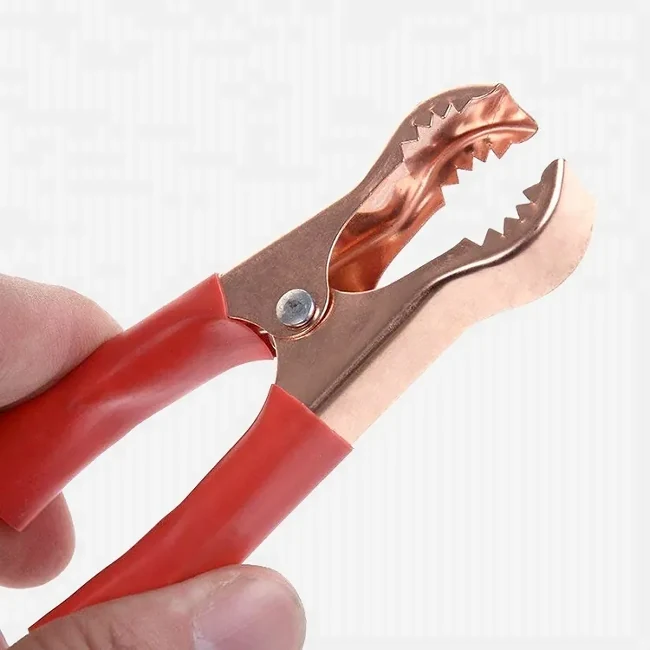

20A Alligator Clip Jumper Battery Charger Harness - Garfour view 4

20A Alligator Clip Jumper Battery Charger Harness - Garfour view 5

Automotive Wiring Harness

20A Alligator Clip Jumper Battery Charger Harness

A battery harness with 20A rated alligator clips, used on chargers, boosters and jump starters. The clip is the part that gets abused in service, so the jaw pressure and the cable termination decide how long the product lasts in the field.

20A rated clips sized for charger and booster output
Insulated jaws reduce the risk of a short across the battery post
Heavy conductor termination inside the clip body rather than a crimped tab
Built for repeated clamping cycles in workshop and roadside use

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

Weak clip springs slip off the battery post mid-charge
Thin clip leads overheat at the termination under boost current
Uninsulated jaws short against surrounding metal

Who It Is For

Battery charger manufacturers
Jump starter and booster brands
Automotive tool distributors

Application Scenarios

Battery chargers and maintainers
Jump starter and booster packs
Workshop and roadside battery service

Technical Features

20A alligator clips
Insulated jaw covers
Battery charger and booster circuit
Heavy gauge conductor termination

Specifications

Current Rating	20A
Termination	Alligator clip
Application	Car battery charger, booster, jump starter

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

Connector family and terminal type to your part numbers
Conductor gauge selected from the current per circuit
Finished length and breakout positions to your drawing
Jacket colour, marking and labelling to your scheme
Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Ring terminal charging leads

Clips suit service tools that move between vehicles

Light duty test clips

20A rated clips and conductors handle charger output rather than meter current

Use Guide

Connect positive first and remove it last when working on a vehicle battery
Clamp onto clean metal so the jaw makes full contact
Check the jaw springs periodically, a weak clip is the usual failure point

Other Assemblies In Automotive Wiring Harness

OBD2 Diagnostic Cable Harness For GPS Tracking Devices - Garfour view 1

Automotive Wiring Harness OBD2 Diagnostic Cable Harness For GPS Tracking DevicesOvermoulded OBD II 16 pin harness for vehicle GPS navigation and tracking View Specifications

Automotive Chassis Wire Harness Assembly - Garfour view 1

Automotive Wiring Harness Automotive Chassis Wire Harness AssemblyMoulded chassis harness and vehicle cable assembly built to customer layout View Specifications

Automotive Stereo Wire Harness Kit Looms - Garfour view 1

Automotive Wiring Harness Automotive Stereo Wire Harness Kit LoomsStereo harness kit looms for vehicle audio fitting programmes View Specifications

ISO Radio Wire Harness Adapter For European Vehicles - Garfour view 1

Automotive Wiring Harness ISO Radio Wire Harness Adapter For European VehiclesISO female radio adapter for Mercedes BMW Audi VW Toyota and Kia stereo systems View Specifications

Guides That Cover This Build

Buying Guide

How To Specify A Custom Wire Harness For Quotation

What a harness manufacturer actually needs from you before a quotation means anything, and what happens when those details are missing.

Process Guide

Four Tests That Decide Whether A Wire Harness Is Sound

Continuity, circuit configuration, terminal retention and ingress protection, and what each one catches that the others do not.

Buying Guide

What To Check Before Ordering A Standalone Engine Harness

Crank reluctor generation, throttle type and transmission control decide whether a standalone loom will run your engine at all.

20A Alligator Clip Jumper Battery Charger Harness FAQ

Can you supply higher current clips?

Yes. Send the charger output rating and we quote the matching clip and cable.

Can the lead length be specified?

Yes. Length is built to your requirement.

Is a sample confirmed before mass production of 20A Alligator Clip Jumper Battery Charger Harness?

Yes. Samples are confirmed prior to trial or mass production on every custom build, so the first production shipment is not the first time you see the part.

Can 20A Alligator Clip Jumper Battery Charger Harness be built to our own drawing?

Yes. We are open to OEM projects whenever you can provide a drawing or a physical sample, and the approved sample becomes the reference for repeat orders.

Where is the factory and can we visit?

Our factory is in Humen Town, Dongguan City, Guangdong Province, a 30 minute drive from Shenzhen International Airport. We welcome visits at any time.

Get A Price On 20A Alligator Clip Jumper Battery Charger Harness

Tell us the quantity, the finished length and any change to the connector set. We come back with the price, the lead time and a sample plan.
