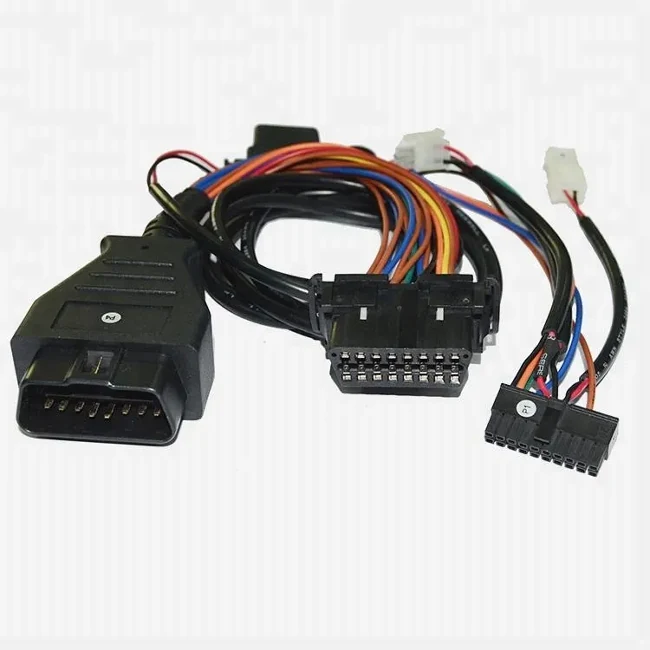

OBD2 Diagnostic Cable Harness For GPS Tracking Devices - Garfour view 2

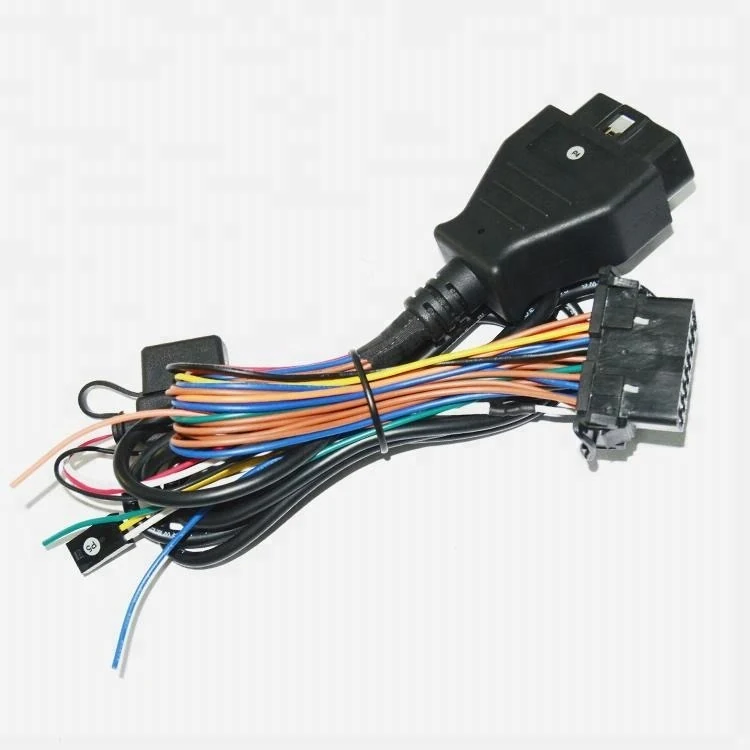

OBD2 Diagnostic Cable Harness For GPS Tracking Devices - Garfour view 3

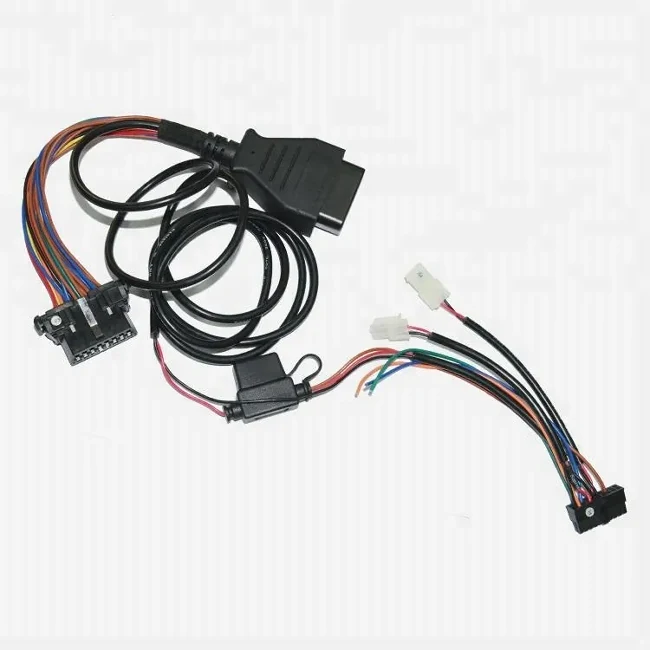

OBD2 Diagnostic Cable Harness For GPS Tracking Devices - Garfour view 4

OBD2 Diagnostic Cable Harness For GPS Tracking Devices - Garfour view 5

Automotive Wiring Harness

OBD2 Diagnostic Cable Harness For GPS Tracking Devices

An OBD2 diagnostic cable harness built with overmoulded 16 pin male and female ends on UL2464 cable, used for vehicle GPS navigation and tracking installations. The overmoulded body is what keeps the assembly alive in a vehicle that vibrates all day.

Overmoulded connector bodies survive vehicle vibration and repeated plugging
UL2464 cable with PVC jacket suited to in-cabin routing
Male and female ends allow a device to sit inline with the diagnostic port
Fuse box and connector options supplied within the same assembly family

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

Assembled connector hoods break apart under cabin vibration
Tapping the diagnostic port with bare wires creates intermittent faults
Devices fitted directly to the port block workshop diagnostics

Who It Is For

GPS tracking device manufacturers
Fleet telematics installers
Vehicle electronics distributors

Application Scenarios

GPS tracker and telematics installs
Fleet navigation hardware fitting
Vehicle data logging deployments

Technical Features

OBD II 16 pin male and female
UL2464 cable
PVC material
Overmoulded connector type
Fuse box and connector options

Specifications

Connector	OBD II 16 pin male and female
Material	PVC
Cable	UL2464
Connector Type	Overmoulded
Colour	Customer request
Usage	Vehicle GPS navigation and tracking

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

Connector family and terminal type to your part numbers
Conductor gauge selected from the current per circuit
Finished length and breakout positions to your drawing
Jacket colour, marking and labelling to your scheme
Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Assembled screw-shell OBD leads

Overmoulding removes the hood that vibrates apart in service

Hard-wired installs

A plug-in harness lets the device move between vehicles

Use Guide

Route the cable clear of the pedal box and steering column
Secure the device so its weight is not hanging on the diagnostic port
Confirm the vehicle port stays accessible for servicing

Other Assemblies In Automotive Wiring Harness

Automotive Chassis Wire Harness Assembly - Garfour view 1

Automotive Wiring Harness Automotive Chassis Wire Harness AssemblyMoulded chassis harness and vehicle cable assembly built to customer layout View Specifications

Automotive Stereo Wire Harness Kit Looms - Garfour view 1

Automotive Wiring Harness Automotive Stereo Wire Harness Kit LoomsStereo harness kit looms for vehicle audio fitting programmes View Specifications

ISO Radio Wire Harness Adapter For European Vehicles - Garfour view 1

Automotive Wiring Harness ISO Radio Wire Harness Adapter For European VehiclesISO female radio adapter for Mercedes BMW Audi VW Toyota and Kia stereo systems View Specifications

ISO Standard Amplifier Harness For Automotive Stereo - Garfour view 1

Automotive Wiring Harness ISO Standard Amplifier Harness For Automotive StereoISO standard amplifier harness for car stereo and audio video systems View Specifications

Guides That Cover This Build

Buying Guide

How To Specify A Custom Wire Harness For Quotation

What a harness manufacturer actually needs from you before a quotation means anything, and what happens when those details are missing.

Process Guide

Four Tests That Decide Whether A Wire Harness Is Sound

Continuity, circuit configuration, terminal retention and ingress protection, and what each one catches that the others do not.

Buying Guide

What To Check Before Ordering A Standalone Engine Harness

Crank reluctor generation, throttle type and transmission control decide whether a standalone loom will run your engine at all.

OBD2 Diagnostic Cable Harness For GPS Tracking Devices FAQ

Can the cable colour be changed?

Yes. Jacket colour is built to customer request.

Can you include a fuse holder in the assembly?

Yes. Fuse box and connector options are available within this build.

Can OBD2 Diagnostic Cable Harness For GPS Tracking Devices be built to our own drawing?

Yes. We are open to OEM projects whenever you can provide a drawing or a physical sample, and the approved sample becomes the reference for repeat orders.

Where is the factory and can we visit?

Our factory is in Humen Town, Dongguan City, Guangdong Province, a 30 minute drive from Shenzhen International Airport. We welcome visits at any time.

Which markets do you already supply?

We take on client projects each year from the United States, the United Kingdom, Germany, France, Mexico and Japan, with the United States as our core market.

Get A Price On OBD2 Diagnostic Cable Harness For GPS Tracking Devices

Tell us the quantity, the finished length and any change to the connector set. We come back with the price, the lead time and a sample plan.
