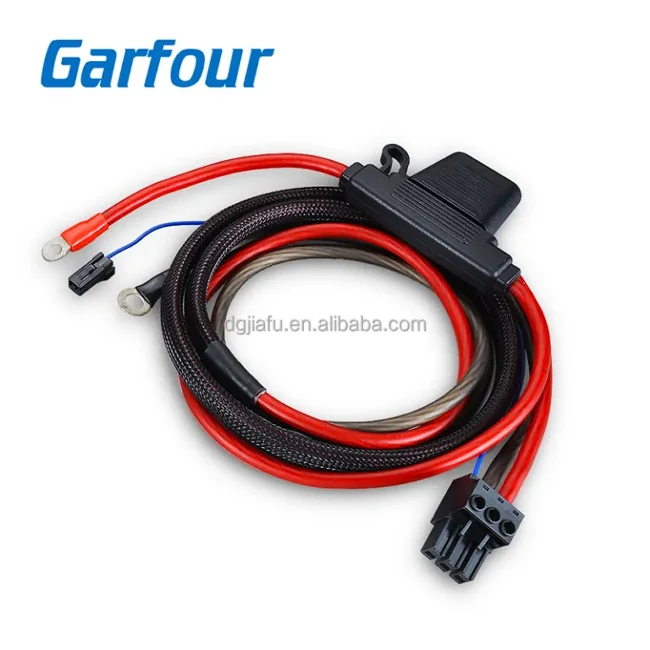

40A Fuse Box And 12V Relay Fog Light Wiring Harness Kit - Garfour view 1
40A Fuse Box And 12V Relay Fog Light Wiring Harness Kit - Garfour view 240A Fuse Box And 12V Relay Fog Light Wiring Harness Kit - Garfour view 340A Fuse Box And 12V Relay Fog Light Wiring Harness Kit - Garfour view 440A Fuse Box And 12V Relay Fog Light Wiring Harness Kit - Garfour view 540A Fuse Box And 12V Relay Fog Light Wiring Harness Kit - Garfour view 6
Automotive Wiring Harness

40A Fuse Box And 12V Relay Fog Light Wiring Harness Kit

A wiring harness kit combining a 40A fuse box and a 12V relay for automotive fog light and LED bar installations. Auxiliary lighting is the most common accessory added to a vehicle and the most common cause of melted wiring when it is fed off a switch.

  • Integrated fuse box protects the accessory circuit at the battery end
  • 40A relay handles LED bar and fog light current without loading the switch
  • Complete kit so the fitter is not sourcing fuse holders and relays separately
  • Built for 12V vehicle systems across cars, trucks and off-road builds
Request A Quote Email This Specification

Samples ship within 3 days of confirmation. Bulk lead time is typically 7 to 12 days.

Problems It Solves

  • Unfused accessory circuits are a fire risk in the engine bay
  • Dash switches carrying lighting current overheat
  • Mixed-source fuse holders and relays give an untidy and unreliable install

Who It Is For

  • Automotive lighting brands
  • Off-road accessory fitters
  • Workshops fitting auxiliary lighting

Application Scenarios

  • Fog light and driving light installs
  • LED light bar fitting on trucks and off-road vehicles
  • Auxiliary lighting on trailers and work vehicles

Technical Features

  • 40A fuse box
  • 12V relay
  • Fog light and LED circuit wiring
  • Complete kit build

Specifications

Fuse Rating40A
Relay12V automotive
ApplicationFog light and LED wiring
Product CertificatesCE, RoHS

Values shown are the standard build. Connector family, conductor gauge, circuit count and finished length are all build options.

Quality Control And Certification

  • Continuity And Circuit Verification. Verifies the physical arrangement sequence of the harness terminals and the circuit topology between them
  • Circuit Configuration Verification. Confirms that a complete, uninterrupted current flow path exists within each circuit
  • Terminal Retention Strength Test. Measures the mechanical reliability of the connection between the terminal and the wire
  • Ingress Protection Rating Test. Evaluates the dust and water resistance sealing performance of harness connectors

The company is certified to IATF 16949 and UL standards. Samples are confirmed prior to trial or mass production, and the approved sample is the reference for every repeat order.

Customization Options

  • Connector family and terminal type to your part numbers
  • Conductor gauge selected from the current per circuit
  • Finished length and breakout positions to your drawing
  • Jacket colour, marking and labelling to your scheme
  • Packing to your instruction, PE bag and carton as standard

Compared With The Alternatives

Switch-only wiring

A relay keeps the load current off the dash switch and its thin wiring

Loose component kits

A complete harness arrives terminated and consistent every time

Use Guide

  • Mount the fuse box within reach of the battery positive terminal
  • Route the loom away from exhaust heat and secure it every 300mm
  • Match the fuse rating to your light load rather than fitting a larger fuse
