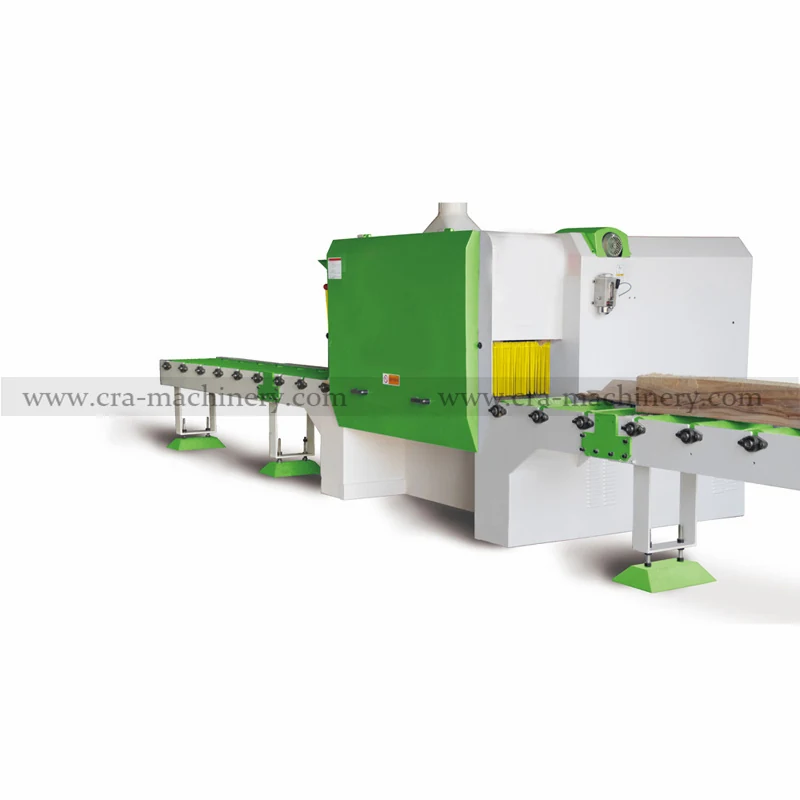

Big Square Wood Multichip Saw Blade Cutting Machine
The Big Square Wood Multichip Saw Blade Cutting Machine cuts square and round wood billets with high precision and smooth surface finish. It is an updated version of the original round wood multichip saw blade machine, featuring a new feeding system, smart converter for adjustable feeding speed,...
Product Overview
The Big Square Wood Multichip Saw Blade Cutting Machine cuts square and round wood billets with high precision and smooth surface finish. It is an updated version of the original round wood multichip saw blade machine, featuring a new feeding system, smart converter for adjustable feeding speed, and stable operation. The machine supports continuous sawing with a minimum length of 1000 mm and works on billets from 100 mm to 200 mm in width and depth. It is designed for sawmills and wood board plants that need consistent, repeatable cuts on hardwood and softwood billets.
Key Benefits
- Cuts both square and round wood billets on the same machine
- Smart converter adjusts feeding speed to match material type and blade condition
- Smooth surface finish reduces need for secondary sanding
- Stable performance with high operational safety
- Continuous sawing capability with minimum length of 1000 mm
- High-quality output with consistent edge finish across batches
Application Scenarios
- A sawmill upgrading from manual or semi-automatic sawing to a fully controlled cutting line
- A wood board plant producing dimensional lumber with consistent thickness and flatness
- A facility that processes both square and round billets and needs one machine to handle both
- A production line requiring stable, repeatable cuts without operator fatigue or variation
Who It Is For
- Sawmills processing hardwood and softwood billets
- Wood board plants producing dimension lumber or structural timber
- Manufacturers of wood-based panels that require precise billet preparation
- Factories producing custom wood profiles with tight dimensional control
Problems It Solves
- Manual or inconsistent feeding leads to uneven cuts and material waste
- Lack of adjustable feeding speed causes blade wear or poor surface finish
- Separate machines needed for square and round billets increase floor space and complexity
- Inconsistent cut quality requires additional sanding or rework
- Older machines lack safety features and stable performance under continuous operation
Technical Features
- New feeding system with smart converter for adjustable feeding speed
- Supports continuous sawing with minimum length of 1000 mm
- High stability in operation with consistent cutting pressure
- Smooth surface finish achieved through precise blade alignment and feed control
- Multi-chip saw blade design allows for clean, fast cuts on solid wood
- Machine structure designed for safe operation with minimal vibration
Specifications
| Model | 7200 HD, 7180 HD, 7160 HD, 7140 HD, 7120 HD |
|---|---|
| Max Working Width | 200 mm |
| Min Working Width | 100 mm |
| Max Working Depth | 200 mm |
| Min Working Depth | 100 mm |
| Min Sawing Length | 1000 mm |
| Total Motor Power | 47.7 to 77.7 kW |
| Working Voltage | Customized |
| Overall Size | 3300–3800 mm x 1520–1620 mm x 1460 mm |
| Weight | 3200–3950 kg |
| Feeding Speed | Smart converter adjustable |
| Sawing Type | Continuous, multi-chip blade |
Values taken from the manufacturer data for this model. Anything not listed is confirmed on request before order.
Materials
- Square wood billets from 100 mm to 200 mm in width and depth
- Round wood billets with diameter matching the machine's working depth range
- Hardwood and softwood billets suitable for multi-chip saw blades
- Pre-cut billets with straight ends for continuous feeding
Manufacturing And Process
Step 1
Load square or round wood billets into the feeding system
Step 2
Set the feeding speed using the smart converter based on material type and blade condition
Step 3
The machine feeds the billet through the multi-chip saw blade at a controlled rate
Step 4
The blade cuts the billet into uniform pieces with smooth surface finish
Step 5
Pieces are discharged continuously for stacking or further processing
Step 6
Monitor cut quality and adjust feeding speed or blade tension as needed
Quality Control
- Feeding speed adjusted via smart converter ensures consistent cut quality
- Blade alignment checked before each production run to prevent wobble or tear-out
- Sample cuts tested for surface smoothness and dimensional accuracy
- Machine operates with stable vibration levels; any deviation triggers inspection
- After-sales support includes remote diagnostics if cut quality drifts
Customization Options
- Voltage and phase configured for the destination market
- Feeding system adapted for specific billet sizes and throughput needs
- Blade mounting and tension system matched to the saw blade type used
- Machine can be quoted as part of a larger sawing line including feeders and conveyors
Compared With The Alternatives
| Original Round Wood Multichip Saw Blade Machine | The Big Square Wood version adds support for square billets and a new feeding system, while the original only handles round logs |
|---|---|
| Manual or semi-automatic sawing machines | This machine offers continuous operation, consistent cut quality, and reduced labor compared to manual feeding and sawing |
| Single-purpose square or round saws | One machine handles both square and round billets, reducing the need for multiple machines and floor space |
Use Guide
- Ensure billets are free of knots and debris before feeding to avoid blade damage
- Adjust the smart converter feeding speed based on wood density and blade sharpness
- Check blade alignment and tension before each shift to maintain cut quality
- Use only billets within the specified width and depth range to avoid overloading the machine
- Contact us on WhatsApp for the English operation video if the operator is new to this machine
Big Square Wood Multichip Saw Blade Cutting Machine FAQ
What types of wood can this machine cut?
It cuts both hardwood and softwood billets, including square and round logs, as long as they fit within the working width and depth range.
Can it handle both square and round billets?
Yes, the machine is designed to cut both square and round wood billets on the same setup.
What is the minimum sawing length?
The minimum sawing length is 1000 mm, with continuous cutting capability beyond that.
What is the lead time?
5 to 15 workdays if the machine is in stock, otherwise 15 to 60 workdays depending on model and quantity.
What are the payment terms?
Orders up to 10000 USD are 100% in advance. Above 10000 USD it is 30% T/T deposit with the balance before shipment.
Can you test my own billets before I buy?
Yes, free sample testing is available. You cover the freight and send the specific billet type you plan to run.
Is the machine available in different voltages?
Yes, the working voltage is customizable for the destination market.
