Connecting Machine
Machines that join wood pieces or battens into continuous laths for timber processing. Used by sawmills and wood board plants to replace manual joining with consistent, high-speed hydraulic connection.
Buyer Pain Points
What This Range Solves
- Manual wood piece joining causes inconsistent lath lengths and alignment issues in downstream cutting
- Hand assembly limits production to fewer than 10 laths per minute, slowing down the entire line
- Inconsistent joint strength leads to blade breakage or uneven cuts on the saw
- Repetitive manual work increases operator fatigue and risk of injury
- Changing joint types requires retooling and retraining, not quick setup
Fit
Who Buys It
- Sawmills producing dimension lumber or wood boards
- Wood board plants using continuous lath feeding systems
- Factories upgrading from manual to semi or full automatic wood joining
- Manufacturers needing repeatable lath lengths for precision sawing
Advantages
Why Buy It Here
- Hydraulic system ensures smooth, high-precision connections with consistent pressure

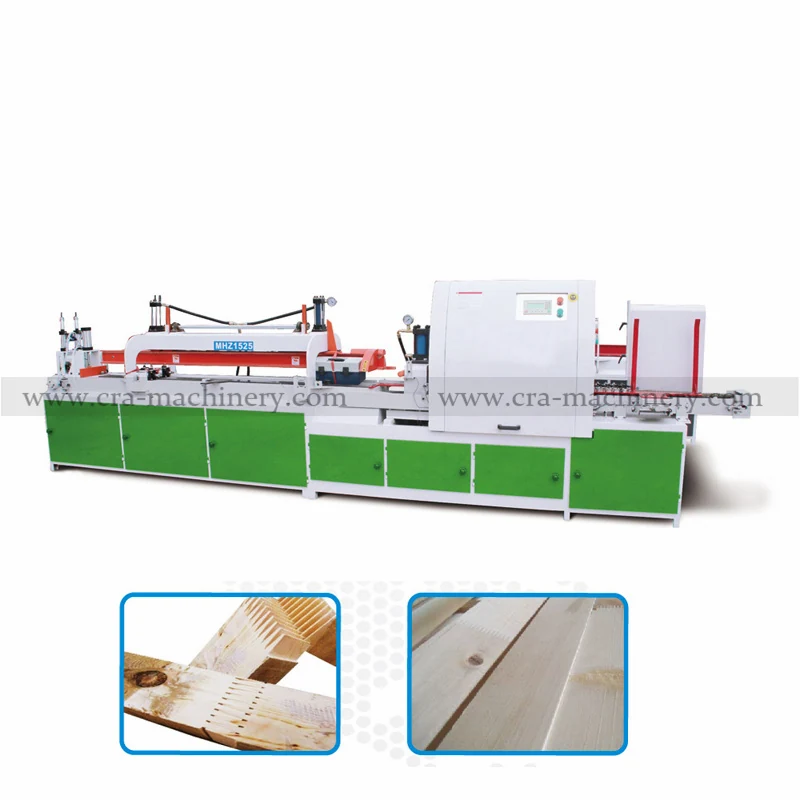

- 2480 Full Automatic model produces 10 to 16 laths per minute, increasing throughput
- 1825A Semi Automatic model supports batten lengths up to 2500 mm and widths up to 100 mm
- High stability and safety in operation with built-in pressure control and mechanical protection
- Power of cut and oil pump motor (4 kW) support continuous industrial use
- Machine interface and language in English, with support for international installation
Applications
Where It Is Used
- Replacing a manual lath joining station with a 2480 Full Automatic machine for higher output
- Adding a 1825A Semi Automatic machine to a wood processing line where full automation is not yet required
- Upgrading from hand-joined laths to machine-joined laths to reduce waste and improve saw blade life
- Integrating a connecting machine into a new timber cutting line with continuous feed saws
FAQ
Connecting Machine Questions
What is the production rate of the 2480 Full Automatic model?
It can produce 10 to 16 laths per minute, depending on material and setup.
What is the maximum batten length for the 1825A Semi Automatic model?
The maximum batten length is 2500 mm.
What is the saw blade diameter for the 1825A model?
The saw blade diameter is 255 mm.
What power does the oil pump motor use?
The oil pump motor power is 4 kW.
Can the machine handle different batten widths?
Yes, the 1825A model supports a maximum batten width of 100 mm.
What is the maximum connect pressure?
The maximum connect pressure is 5000 kg.
Is installation and training included?
Yes, installation and operation training are included, with lifetime free consulting available.
Quote The Connecting Machine Range
Send the sizes, structures and quantities you need and we price the list against your specification.
