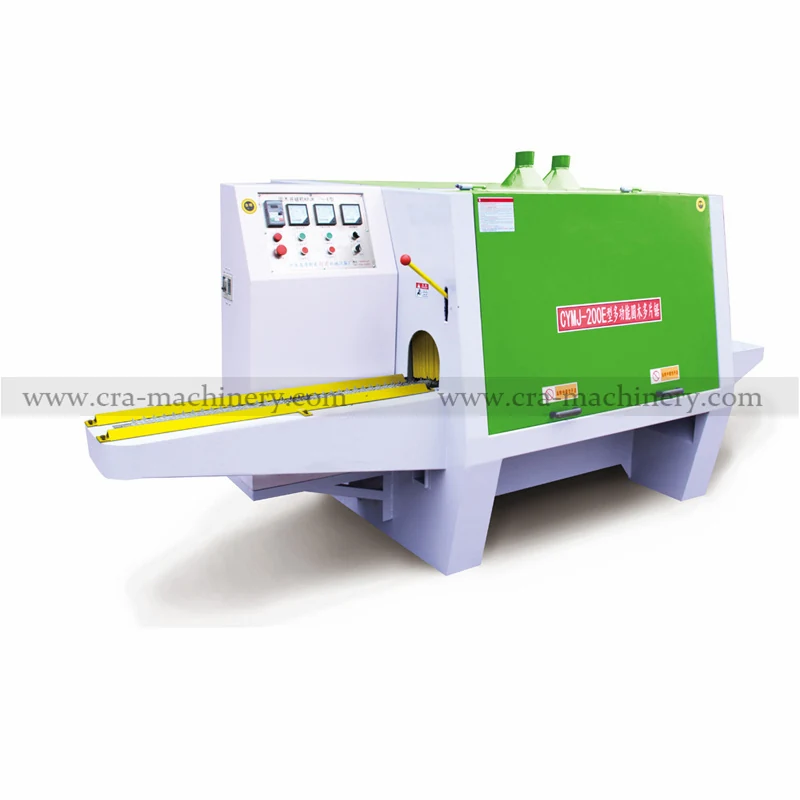

200E Single/double Chain Multi Dip Wood Logs Saw Blade Cutting Machine
The 200E Single/double Chain Multi Dip Wood Logs Saw Blade Cutting Machine cuts logs into boards using ultra thin saw blades. It handles logs from 40 mm to 300 mm in diameter and up to 3000 mm in length. The single chain model is for smaller logs, the double chain model adds automatic centering and...
Product Overview
The 200E Single/double Chain Multi Dip Wood Logs Saw Blade Cutting Machine cuts logs into boards using ultra thin saw blades. It handles logs from 40 mm to 300 mm in diameter and up to 3000 mm in length. The single chain model is for smaller logs, the double chain model adds automatic centering and stable feeding. Both models use variable frequency control for smooth operation and produce wood with a smooth surface finish. The material yield is above 80% per cut. This machine is part of a timber wood processing line.
Key Benefits
- Uses ultra thin saw blades to reduce material waste and increase yield above 80%
- Single or double chain feeding options for different log sizes and processing needs
- Variable frequency V-link plate for smooth and stable material feeding
- Automatic centering on the double chain model improves cut accuracy
- Smooth surface finish on processed logs without additional sanding
- Customizable working voltage to match local power supply
- Handles logs up to 3000 mm in length with consistent results
Application Scenarios
- A sawmill upgrading from manual or semi-automatic log cutting to automated multi-dip sawing
- A wood board plant needing consistent board thickness and smooth surface finish
- A facility processing small to medium logs (40 to 200 mm) with high yield and low waste
- A production line adding double chain feeding for larger logs (120 to 250 mm) with automatic centering
- A factory replacing older sawing machines with a modern, stable, and safer multi-dip system
Who It Is For
- Sawmills and wood processing plants
- Lumber producers making dimension boards from logs
- Wood board manufacturers needing high yield and smooth finish
- Factories producing furniture or construction timber from raw logs
- Industrial wood processors integrating automated sawing into their line
Problems It Solves
- Manual log cutting leads to inconsistent board thickness and high material waste
- Older machines lack automatic centering, causing skewed cuts and uneven boards
- Low yield from thick saw blades or poor feed control increases raw material cost
- Inconsistent feeding causes vibration, safety risks, and surface defects
- No integration between feeding and sawing systems leads to downtime and misalignment
Technical Features
- Ultra thin saw blade for fine machining and high material yield
- Single or double chain feeding system depending on model
- Variable frequency drive for V-link plate to control feeding speed
- Automatic centering on double chain model for consistent cuts
- Guide line plate with precise dimensions to support the log during cutting
- Stable hydraulic or mechanical feed system to prevent log drift
Specifications
| Model | 200E Single Chain / Double Chain Multi Dip Logs Saw Blade Cutting Machine |
|---|---|
| Saw Blade Diameter | 305 mm |
| Guide Line Plate Size | 250*2.65*2.1*50(10*5) |
| Min Process Diameter | 60 mm |
| Max Process Diameter | 200 mm |
| Min Process Length | 400 mm |
| Max Process Length | 3000 mm |
| Motor Power | 45 kW |
| Working Voltage | Customized |
| Material Production Rate | Above 80% |
| Cutting Type | Multi Dip |
| Feeding System | Single or Double Chain |
| Control System | Variable Frequency V-link Plate |
| Surface Finish | Smooth |
| Stability | High |
Values taken from the manufacturer data for this model. Anything not listed is confirmed on request before order.
Materials
- Raw logs with diameter from 60 mm to 200 mm
- Logs up to 3000 mm in length
- Hardwood and softwood species suitable for sawing
- Ultra thin saw blades (supplied separately)
- Guide line plates for log support during cutting
Manufacturing And Process
Step 1
Load the log into the machine with the chain feeding system
Step 2
Set the desired cut depth and feeding speed via the variable frequency control
Step 3
The log is fed through the saw blade in a multi-dip pattern for consistent thickness
Step 4
The guide line plate supports the log to prevent drift and ensure straight cuts
Step 5
The cut board is ejected after the saw blade completes the pass
Step 6
Repeat the process for multiple cuts or different log sizes
Quality Control
- Saw blade alignment checked before each production run
- Guide line plate adjusted to match log diameter and ensure even feed
- Variable frequency control calibrated to prevent overloading or skipping
- Sample cut boards inspected for thickness consistency and surface quality
- Machine tested under full load before shipment to verify stability
Customization Options
- Working voltage customized for the destination country's power supply
- Saw blade diameter and guide line plate size selected based on log size
- Single or double chain feeding system chosen based on production volume and log size
- Machine can be quoted as part of a full timber wood processing line
Compared With The Alternatives
| 148E Single Chain Model | The 148E covers 40 to 140 mm logs; choose it for smaller logs and lower power needs, while the 200E handles larger logs up to 200 mm |
|---|---|
| 250E Double Chain Model | The 250E handles logs up to 250 mm diameter; the 200E is for logs up to 200 mm with lower power and cost |
| Manual Log Sawing | Manual sawing requires more labor, has inconsistent cuts, and yields less material; the 200E automates feeding and improves yield above 80% |
Use Guide
- Ensure the log diameter is within the machine's min and max range before cutting
- Select the correct chain type (single or double) based on log size and feeding stability
- Adjust the variable frequency control to match the log hardness and feed speed
- Check the guide line plate alignment before each run to prevent blade drift
- Use ultra thin saw blades to maintain high material yield and smooth finish
- Contact us on WhatsApp for the English operation video if the operator is new
200E Single/double Chain Multi Dip Wood Logs Saw Blade Cutting Machine FAQ
What is the maximum log diameter this machine can process?
Up to 200 mm for the 200E model. For logs up to 250 mm, use the 250E model instead.
Can it handle both single and double chain feeding?
Yes. The 200E is available in both single chain (for smaller logs) and double chain (for larger logs with automatic centering) configurations.
What is the material yield rate?
Above 80% per cut, due to the use of ultra thin saw blades and precise machining.
What is the maximum length of log it can cut?
Up to 3000 mm in length, with consistent results across the full length.
What is the lead time?
5 to 15 workdays if the machine is in stock, otherwise 15 to 60 workdays depending on quantity and model.
What are the payment terms?
Orders up to 10000 USD are 100% in advance. Above 10000 USD it is 30% T/T deposit with the balance before shipment.
Can you test my own logs before I buy?
Yes, free sample testing is available. You cover the freight and send the specific logs you plan to run.
