Fold and Stitch Machine&Fabric Feed Rack for Pleated Buffs Produce

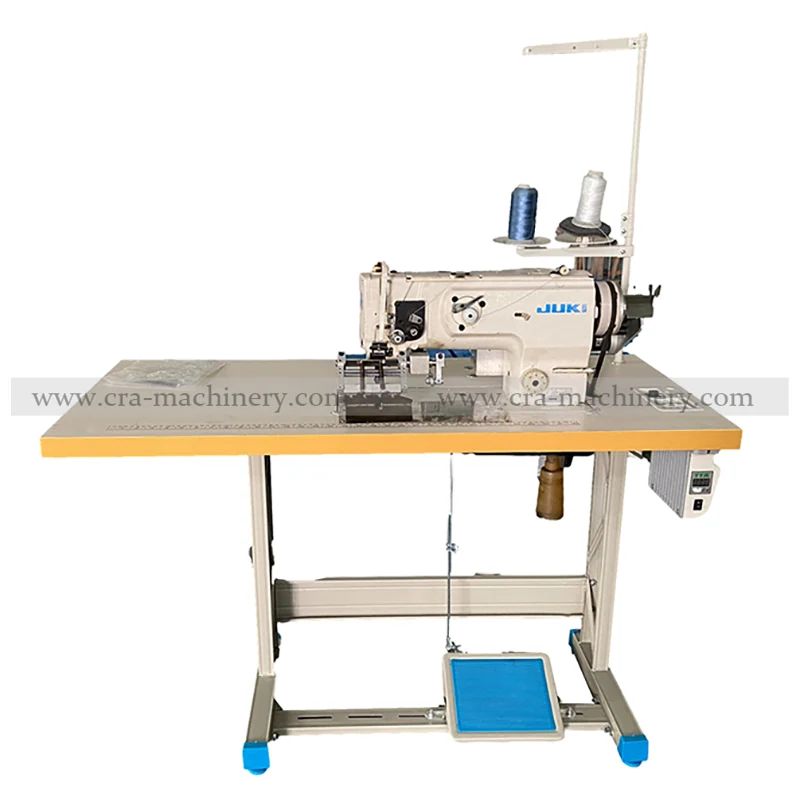

The Fold and Stitch Machine with Fabric Feed Rack prepares fabric for pleated buffing wheels by folding and stitching multiple layers. It is a modified sewing machine with a refitted gearbox and folding system, designed for high-speed operation by one person. The system includes a 6-layer automatic...
Product Overview
The Fold and Stitch Machine with Fabric Feed Rack prepares fabric for pleated buffing wheels by folding and stitching multiple layers. It is a modified sewing machine with a refitted gearbox and folding system, designed for high-speed operation by one person. The system includes a 6-layer automatic fabric feeding rack. It handles fabric preparation before pressing and trimming steps in a pleated buffing wheel production line.
Key Benefits
- One operator can run the entire folding and stitching process
- High speed of 2 folds per second reduces manual labour and cycle time
- Adjustable fold width from 7 to 30 mm and fold distance from 0 to 50 mm for flexible wheel designs
- Integrated 6-layer fabric feeding rack ensures consistent material supply
- Built on a refitted sewing machine base with dedicated folding system for stable performance
- Reduces variability in pleat spacing compared to hand folding
Application Scenarios
- A buffing wheel factory replacing manual folding and stitching of pleated wheel fabric
- An abrasive manufacturer adding pleated buff production in-house without hiring multiple workers
- A workshop upgrading from hand methods to mechanised fabric prep for consistent pleat quality
- A production line needing a fast, reliable fabric preparation step before pressing and trimming
Who It Is For
- Buffing and polishing wheel manufacturers
- Abrasive product makers producing pleated buffing wheels
- Metal finishing shops that use custom pleated buffs in volume
- Distributors setting up local production to reduce import dependency
Problems It Solves
- Manual folding and stitching of pleated buff fabric leads to inconsistent pleat spacing and uneven pressure during pressing
- Hand labour limits output and increases labour cost per wheel
- Inconsistent fabric prep causes variation in final wheel density and performance
- Lack of automated feeding leads to downtime and misalignment during stitching
Technical Features
- Modified sewing machine with refitted gearbox for high-speed operation
- Integrated folding system with adjustable fold width and distance
- 6-layer automatic fabric feeding rack for continuous material supply
- Controlled folding speed of 2 folds per second
- Adjustable fold width from 7 mm to 30 mm
- Adjustable fold distance from 0 mm to 50 mm
Specifications
| Model | Fold and Stitch Machine with Fabric Feed Rack |
|---|---|
| Machine Size | 1200 mm x 1000 mm x 550 mm |
| Feeding Rack Size | 2400 mm x 1000 mm x 550 mm |
| Weight | 100 kg |
| Fold Width | 7 to 30 mm adjustable |
| Fold Distance | 0 to 50 mm adjustable |
| Speed | 2 folds per second |
| Layers Fed | 6 layers |
Values taken from the manufacturer data for this model. Anything not listed is confirmed on request before order.
Materials
- Plain or treated cotton fabric
- Sisal fabric
- Fabric rolls cut to width for pleated buffing wheel prep
- Thread for stitching (buyer supplied)
Manufacturing And Process
Step 1
Load fabric rolls onto the 6-layer automatic feeding rack
Step 2
Set the fold width and fold distance on the machine controls
Step 3
Start the machine; fabric feeds automatically through the folding and stitching system
Step 4
The machine folds and stitches each layer at 2 folds per second
Step 5
The finished folded and stitched fabric stack is removed for pressing
Step 6
The pressed stack goes to edge trimming or final assembly
Quality Control
- Fold width and distance are adjustable and repeatable across batches
- Sample stitching runs are tested before shipment
- Free sample testing available on buyer's fabric before purchase
- Installation and operation training provided to ensure correct setup
Customization Options
- Fold width and distance settings can be adjusted for different pleat designs
- Feeding rack can be modified for different fabric roll sizes
- Machine can be quoted as part of a full pleated buff production line
- Voltage and phase configured for the destination market
Compared With The Alternatives
| Manual folding and stitching of pleated buff fabric | Hand methods are slower, inconsistent in pleat spacing, and require multiple workers per shift |
|---|---|
| CRA-800 Bias Airway Buffs Forming Machine | The CRA-800 forms ventilated airway wheels; this machine is for pleated buff fabric prep only |
| CRA-600 Pressing Machine | The pressing machine compresses the folded stack; this machine prepares the stack for pressing |
Use Guide
- Ensure fabric rolls are properly aligned on the feeding rack to avoid skewing
- Set fold width and distance before starting; changes take less than 1 minute
- Check stitching tension regularly to prevent thread breakage or loose seams
- Use the same fabric type and thickness across batches to maintain consistency
- Contact us on WhatsApp for the English operation video if the operator is new
Fold and Stitch Machine&Fabric Feed Rack for Pleated Buffs Produce FAQ
What is the maximum fold width and distance?
Fold width is adjustable from 7 mm to 30 mm. Fold distance is adjustable from 0 mm to 50 mm.
How many layers can the feeding rack handle?
The feeding rack supports 6 layers of fabric at once.
How fast does the machine run?
It operates at 2 folds per second, suitable for high-volume production.
Can one person run this machine?
Yes. One operator can load, monitor, and remove the folded fabric stack.
What is the lead time?
5 to 15 workdays if in stock, otherwise 15 to 60 workdays depending on quantity and model.
What are the payment terms?
Orders up to 10000 USD are 100% in advance. Above 10000 USD, it is 30% T/T deposit with the balance before shipment.
Can you test my fabric before I buy?
Yes, free sample testing is available. You cover freight and send the specific fabric you plan to use.
