High Speed Polish Compound Machine Polish Paste Mixer Tank
The High Speed Polish Compound Machine is a double-layer vertical mixing tank made of 304 stainless steel, designed for blending liquid, powder, and pellet materials into uniform paste. It supports standalone or integrated operation in automated production lines. The tank has a 500L, 1000L, or...
Product Overview

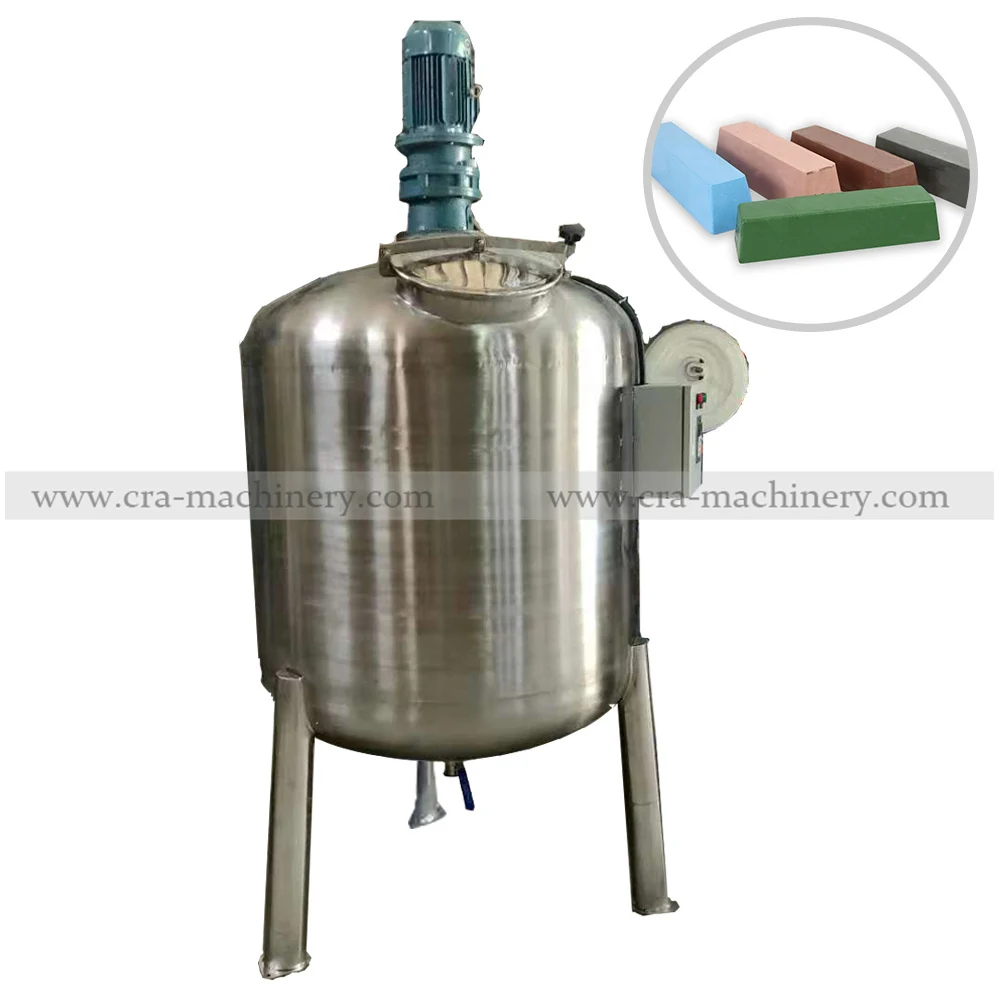

The High Speed Polish Compound Machine is a double-layer vertical mixing tank made of 304 stainless steel, designed for blending liquid, powder, and pellet materials into uniform paste. It supports standalone or integrated operation in automated production lines. The tank has a 500L, 1000L, or 1500L capacity, adjustable stirring speed up to 1440 RPM, and temperature control from 0 to 200 degrees Celsius. It features a single-side flip cover, bottom discharge, and options for electric or steam heating, cooling, and process ports.
Key Benefits
- Mixes liquid, powder, and pellets into consistent paste in one step
- Adjustable temperature from 0 to 200 degrees for thermal control during mixing
- Stirring speed adjustable from 0 to 1440 RPM to match material viscosity
- 304 stainless steel construction with mirror polish for easy cleaning and corrosion resistance
- Can be used standalone or connected to automated filling, sealing, and labeling lines
- Bottom discharge with 2-inch outlet allows for efficient material transfer
Application Scenarios
- A polishing compound manufacturer scaling from small batches to mass production
- A metal finishing shop integrating paste mixing into a continuous polishing line
- A cookware or sanitary ware producer making custom polish pastes in-house
- A facility adding automated filling and labeling after mixing, using the tank as a central unit
- A factory needing temperature control during mixing for sensitive chemical formulations
Who It Is For
- Polishing compound producers
- Metal finishing and surface treatment facilities
- Food, pharmaceutical, and chemical manufacturers using paste formulations
- Companies producing abrasive pastes, glues, or polymer-based materials
- Factories integrating mixing into automated production lines
Problems It Solves
- Manual mixing leads to inconsistent paste quality and batch variation
- Lack of temperature control causes material degradation or poor homogenization
- Inability to scale from small batches to full production without new equipment
- No integration point between mixing and automated filling or labeling systems
- Contamination risk from non-stainless or poorly polished mixing surfaces
Technical Features
- Double-layer vertical tank with 304 stainless steel body and heating layer, 3.0 mm thickness
- Mirror-polished inside and outside surfaces for hygiene and easy cleaning
- Single-side flip cover for feeding and visual inspection
- 1-inch feed port on top, 2-inch bottom discharge port
- 18.5 kW motor with adjustable stirring speed up to 1440 RPM
- Dispersion plate stirring structure with disassemblable shaft and 304 stainless steel contact parts
- Heating layer with three 18 kW heating tubes, thermostat-controlled temperature adjustment
- Optional electric or steam heating, cooling device, and process ports (feed, discharge, observation, pressure, safety vent)
- Three round feet with 300 mm ground clearance for stability and access
- Electric control box with wiring for operation and safety monitoring
Specifications
| Model | High Speed Polish Compound Machine |
|---|---|
| Tank Capacity | 500L, 1000L, 1500L optional |
| Material Contact Surface | 304 Stainless Steel 3.0 mm thickness |
| Heating Layer Material | 304 Stainless Steel 3.0 mm thickness |
| Tank Shape | Double-layer vertical with flat top and lower head structure |
| Cover Type | Single-side flip cover |
| Discharge Port | Bottom 2-inch outlet |
| Stirring Motor Power | 18.5 kW |
| Stirring Speed Range | 0 to 1440 RPM adjustable |
| Stirring Structure | Dispersion plate |
| Heating Power | 18 kW (3 tubes) |
| Temperature Range | 0 to 200 degrees Celsius adjustable |
| Control System | Stainless steel electric control box with wiring |
| Machine Dimensions | Custom based on capacity |
| Weight | Custom based on capacity |
Values taken from the manufacturer data for this model. Anything not listed is confirmed on request before order.
Materials
- Liquid pastes and slurries
- Powdered abrasives and fillers
- Pellets and granules
- Chemical additives and binders
- Food-grade and pharmaceutical-grade formulations
- Polymer and adhesive compounds
Manufacturing And Process
Step 1
Load liquid, powder, or pellets through the 1-inch feed port on the top cover
Step 2
Close the single-side flip cover and start the mixer at adjustable speed
Step 3
Set temperature via thermostat if heating or cooling is required
Step 4
Run the mixing cycle until material is homogenized and consistent
Step 5
Open the bottom discharge port to transfer paste to next stage
Step 6
For automated lines, connect to quantitative filling, sealing, and labeling systems
Quality Control
- All material contact surfaces are mirror polished to prevent residue buildup
- Heating and stirring systems tested at full capacity before shipment
- Temperature control verified across the 0 to 200 degree range
- Sample mixing run provided upon request with buyer's materials
- Control panel and wiring inspected for safety and function
Customization Options
- Tank capacity selected from 500L, 1000L, or 1500L
- Heating type configured as electric or steam based on site setup
- Optional cooling device added for temperature-sensitive materials
- Process ports (feed, discharge, observation, pressure, safety vent) added as needed
- Voltage and phase configured for the destination market
- Can be quoted as part of a full automated production line with filling and labeling
Compared With The Alternatives
| Manual Mixing in Open Tanks | Manual mixing lacks temperature control, consistent speed, and hygiene; this machine ensures repeatable paste quality and easier cleaning |
|---|---|
| Single-Layer Mixing Tanks | Single-layer tanks lack insulation and heating/cooling capability; this double-layer design maintains temperature during processing |
| Small Benchtop Mixers | Benchtop mixers are limited to small batches; this tank supports scalable production from 500L to 1500L |
Use Guide
- Ensure all feed materials are compatible with 304 stainless steel and temperature range
- Use the thermostat to set temperature before starting the mixing cycle
- Adjust stirring speed based on material viscosity—start low and increase gradually
- Clean the tank and stirrer after each batch to prevent cross-contamination
- For automated lines, verify connection points with filling and sealing equipment before full integration
High Speed Polish Compound Machine Polish Paste Mixer Tank FAQ
What capacities are available?
500L, 1000L, and 1500L are available as standard options.
Can I control the temperature during mixing?
Yes, temperature is adjustable from 0 to 200 degrees Celsius using the built-in thermostat.
What is the stirring speed range?
Stirring speed is adjustable from 0 to 1440 RPM.
Can this machine be connected to an automated filling line?
Yes, it has a bottom discharge port and can be integrated into automated filling, sealing, and labeling lines.
What materials can be mixed?
It can mix liquids, powders, and pellets, including those used in pharmaceuticals, food, chemicals, and polishing compounds.
What is the lead time?
5 to 15 workdays if in stock; 15 to 60 workdays for made-to-order machines depending on capacity and configuration.
What are the payment terms?
Orders up to 10000 USD are 100% in advance. Above 10000 USD, it is 30% T/T deposit with the balance before shipment.
