New Arrive Big Round Wood Multichip Saw Blade Cutting Machine
The New Arrive Big Round Wood Multichip Saw Blade Cutting Machine cuts large-diameter round wood logs up to 600 mm in diameter and up to 10,000 mm in length. It features an infinitely adjustable feeding table, automatic V-shaped chain feeder, automatic centering calibration, and strong feeding...
Product Overview

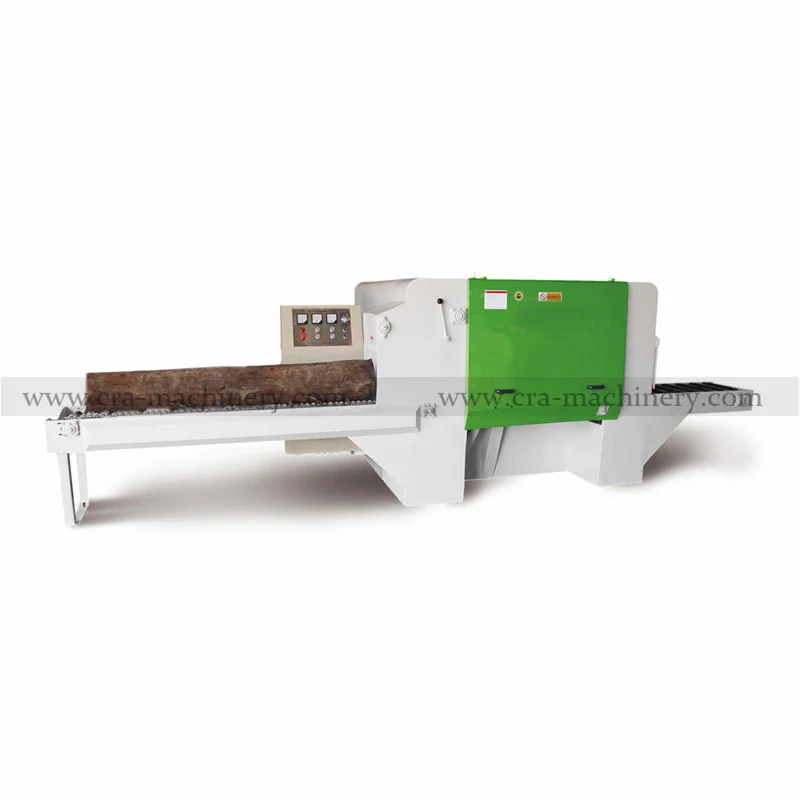

The New Arrive Big Round Wood Multichip Saw Blade Cutting Machine cuts large-diameter round wood logs up to 600 mm in diameter and up to 10,000 mm in length. It features an infinitely adjustable feeding table, automatic V-shaped chain feeder, automatic centering calibration, and strong feeding power. The machine ensures stable operation, smooth cutting surface, and high-quality finish. It is designed for continuous production of large timber sections in sawmills and wood processing plants.
Key Benefits
- Cuts round wood logs up to 600 mm diameter and 10,000 mm length
- Infinitely adjustable feeding speed for consistent feed control
- Automatic V-shaped chain feeder ensures even material handling
- Automatic centering calibration keeps logs aligned during cutting
- High feeding power supports large and dense wood logs
- Stable performance and smooth cutting surface reduce rework and waste
Application Scenarios
- A sawmill upgrading from manual or semi-automatic cutting to full automation for large round logs
- A wood board plant needing to process high-volume timber with consistent thickness and smooth finish
- A facility producing large-diameter lumber for construction or furniture that requires precise, repeatable cuts
- A workshop replacing older machines with a modern system that reduces operator effort and increases throughput
Who It Is For
- Sawmills processing large-diameter round wood logs
- Wood board and timber production plants
- Manufacturers of structural lumber and large wood components
- Wood processing facilities requiring high-throughput, stable cutting performance
Problems It Solves
- Manual or semi-automatic feeding leads to inconsistent cut quality and operator fatigue
- Logs not centered during cutting cause uneven thickness and material waste
- Fixed feeding speed cannot adapt to different wood types or log sizes
- Low feeding power limits the size and density of logs that can be processed
- Older machines lack automatic calibration, leading to frequent alignment adjustments
Technical Features
- Lengthened feeding table with infinitely adjustable speed
- Automatic frequency changer for variable feeding speed control
- V-shaped chain feeder for stable and even wood transport
- Automatic centering calibration to align logs in the middle of the cutting path
- Strong feeding power to handle large and dense round wood logs
- Stable mechanical structure for consistent cutting performance and smooth surface finish
Specifications
| Model | 600 500 450 350 |
|---|---|
| Max Working Diameter | 600 mm |
| Min Working Diameter | 300 mm |
| Min Sawing Length | 1500 mm |
| Total Motor Power | 220 kW |
| Overall Size | 6000 x 2500 x 2000 mm |
| Weight | 6500 kg |
| Feeding Speed | Automatic frequency change |
| Cutting Blade Type | Multichip saw blade |
| Operation Mode | Automatic with manual override |
Values taken from the manufacturer data for this model. Anything not listed is confirmed on request before order.
Materials
- Round wood logs up to 600 mm in diameter
- Round wood logs up to 10,000 mm in length
- Hardwood and softwood logs with varying density
- Logs with bark or surface irregularities (within machine tolerance)
Manufacturing And Process
Step 1
Place the round wood log onto the feeding table at the machine entrance
Step 2
Activate the automatic centering calibration to align the log to the middle of the cutting path
Step 3
Adjust feeding speed using the infinitely variable frequency changer based on log size and wood type
Step 4
The V-shaped chain feeder pulls the log into the cutting zone at a consistent rate
Step 5
The multichip saw blade cuts the log into sections with a smooth, flat surface
Step 6
The cut sections are discharged from the machine for further processing or stacking
Quality Control
- Automatic centering calibration ensures consistent alignment before each cut
- Feeding speed adjusted to match wood density and log size to prevent blade strain
- Machine tested under load before shipment with sample logs to verify cutting accuracy
- Free sample testing available using the buyer’s own logs before purchase
- Installation and operation training provided to ensure correct setup and alignment
Customization Options
- Voltage and phase configured for the destination market
- Feeding table length adjusted for specific log handling requirements
- Blade mounting system adapted to different multichip saw blade sizes
- Machine can be quoted as part of a full timber processing line including debarkers and conveyors
Compared With The Alternatives
| Standard Round Wood Saw Machine | This machine has automatic centering and infinitely adjustable feeding speed; standard models lack these features and require manual alignment |
|---|---|
| Small Diameter Wood Cutting Machine | Designed for logs up to 600 mm; smaller machines max out at 350 mm and cannot handle large timber sections |
| Manual Log Feeding System | Automated feeding reduces operator workload and improves consistency; manual systems are slower and prone to misalignment |
Use Guide
- Ensure logs are free of large debris or metal before feeding to avoid blade damage
- Adjust feeding speed based on wood density—slower for hard logs, faster for soft logs
- Use the automatic centering function before each batch to maintain cut accuracy
- Inspect the multichip saw blade regularly for wear and replace when cutting quality declines
- Contact us on WhatsApp for the English operation video if the operator is new to large round log cutting
New Arrive Big Round Wood Multichip Saw Blade Cutting Machine FAQ
What is the maximum log diameter this machine can cut?
600 mm. For logs below 350 mm, use the smaller model variants.
What is the minimum length of wood that can be cut?
1500 mm. Shorter pieces may not be stable during feeding.
Can the feeding speed be adjusted during operation?
Yes, the feeding speed is infinitely adjustable via automatic frequency changer.
What type of saw blade is used?
Multichip saw blade. The machine is designed to accommodate standard multichip blades for large-diameter logs.
What is the lead time for delivery?
5 to 15 workdays if in stock, otherwise 15 to 60 workdays depending on model and quantity.
What are the payment terms?
Orders up to 10000 USD are 100% in advance. Above 10000 USD, it is 30% T/T deposit with the balance before shipment.
Can you test my own logs before I buy?
Yes, free sample testing is available. You cover freight and send the logs you plan to process.
